VIP-AM-WAG

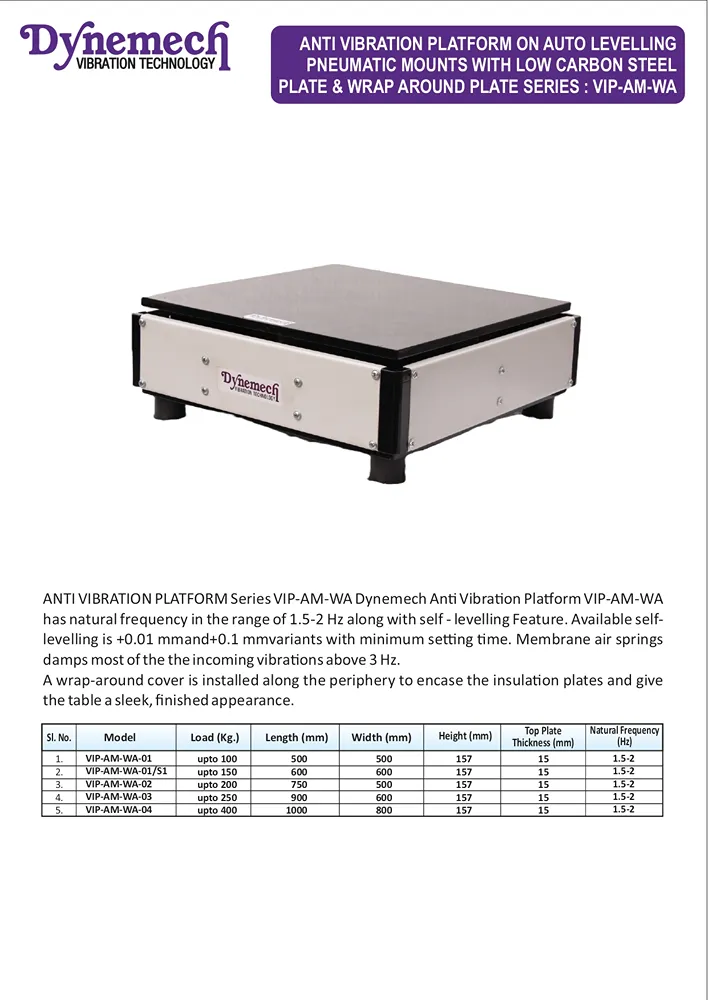

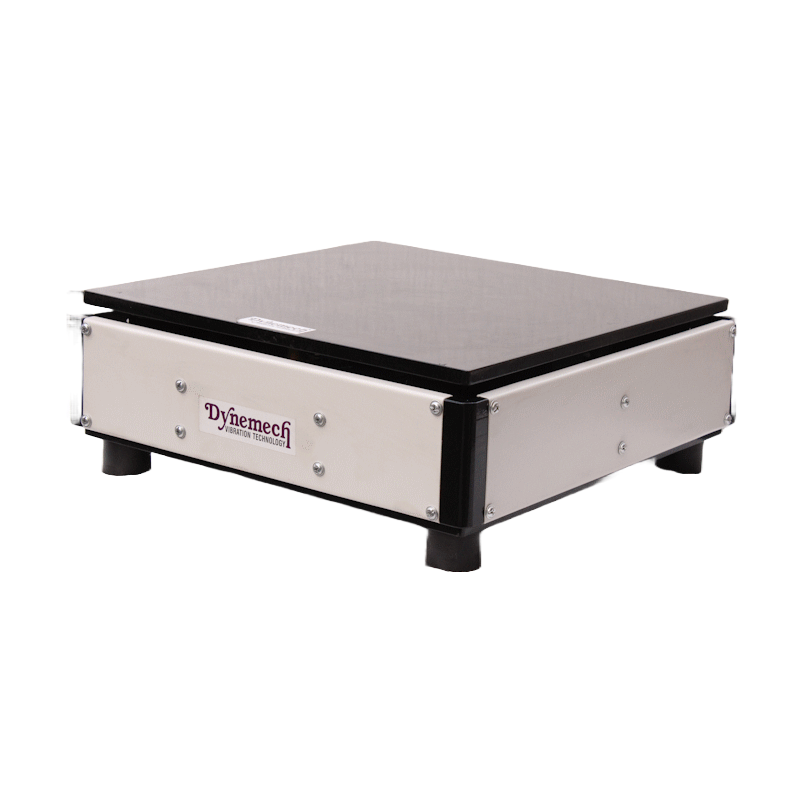

ANTI VIBRATION PLATFORM Series VIP-AM-WA Dynemech Anti Vibration Platform VIP-AM-WA has natural frequency in the range of 1.5-2 Hz along with self - levelling Feature. Available self-levelling is +0.01 mmand+0.1 mmvariants with minimum setting time. Membrane air springs damps most of the the incoming vibrations above 3 Hz. A wrap-around cover is installed along the periphery to encase the insulation plates and give the table a sleek, finished appearance.
Documents
5 Models
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Low Carbon Steel Plate Thickness T (Mm) |
|---|---|---|---|---|---|
| VIP-AM-WAG-01 | upto 100 | 500 | 500 | 157 | 15 |
| VIP-AM-WAG-01-S1 | upto 150 | 600 | 600 | 157 | 15 |
| VIP-AM-WAG-02 | upto 200 | 750 | 500 | 157 | 15 |
| VIP-AM-WAG-03 | upto 250 | 900 | 600 | 157 | 15 |
| VIP-AM-WAG-04 | upto 400 | 1000 | 800 | 157 | 15 |
