VIP-E-GN

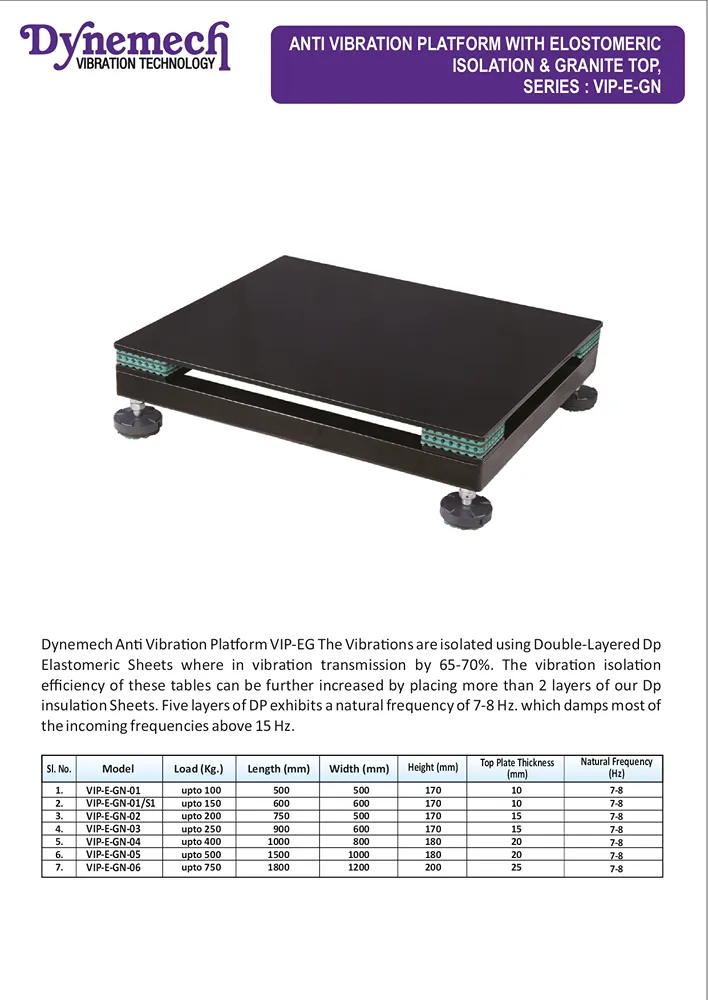

Dynemech Anti Vibration Platform VIP-E-GN The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 15 Hz.
Documents
7 Models
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Top Plate Thickness T (Mm) |
|---|---|---|---|---|---|
| VIP-E-GN-01 | upto 100 | 500 | 500 | 170 | 10 |
| VIP-E-GN-01-S1 | upto 150 | 600 | 600 | 170 | 10 |
| VIP-E-GN-02 | upto 200 | 750 | 500 | 170 | 15 |
| VIP-E-GN-03 | upto 250 | 900 | 600 | 170 | 15 |
| VIP-E-GN-04 | upto 400 | 1000 | 800 | 180 | 20 |
| VIP-E-GN-05 | upto 500 | 1500 | 1000 | 180 | 20 |
| VIP-E-GN-06 | upto 750 | 1800 | 1200 | 200 | 25 |
