DFX
DFX mounts offer broad base support, high load capacity, and large leveling adjustment for heavy machinery. The Levelling Nut lifts up while rotating the top bolt.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 5800 |

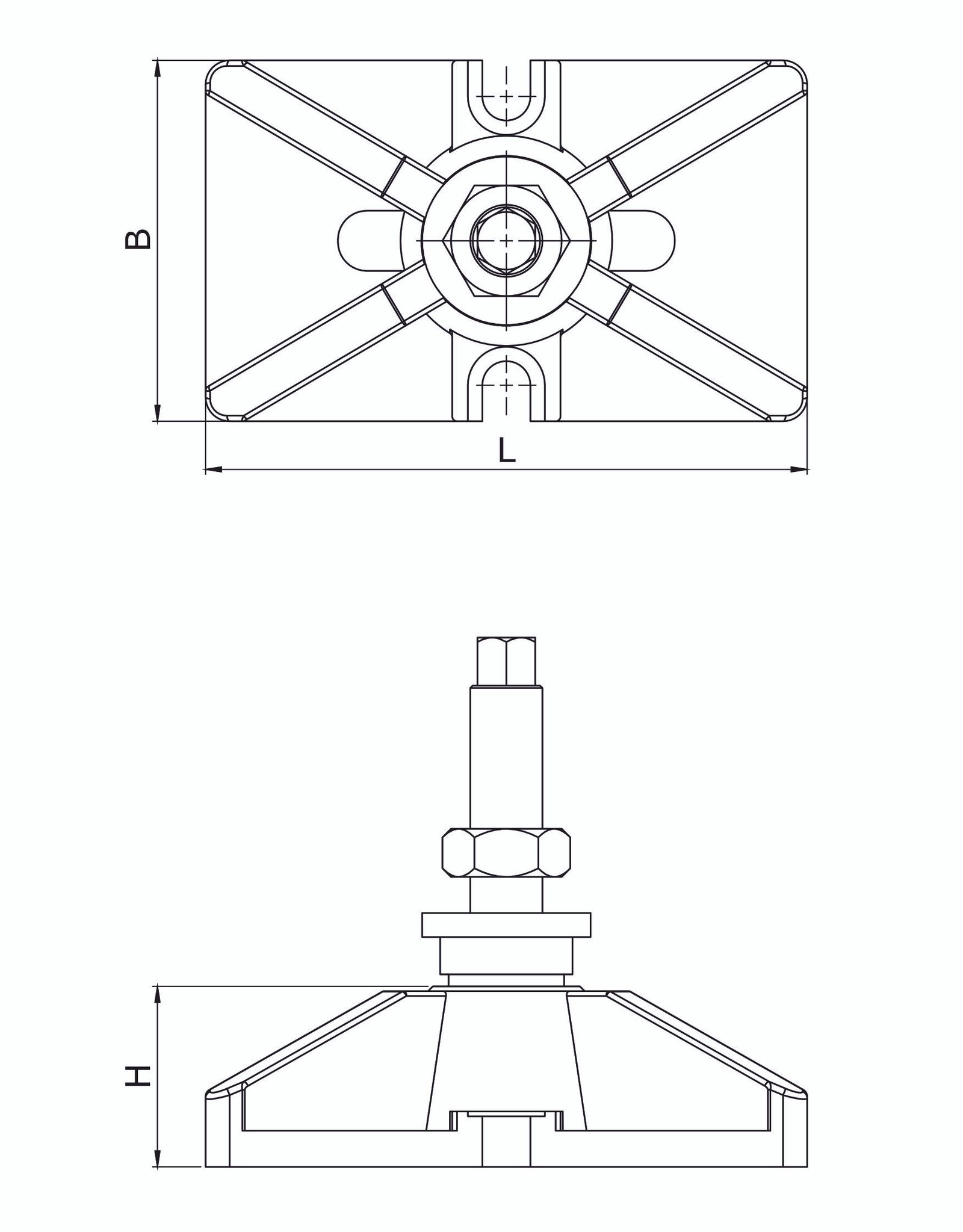

| Height H (Mm) | 75 |
| Thread | M30 |
| Length L (Mm) | 250 |
| Width B (Mm) | 150 |
| Applications | Test Rigs, Double Column VMC, Eccentric Turning Lathes Etc. |
