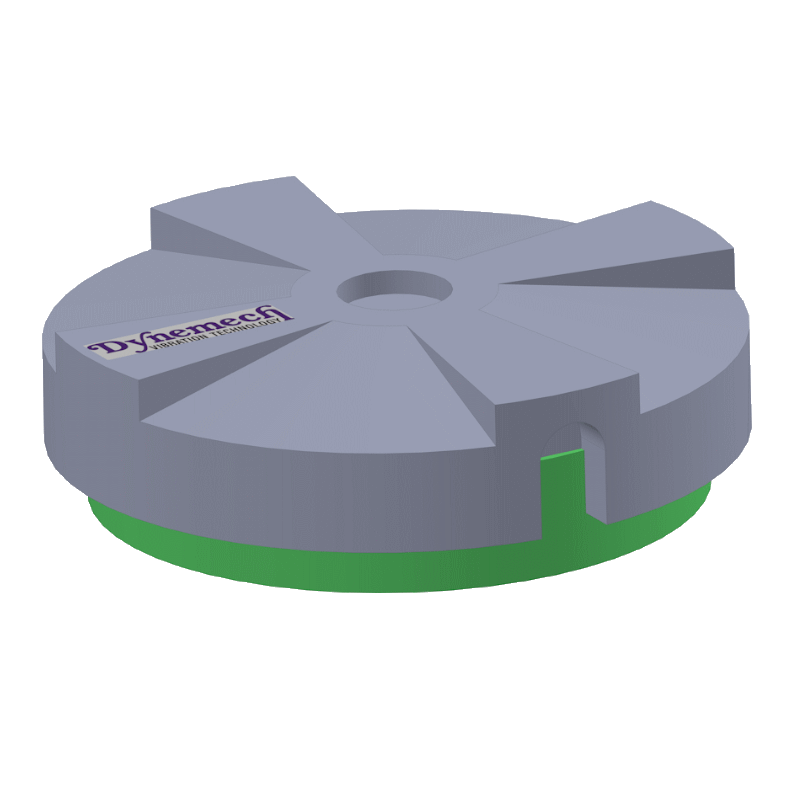

DL-h
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Application
Very Heavy and Long Bed Machines, Long Machining Centres, Planners etc.
9 Models
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| DL1-h-55-FG | 520 | 55 | 21 | 0.6 | 45 | From -16 to 90 |
| DL2-h-85-FG | 1330 | 85 | 28 | 0.6 | 45 | From -16 to 90 |
| DL3-h-112-FG | 2360 | 112 | 28 | 0.6 | 45 | From -16 to 90 |
| DL4-h-135-FG | 3680 | 135 | 30 | 0.6 | 45 | From -16 to 90 |
| DL5-h-160-FG | 5300 | 160 | 30 | 0.6 | 45 | From -16 to 90 |
| DL6-h-185-FG | 7050 | 185 | 34 | 0.6 | 45 | From -16 to 90 |
| DL7-h-215-FG | 9710 | 215 | 35 | 0.6 | 45 | From -16 to 90 |
| DL8-h-249-FG | 12460 | 249 | 44 | 0.6 | 45 | From -16 to 90 |
| DL9-h-276-FG | 15680 | 276 | 43 | 0.6 | 45 | From -16 to 90 |
