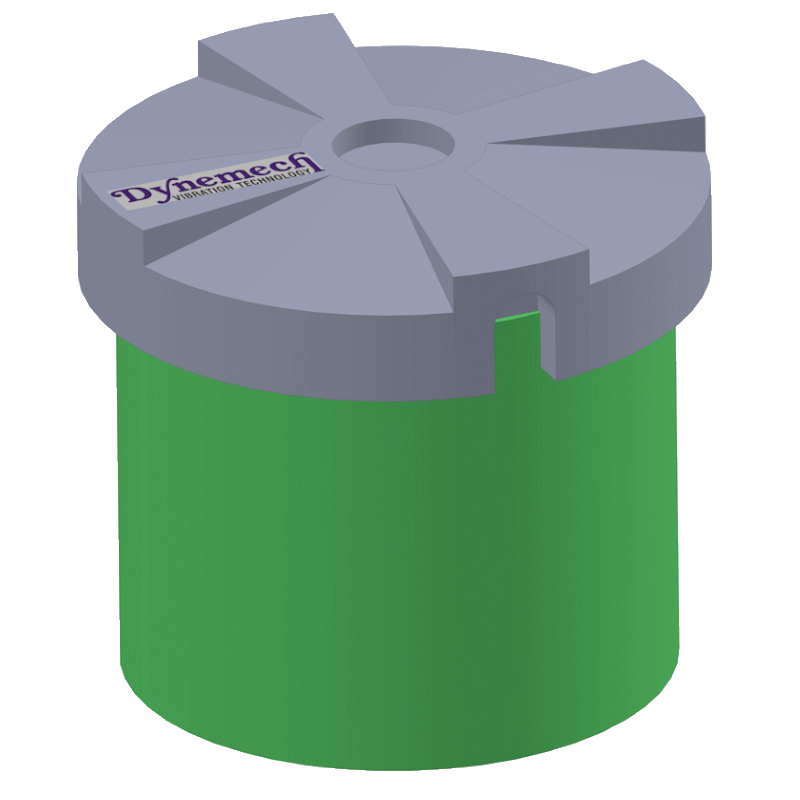

DL-hs2
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
9 Models

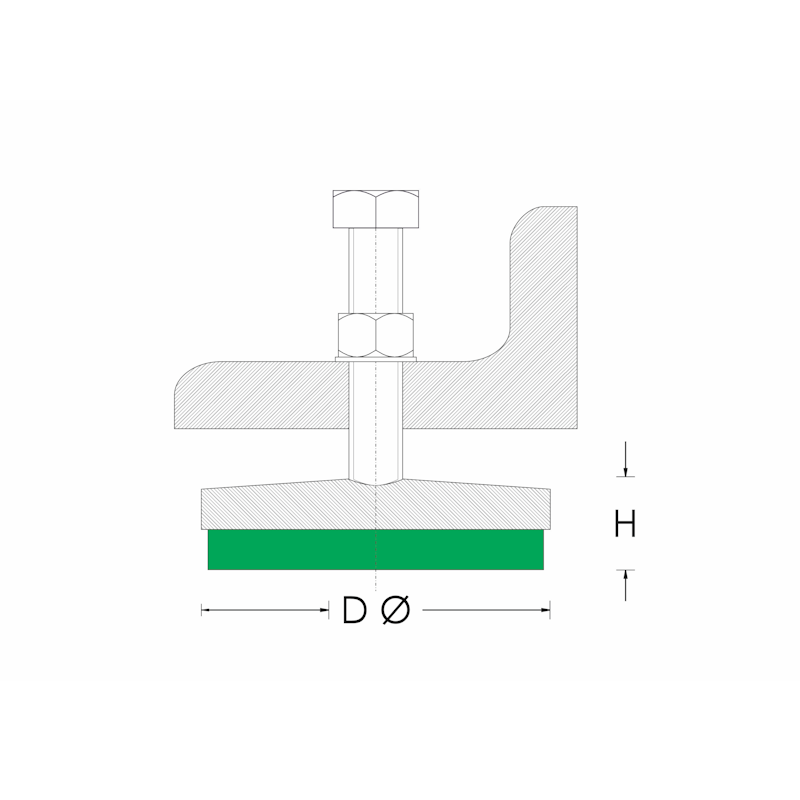

| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| DL1-hs2-55-FG | 120 | 55 | 71 | 0.8 | 4 | From -16 to 90 |
| DL2-hs2-85-FG | 350 | 85 | 78 | 0.8 | 4 | From -16 to 90 |
| DL3-hs2-112-FG | 650 | 112 | 78 | 0.8 | 4 | From -16 to 90 |
| DL4-hs2-135-FG | 980 | 135 | 80 | 0.8 | 4 | From -16 to 90 |
| DL5-hs2-160-FG | 1410 | 160 | 80 | 0.8 | 4 | From -16 to 90 |
| DL6-hs2-185-FG | 1900 | 185 | 84 | 0.8 | 4 | From -16 to 90 |
| DL7-hs2-215-FG | 2590 | 215 | 85 | 0.8 | 4 | From -16 to 90 |
| DL8-hs2-249-FG | 3180 | 249 | 94 | 0.8 | 4 | From -16 to 90 |
| DL9-hs2-276-FG | 4180 | 276 | 93 | 0.8 | 4 | From -16 to 90 |
