DL3-p2-112-FG

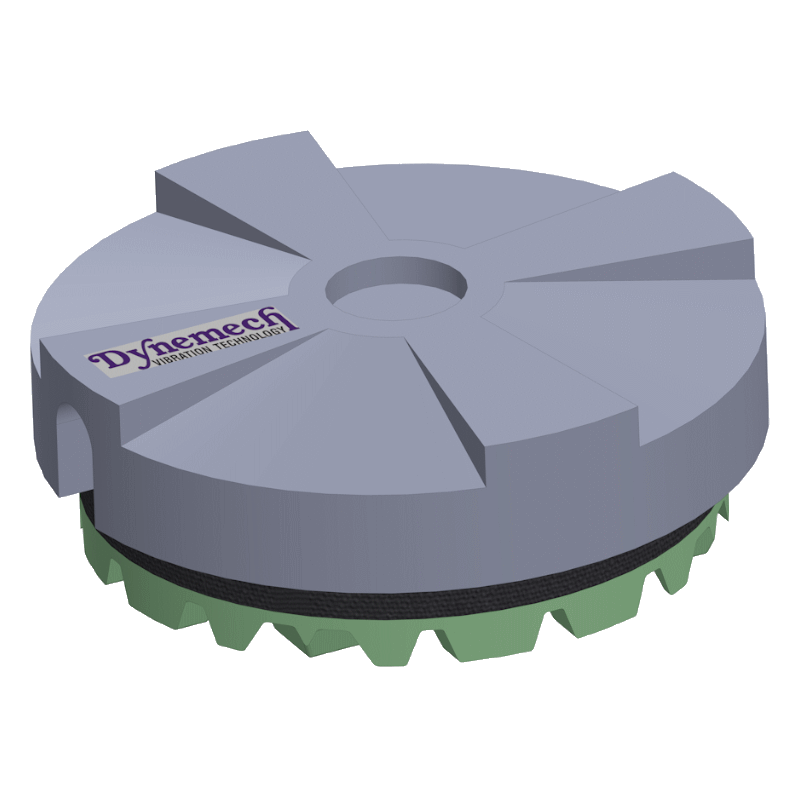

Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 410 |
| Diameter D (Mm) | 112 |
| Height H (Mm) | 33 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 12 |
| Temperature Range (°C) | From -16 to 90 |
| Colour | Dark Grey |
| Applications | Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction. |
