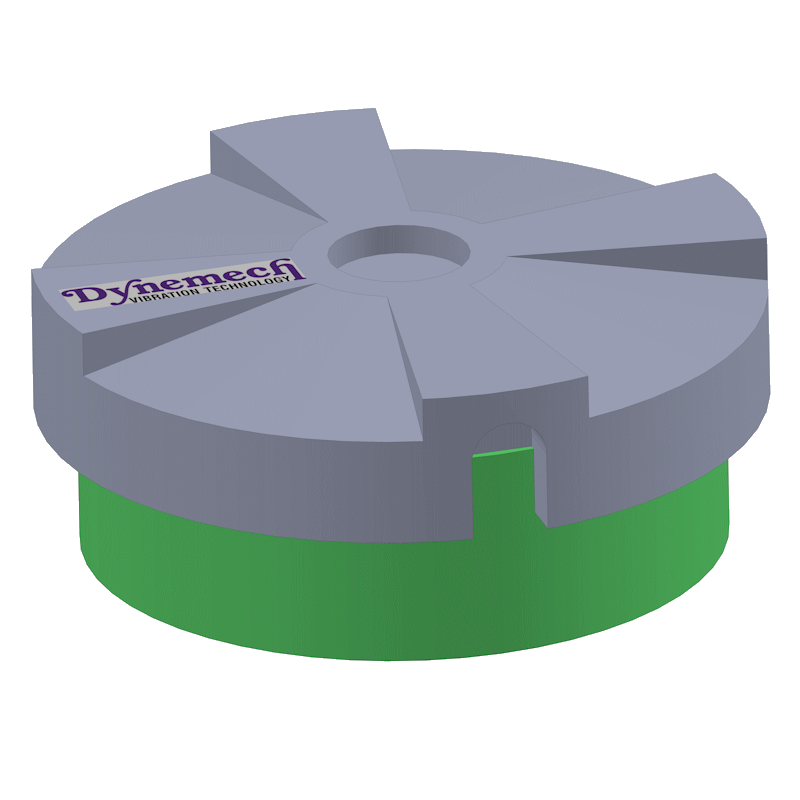

DL-s2
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Application
High vibration insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high-speed rotating machines on upper floors.
9 Models
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| DL1-s2-55-FG | 125 | 55 | 31 | 0.8 | 8 | From -16 to 90 |
| DL2-s2-85-FG | 300 | 85 | 38 | 0.8 | 8 | From -16 to 90 |
| DL3-s2-112-FG | 550 | 112 | 38 | 0.8 | 8 | From -16 to 90 |
| DL4-s2-135-FG | 850 | 135 | 40 | 0.8 | 8 | From -16 to 90 |
| DL5-s2-160-FG | 1250 | 160 | 40 | 0.8 | 8 | From -16 to 90 |
| DL6-s2-185-FG | 1700 | 185 | 44 | 0.8 | 8 | From -16 to 90 |
| DL7-s2-215-FG | 2200 | 215 | 45 | 0.8 | 8 | From -16 to 90 |
| DL8-s2-249-FG | 2800 | 249 | 54 | 0.8 | 8 | From -16 to 90 |
| DL9-s2-276-FG | 3500 | 276 | 53 | 0.8 | 8 | From -16 to 90 |
