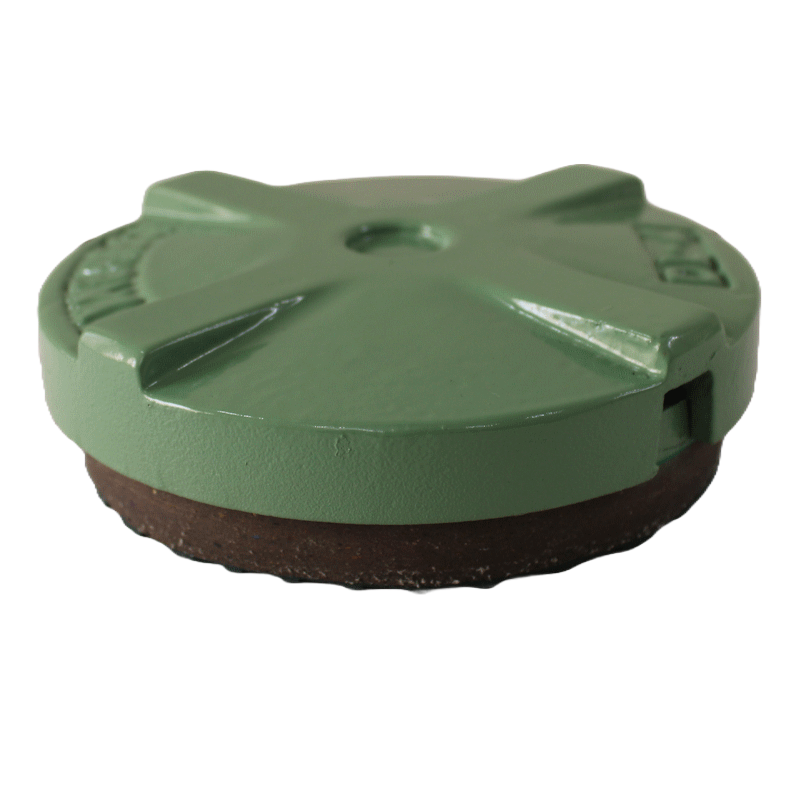

DL-u
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
9 Models

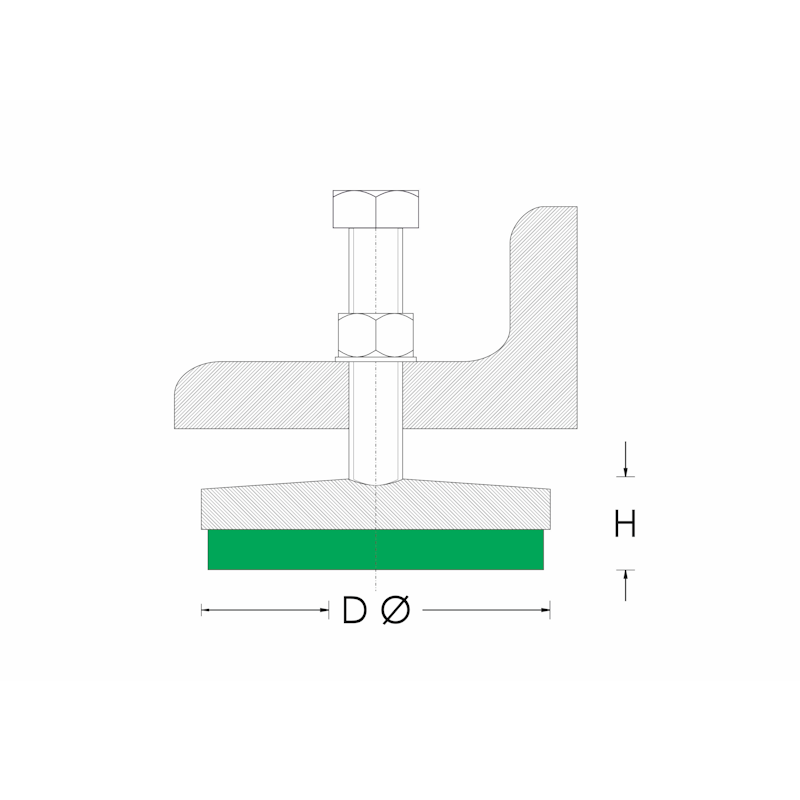

| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| DL1-u-55-FG | 150 | 55 | 21 | 0.9 | 18 | From -16 to 90 |
| DL2-u-85-FG | 350 | 85 | 28 | 0.9 | 18 | From -16 to 90 |
| DL3-u-112-FG | 600 | 112 | 28 | 0.9 | 18 | From -16 to 90 |
| DL4-u-135-FG | 900 | 135 | 30 | 0.9 | 18 | From -16 to 90 |
| DL5-u-160-FG | 1400 | 160 | 30 | 0.9 | 18 | From -16 to 90 |
| DL6-u-185-FG | 1900 | 185 | 34 | 0.9 | 18 | From -16 to 90 |
| DL7-u-215-FG | 2500 | 215 | 35 | 0.9 | 18 | From -16 to 90 |
| DL8-u-249-FG | 3500 | 249 | 44 | 0.9 | 18 | From -16 to 90 |
| DL9-u-276-FG | 4200 | 276 | 43 | 0.9 | 18 | From -16 to 90 |
