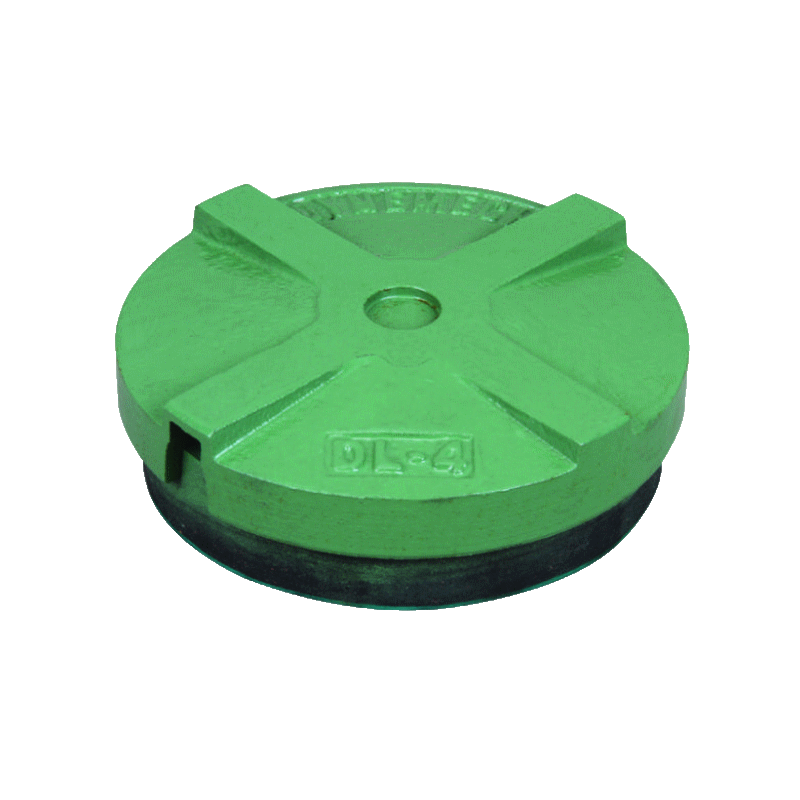

DL6-a2-185-FG
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the Base Machine Levelling.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 2400 |
| Diameter D (Mm) | 185 |
| Height H (Mm) | 27 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -16 to 90 |
| Colour | Dark Grey |
