DLC
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
DLC-u
Product
DLC-u
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Documents
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-u-M12x1.75x100-B-Z-GR | 150 | 65 | 30 | M12X100 | +3 | M10/12/16/20 | 0.9 | 18 | From -16 to 90 |
| DLC2-u-M12x1.75x100-B-Z-GR | 350 | 98 | 37 | M12X100 | +4 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC3-u-M16x2.0x100-B-Z-GR | 600 | 125 | 44 | M16X100 | +4 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC4-u-M16x2.0x100-B-Z-GR | 900 | 150 | 46 | M16X100 | +5 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC5-u-M18x2.5x150-B-Z-GR | 1400 | 180 | 48 | M18X150 | +5 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC6-u-M20x2.5x150-B-Z-GR | 1900 | 204 | 52 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC7-u-M20x2.5x150-B-Z-GR | 2500 | 235 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC8-u-M24x3.0x200-B-Z-GR | 3500 | 270 | 72 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |
| DLC9-u-M24x3.0x200-B-Z-GR | 4200 | 302 | 84 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 18 | From -16 to 90 |

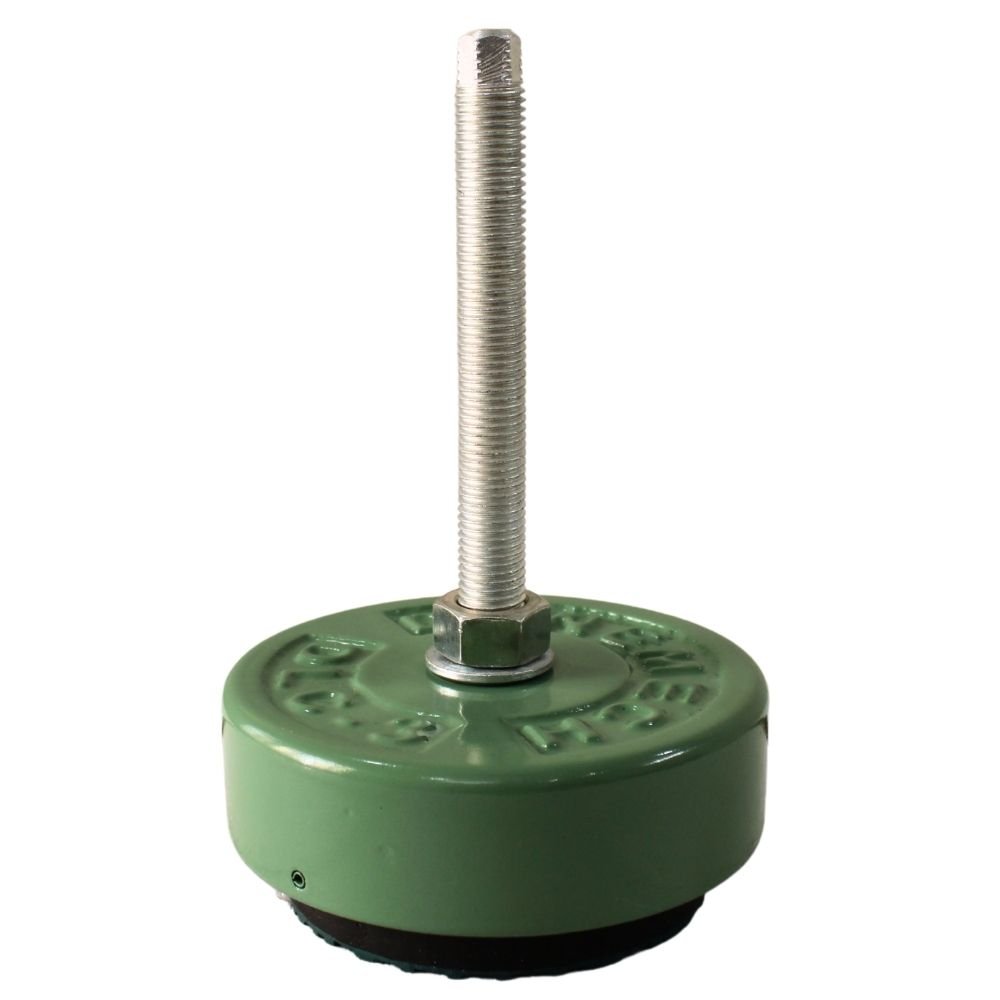

DLC-u-10
Product
DLC-u-10
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-u-10-M12x1.75x100-B-Z-GR | 150 | 65 | 25 | M12X100 | +3 | M10/12/16/20 | 0.9 | 25 | From -16 to 90 |
| DLC2-u-10-M12x1.75x100-B-Z-GR | 350 | 98 | 32 | M12X100 | +4 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC3-u-10-M16x2.0x100-B-Z-GR | 600 | 125 | 39 | M16X100 | +4 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC4-u-10-M16x2.0x100-B-Z-GR | 900 | 150 | 41 | M16X100 | +5 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC5-u-10-M18x2.5x150-B-Z-GR | 1400 | 180 | 43 | M18X150 | +5 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC6-u-10-M20x2.5x150-B-Z-GR | 1900 | 204 | 47 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC7-u-10-M20x2.5x150-B-Z-GR | 2500 | 235 | 52 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC8-u-10-M24x3.0x200-B-Z-GR | 3500 | 270 | 67 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
| DLC9-u-10-M24x3.0x200-B-Z-GR | 4200 | 302 | 79 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 25 | From -16 to 90 |
DLC-u-12
Product
DLC-u-12
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-u-12-M12x1.75x100-B-Z-GR | 150 | 65 | 27 | M12X100 | +3 | M10/12/16/20 | 0.9 | 20 | From -16 to 90 |
| DLC2-u-12-M12x1.75x100-B-Z-GR | 350 | 98 | 34 | M12X100 | +4 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC3-u-12-M16x2.0x100-B-Z-GR | 600 | 125 | 41 | M16X100 | +4 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC4-u-12-M16x2.0x100-B-Z-GR | 900 | 150 | 43 | M16X100 | +5 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC5-u-12-M18x2.5x150-B-Z-GR | 1400 | 180 | 45 | M18X150 | +5 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC6-u-12-M20x2.5x150-B-Z-GR | 1900 | 204 | 49 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC7-u-12-M20x2.5x150-B-Z-GR | 2500 | 235 | 54 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC8-u-12-M24x3.0x200-B-Z-GR | 3500 | 270 | 69 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC9-u-12-M24x3.0x200-B-Z-GR | 4200 | 302 | 81 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
DLC-m
Product
DLC-m
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-m-M12x1.75x100-B-Z-GR | 190 | 65 | 30 | M12X100 | +3 | M10/12/16/20 | 0.7 | 30 | From -16 to 90 |
| DLC2-m-M12x1.75x100-B-Z-GR | 450 | 98 | 37 | M12X100 | +4 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC3-m-M16x2.0x100-B-Z-GR | 800 | 125 | 44 | M16X100 | +4 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC4-m-M16x2.0x100-B-Z-GR | 1150 | 150 | 46 | M16X100 | +5 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC5-m-M18x2.5x150-B-Z-GR | 1750 | 180 | 48 | M18X150 | +5 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC6-m-M20x2.5x150-B-Z-GR | 2400 | 204 | 52 | M20X150 | +6 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC7-m-M20x2.5x150-B-Z-GR | 3200 | 235 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC8-m-M24x3.0x200-B-Z-GR | 4000 | 270 | 72 | M24X200 | +9 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLC9-m-M24x3.0x200-B-Z-GR | 5000 | 302 | 84 | M24X200 | +9 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
DLC-i
Product
DLC-i
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-i-M12x1.75x100-B-Z-GR | 250 | 65 | 40 | M12X100 | +3 | M10/12/16/20 | 0.8 | 7 | From -16 to 90 |
| DLC2-i-M12x1.75x100-B-Z-GR | 575 | 98 | 47 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC3-i-M16x2.0x100-B-Z-GR | 1000 | 125 | 54 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC4-i-M16x2.0x100-B-Z-GR | 1600 | 150 | 56 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC5-i-M18x2.5x150-B-Z-GR | 2300 | 180 | 58 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC6-i-M20x2.5x150-B-Z-GR | 3100 | 204 | 62 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC7-i-M20x2.5x150-B-Z-GR | 4000 | 235 | 67 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC8-i-M24x3.0x200-B-Z-GR | 5200 | 270 | 82 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC9-i-M24x3.0x200-B-Z-GR | 6500 | 302 | 94 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
DLC-p1
Product
DLC-p1
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tuned to low natural frequency; suitable for passive vibration control of Measuring & Testing Machines, Grinders etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-p1-M12x1.75x100-B-Z-GR | 75 | 65 | 30 | M12X100 | +3 | M10/12/16/20 | 0.8 | 7 | From -16 to 90 |
| DLC2-p1-M12x1.75x100-B-Z-GR | 175 | 98 | 37 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC3-p1-M16x2.0x100-B-Z-GR | 300 | 125 | 44 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC4-p1-M16x2.0x100-B-Z-GR | 500 | 150 | 46 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC5-p1-M18x2.5x150-B-Z-GR | 700 | 180 | 48 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC6-p1-M20x2.5x150-B-Z-GR | 950 | 204 | 52 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC7-p1-M20x2.5x150-B-Z-GR | 1250 | 235 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC8-p1-M24x3.0x200-B-Z-GR | 1500 | 270 | 72 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC9-p1-M24x3.0x200-B-Z-GR | 1900 | 302 | 84 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
DLC-p2
Product
DLC-p2
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-p2-M12x1.75x100-B-Z-GR | 80 | 65 | 35 | M12X100 | +3 | M10/12/16/20 | 0.8 | 12 | From -16 to 90 |
| DLC2-p2-M12x1.75x100-B-Z-GR | 220 | 98 | 42 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC3-p2-M16x2.0x100-B-Z-GR | 410 | 125 | 49 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC4-p2-M16x2.0x100-B-Z-GR | 620 | 150 | 51 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC5-p2-M18x2.5x150-B-Z-GR | 900 | 180 | 53 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC6-p2-M20x2.5x150-B-Z-GR | 1200 | 204 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC7-p2-M20x2.5x150-B-Z-GR | 1600 | 235 | 62 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC8-p2-M24x3.0x200-B-Z-GR | 2000 | 270 | 77 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC9-p2-M24x3.0x200-B-Z-GR | 2600 | 302 | 89 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
DLC-p3
Product
DLC-p3
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tuned to low natural frequency; suitable for both active & passive vibration isolation of metrology and production machines.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-p3-M12x1.75x100-B-Z-GR | 95 | 65 | 39 | M12X100 | +3 | M10/12/16/20 | 0.8 | 7 | From -16 to 90 |
| DLC2-p3-M12x1.75x100-B-Z-GR | 270 | 98 | 46 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC3-p3-M16x2.0x100-B-Z-GR | 490 | 125 | 53 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC4-p3-M16x2.0x100-B-Z-GR | 740 | 150 | 55 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC5-p3-M18x2.5x150-B-Z-GR | 1060 | 180 | 57 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC6-p3-M20x2.5x150-B-Z-GR | 1400 | 204 | 61 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC7-p3-M20x2.5x150-B-Z-GR | 1950 | 235 | 66 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC8-p3-M24x3.0x200-B-Z-GR | 2400 | 270 | 81 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC9-p3-M24x3.0x200-B-Z-GR | 3150 | 302 | 93 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
DLC-s1
Product
DLC-s1
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Light Weight Presses, Tool Room Machines, Compressors etc. on ground floors and upper floors.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-s1-M12x1.75x100-B-Z-GR | 76 | 65 | 35 | M12X100 | +3 | M10/12/16/20 | 0.8 | 15 | From -16 to 90 |
| DLC2-s1-M12x1.75x100-B-Z-GR | 220 | 98 | 42 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC3-s1-M16x2.0x100-B-Z-GR | 490 | 125 | 49 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC4-s1-M16x2.0x100-B-Z-GR | 620 | 150 | 51 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC5-s1-M18x2.5x150-B-Z-GR | 890 | 180 | 53 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC6-s1-M20x2.5x150-B-Z-GR | 1190 | 204 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC7-s1-M20x2.5x150-B-Z-GR | 1620 | 235 | 62 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC8-s1-M24x3.0x200-B-Z-GR | 1990 | 270 | 77 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |
| DLC9-s1-M24x3.0x200-B-Z-GR | 2620 | 302 | 89 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 15 | From -16 to 90 |

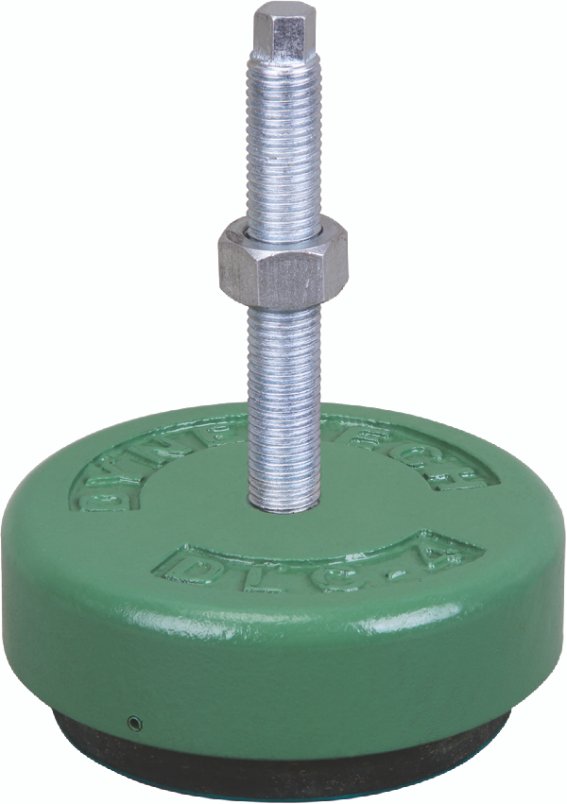

DLC-s2
Product
DLC-s2
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
High vibration insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high-speed rotating machines on upper floors.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-s2-M12x1.75x100-B-Z-GR | 125 | 65 | 40 | M12X100 | +3 | M10/12/16/20 | 0.8 | 8 | From -16 to 90 |
| DLC2-s2-M12x1.75x100-B-Z-GR | 300 | 98 | 47 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC3-s2-M16x2.0x100-B-Z-GR | 550 | 125 | 54 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC4-s2-M16x2.0x100-B-Z-GR | 850 | 150 | 56 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC5-s2-M18x2.5x150-B-Z-GR | 1250 | 180 | 58 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC6-s2-M20x2.5x150-B-Z-GR | 1700 | 204 | 62 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC7-s2-M20x2.5x150-B-Z-GR | 2200 | 235 | 67 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC8-s2-M24x3.0x200-B-Z-GR | 2800 | 270 | 82 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
| DLC9-s2-M24x3.0x200-B-Z-GR | 3500 | 302 | 94 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 8 | From -16 to 90 |
DLC-hs1
Product
DLC-hs1
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-hs1-M12x1.75x100-B-Z-GR | 300 | 65 | 80 | M12X100 | +3 | M10/12/16/20 | 0.8 | 6 | From -16 to 90 |
| DLC2-hs1-M12x1.75x100-B-Z-GR | 880 | 98 | 87 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC3-hs1-M16x2.0x100-B-Z-GR | 1630 | 125 | 94 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC4-hs1-M16x2.0x100-B-Z-GR | 2450 | 150 | 96 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC5-hs1-M18x2.5x150-B-Z-GR | 3530 | 180 | 98 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC6-hs1-M20x2.5x150-B-Z-GR | 4750 | 204 | 102 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC7-hs1-M20x2.5x150-B-Z-GR | 6470 | 235 | 107 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC8-hs1-M24x3.0x200-B-Z-GR | 7950 | 270 | 122 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |
| DLC9-hs1-M24x3.0x200-B-Z-GR | 10450 | 302 | 134 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 6 | From -16 to 90 |

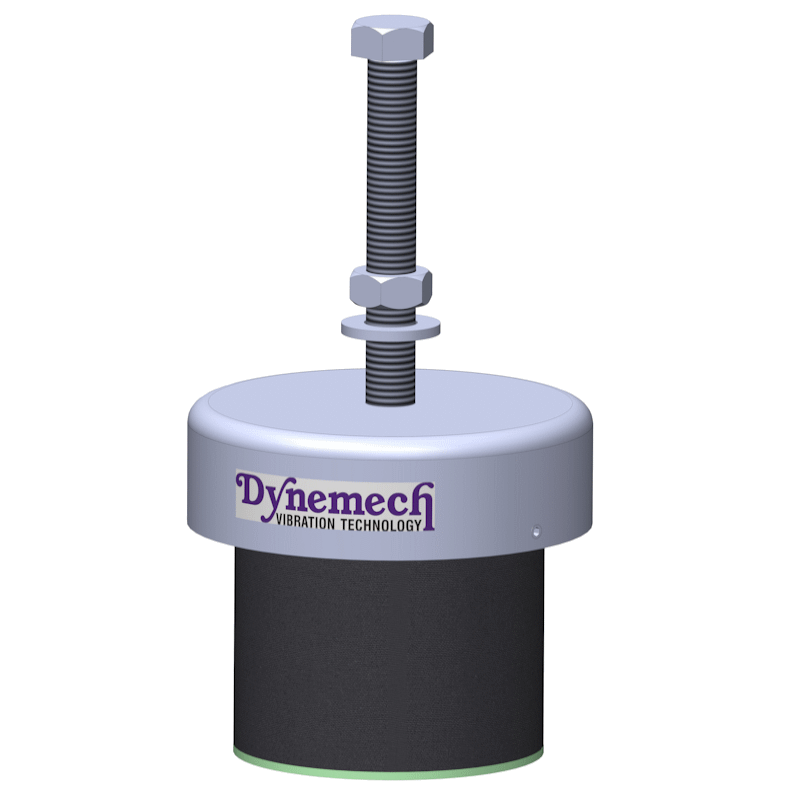

DLC-hs2
Product
DLC-hs2
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-hs2-M12x1.75x100-B-Z-GR | 120 | 65 | 80 | M12X100 | +3 | M10/12/16/20 | 0.8 | 4 | From -16 to 90 |
| DLC2-hs2-M12x1.75x100-B-Z-GR | 350 | 98 | 87 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC3-hs2-M16x2.0x100-B-Z-GR | 650 | 125 | 94 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC4-hs2-M16x2.0x100-B-Z-GR | 980 | 150 | 96 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC5-hs2-M18x2.5x150-B-Z-GR | 1410 | 180 | 98 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC6-hs2-M20x2.5x150-B-Z-GR | 1900 | 204 | 102 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC7-hs2-M20x2.5x150-B-Z-GR | 2590 | 235 | 107 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC8-hs2-M24x3.0x200-B-Z-GR | 3180 | 270 | 122 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |
| DLC9-hs2-M24x3.0x200-B-Z-GR | 4180 | 302 | 134 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 4 | From -16 to 90 |

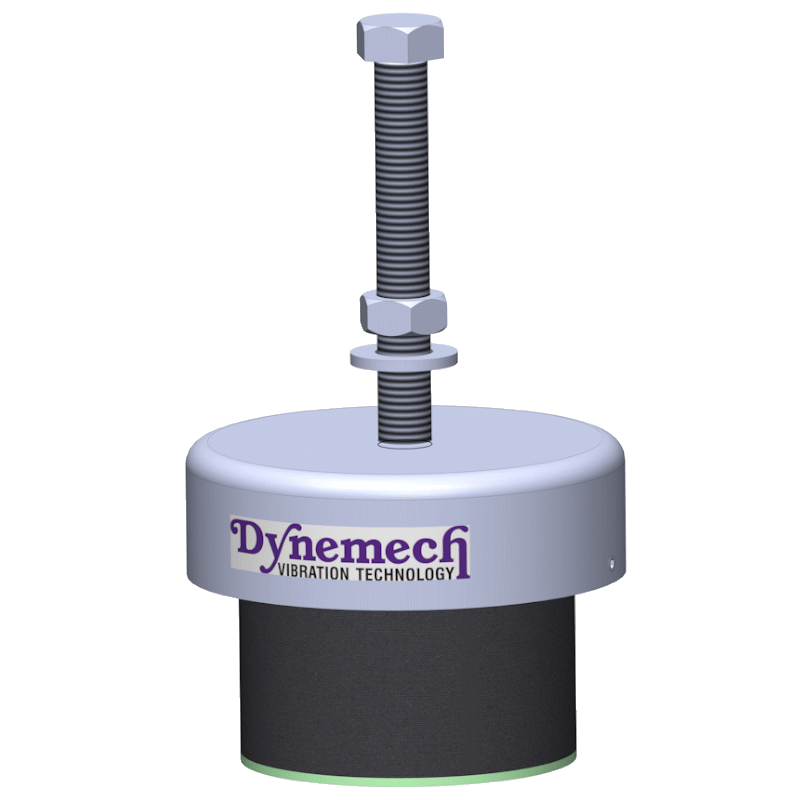

DLC-hs3
Product
DLC-hs3
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-hs3-M12x1.75x100-B-Z-GR | 430 | 65 | 65 | M12X100 | +3 | M10/12/16/20 | 0.8 | 7 | From -16 to 90 |
| DLC2-hs3-M12x1.75x100-B-Z-GR | 1240 | 98 | 72 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC3-hs3-M16x2.0x100-B-Z-GR | 2290 | 125 | 79 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC4-hs3-M16x2.0x100-B-Z-GR | 3440 | 150 | 81 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC5-hs3-M18x2.5x150-B-Z-GR | 4950 | 180 | 83 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC6-hs3-M20x2.5x150-B-Z-GR | 6500 | 204 | 87 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC7-hs3-M20x2.5x150-B-Z-GR | 9070 | 235 | 92 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC8-hs3-M24x3.0x200-B-Z-GR | 11140 | 270 | 107 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |
| DLC9-hs3-M24x3.0x200-B-Z-GR | 17870 | 302 | 119 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 7 | From -16 to 90 |

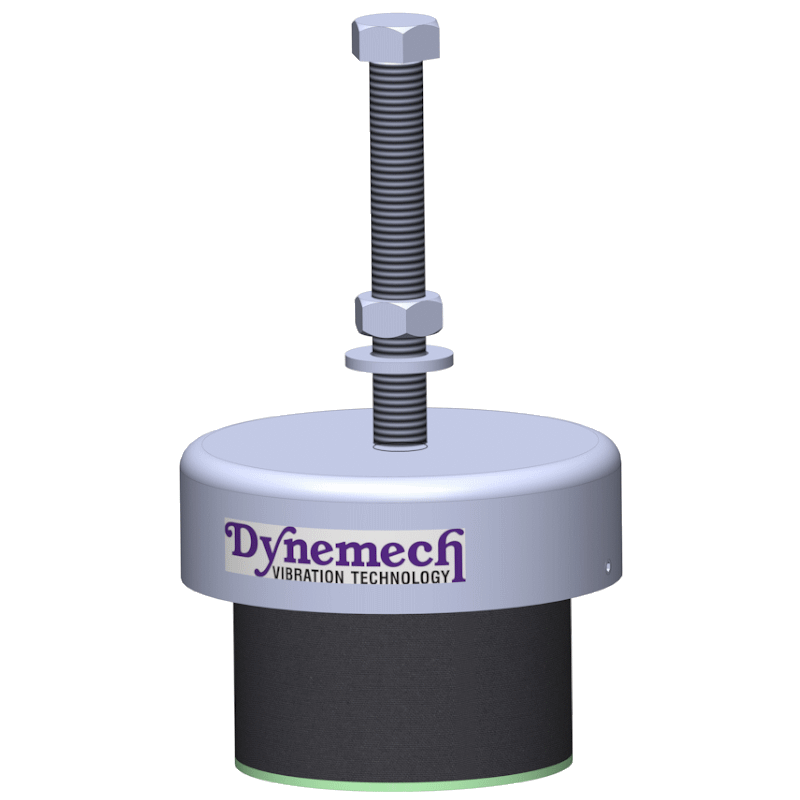

DLC-hs4
Product
DLC-hs4
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-hs4-M12x1.75x100-B-Z-GR | 179 | 65 | 65 | M12X100 | +3 | M10/12/16/20 | 0.8 | 5 | From -16 to 90 |
| DLC2-hs4-M12x1.75x100-B-Z-GR | 530 | 98 | 72 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC3-hs4-M16x2.0x100-B-Z-GR | 980 | 125 | 79 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC4-hs4-M16x2.0x100-B-Z-GR | 1470 | 150 | 81 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC5-hs4-M18x2.5x150-B-Z-GR | 2120 | 180 | 83 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC6-hs4-M20x2.5x150-B-Z-GR | 2850 | 204 | 87 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC7-hs4-M20x2.5x150-B-Z-GR | 3880 | 235 | 92 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC8-hs4-M24x3.0x200-B-Z-GR | 4770 | 270 | 107 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC9-hs4-M24x3.0x200-B-Z-GR | 6270 | 302 | 119 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |

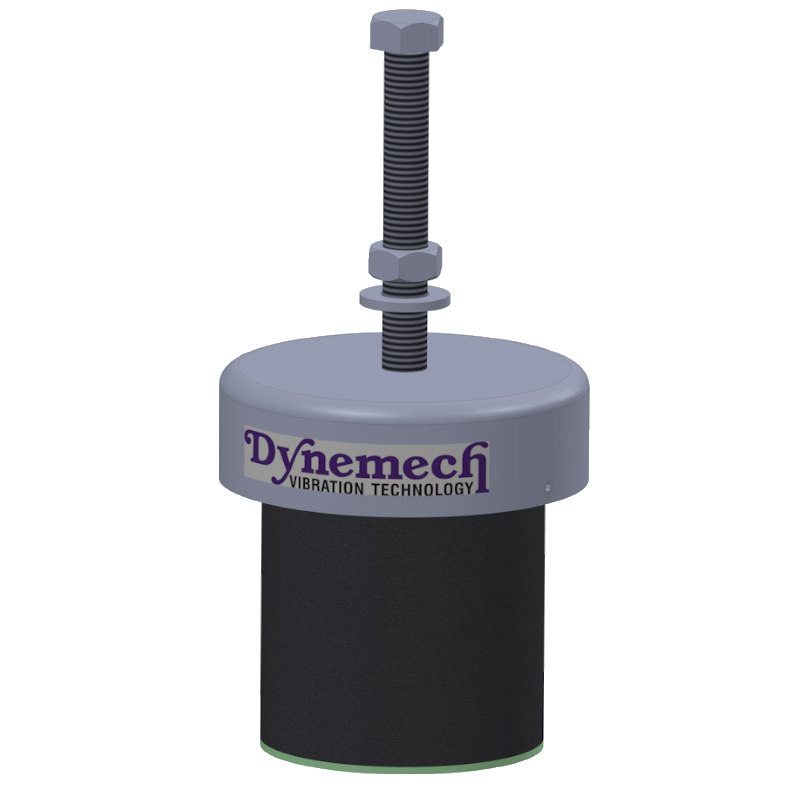

DLC-hs5
Product
DLC-hs5
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-hs5-M12x1.75x100-B-Z-GR | 430 | 65 | 95 | M12X100 | +3 | M10/12/16/20 | 0.8 | 5 | From -16 to 90 |
| DLC2-hs5-M12x1.75x100-B-Z-GR | 1240 | 98 | 102 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC3-hs5-M16x2.0x100-B-Z-GR | 2290 | 125 | 109 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC4-hs5-M16x2.0x100-B-Z-GR | 3440 | 150 | 111 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC5-hs5-M18x2.5x150-B-Z-GR | 4950 | 180 | 113 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC6-hs5-M20x2.5x150-B-Z-GR | 6500 | 204 | 117 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC7-hs5-M20x2.5x150-B-Z-GR | 9070 | 235 | 122 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC8-hs5-M24x3.0x200-B-Z-GR | 11139 | 270 | 137 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
| DLC9-hs5-M24x3.0x200-B-Z-GR | 17870 | 302 | 149 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 5 | From -16 to 90 |
DLC-h
Product
DLC-h
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Very Heavy and Long Bed Machines, Long Machining Centres, Planners etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-h-M12x1.75x100-B-Z-GR | 460 | 65 | 30 | M12X100 | +3 | M10/12/16/20 | 0.6 | 45 | From -16 to 90 |
| DLC2-h-M12x1.75x100-B-Z-GR | 1330 | 98 | 37 | M12X100 | +4 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC3-h-M16x2.0x100-B-Z-GR | 2450 | 125 | 44 | M16X100 | +4 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC4-h-M16x2.0x100-B-Z-GR | 3600 | 150 | 46 | M16X100 | +5 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC5-h-M18x2.5x150-B-Z-GR | 5300 | 180 | 48 | M18X150 | +5 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC6-h-M20x2.5x150-B-Z-GR | 7140 | 204 | 52 | M20X150 | +6 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC7-h-M20x2.5x150-B-Z-GR | 9700 | 235 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC8-h-M24x3.0x200-B-Z-GR | 11900 | 270 | 72 | M24X200 | +9 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
| DLC9-h-M24x3.0x200-B-Z-GR | 15690 | 302 | 84 | M24X200 | +9 | M10/12/16/20/24 | 0.6 | 45 | From -16 to 90 |
DLC-P2-G-05
Product
DLC-P2-G-05
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-P2-G-05-M12x1.75x100-B-Z-GR | 250 | 65 | 35 | M12x100 | +3 | M10/12/16/20 | 0.8 | 12 | From -16 to 90 |
| DLC2-P2-G-05-M12x1.75x100-B-Z-GR | 575 | 98 | 42 | M12x100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC3-P2-G-05-M16x2.0x100-B-Z-GR | 1000 | 125 | 49 | M16x100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC4-P2-G-05-M16x2.0x100-B-Z-GR | 1600 | 150 | 51 | M16x100 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC5-P2-G-05-M18x2.5x150-B-Z-GR | 2300 | 180 | 53 | M18x150 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC6-P2-G-05-M20x2.5x150-B-Z-GR | 3100 | 204 | 57 | M20x150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC7-P2-G-05-M20x2.5x150-B-Z-GR | 4000 | 235 | 62 | M20x150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC8-P2-G-05-M24x3.0x200-B-Z-GR | 5200 | 270 | 77 | M24x150 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC9-P2-G-05-M24x3.0x200-B-Z-GR | 6500 | 302 | 89 | M24x150 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
