DLK1-LP-b-93-M12x1.75x100-GR
Dynemech Screw Support Mounts series DLK-LP are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. The DLK-LP Series has a lower height for fast and easy installation of machines. DLK-LP Series anti vibrations mounts have low carbon steel body and are used for machines having mounting holes in the base. This levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. Levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 750 |

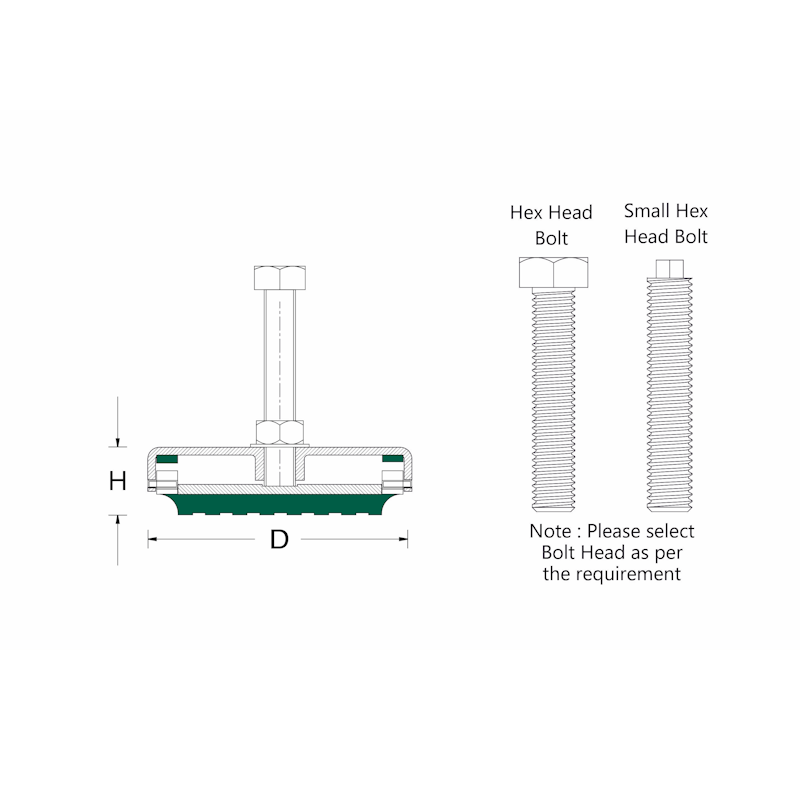

| Diameter D (Mm) | 93 |
| Height H (Mm) | 36 |
| Bolt Size (Mm) | M12X100 |
| Adjustment Range (Mm) | +10 |
| Possible Bolts | M10/M12/M16/M20 |
| Colour | Red, Yellow |
| Applications | Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications. |
