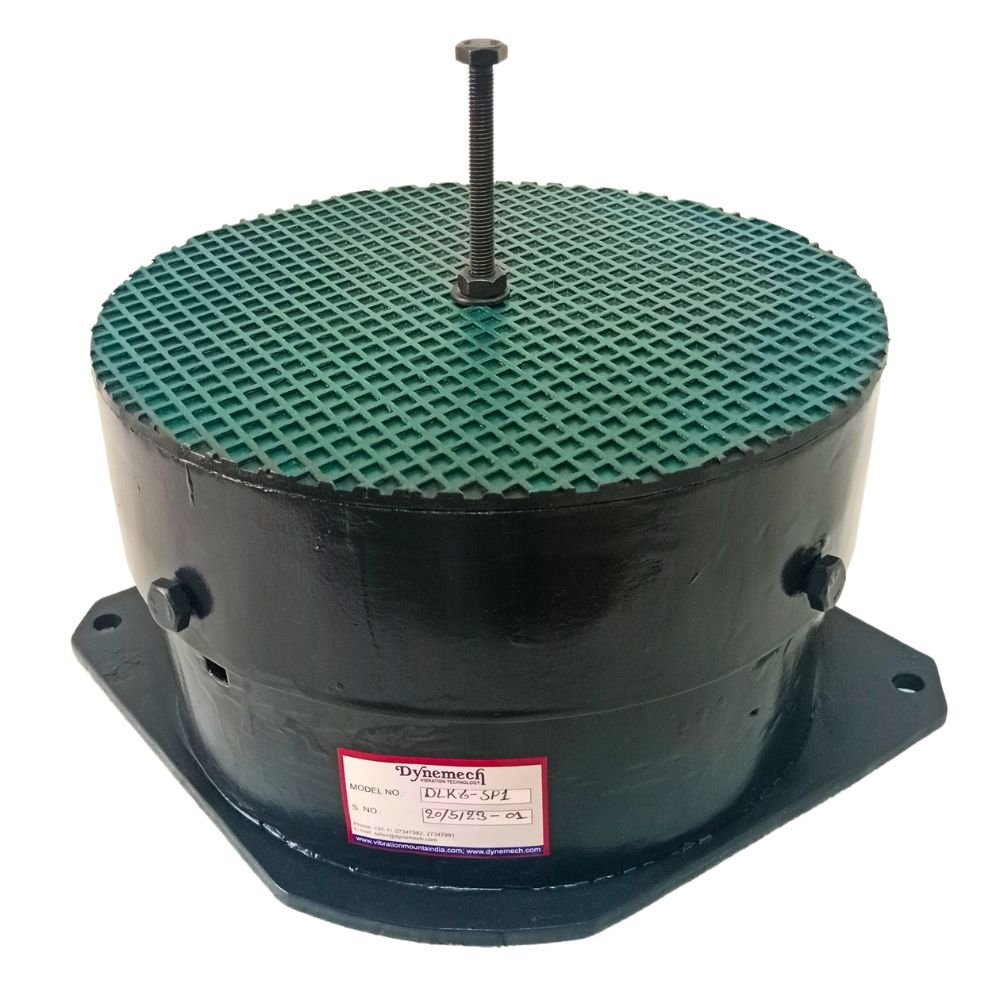

DLK-SP1
Mounts are suitable for precision machines. The top cover is guided between the cavity of the mount body. Suitable for machines generates high vertical and horizontal forces like Injection Molding Machines, Presses etc.
Heavy duty spring isolators model MFI-Y8-190 are designed to effectively isolate and reduce vibrations and noise from heavy machinery and equipment. They substantially reduce vibration transmission to the supporting structure Heavy duty spring isolators are particularly effective in equipment such as coal crushers, boiler feed pumps, and ID/FD fans.
DLK-SP1
Product
DLK-SP1
Description
Mounts are suitable for precision machines. The top cover is guided between the cavity of the mount body. Suitable for machines generates high vertical and horizontal forces like Injection Molding Machines, Presses etc.
Heavy duty spring isolators model MFI-Y8-190 are designed to effectively isolate and reduce vibrations and noise from heavy machinery and equipment. They substantially reduce vibration transmission to the supporting structure Heavy duty spring isolators are particularly effective in equipment such as coal crushers, boiler feed pumps, and ID/FD fans.
Application
Plastic Injection Molding Machines, Pressure Die Casting Machines, Presses, Compressors, Textile Machines Etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Length L (Mm) | Width B (Mm) | Deflection At Load Of 625 (Kg) (Mm) | Cc (Mm) | D (Mm) | Bolt |
|---|---|---|---|---|---|---|---|---|---|---|
| DLK6-SP1 | 2400 | 300 | 188 | M10x1.5 | 400 | 320 | 7 | 380 | 13 | M10x1.5 |
