DLK
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.

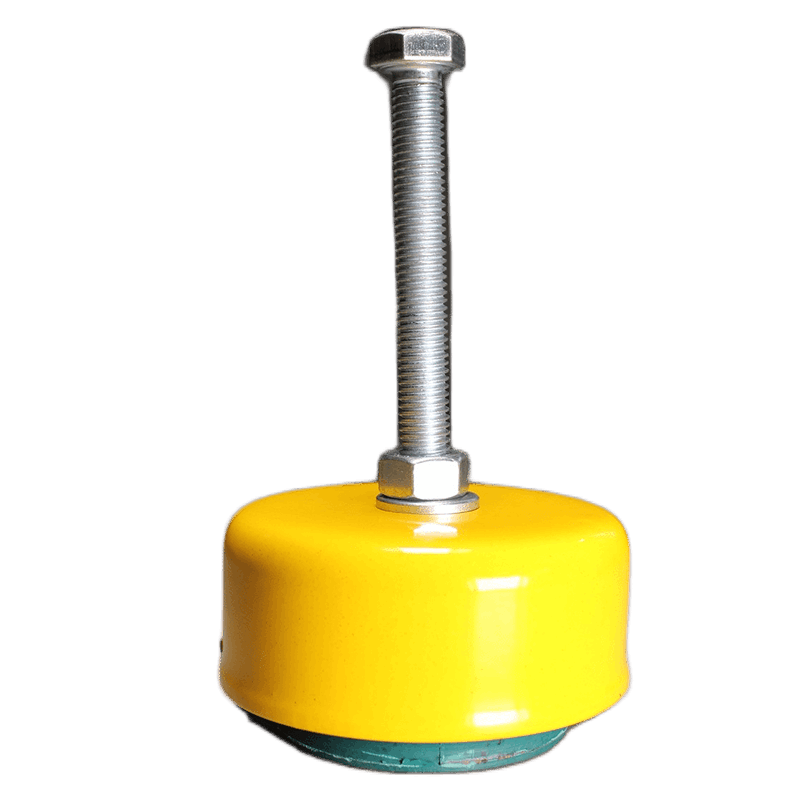

DLK1
Product
DLK1
Description
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Application
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|
| DLK1-a-92-M12x1.75x100 | 580 | 92 | 50 | M12X100 | +10 | M10/12/16/20 | From -16 to 90 |
| DLK1-b-92-M12x1.75x100 | 750 | 92 | 50 | M12X100 | +10 | M10/12/16/20 | From -16 to 90 |
| DLK1-c-92-M12x1.75x100 | 900 | 92 | 50 | M12X100 | +10 | M10/12/16/20 | From -16 to 90 |

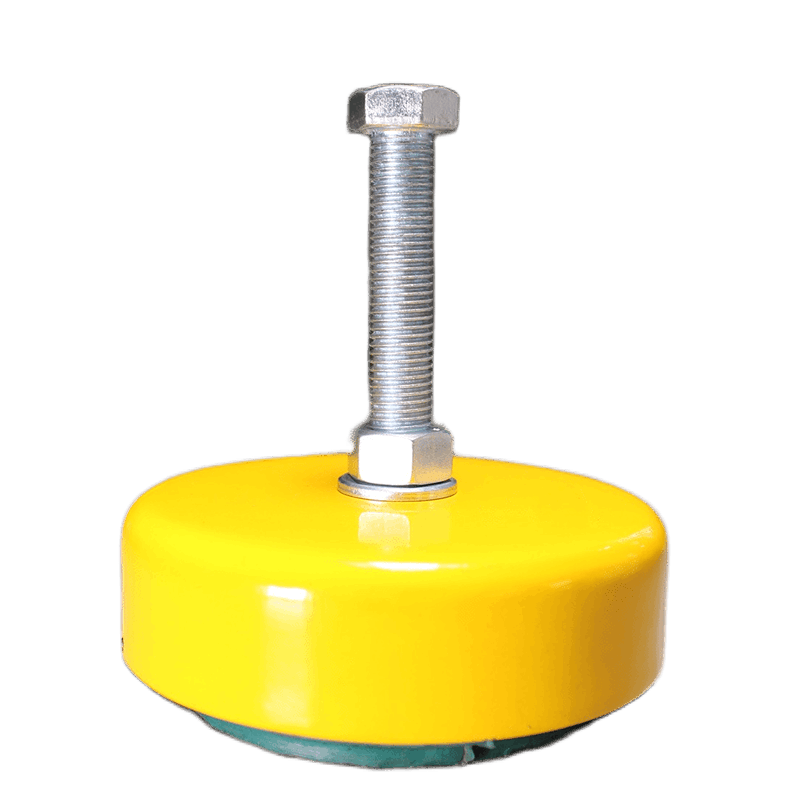

DLK2
Product
DLK2
Description
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Application
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|
| DLK2-a-135-M16x2.0x100 | 1200 | 135 | 50 | M16X100 | +10 | M10/12/16/20/24 | From -16 to 90 |
| DLK2-b-135-M16x2.0x100 | 1900 | 135 | 50 | M16X100 | +10 | M10/12/16/20/24 | From -16 to 90 |
| DLK2-c-135-M16x2.0x100 | 2600 | 135 | 50 | M16X100 | +10 | M10/12/16/20/24 | From -16 to 90 |
DLK3
Product
DLK3
Description
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Application
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|
| DLK3-a-195-M20x2.5x150 | 2900 | 195 | 58 | M20X150 | +12 | M10/12/16/20/24 | From -16 to 90 |
| DLK3-b-195-M20x2.5x150 | 3400 | 195 | 58 | M20X150 | +12 | M10/12/16/20/24 | From -16 to 90 |
| DLK3-c-195-M20x2.5x150 | 4200 | 195 | 58 | M20X150 | +12 | M10/12/16/20/24 | From -16 to 90 |
DLKH
Product
DLKH
Description
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Application
Plastic Injection Molding Machines, Pressure Die Casting Machines, Presses, Compressors, Textile Machines, Gen sets Etc.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|
| DLKH2-c-135-M16x2.0x100-RD | 2600 | 135 | 62 | M16X100 | 20 | M10/12/16/20/24 | From -16 to 90 |
| DLKH3-c-135-M20x2.5x150-RD | 4200 | 195 | 72 | M20X150 | 20 | M10/12/16/20/24 | From -16 to 90 |

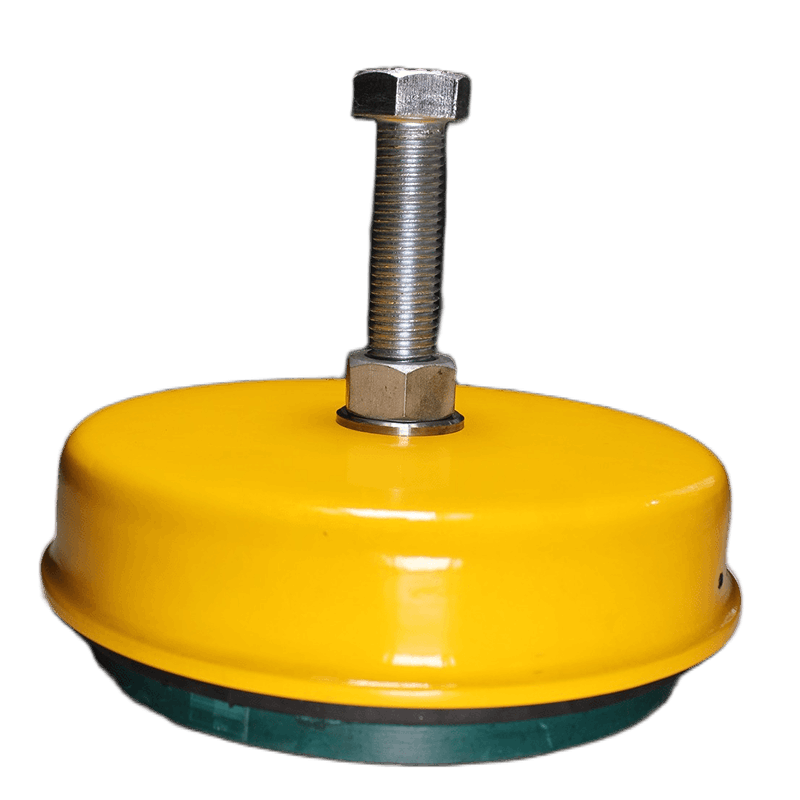

DLK4
Product
DLK4
Description
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Application
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|
| DLK4-a-238-M24x3.0x150 | 4000 | 238 | 78 | M24X150 | +20 | M10/12/16/20/24 | From -16 to 90 |
| DLK4-b-238-M24x3.0x150 | 5000 | 238 | 78 | M24X150 | +20 | M10/12/16/20/24 | From -16 to 90 |
| DLK4-c-238-M24x3.0x150 | 6000 | 238 | 78 | M24X150 | +20 | M10/12/16/20/24 | From -16 to 90 |
