DLMs-m

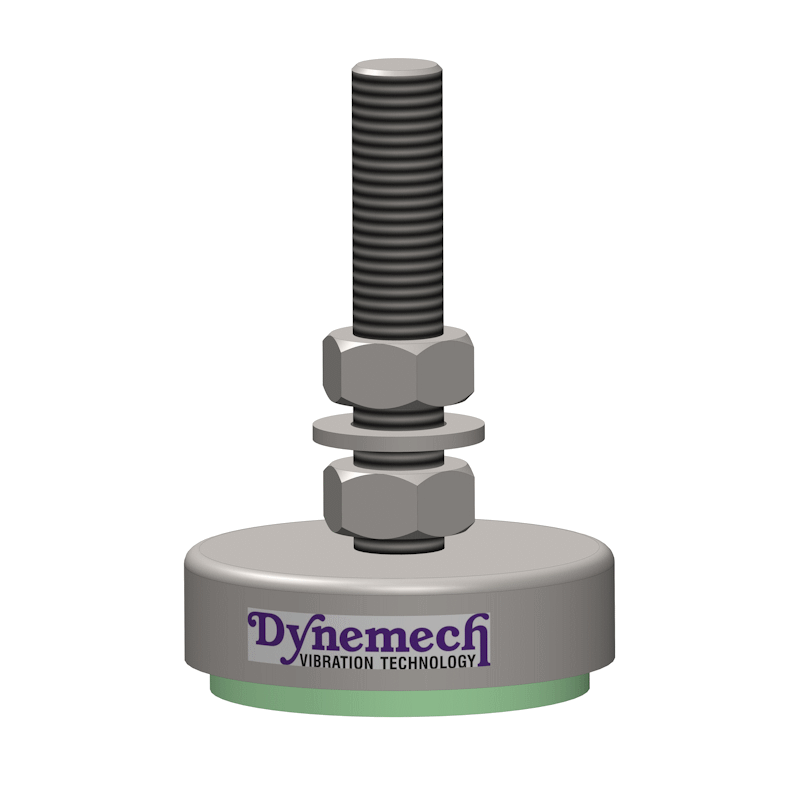

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.
Application
Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc.
9 Models
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|
| DLMS1-m-55-SS-M16x2.0x100 | 205 | 55 | 21 | M16X100 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS2-m-85-SS-M16x2.0x100 | 440 | 85 | 28 | M16X100 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS3-m-112-SS-M16x2.0x150 | 790 | 112 | 28 | M16X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS4-m-135-SS-M16x2.0x150 | 1230 | 135 | 30 | M16X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS5-m-160-SS-M16x2.0x150 | 1890 | 160 | 30 | M16X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS6-m-185-SS-M16x2.0x150 | 2350 | 185 | 34 | M16X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS7-m-215-SS-M16x2.0x150 | 3240 | 215 | 35 | M16X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS8-m-249-SS-M20x2.5x150 | 3980 | 249 | 44 | M20X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
| DLMS9-m-276-SS-M20x2.5x150 | 5230 | 276 | 43 | M20X150 | M10/12/16/20/24 | 0.7 | 30 | From -16 to 90 |
