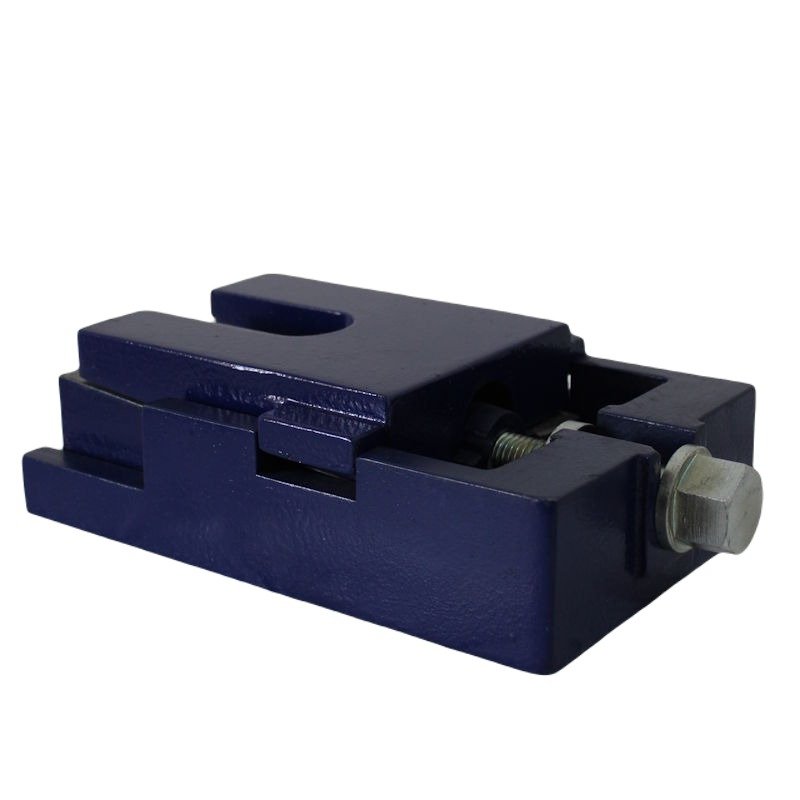

DFL2-S1
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 4000 |
| Length L (Mm) | 255 |
| Width B (Mm) | 155 |
| Height H (Mm) | 73 |
| Max Torque Value Nm | 216 |
| Adjustment Range (Mm) | 5 |
