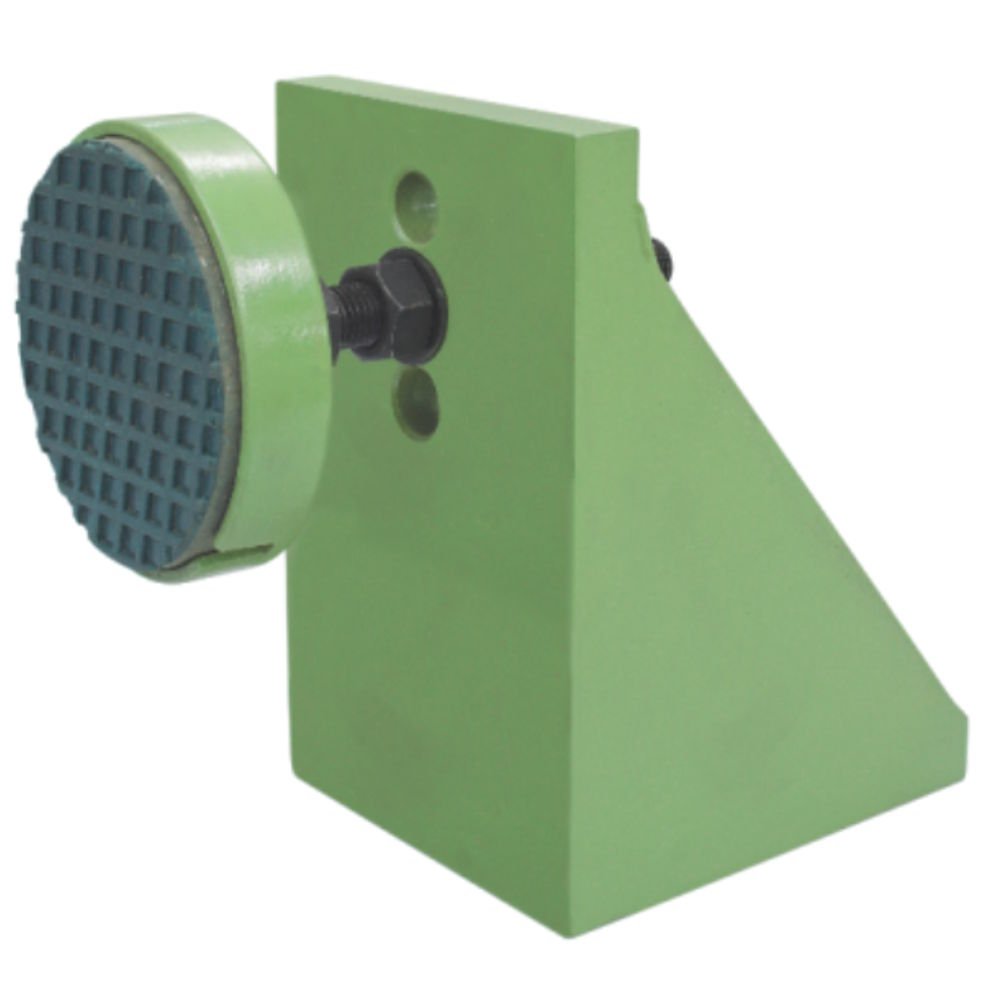

DHS 1
Dynemech Horixontal stop Series DHS is suitable for the shock absorption of machines having very high axial force on a light weight machine bed and for precision machines which has to be flexibly mounted but be protected from horizontal shaking due to inherent axial movements of their elements.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| H Caiptal (Mm) | 150 |
| L Capital (Mm) | 150 |
| B Capital (Mm) | 125 |
| A (Mm) | 50 |
| B (Mm) | 65 |
| E (Mm) | 25 |
| I (Mm) | 125 |
| M (Mm) | 100 |
| H (Mm) | 75 |
