Dh

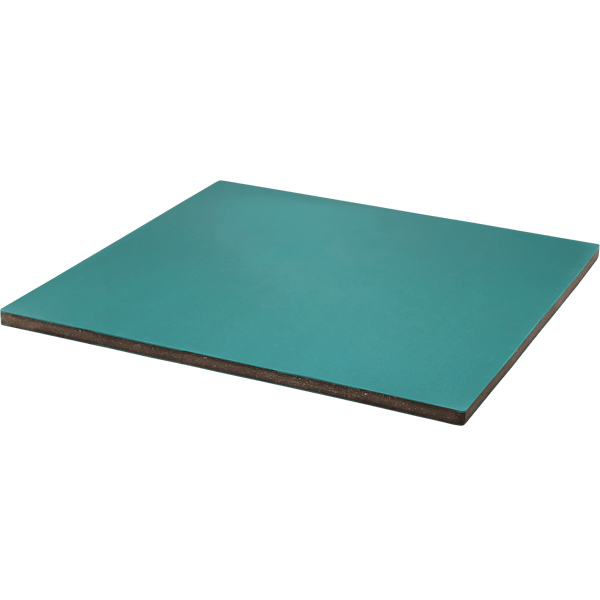

Dynemech Anti-vibration Dh Insulation Plate are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Code | DH |
| Thickness (Mm) | 15 |
| Shore A Hardness | 94-96 |
| Temp Range (°C) | -20 to +70 |

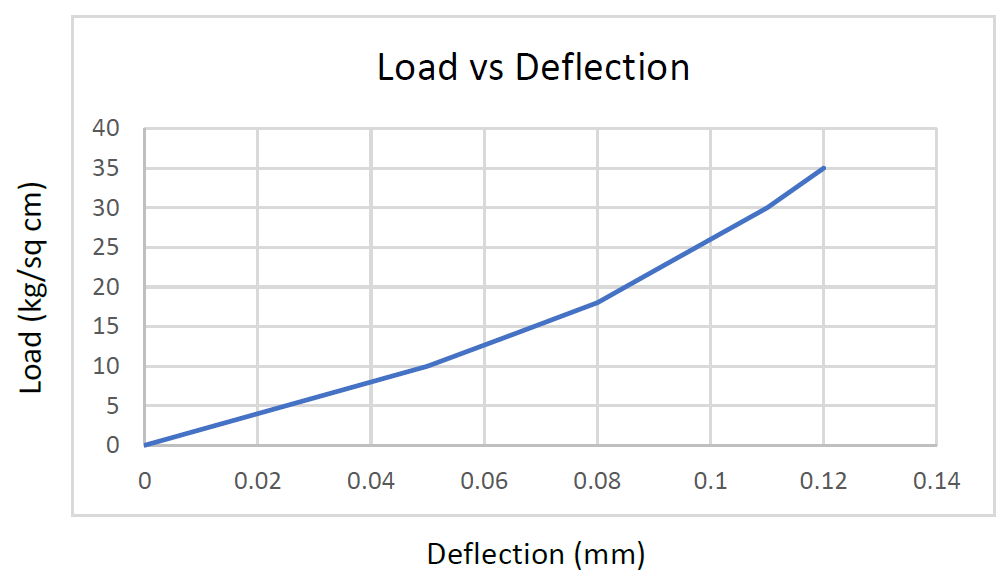

| Load (Kg) Sq Cm | 10-35 |

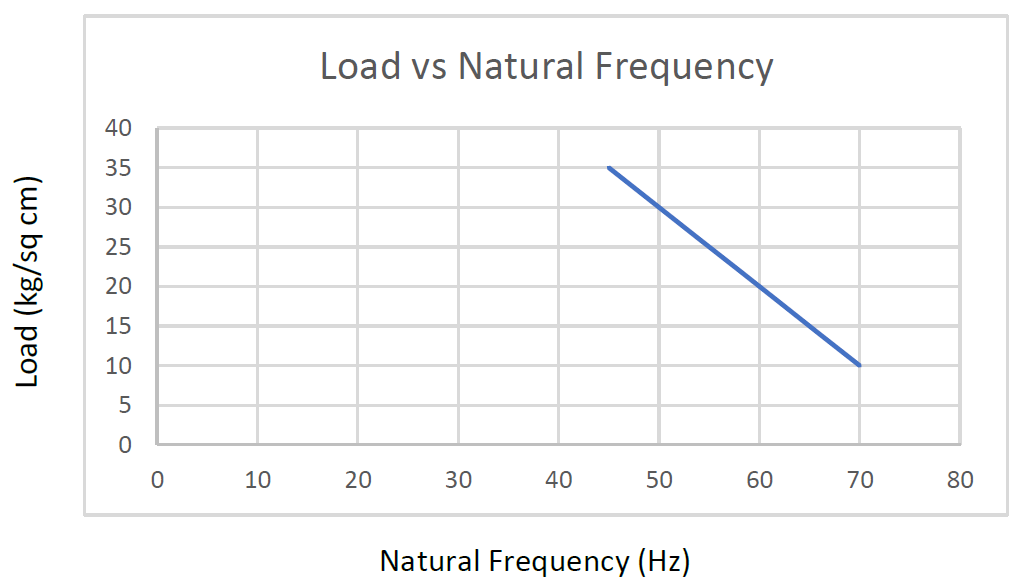

| Natural Frequency (Hz) | 45-70 |
| Coeff Of Friction | 0.6 |
| Oil And Chemical Resistance | Resistant to fuels, lubricating oils, water etc. used in the shop floor |
| Construction | Composite material made from Nitrile Rubber Cork Particles & Synthetic Particles |
| Application | Very Heavy and Long Bed Machines, Long Machining centres, Planners etc. |
