Dhs3
Dynemech Anti-vibration Dhs3 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of machine does not exceed maximum load value of this insulation plate.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Code | DHS3 |
| Thickness (Mm) | 50 |
| Shore A Hardness | 90-92 |
| Tensile Strength Kgcm2 | 100 |
| Elongation | 300% |
| Temp Range (°C) | -20 to +70 |
| Load (Kg) Sq Cm | 04-28 |

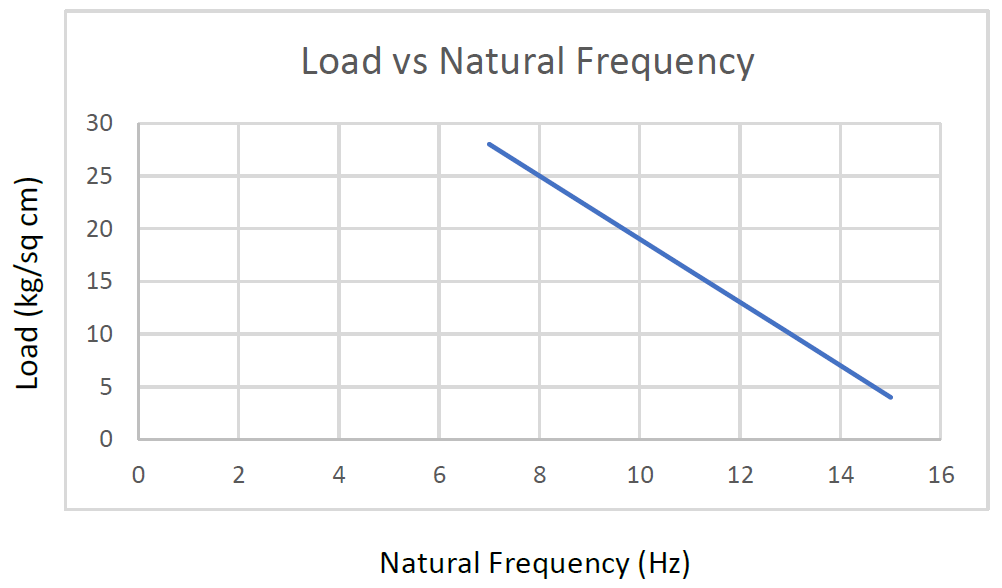

| Natural Frequency (Hz) | 7-15 |
| Coeff Of Friction | 0.8 |
| Oil And Chemical Resistance | Resistant to fuels, lubricating oils, water etc. used in the shop floor |
| Construction | Composite material made from Nitrile Rubber Cork Particles & polyster fiber. The composite material ensures high damping capacity, high compressive strength & high load capacities. |
| Application | Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc. |
