Dhs6-ML-15

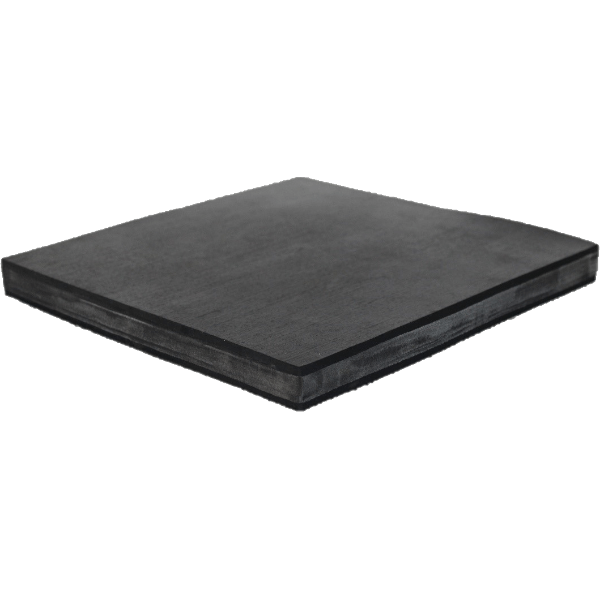

Dynestarke Vibration Isolation Pads, Series Dhs6-ML-15 are meticulously engineered using scientifically designed high grade elastomeric synthetic compound and multiply, tightly woven, closely packed light weight fabric that excels in isolating shock and damps high energy vibrations. It enables the DyneStarke Pads to effectively absorb and dissipate the energy generated by vibrations and shock, minimizing their transmission to surrounding structures and equipment. This not only protects the integrity of machinery but also enhances the overall stability , durability and performance of the system.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Code | DHS6-ML-15 |
| Thickness (Mm) | 15 |
| Shore A Hardness | 90-92 |
| Tensile Strength Kgcm2 | 97 |
| Elongation | 215 |
| Temp Range (°C) | -20 to +110 |
| Load (Kg) Sq Cm | 527 |

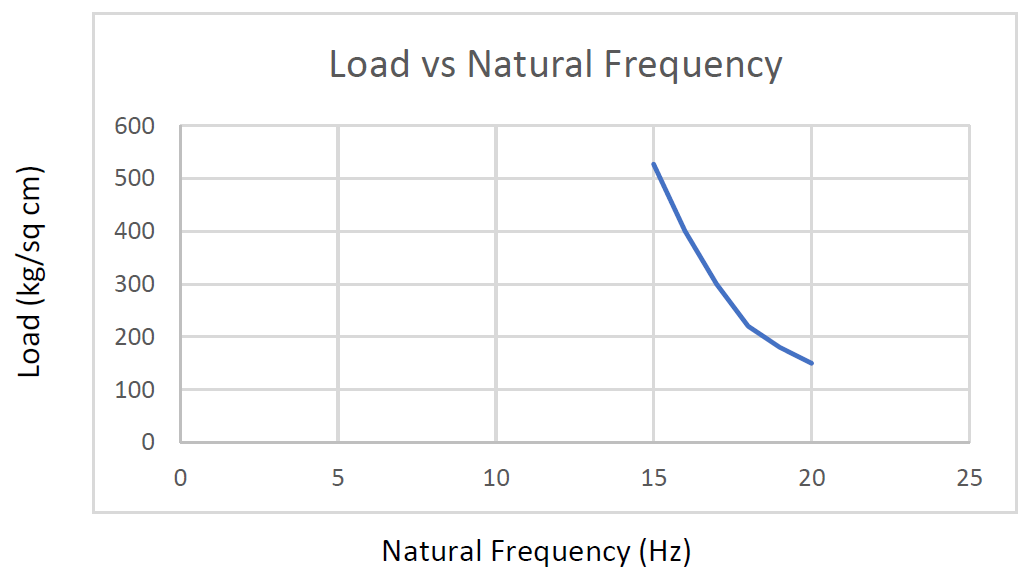

| Natural Frequency (Hz) | 15-20 |
| Coeff Of Friction | 0.7 |
| Construction | 30 Ply tightly Woven closely packed light Weight fabric molded with synthetic rubber. |
| Compression Set | 4-5 mm at 527 Kg/cm2 |
| Youngs Modulus Kgcm2 | 22.8 |
| Application | HVAC equipments, Gensets, Air handling units, Transformers, Compressors, Pumps, Chillers, Shop floor machinery. |
