Vibration Mounts India
Dynemech Rituresilire Vibration Isolation Pads, Series Du-10-NP are specifically engineered from high grade Chloroprene Rubber elastomeric compound to provide reliable vibration control and insulation in all weather conditions. These pads are designed to withstand various climates, ensuring consistent performance and durability. These are suitable for outdoor applications, where equipment is exposed to harsh elements. These pads exhibit excellent resistance to weather elements, oils, mildew, sunshine, dampness and other factors that can potentially degrade their performance.

Images

Du-10-NP - Image 1

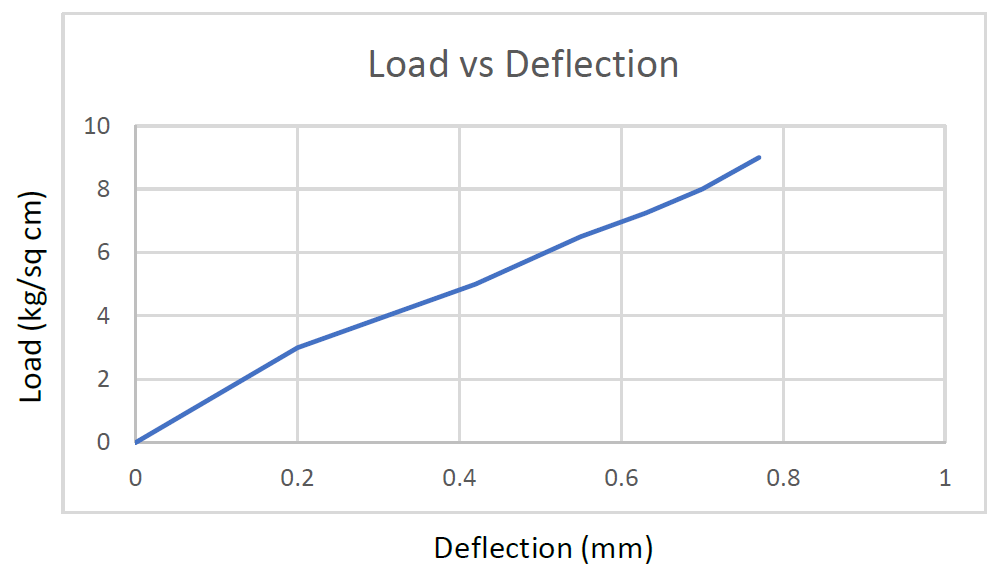

Du-10-NP - Image 2

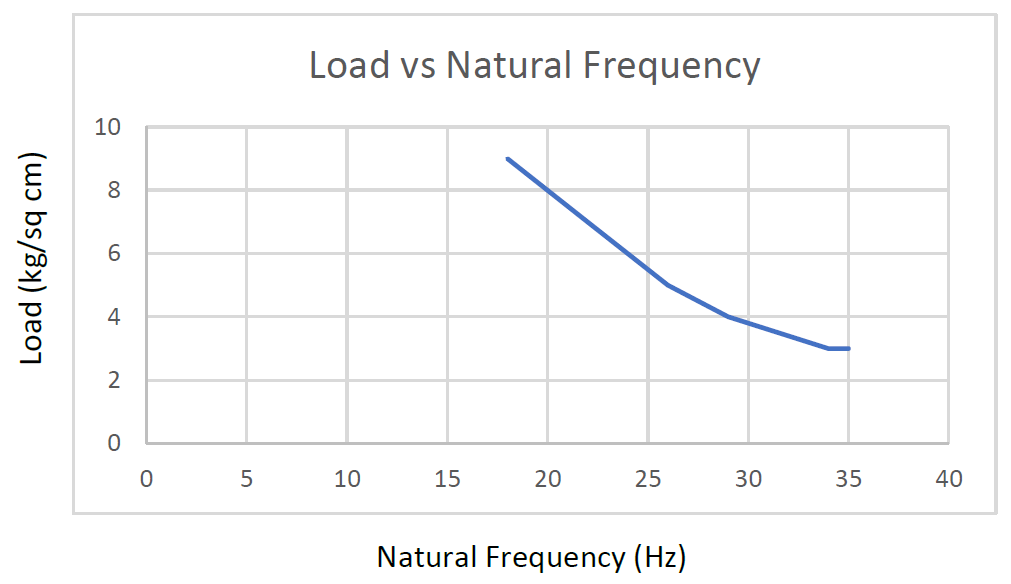

Du-10-NP - Image 3

Technical Data

Specifications

SpecificationValue
CodeDU-10-NP
Thickness (Mm)10
Shore A Hardness60-65
Tensile Strength Kgcm2100
Elongation250%
Temp Range (°C)-20 to +70
ColourBlack
Load (Kg) Sq Cm03-09
Natural Frequency (Hz)18-35
Coeff Of Friction0.9
Compression Set30%
Flammability ClassUL 94-V0
ApplicationHVAC equipments, Gensets, Air handling units, Transformers, Concrete bases, Compressors, Pumps, Chillers, AC units, Scrubbers etc.
