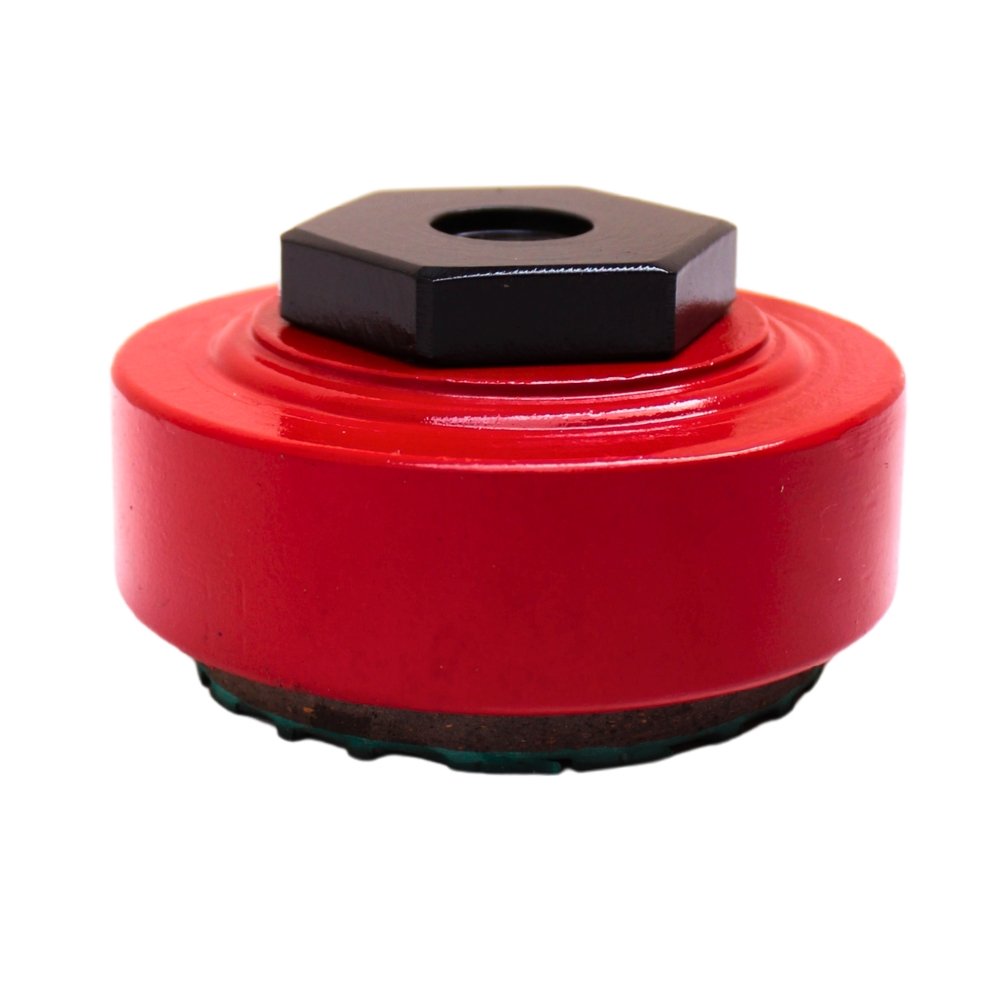

DJM0-D-M-FG-RD
Dynemech Jackup mounts provides isolation solutions for various machines mounting conditions. The Dynemech jackup mounts also provides for high machine leveling capabilities. These jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the jackup mount the jackup mount also provide very good passive vibration isolation.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 440 |
| Height H (Mm) | 49 |
| Dia Dmm | 90 |
| G (Mm) | M20X2.5(Length 38mm) |
| Hex Swmm | 46 |
| Temperature Range (°C) | From -16 to 90 |
| Levelling Adjustment | 18 |
