DML

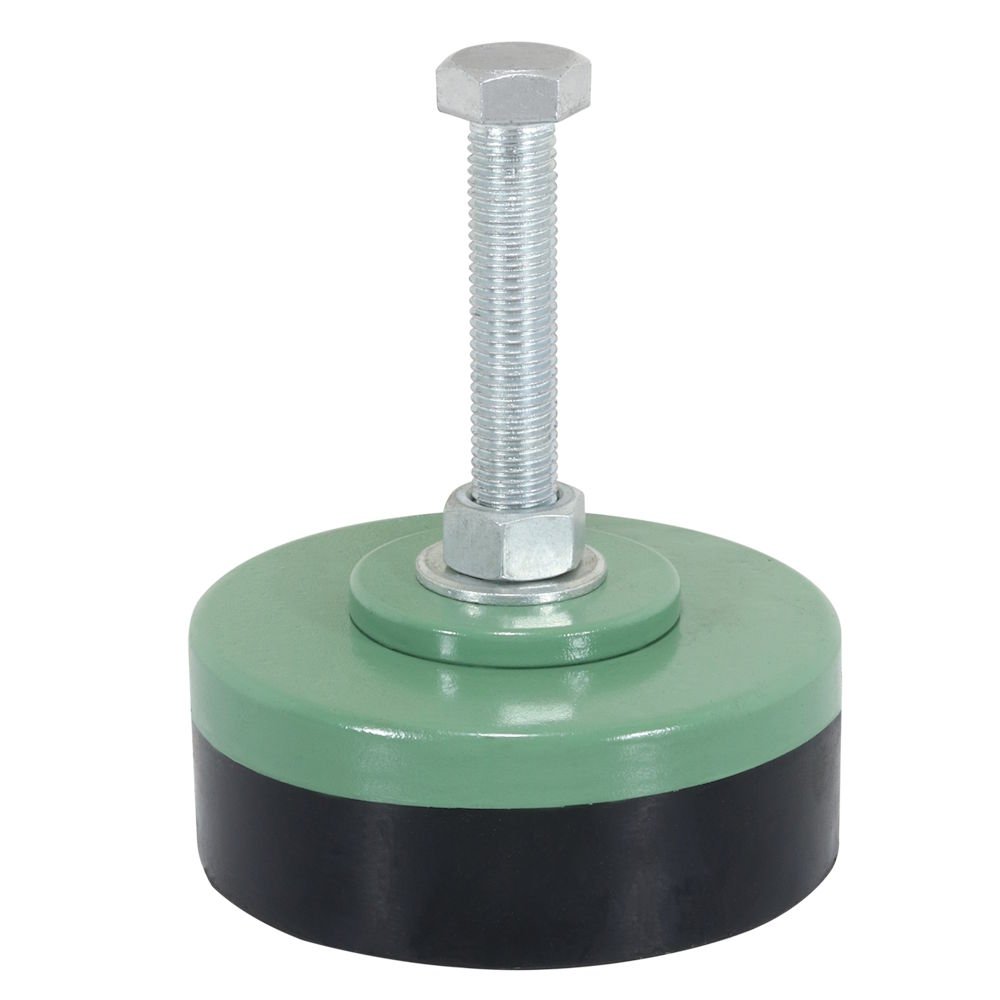

Dynemech Mac Level, Series DML is suitable for high speed rotating machines having small or no axial forces.
Documents
5 Models
| Model | Max Load Capacity (Kg) | D Capital (Mm) | H (Mm) | D (Mm) | Levelling Adjustment Range (Mm) | G |
|---|---|---|---|---|---|---|
| DML-1-M10x1.5x100-FG-GR | 175 | 50 | 40 | 32 | +10 | M10 |
| DML-2-M12x1.75x100-FG-GR | 500 | 80 | 47 | 45 | +12 | M12 |
| DML-3-M16x2.0x100-FG-GR | 1200 | 120 | 53 | 60 | +12 | M16 |
| DML-4-M16x2.0x100-FG-GR | 2000 | 160 | 58 | 90 | +20 | M16 |
| DML-5-M20x2.5x100-FG-GR | 4000 | 200 | 63 | 120 | +20 | M20 |
