VHS-V-FG

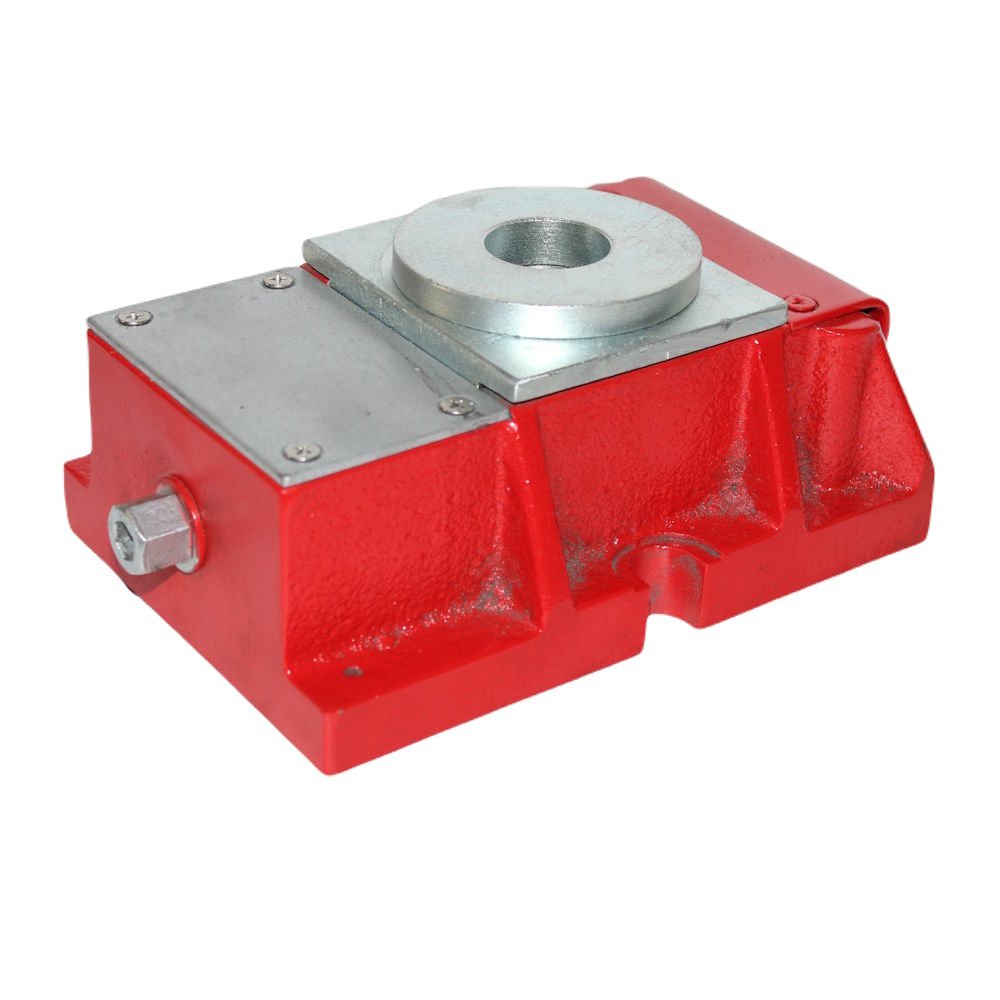

VHS Festofix Leveling Wedge Mounts are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads.
Benefits include:
• Built-in compensation for uneven areas in foundations and machine bases.
These benefits make the VHS series festofix levelling wedges the "state-of-the-art" anchoring/alignment system
Note :- Please select dimensions "G" or "F" at the time of Order.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Recommended Load (Kg/Pc) | 12000 |
| Max Load (Kg/Pc) | 70000 |
| L (Mm) | 350 |
| L1 (Mm) | 180 |
| B (Mm) | 230 |
| H Capital (Mm) | 138 |
| D (Mm) | 145 |
| H (Mm) | 10 |
| F Capital (Mm) | 37 |
| G Capital | M36 |
| A (Mm) | 35 |
| Sw1 | 32 |
| Sw2 | 18 |
| E1 | 28 |
| E2 | 46 |
| Applications | For the levelling, Adjustments & fixation of large machinery and other heavy equipment like boilers, turbines, generators, long-bedded lathes etc. |
