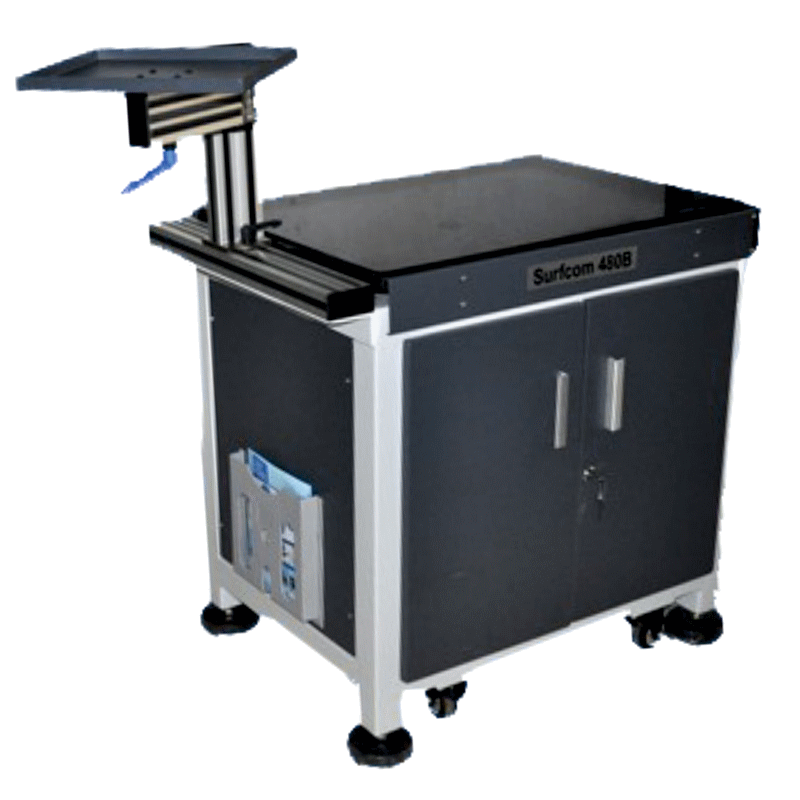

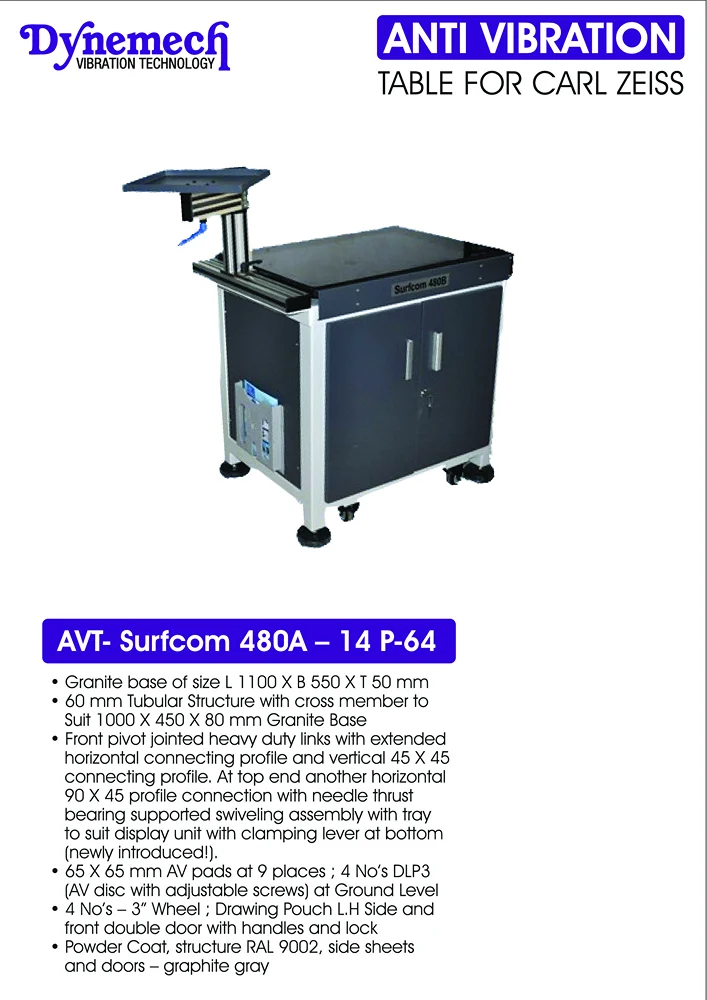

AVT P-64

Details

Features

• Granite base of size L 1100 X B 550 X T 50 mm
• 60 mm Tubular Structure with cross member to suit 1000 X 450 X 80 mm Granite Base
• Wrap Around Construction
• Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!).
• 65 X 65 mm AV pads at 9 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Drawing Pouch L.H Side and front double door with handles and lock
• Leveling Ball, Spanner 24/27
• Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
• Instrument sticker
• Overall dimensions: L 1120 X B 570 X H 730 (over granite base) mm
• Weight: kg
• Execution in wooden box
