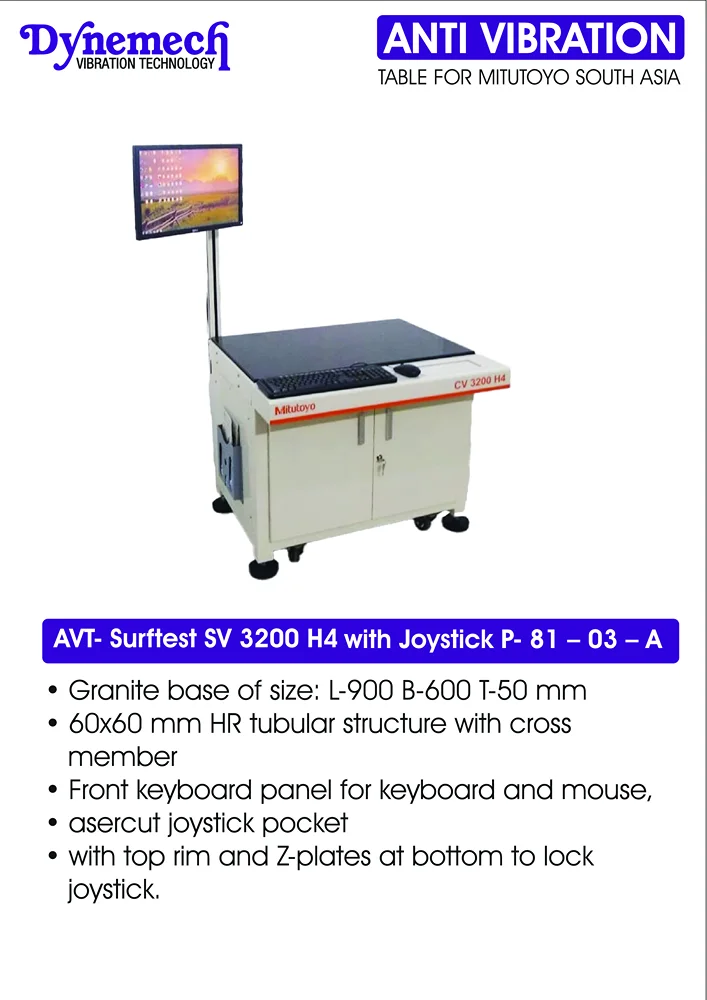

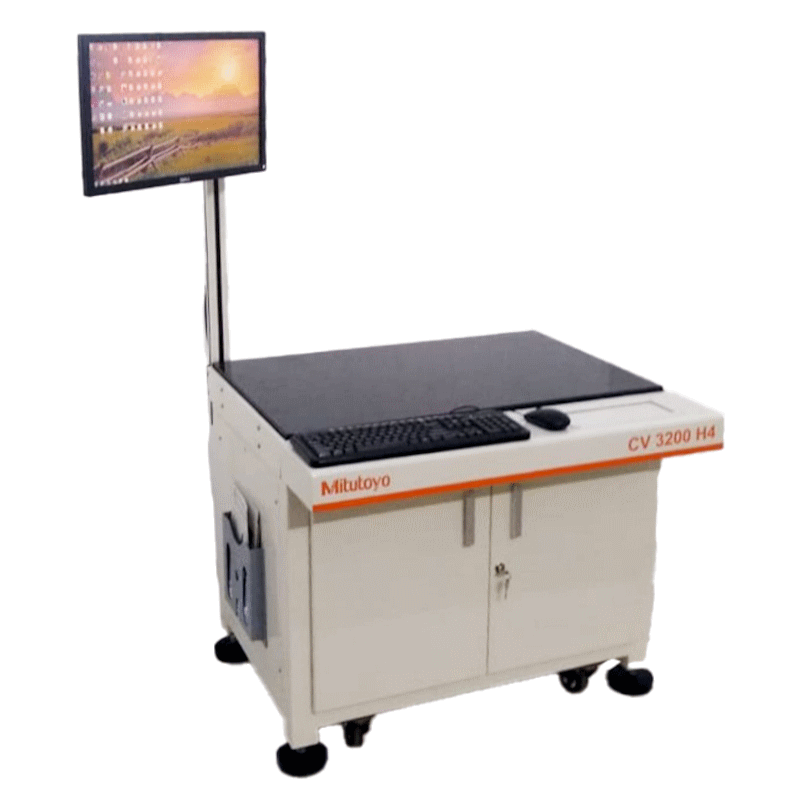

AVT P-81-03-A

Details

Features

• Granite base of size L 900 X B 600 X T 30 mm
• 60 mm Tubular Structure with cross member
• Wrap Around Construction with left angular profile
• Swiveling bracket for monitor
• 65 X 65 mm AV pads at 8 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
• Power Strip in Rear; controller, CPU and UPS inside structure
• Drawing Pouch LH Side, cable manager at rear side
• Front double door with handles and lock
• Leveling Ball, Spanner 24/27
• Powder Coat, structure, side sheets and doors RAL 9002
• Instrument sticker
• Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
• Weight: kg
• Execution in wooden box
