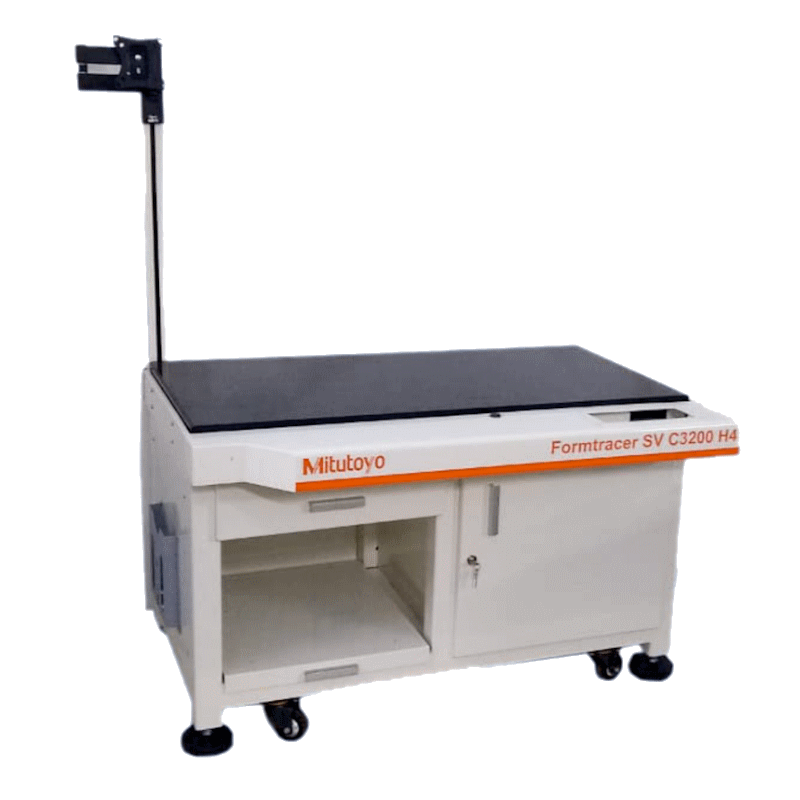

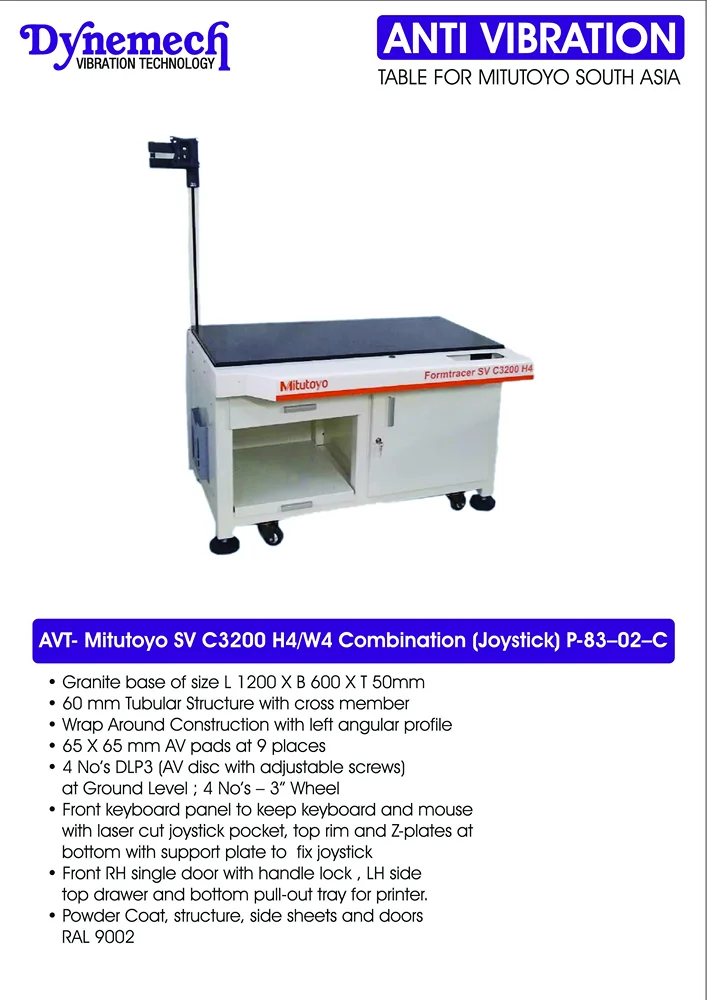

AVT P-83-02-C

Details

Features

• Granite base of size L 1200 X B 600 X T 50 mm
• 60 mm Tubular Structure with cross member
• Wrap Around Construction with left angular profile
• 65 X 65 mm AV pads at 9 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Front keyboard panel to keep keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
• Front RH single door with handle lock , LH side top drawer and bottom pull-out tray for printer.
• Power Strip in Rear; controller and UPS inside structure
• Drawing Pouch LH Side, cable manager at rear side
• Leveling Ball, Spanner 24/27
• Powder Coat, structure, side sheets and doors RAL 9002
• Instrument sticker
• Overall dimensions: L 1220 X B 770 X H 730 (over granite base) mm
• Weight: kg
• Execution in wooden box
