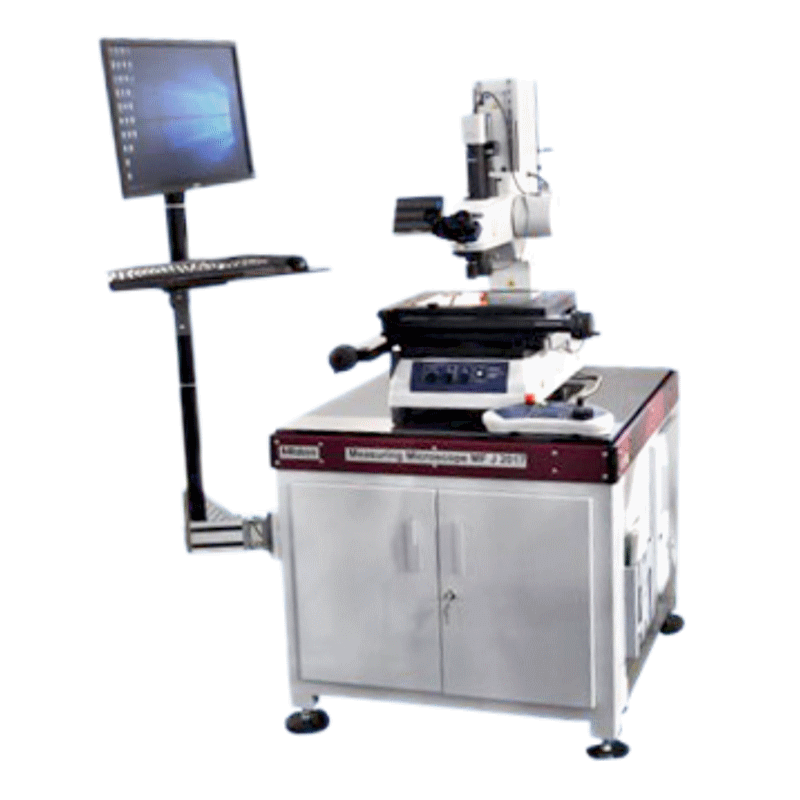

AVT P-87-04-A

Details

Features

• Granite base of size L 800 X B 900 X T 50 mm
• 60 mm Tubular Structure with cross member
• Wrap Around Construction
• Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end monitor bracket. (newly introduced!).
• 65 X 65 mm AV pads at 12 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• All three sides closed, bottom sheet to place controller, CPU and UPS with exhaust fan.
• Front double door with handles and lock
• Power strip in rear; Leveling Ball, Spanner 24/27
• Powder Coat, structure and joystick panel RAL 9002
• Instrument sticker
• Overall dimensions: L 830 X B 930 X H 767 (over granite base) mm
• Weight: kg
• Execution in wooden box
