Housed Spring Isolators
MAI-FG-OP
Product
MAI-FG-OP
Description
Cased spring isolators with leveling adjustment are designed to provide superior vibration isolation and precise leveling for various types of machinery and equipment. The top casing is guided with the body of the isolator which restrains lateral movement. Having a single spring of various load capacities makes it suitable for light to medium weight machines. These isolators combine the vibration-damping properties of springs with the stability and adjustability of a cased design, making them ideal for applications such as AHU, Axial Fans, Chillers, DG Sets, HVAC, Pipe supports etc.
Documents
| Model | Loadpc (Kg) | Free Height H (Mm) | Height Under Load (Mm) | Bolt G | Top Plate Axb (Mm) | Bottom Plate Cxd (Mm) | Mounting Center Distance (Mm) | Natural Frequency Range (Hz) |
|---|---|---|---|---|---|---|---|---|
| MAI-E2-FG-OP | 31 | 115 | 95 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-F2-FG-OP | 61 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-G1-FG-OP | 109 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-G5-FG-OP | 157 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-H2-FG-OP | 210 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-J2-FG-OP | 300 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-L4-FG-OP | 500 | 125 | 105 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-N5-FG-OP | 1200 | 125 | 110 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-P5-FG-OP | 900 | 115 | 106 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
| MAI-P4-FG-OP | 1400 | 125 | 116 | M16 | 150x110 | 220x110 | 193 | 5.0-10 |
MBI-FG-OP
Product
MBI-FG-OP
Description

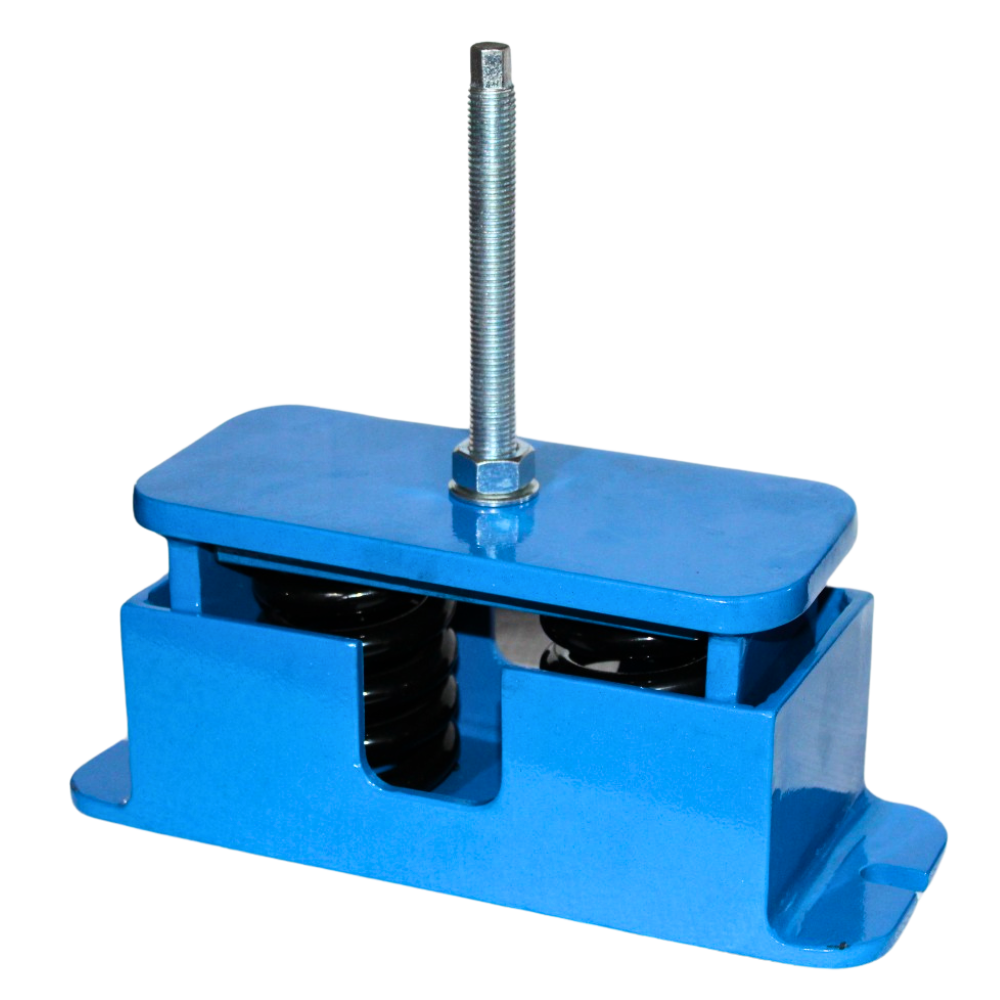

Cased spring isolators with leveling adjustment are designed to provide superior vibration isolation and precise leveling for various types of machinery and equipment. The top casing is guided with the body of the isolator which restrains lateral movement. Having double springs of various load capacities makes it suitable for medium to heavy weight machines. These isolators combine the vibration-damping properties of springs with the stability and adjustability of a cased design, making them ideal for applications such as AHU, Axial Fans, Chillers, DG Sets, HVAC, Pipe supports etc.
Documents
| Model | Loadpc (Kg) | Free Height H (Mm) | Height Under Load (Mm) | Bolt G | Top Plate Axb (Mm) | Bottom Plate Cxd (Mm) | Mounting Center Distance (Mm) | Natural Frequency Range (Hz) |
|---|---|---|---|---|---|---|---|---|
| MBI-E2-FG-OP | 62 | 115 | 95 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-F2-FG-OP | 122 | 125 | 105 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-G1-FG-OP | 218 | 125 | 105 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-G5-FG-OP | 314 | 125 | 105 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-H2-FG-OP | 420 | 125 | 105 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-J2-FG-OP | 600 | 125 | 113 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-L4-FG-OP | 1000 | 106 | 105 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-N5-FG-OP | 2400 | 125 | 110 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-P5-FG-OP | 1800 | 115 | 106 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
| MBI-P4-FG-OP | 2800 | 125 | 106 | M16 | 230x110 | 300x110 | 273 | 5.0-10 |
MEI
Product
MEI
Description

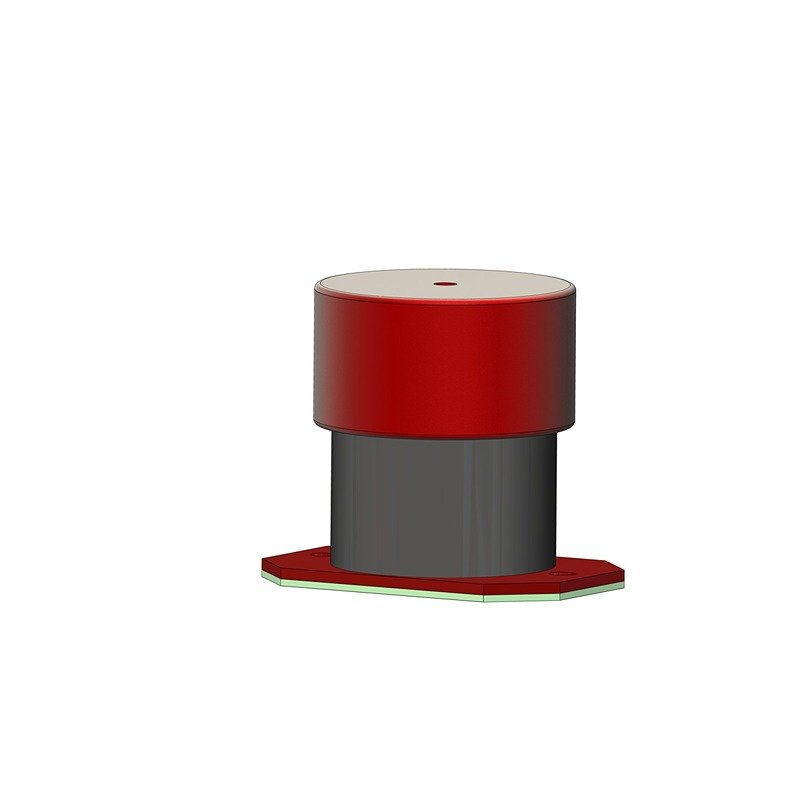

Spring isolators series MEI are used to reduce vibrations and noise by isolating equipment from its support structure. These isolators are particularly important in applications involving light to medium weight machines such as AHU, Axial Fans, Chillers, DG Sets, HVAC where significant vibrations can be generated.
Documents
