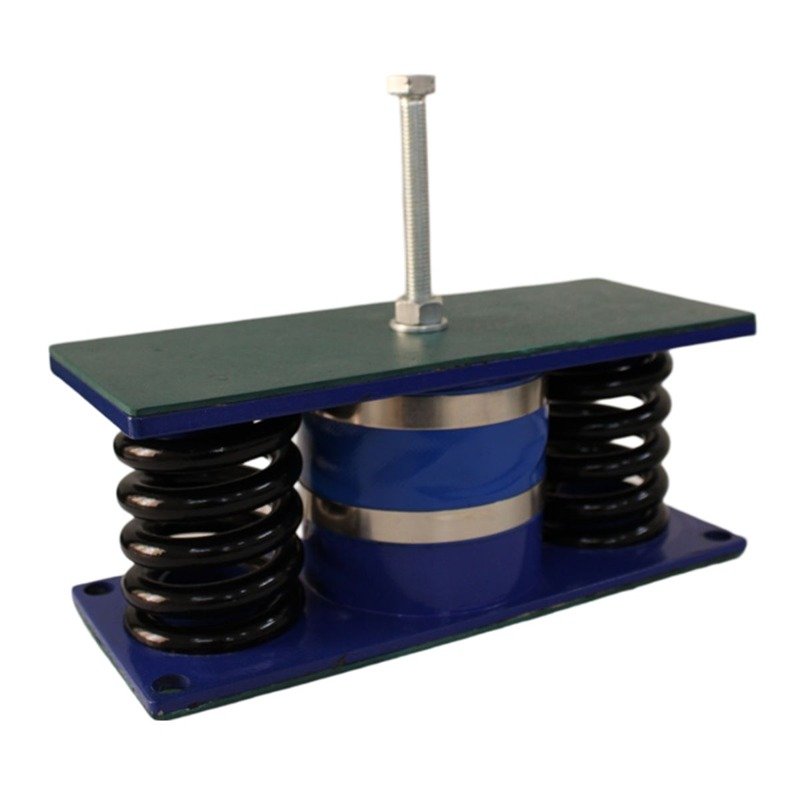

RBD-OPSD
Documents
11 Models
| Model | Load (Kg) | Free Height H | Height At Maximum Load (Mm) 2 | Bolt G | Top Plate Axb (Mm) | Bottom Plate Cxd (Mm) | Cc (Mm) | Natural Frequency Range (Hz) |
|---|---|---|---|---|---|---|---|---|
| RBD-E2-OPSD | 62 | 108 | 88 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-F2-OPSD | 122 | 108 | 88 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-G1-OPSD | 109 | 108 | 88 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-G5-OPSD | 157 | 108 | 88 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-H2-OPSD | 210 | 108 | 88 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-J2-OPSD | 300 | 108 | 91 | M12 | 275x110 | 275x110 | 255x90 | 3.5-11 |
| RBD-K6-OPSD | 1700 | 83 | 77 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-L4-OPSD | 1000 | 108 | 91 | M12 | 275x110 | 275x110 | 255x90 | 3.5-11 |
| RBD-N5-OPSD | 2400 | 108 | 93 | M12 | 275x110 | 275x110 | 255x90 | 5.0-10 |
| RBD-P4-OPSD | 2800 | 108 | 99 | M12 | 275x110 | 275x110 | 255x90 | 5.0-8.0 |
| RBD-P5-OPSD | 1800 | 98 | 89 | M12 | 285x120 | 285x120 | 265x100 | 5.0-10 |
