Anti Vibration Table on Air Spring with Auto Levelling, Series DIT-AL

Anti Vibration Table On Air Spring With Auto Levelling With Granite Top, Series DIT-AL-GN

Product

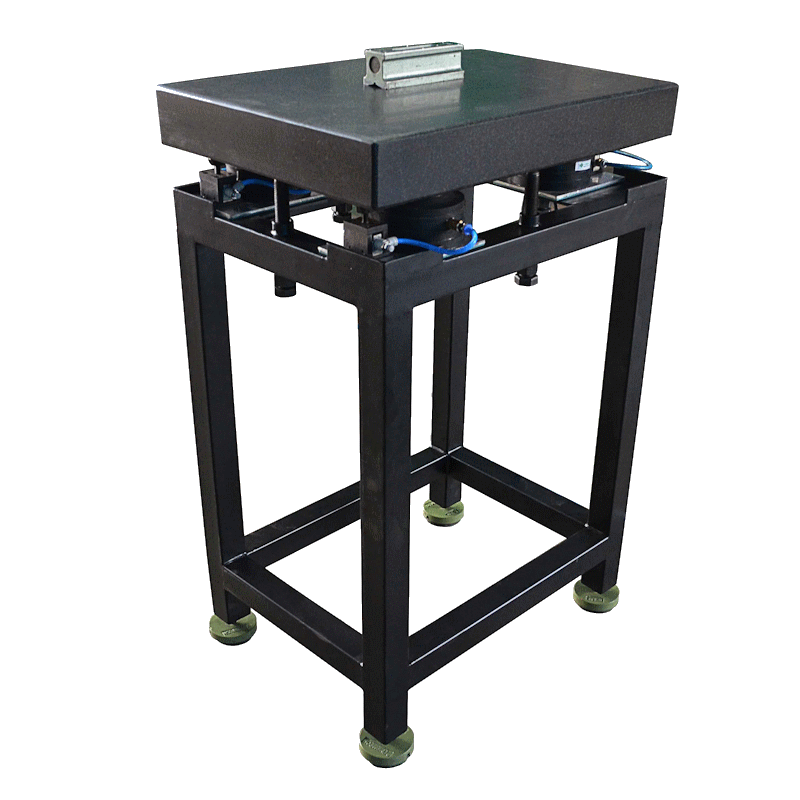

Anti Vibration Table On Air Spring With Auto Levelling With Granite Top, Series DIT-AL-GN

Description

Dynemech Anti Vibration Tables - Series DIT-AL-GN are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled. APPLICATIONS: The Vibration Isolated Table (VIT) finds usage in critical areas where precise reading accuracy of instruments like CMMs, Robotic Arms, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers etc. is required.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where precise reading accuracy of instruments like CMMs, Robotic Arms, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers etc. is required

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-GN-01	upto 400	500	500	80
DIT-AL-GN-01-S1	upto 400	630	630	80
DIT-AL-GN-02	upto 500	750	500	80
DIT-AL-GN-03	upto-1250	900	600	100
DIT-AL-GN-04	upto-1250	1000	800	150

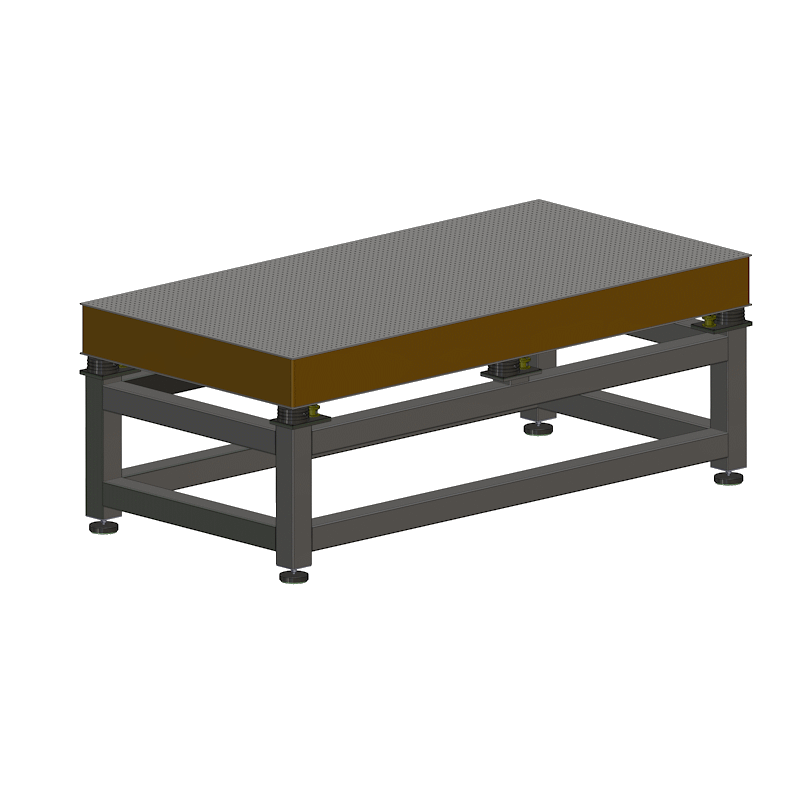

Anti Vibration Table On Air Spring With Auto Levelling With Honeycomb Breadboard, Series DITAL-HC

Product

Anti Vibration Table On Air Spring With Auto Levelling With Honeycomb Breadboard, Series DITAL-HC

Description

Dynemech Anti Vibration Tables Series DIT-AL-HC are ideal for isolating low-frequency vibration, Dynemech Anti vibration table has natural frequency in the range of 04-06Hz, The DIT-AL-HC Antivibration table consist of Honeycomb Table Top. These Vibration tables provide economical solution where low frequency vibrations need to be removed. The passive vibration from nearby machines is reduced by 80-90%. Levelling is done using bottom levelling screw.

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DIT-AL-HC-01-757590	upto 700	750	750	900	100
DIT-AL-HC-02-906090	upto 800	900	600	900	100
DIT-AL-HC-03-909090	upto 1000	900	900	900	150
DIT-AL-HC-04-12010090	upto-1000	1200	1000	900	150
DIT-AL-HC-05-12012090	upto-1000	1200	1200	900	150
DIT-AL-HC-06-18012090	upto-1000	1800	1200	900	150
DIT-AL-HC-07-24012090	upto-1200	2400	1200	900	200

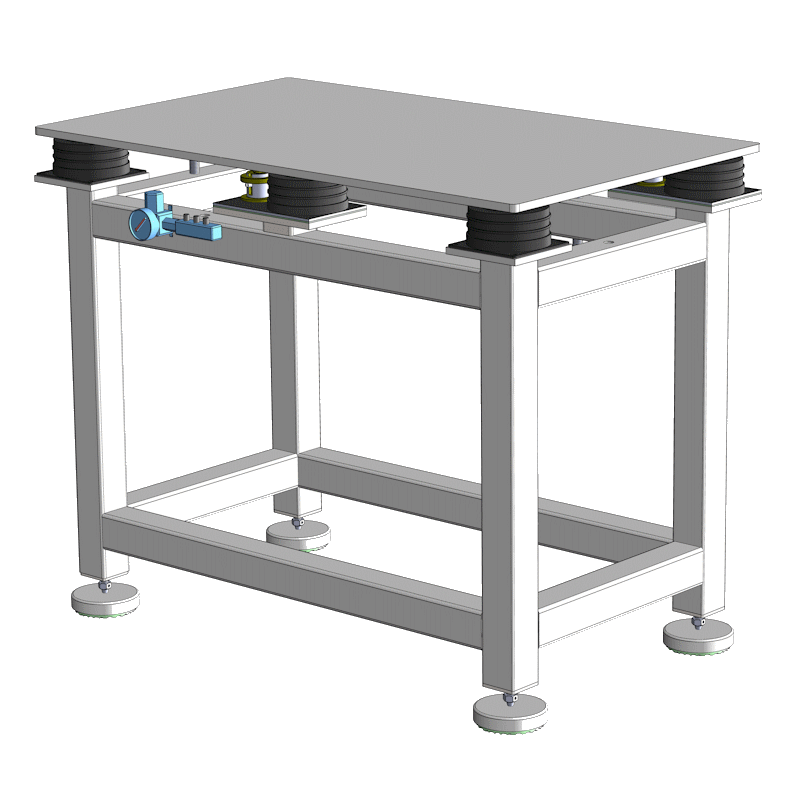

Anti Vibration Table On Air Spring With Auto Levelling With Corian Marbletop, Series DITAL-CM

Product

Anti Vibration Table On Air Spring With Auto Levelling With Corian Marbletop, Series DITAL-CM

Description

Dynemech Anti Vibration Tables - Series DIT-AL-CM are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Corian Marble Plate. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Model	Load (Kg)	Length (Mm)	Width (Mm)	Corian Marble Tabletop Thickness (Mm)
DIT-AL-CM-01	upto 400	500	500	12
DIT-AL-CM-01-s1	upto 400	630	630	12
DIT-AL-CM-02	upto 500	750	500	12
DIT-AL-CM-03	upto-1250	900	600	12
DIT-AL-CM-04	upto-1250	1000	800	24

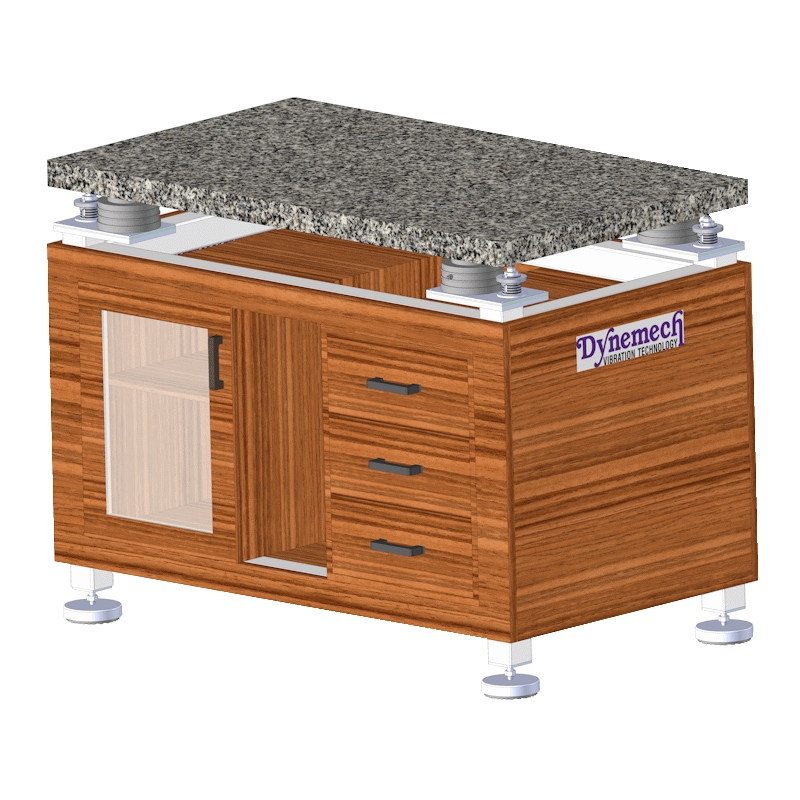

Anti Vibration Table On Air Spring With Auto Levelling With Wooden Pu Coated Outer Frame, Series DITAL-W

Product

Anti Vibration Table On Air Spring With Auto Levelling With Wooden Pu Coated Outer Frame, Series DITAL-W

Description

Dynemech Anti Vibration Tables - Series DIT-AL-W are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 These Anti-Vibration Table have a Wooden PU Coated Outer Frame accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-W-01	upto 400	500	500	80
DIT-AL-W-01-s1	upto 400	630	630	80
DIT-AL-W-02	upto 500	750	500	80
DIT-AL-W-03	upto-1250	900	600	100
DIT-AL-W-04	upto-1250	1000	800	150

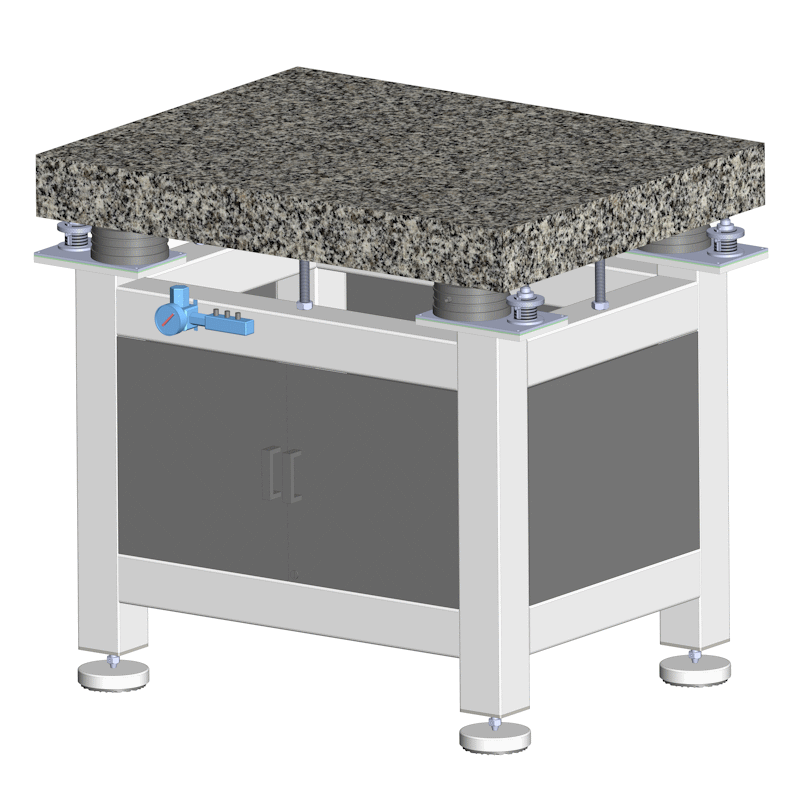

Anti Vibration Table On Air Spring With Auto Levelling With Steel Cabinets And Supports-Granite Top, Series DITAL-CDG

Product

Anti Vibration Table On Air Spring With Auto Levelling With Steel Cabinets And Supports-Granite Top, Series DITAL-CDG

Description

Dynemech Anti Vibration Tables - Series DIT-AL-CDG are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-CDG-01	upto 400	500	500	80
DIT-AL-CDG-01-S1	upto 400	630	630	80
DIT-AL-CDG-02	upto 500	750	500	80
DIT-AL-CDG-03	upto-1250	900	600	100
DIT-AL-CDG-04	upto-1250	1000	800	150

Anti Vibration Table On Air Spring With Auto Levelling With Steel Cabinets, Supports & Ss Top, Series DITAL-CDSS

Product

Anti Vibration Table On Air Spring With Auto Levelling With Steel Cabinets, Supports & Ss Top, Series DITAL-CDSS

Description

Dynemech Anti Vibration Tables - Series DIT-AL-CDSS are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-CDSS-01	upto 400	500	500	80
DIT-AL-CDSS-01-S1	upto 400	630	630	80
DIT-AL-CDSS-02	upto 500	750	500	80
DIT-AL-CDSS-03	upto-1250	900	600	100
DIT-AL-CDSS-04	upto-1250	1000	800	150

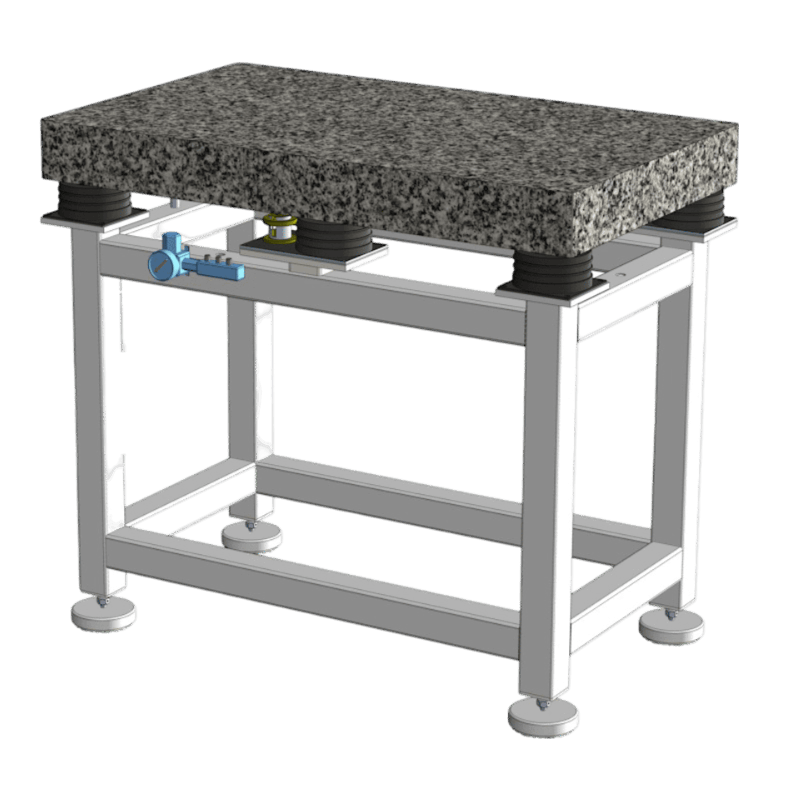

Anti Vibration Table On Air Spring With Auto Levelling With Stainless Steel Table Frame, Series DITAL-SFG

Product

Anti Vibration Table On Air Spring With Auto Levelling With Stainless Steel Table Frame, Series DITAL-SFG

Description

Dynemech Anti Vibration Tables - Series DIT-AL-SFG are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 These Anti-Vibration have a Stainless Steel Table Frame accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-SFG-01	upto 400	500	500	80
DIT-AL-SFG-01-s1	upto 400	630	630	80
DIT-AL-SFG-02	upto 500	750	500	80
DIT-AL-SFG-03	upto-1250	900	600	100
DIT-AL-SFG-04	upto-1250	1000	800	150

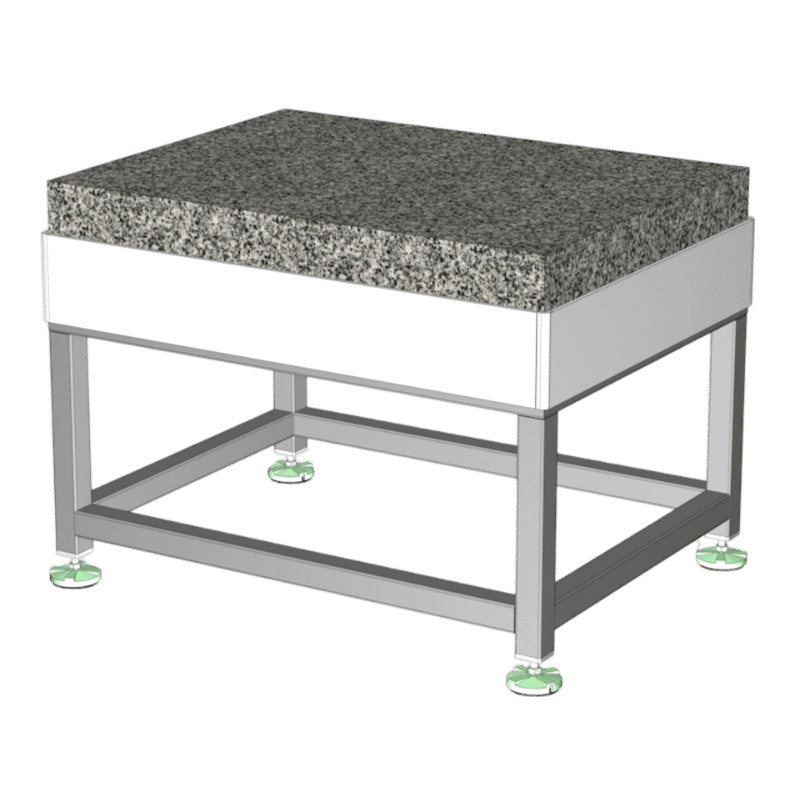

Anti Vibration Table On Air Spring With Auto Levelling With Granite Tabletop & Wrap Around Plate, Series DITAL-WAG

Product

Anti Vibration Table On Air Spring With Auto Levelling With Granite Tabletop & Wrap Around Plate, Series DITAL-WAG

Description

Dynemech Anti Vibration Tables - Series DIT-AL-WAG are ideal for Testing / Quality Laboratories where there is need for vibration control from low frequency vibration as well as requirement of active levelling system for maintaining surface plate Levelling. The vibrations are isolated using Pneumatic Air Mounts fitted with sophisticated height sensing levelling valves. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/ Grade-1 and Wrap around Plate accuracy for very precise measuring accuracies. The system detects movement of load (like moving arm of CMM machine) on the surface plate and automatically fills/exhausts air to keep the surface plate levelled.

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-WAG-01	upto 400	500	500	80
DIT-AL-WAG-01-s1	upto 400	630	630	80
DIT-AL-WAG-02	upto 500	750	500	80
DIT-AL-WAG-03	upto-1250	900	600	100
DIT-AL-WAG-04	upto-1250	1000	800	150

Anti Vibration Table On Air Spring With Auto Levelling With Granite Tabletop &Top Storage, Series DITAL-GSR

Product

Anti Vibration Table On Air Spring With Auto Levelling With Granite Tabletop &Top Storage, Series DITAL-GSR

Description

Anti vibration table with top honeycomb/Granite surface plate. Low frequency air springs with auto levelling are used for vibration isolation. Continuous air supply is needed

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Granite Table Top Thickness (Mm)
DIT-AL-GSR-01-757590	upto 700	750	750	900	100
DIT-AL-GSR-02-906090	upto 800	900	600	900	100
DIT-AL-GSR-03-909090	upto 1000	900	900	900	150
DIT-AL-GSR-04-12010090	upto-1000	1200	1000	900	150
DIT-AL-GSR-05-12012090	upto-1000	1200	1200	900	150
DIT-AL-GSR-06-18012090	upto-1000	1800	1200	900	150
DIT-AL-GSR-07-24012090	upto-1200	2400	1200	900	200

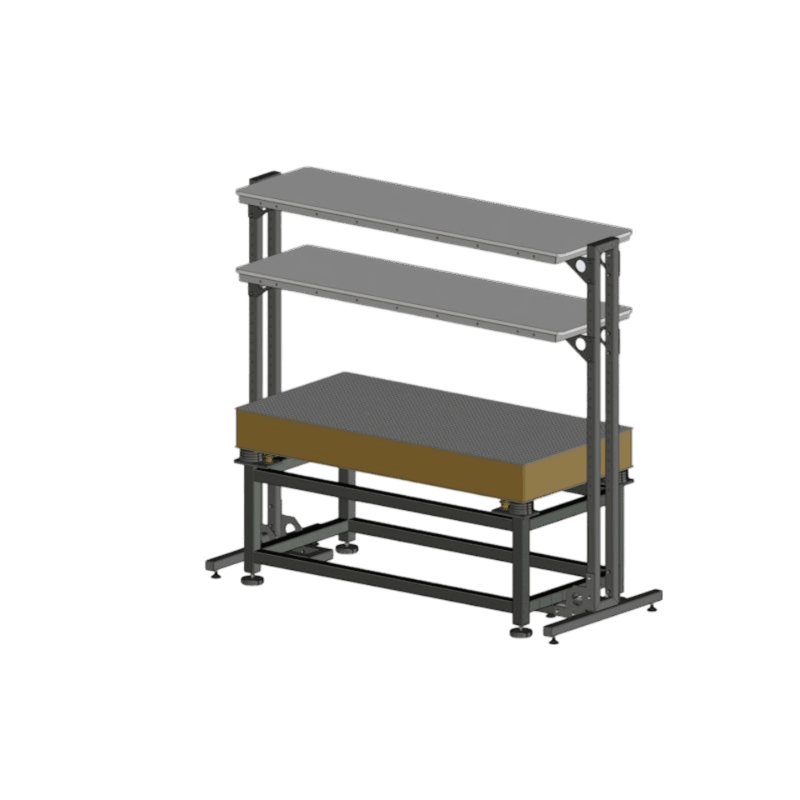

Anti Vibration Table On Air Spring With Auto Levelling With Honeycomb Tabletop &Top Storage, Series DITAL-HC-SR

Product

Anti Vibration Table On Air Spring With Auto Levelling With Honeycomb Tabletop &Top Storage, Series DITAL-HC-SR

Description

Dynemech Anti-Vibration Table Series DIT-AL-HC-SR is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the table top can be maintained using precision spirit level/electronic level gauge. This levelling adjustment leg ensures the rigid placement of the frame on the ground.The table top is a honeycomb table top. The core of this table top is composed of hexagon cells which provides remarkable strength to weight ratio ensuring a robust and stable surface which is light weight and easier to handle. The core is sandwiched between two layers of high quality material such as SS 304 or Magnetic SS. Additional two levels of slabs are provided with independent stand. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the antivibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved by using DRAS air springs with non return valve or connector with continuous air supply are tuned to low natural frequency range between 4-6 Hz. This table damps most of the incoming vibrations above 10 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

Used in industries with requirement for mounting optical assemblies and modules, like lasers, lenses, and other precision equipment, Microscopy and Research Labs, Balance and Precision Testing Equipment, Seismic and Vibration-Sensitive Environments.

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DIT-AL-HC-SR-01-757590	upto 700	750	750	900	100
DIT-AL-HC-SR-02-906090	upto 800	900	600	900	100
DIT-AL-HC-SR-03-909090	upto 1000	900	900	900	150
DIT-AL-HC-SR-04-12010090	upto-1000	1200	1000	900	150
DIT-AL-HC-SR-05-12012090	upto-1000	1200	1200	900	150
DIT-AL-HC-SR-06-18012090	upto-1000	1800	1200	900	150
DIT-AL-HC-SR-07-24012090	upto-1200	2400	1200	900	200
