Anti Vibration Table on Air Spring with Manual Levelling, Series DIT-AS

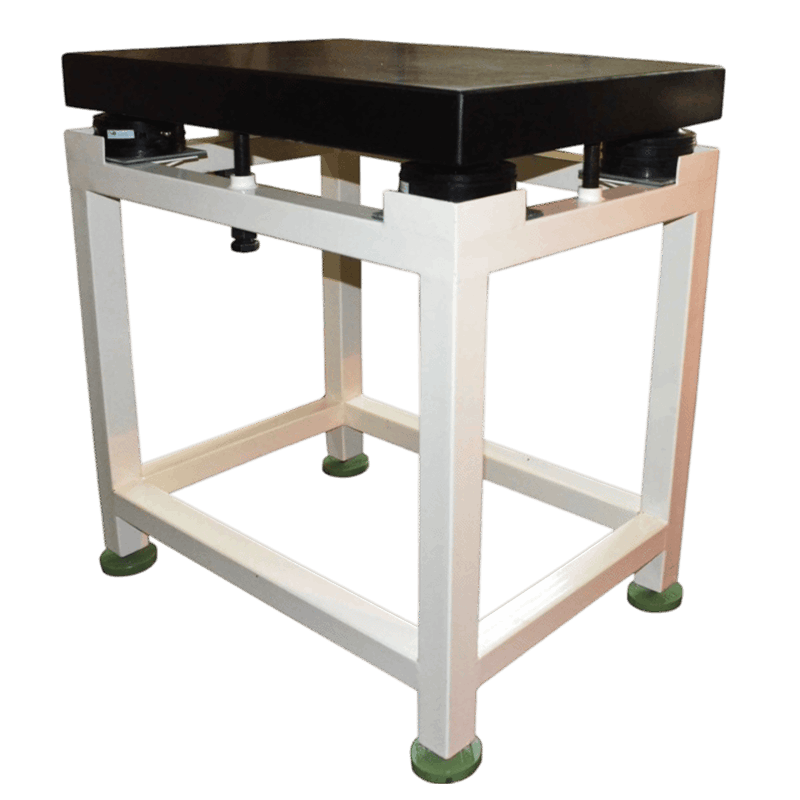

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop, Series DIT-AS-GN

Product

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop, Series DIT-AS-GN

Description

Dynemech Anti Vibration Tables Series DIT-AS-GN are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. Anti Vibra􀆟on Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by vibrations.

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Height (Mm)
DIT-AS-GN-01	upto 400	500	500	80	—
DIT-AS-GN-01-S1	upto 400	630	630	80	—
DIT-AS-GN-02	upto 500	750	500	80	—
DIT-AS-GN-03	upto-1250	900	600	100	—
DIT-AS-GN-04	upto-1250	1000	800	150	—
DIT-AS-GN-05	upto 1250	1200	1000	150	800-1000
DIT-AS-GN-06	upto 1500	1800	1500	150	800-1000

Anti Vibration Table On Air Spring With Manual Levelling With Honeycomb Breadboard, Series DIT-AS-HC

Product

Anti Vibration Table On Air Spring With Manual Levelling With Honeycomb Breadboard, Series DIT-AS-HC

Description

Dynemech Anti Vibraton Tables Series DIT-AS-HC are ideal for isolating low-frequency vibration, Dynemech Anti vibration table has natural frequency in the range of 04-06Hz, The DIT-AS-HC Antivibraon table consist of Honeycomb Table Top. These Vibration tables provide economical solution where low frequency vibrations need to be removed. The passive vibration from nearby machines is reduced by 80-90%. Levelling is done using bottom levelling screw.

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc.

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DIT-AS-HC-01-757590	upto 700	750	750	900	100
DIT-AS-HC-02-906090	upto 800	900	600	900	100
DIT-AS-HC-03-909090	upto 1000	900	900	900	150
DIT-AS-HC-04-12010090	upto-1200	1200	1000	900	150
DIT-AS-HC-05-12012090	upto-1200	1200	1200	900	150
DIT-AS-HC-06-18012090	upto-1500	1800	1200	900	200
DIT-AS-HC-07-300150100	upto-3600	3000	1500	1000	300

Anti Vibration Table On Air Spring With Manual Levelling With Corian Marbletop, Series DIT-AS-CM

Product

Anti Vibration Table On Air Spring With Manual Levelling With Corian Marbletop, Series DIT-AS-CM

Description

Dynemech Anti Vibration Tables - Series DIT-AS-CM are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Corian Marble Plate. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Datasheet

Model	Load (Kg)	Length (Mm)	Width (Mm)	Corian Marble Tabletop Thickness (Mm)
DIT-AS-CM-01	upto 400	500	500	12
DIT-AS-CM-01-S1	upto 400	630	630	12
DIT-AS-CM-02	upto 500	750	500	12
DIT-AS-CM-03	upto-1250	900	600	12
DIT-AS-CM-04	upto-1250	1000	800	24

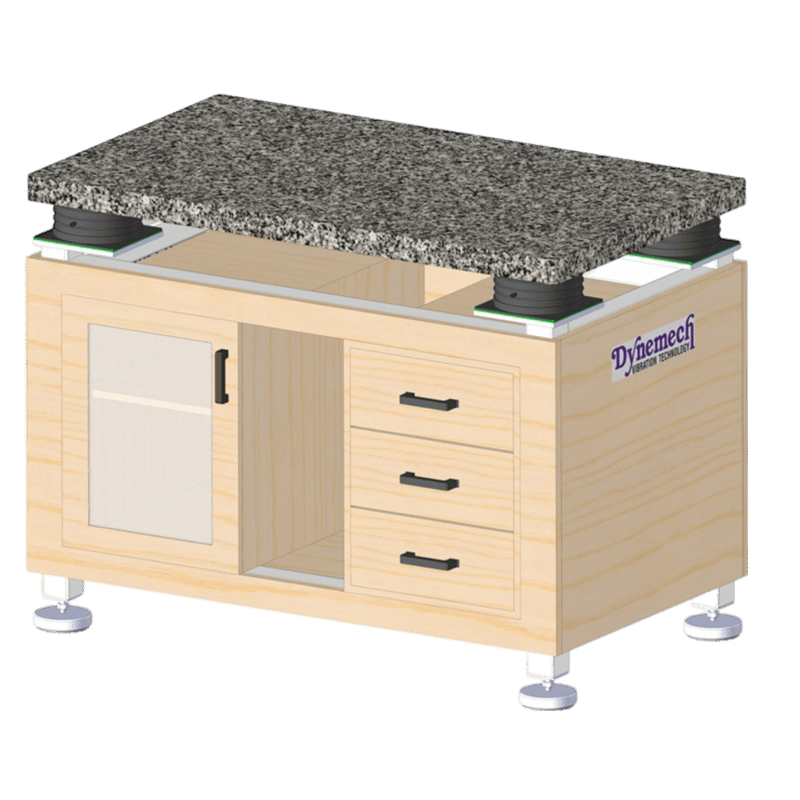

Anti Vibration Table On Air Spring With Manual Levelling With Wooden Pu Coated Outer Frame, Series DIT-AS-W

Product

Anti Vibration Table On Air Spring With Manual Levelling With Wooden Pu Coated Outer Frame, Series DIT-AS-W

Description

Dynemech Anti Vibration Tables - Series DIT-AS-W are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-W-01	upto 400	500	500	80
DIT-AS-W-01-s1	upto 400	630	630	80
DIT-AS-W-02	upto 500	750	500	80
DIT-AS-W-03	upto-1250	900	600	100
DIT-AS-W-04	upto-1250	1000	800	150

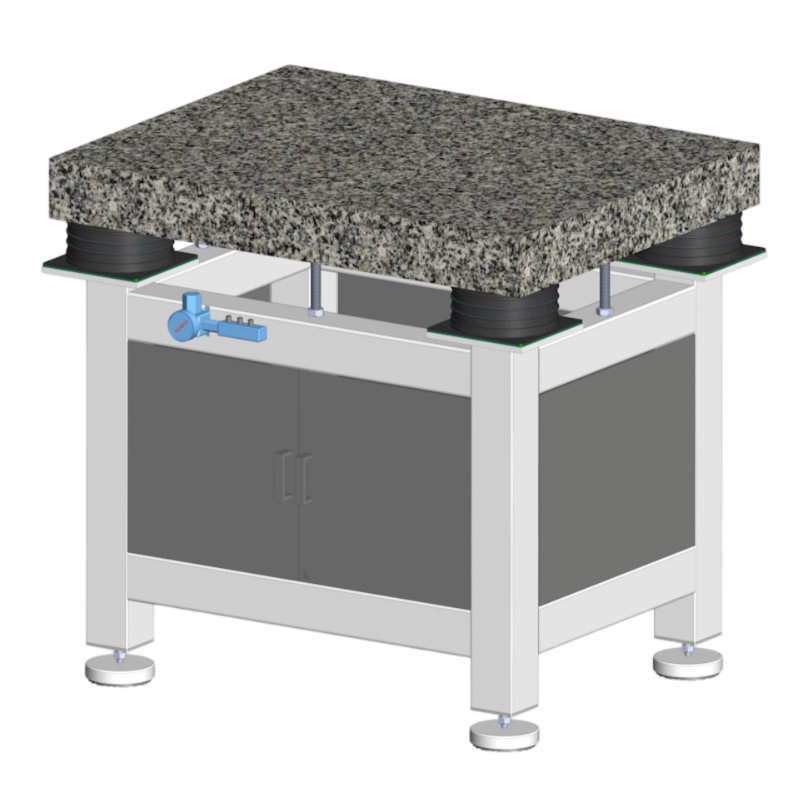

Anti Vibration Table On Air Spring With Manual Levelling With Steel Cabinets And Supports-Granite Top, Series DIT-AS-CDG

Product

Anti Vibration Table On Air Spring With Manual Levelling With Steel Cabinets And Supports-Granite Top, Series DIT-AS-CDG

Description

Dynemech Anti Vibration Tables - Series DIT-AS-CDG are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-CDG-01	upto 400	500	500	80
DIT-AS-CDG-01-s1	upto 400	630	630	80
DIT-AS-CDG-02	upto 500	750	500	80
DIT-AS-CDG-03	upto-1250	900	600	100
DIT-AS-CDG-04	upto-1250	1000	800	150

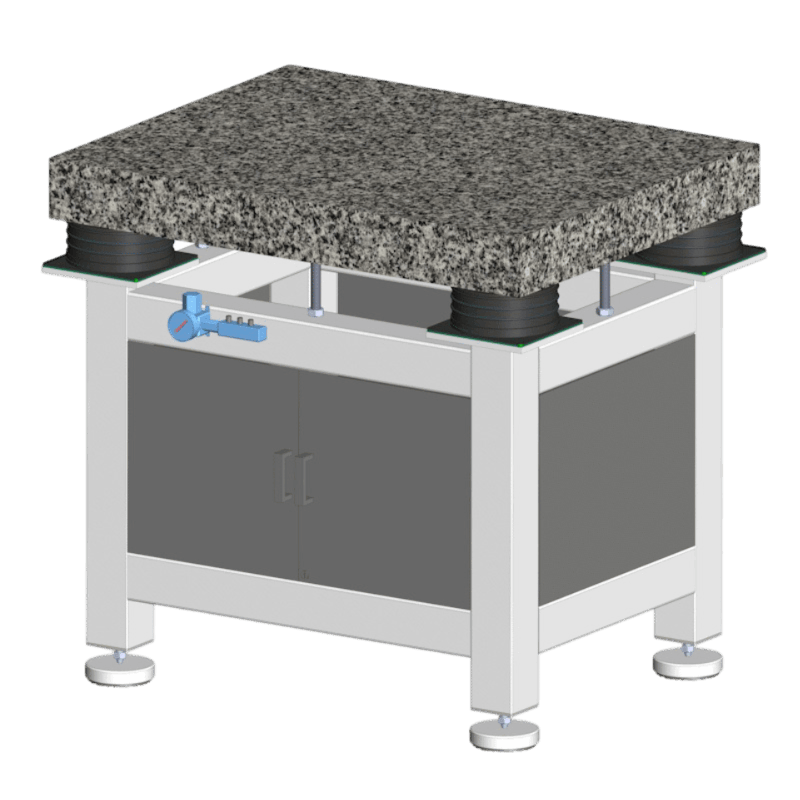

Anti Vibration Table On Air Spring With Manual Levelling With Steel Cabinets, Supports & Ss Top, Series DIT-AS-CDSS

Product

Anti Vibration Table On Air Spring With Manual Levelling With Steel Cabinets, Supports & Ss Top, Series DIT-AS-CDSS

Description

Dynemech Anti Vibration Tables - Series DIT-AS-CDSS are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-CDSS-01	upto 400	500	500	80
DIT-AS-CDSS-01-s1	upto 400	630	630	80
DIT-AS-CDSS-02	upto 500	750	500	80
DIT-AS-CDSS-03	upto-1250	900	600	100
DIT-AS-CDSS-04	upto-1250	1000	800	150
DIT-AS-CDSS-05	upto-1250	1200	1000	150
DIT-AS-CDSS-06	upto-1500	1800	1500	150

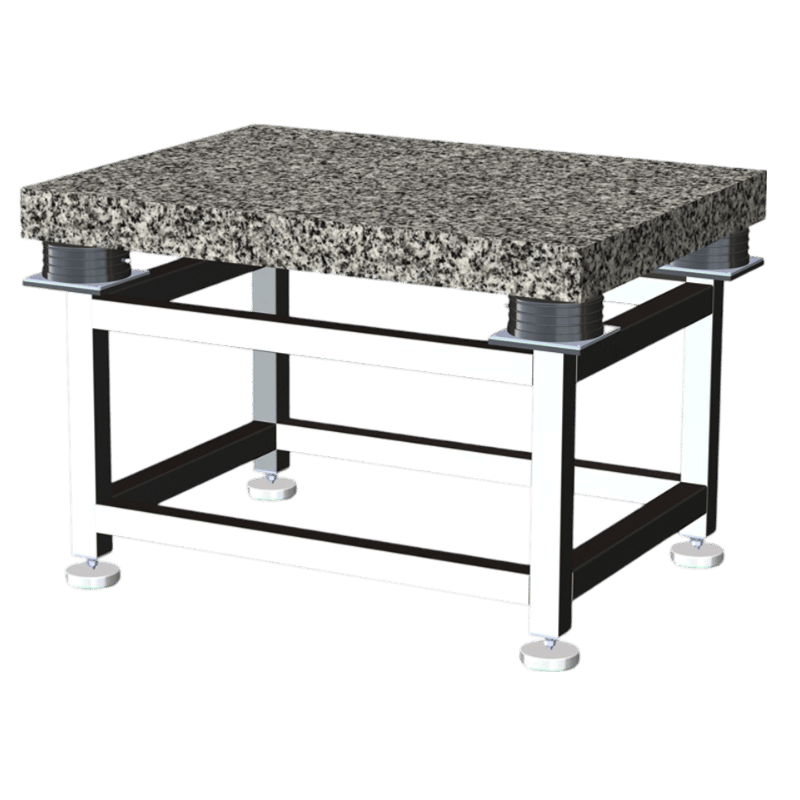

Anti Vibration Table On Air Spring With Manual Levelling With Stainless Steel Table Frame, Series DIT-AS-SFG

Product

Anti Vibration Table On Air Spring With Manual Levelling With Stainless Steel Table Frame, Series DIT-AS-SFG

Description

Dynemech Anti Vibration Tables - Series DIT-AS-SFG are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-SFG-01	upto 400	500	500	80
DIT-AS-SFG-01-s1	upto 400	630	630	80
DIT-AS-SFG-02	upto 500	750	500	80
DIT-AS-SFG-03	upto-1250	900	600	100
DIT-AS-SFG-04	upto-1250	1000	800	150

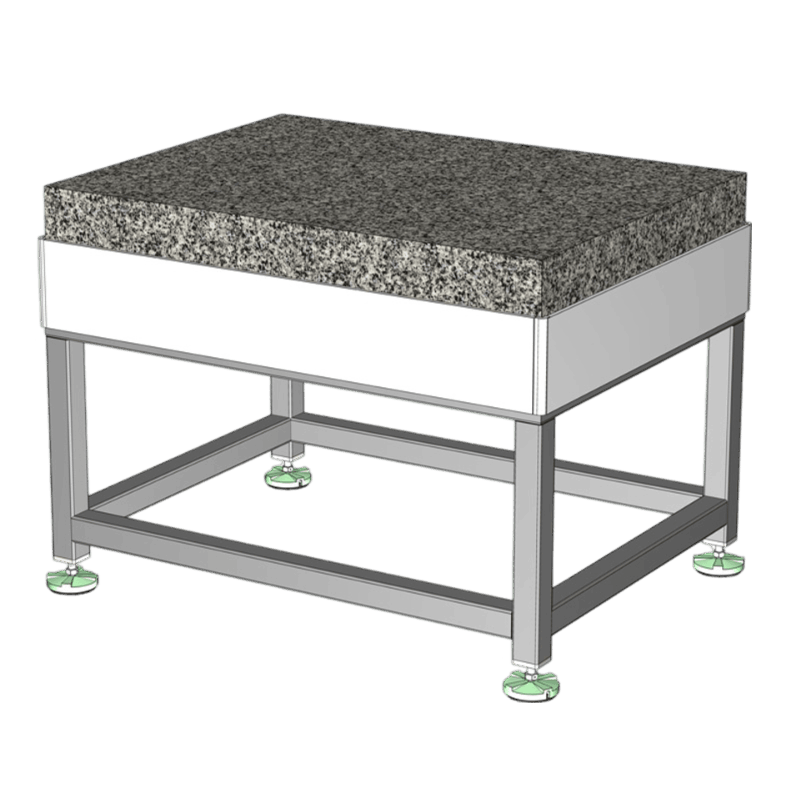

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop & Wrap Around Plate, Series DIT-AS-WAG

Product

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop & Wrap Around Plate, Series DIT-AS-WAG

Description

Dynemech Anti Vibration Tables - Series DIT-AS-WAG are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise flatness accuracies. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-WAG-01	upto 400	500	500	80
DIT-AS-WAG-01-S1	upto 400	630	630	80
DIT-AS-WAG-02	upto 500	750	500	80
DIT-AS-WAG-03	upto-1250	900	600	100
DIT-AS-WAG-04	upto-1250	1000	800	150

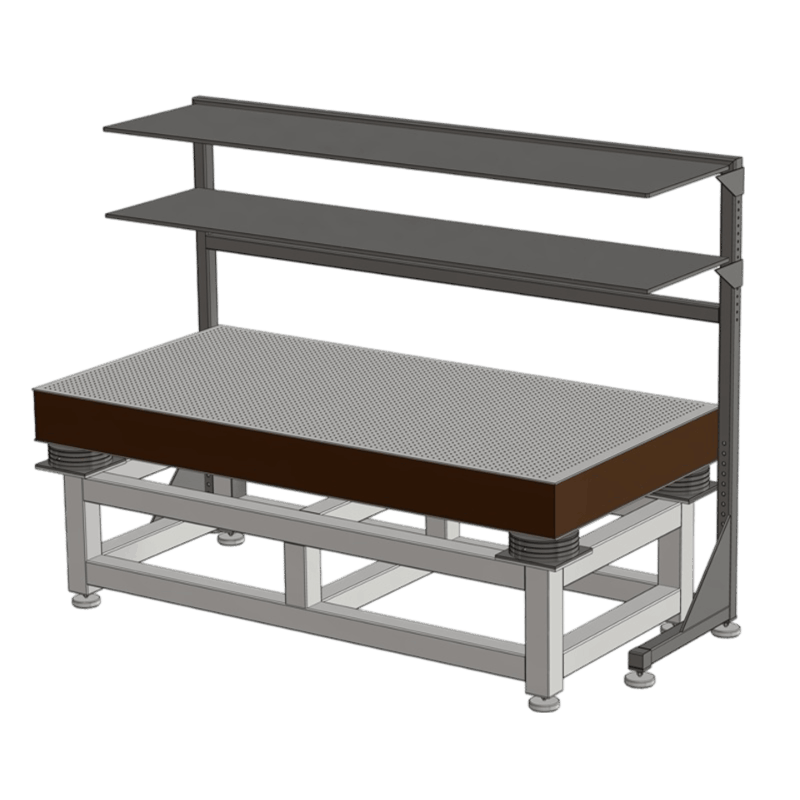

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop & Top Storage, Series DIT-AS-GSR

Product

Anti Vibration Table On Air Spring With Manual Levelling With Granite Tabletop & Top Storage, Series DIT-AS-GSR

Description

Anti vibration table with top honeycomb/Granite surface plate. low frequency air springs are used for vibration isolation

Application

Hardness Tester, Digital Height Gauges, Galvanometer etc

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Granite Table Top Thickness (Mm)
DIT-AS-GSR-01-757590	upto 700	750	750	900	100
DIT-AS-GSR-02-906090	upto 800	900	600	900	100
DIT-AS-GSR-03-909090	upto 1000	900	900	900	150
DIT-AS-GSR-04-12010090	upto-1000	1200	1000	900	150
DIT-AS-GSR-05-12012090	upto-1000	1200	1200	900	150
DIT-AS-GSR-06-18012090	upto-1000	1800	1200	900	150
DIT-AS-GSR-07-24012090	upto-1200	2400	1200	900	200
