Anti Vibration Table on Auto Levelling Pneumatic Mounts, Series DIT-AM

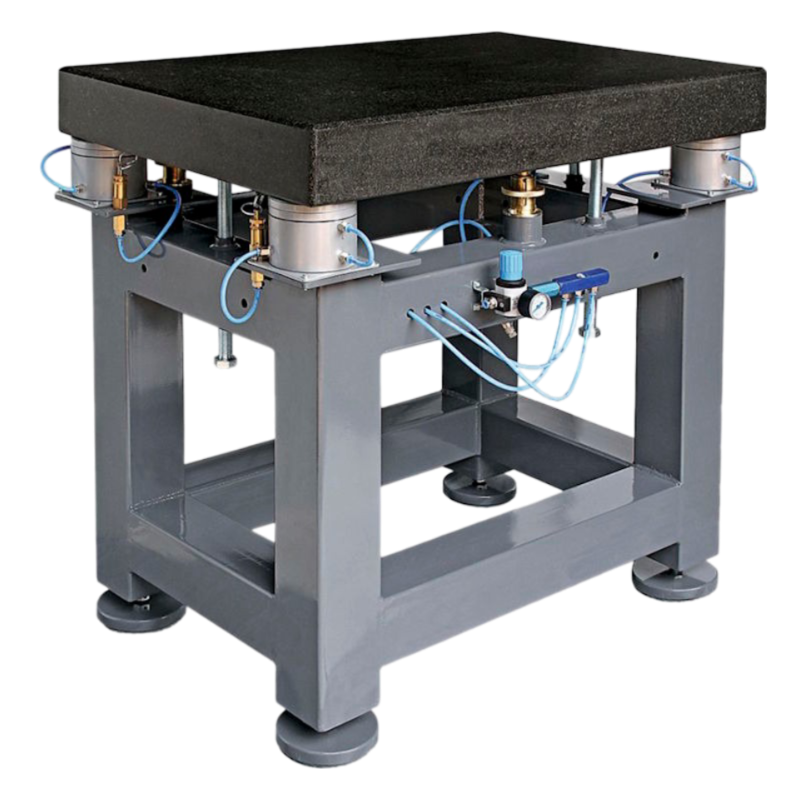

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Granite Tabletop, Series DIT-AM-GN

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Granite Tabletop, Series DIT-AM-GN

Description

Dynemech Anti Vibration Table DIT-AM-GN has natural frequency in the range of 1.5-2.0 Hz along with selF-levelling feature. Available self-levelling accuracy is ± 0.015 mm and ± 0.15 mm with minimum setting time, depending upon the application requirement. membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Top granite surface plate has flatness accuracy of Grade 00. Bottom levelling feet DLM provide levelling and vibration reduction. Level difference on top of the granite surface due to any load change and the equipment is compensated within milliseconds.

Application

Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)
DIT-AM-GN-01	upto 400	500	500	80	1.5-2.0
DIT-AM-GN-01-s1	upto 400	630	630	80	1.5-2.0
DIT-AM-GN-02	upto 850	750	500	80	1.5-2.0
DIT-AM-GN-03	upto-1150	900	600	100	1.5-2.0
DIT-AM-GN-04	upto-1250	1000	800	150	1.5-2.0

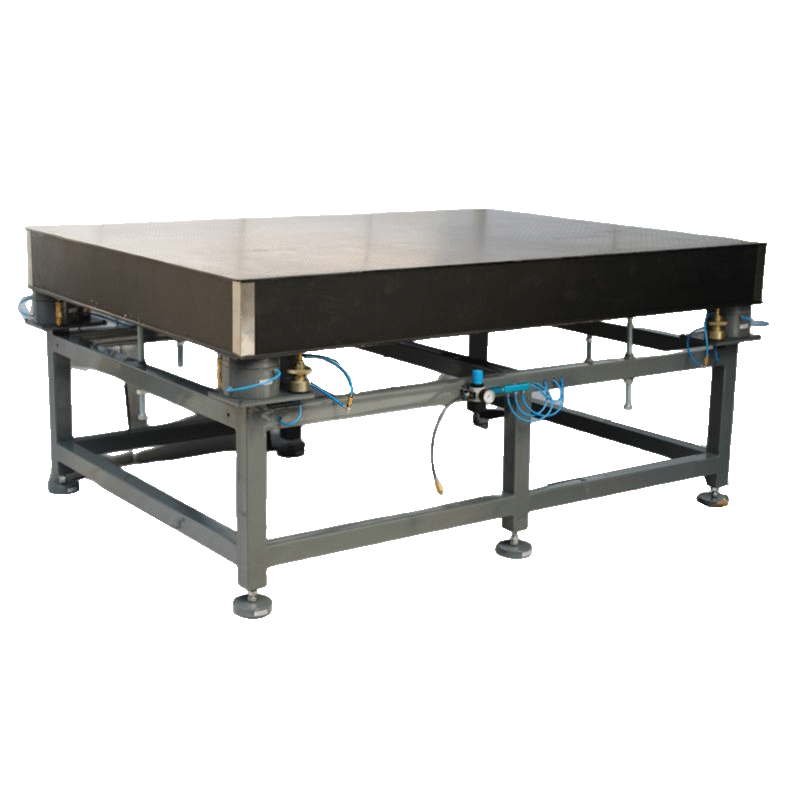

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Honeycomb, Series DIT-AM-HC

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Honeycomb, Series DIT-AM-HC

Description

Dynemech Anti Vibration Table DIT-AM-HC has natural frequency in the range of 1.5 - 2.0 Hz along with self levelling feature. Available self-levelling accuracy is +/- 0.15 mm with minimum setting time, depending upon the application requirement. Membrane are used which damps most of the incoming vibrations above 10 Hz. Bottom levelling feet DLM provide levelling and vibration reduction. Level difference on top of the Honecomb Table Top due to any load change and the equipment is compensated within milliseconds.

Application

Used in optical industries, for mounting optical assemblies

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DIT-AM-HC-01-75759	upto 450	750	750	900	100
DIT-AM-HC-02-90609	upto 500	900	600	900	100
DIT-AM-HC-03-1008090	upto 600	1000	800	900	100
DIT-AM-HC-04-12010090	upto 700	1200	1000	900	150
DIT-AM-HC-05-15012090	upto 800	1500	1200	900	150
DIT-AM-HC-06-18012090	upto 850	1800	1200	900	150
DIT-AM-HC-07-24015090	upto 1000	2400	1500	900	200

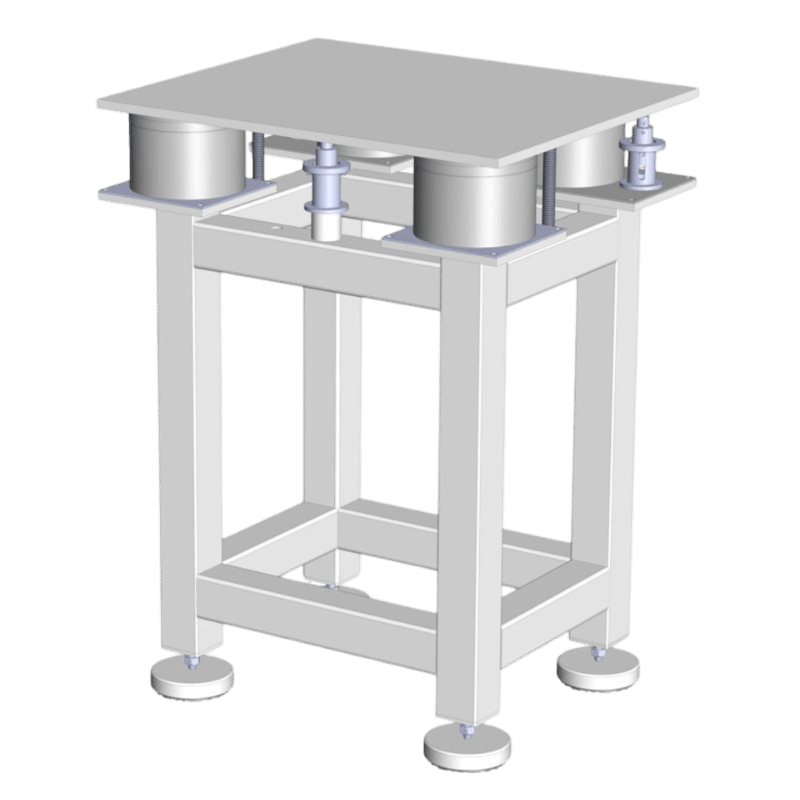

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Corian Marble Top, Series DIT-AM-CM

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Corian Marble Top, Series DIT-AM-CM

Description

Dynemech Anti Vibration Table DIT-AM-CM has natural frequency in the range of 1.5-2.0 Hz along with selF-levelling feature. The table top has a corian marble table top. Available self-levelling accuracy is ± 0.015 mm and ± 0.15 mm with minimum setting time, depending upon the application requirement. membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Level difference on top of the corian marble surface due to any load change and the equipment is compensated within milliseconds.

Application

Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc

Model	Load (Kg)	Length (Mm)	Width (Mm)	Corian Marble Tabletop Thickness (Mm)
DIT-AM-CM-01	upto 250	500	500	12
DIT-AM-CM-01-S1	upto 250	630	630	12
DIT-AM-CM-02	upto 450	750	500	24
DIT-AM-CM-03	upto-1250	900	600	24
DIT-AM-CM-04	upto-1250	1000	800	24

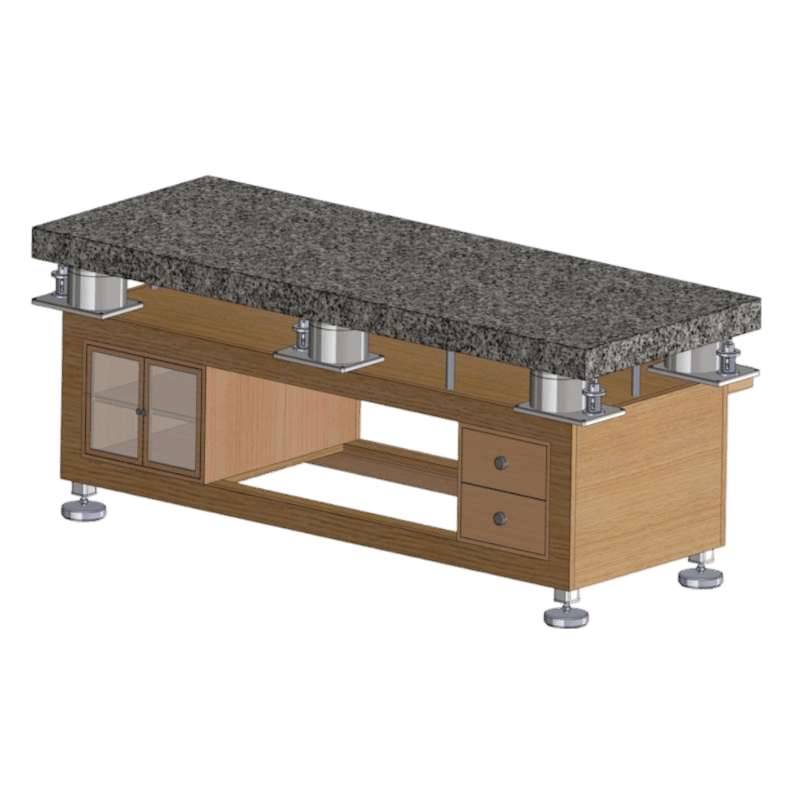

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Wooden Pu Coated Outer Frame, Series DIT-AM-W

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Wooden Pu Coated Outer Frame, Series DIT-AM-W

Description

Dynemech Anti Vibration Tables - Series DIT-AM-W has a PU coated wooden outer frame. The Vibrations are isolated using DLM mounts. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AM-W-01	upto 250	500	500	80
DIT-AM-W-01/s1	upto 250	630	630	80
DIT-AM-W-02	upto-450	750	500	80
DIT-AM-W-03	upto-1250	900	600	100
DIT-AM-W-04	upto-1250	1000	800	150

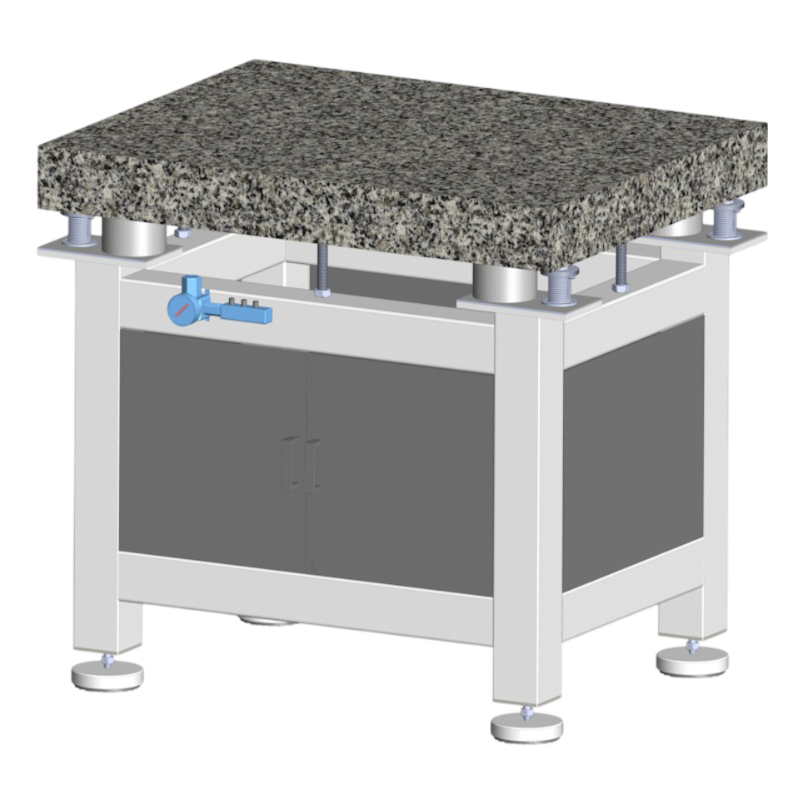

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Steel Cabinets And Supports-Granite Top, Series DIT-AM-CDG

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Steel Cabinets And Supports-Granite Top, Series DIT-AM-CDG

Description

Dynemech Anti Vibration Table DIT-AM-CDG has natural frequency in the range of 1.5-2.0 Hz along with selF-levelling feature. The table has a sheet metal closed cabinet design. Available self-levelling accuracy is ± 0.015 mm and ± 0.15 mm with minimum setting time, depending upon the application requirement. membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Top granite surface plate has flatness accuracy of Grade 00. Level difference on top of the granite surface due to any load change and the equipment is compensated within milliseconds.

Application

Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AM-CDG-01	upto 250	500	500	80
DIT-AM-CDG-01-S1	upto 250	630	630	80
DIT-AM-CDG-02	upto 450	750	500	80
DIT-AM-CDG-03	upto-1250	900	600	100
DIT-AM-CDG-04	upto-1250	1000	800	150

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Steel Cabinets, Supports & Ss Top, Series DIT-AM-CDSS

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Steel Cabinets, Supports & Ss Top, Series DIT-AM-CDSS

Description

Dynemech Anti Vibration Table DIT-AM-CDSS has natural frequency in the range of 1.5-2.0 Hz along with selF-levelling feature. The table has a sheet metal closed cabinet design. Available self-levelling accuracy is ± 0.015 mm and ± 0.15 mm with minimum setting time, depending upon the application requirement. membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Top granite surface plate has flatness accuracy of Grade 00. Level difference on top of the granite surface due to any load change and the equipment is compensated within milliseconds.

Application

Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)
DIT-AM-CDSS-01	upto 250	500	500	80	1.5-2.0
DIT-AM-CDSS-01-S1	upto 250	630	630	80	1.5-2.0
DIT-AM-CDSS-02	upto 450	750	500	80	1.5-2.0
DIT-AM-CDSS-03	upto-1250	900	600	100	1.5-2.0
DIT-AM-CDSS-04	upto-1250	1000	800	150	1.5-2.0

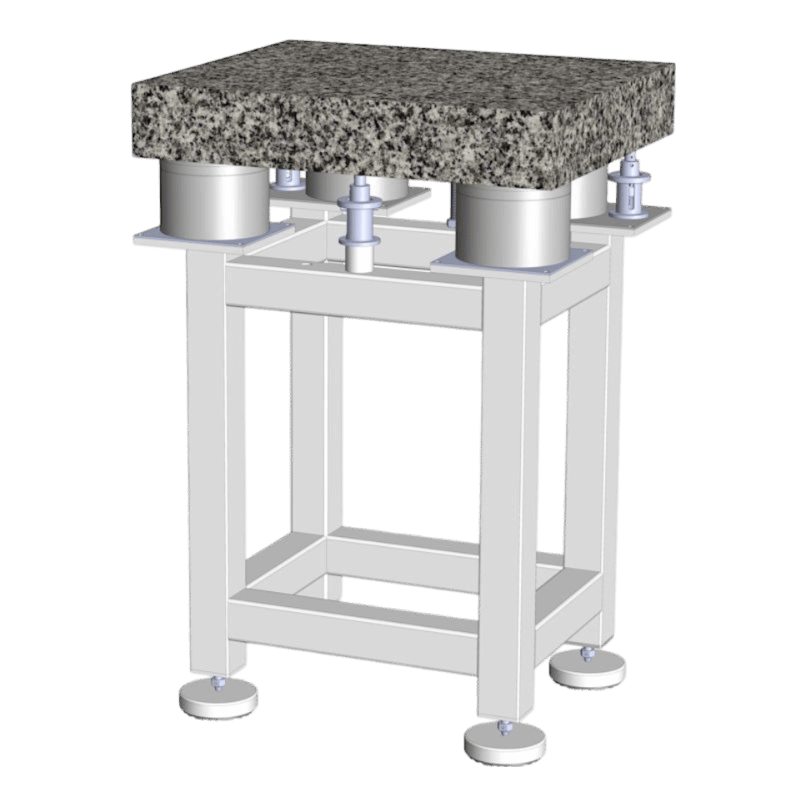

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Stainless Steel Table Frame, Series DIT-AM-SFG

Product

Anti Vibration Table On Auto Levelling Pneumatic Mounts With Stainless Steel Table Frame, Series DIT-AM-SFG

Description

Dynemech Anti Vibration Table DIT-AM-SFG has natural frequency in the range of 1.5-2.0 Hz along with self-levelling feature. This table is used in medical /food-grade industries as the table is having a atainless steel frame. The membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Top granite surface plate has flatness accuracy of Grade 00. Level difference on top of the granite surface due to any load change and the equipment is compensated within milliseconds.

Application

Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AM-SFG-01	upto 250	500	500	80
DIT-AM-SFG-01-S1	upto 250	630	630	80
DIT-AM-SFG-02	upto 450	750	500	80
DIT-AM-SFG-03	upto-1250	900	600	100
DIT-AM-SFG-04	upto-1250	1000	800	150

Anti Vibration Table On Auto Levelling Pneumatic Isolation With Steel Cabinets And Castors, Series DIT-AM-CDC

Product

Anti Vibration Table On Auto Levelling Pneumatic Isolation With Steel Cabinets And Castors, Series DIT-AM-CDC

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-AM-CDC-01	upto 250	500	500	80
DIT-AM-CDC-01-S1	upto 250	630	630	80
DIT-AM-CDC-02	upto 450	750	500	80
DIT-AM-CDC-03	upto-1250	900	600	100
DIT-AM-CDC-04	upto-1250	1000	800	150
