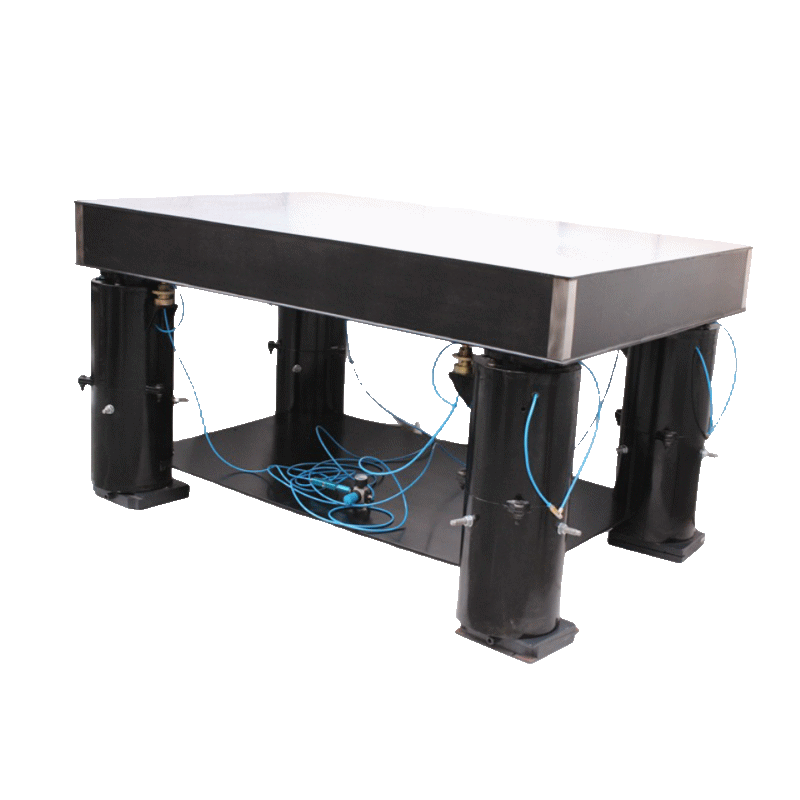

Anti Vibration Table Self Levelling Pneumatic Triflex Isolation With Honeycomb Breadboard, Series DIT-TRF-HC

Dynemech Anti Vibration Table DIT-TRF-HC has natural frequency in the range of 1.5 to 2.0 Hz along with self levelling triflex pendulum assembly feature. Available self-levelling accuracy is +/- 0.015 mm with minimum setting time, depending upon the application requirement. Rubber air springs are used which damps most of the incoming vibrations above 10 Hz. Bottom levelling wedge mounts provide levelling and vibration reduction. Level difference on top of the Honecomb Table Top due to any load change and the equipment is compensated within milliseconds.
