DR-150
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

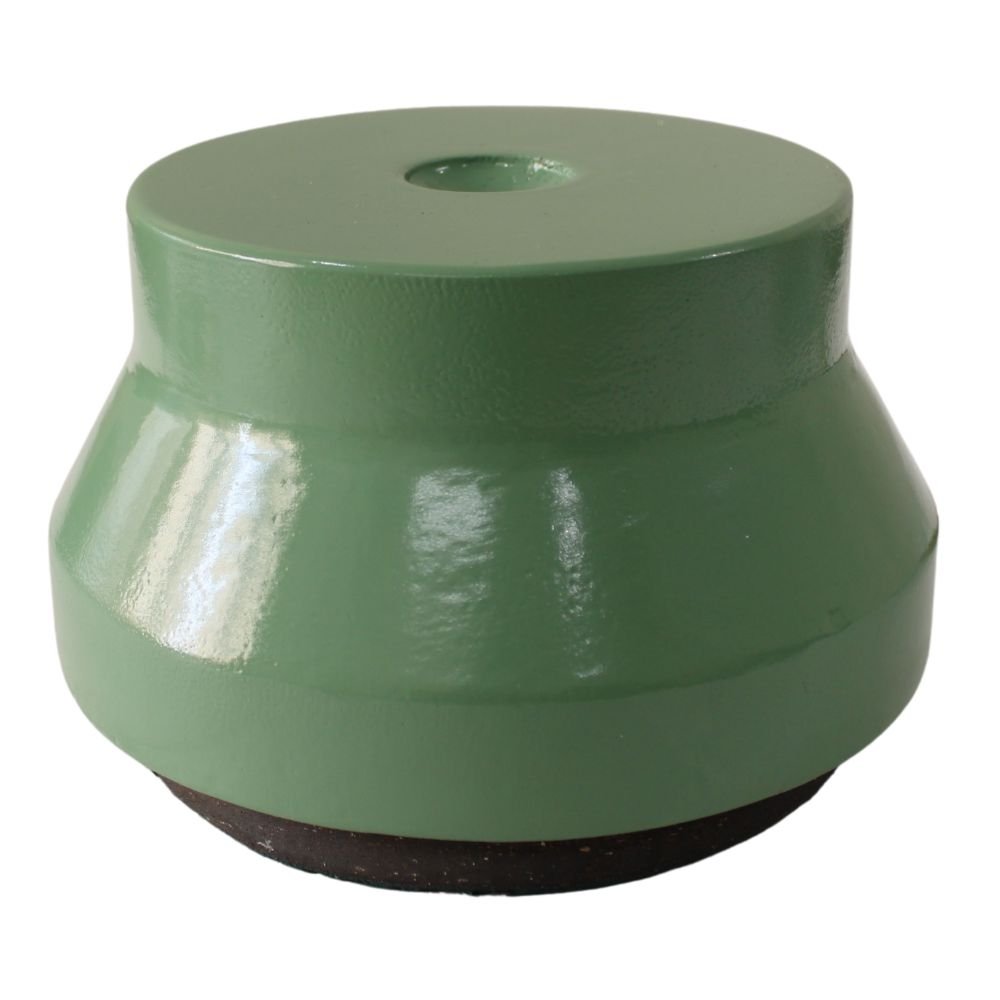

DR-U
Product
DR-U
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-u-150-FG-GR | 350 | 87 | 109 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DR2-u-150-FG-GR | 600 | 108 | 150 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DR3-u-150-FG-GR | 900 | 136 | 170 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DR4-u-150-FG-GR | 1400 | 161 | 210 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DR5-u-150-FG-GR | 1900 | 185 | 240 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DR6-u-150-FG-GR | 2500 | 215 | 270 | 150 | Du | 15 | 0.9 | 18 | From -16 to 90 |
DR-U-10
Product
DR-U-10
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-u-10-145-FG-GR | 350 | 87 | 109 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
| DR2-u-10-145-FG-GR | 600 | 108 | 150 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
| DR3-u-10-145-FG-GR | 900 | 136 | 170 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
| DR4-u-10-145-FG-GR | 1400 | 161 | 210 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
| DR5-u-10-145-FG-GR | 1900 | 185 | 240 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
| DR6-u-10-145-FG-GR | 2500 | 215 | 270 | 145 | Du-10 | 10 | 0.9 | 25 | From -16 to 90 |
DR-U-12
Product
DR-U-12
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-u-12-147-FG-GR | 350 | 87 | 109 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
| DR2-u-12-147-FG-GR | 600 | 108 | 150 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
| DR3-u-12-147-FG-GR | 900 | 136 | 170 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
| DR4-u-12-147-FG-GR | 1400 | 161 | 210 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
| DR5-u-12-147-FG-GR | 1900 | 185 | 240 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
| DR6-u-12-147-FG-GR | 2500 | 215 | 270 | 147 | Du-12 | 12 | 0.9 | 20 | From -16 to 90 |
DR-M
Product
DR-M
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-m-150-FG-GR | 450 | 87 | 109 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DR2-m-150-FG-GR | 800 | 108 | 150 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DR3-m-150-FG-GR | 1150 | 136 | 170 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DR4-m-150-FG-GR | 1750 | 161 | 210 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DR5-m-150-FG-GR | 2400 | 185 | 240 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DR6-m-150-FG-GR | 3200 | 215 | 270 | 150 | Dm | 15 | 0.7 | 30 | From -16 to 90 |

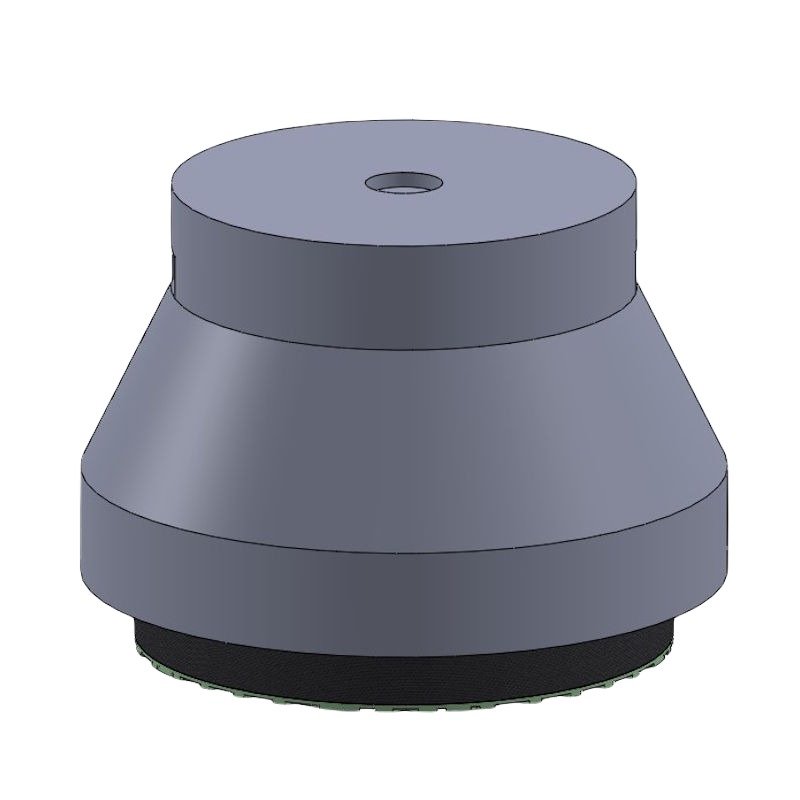

DR-I
Product
DR-I
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-i-160-FG-GR | 890 | 87 | 109 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DR2-i-160-FG-GR | 1720 | 108 | 150 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DR3-i-160-FG-GR | 2470 | 136 | 170 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DR4-i-160-FG-GR | 3180 | 161 | 210 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DR5-i-160-FG-GR | 5320 | 185 | 240 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DR6-i-160-FG-GR | 6870 | 215 | 270 | 160 | Di | 25 | 0.8 | 7 | From -16 to 90 |
DR-P1
Product
DR-P1
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-p1-150-FG-GR | 250 | 87 | 109 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DR2-p1-150-FG-GR | 490 | 108 | 150 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DR3-p1-150-FG-GR | 700 | 136 | 170 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DR4-p1-150-FG-GR | 900 | 161 | 210 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DR5-p1-150-FG-GR | 1520 | 185 | 240 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DR6-p1-150-FG-GR | 1960 | 215 | 270 | 150 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |

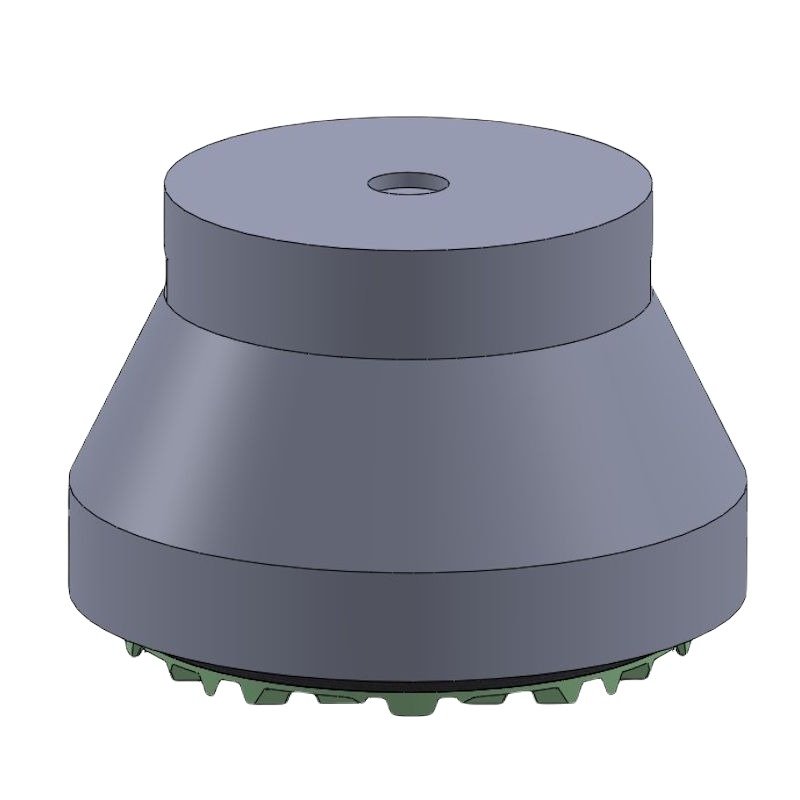

DR-P2
Product
DR-P2
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-p2-155-FG-GR | 320 | 87 | 109 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DR2-p2-155-FG-GR | 610 | 108 | 150 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DR3-p2-155-FG-GR | 880 | 136 | 170 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DR4-p2-155-FG-GR | 1130 | 161 | 210 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DR5-p2-155-FG-GR | 1900 | 185 | 240 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DR6-p2-155-FG-GR | 2450 | 215 | 270 | 155 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
DR-P3
Product
DR-P3
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-p3-159-FG-GR | 380 | 87 | 109 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DR2-p3-159-FG-GR | 730 | 108 | 150 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DR3-p3-159-FG-GR | 1060 | 136 | 170 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DR4-p3-159-FG-GR | 1360 | 161 | 210 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DR5-p3-159-FG-GR | 2280 | 185 | 240 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DR6-p3-159-FG-GR | 2940 | 215 | 270 | 159 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |

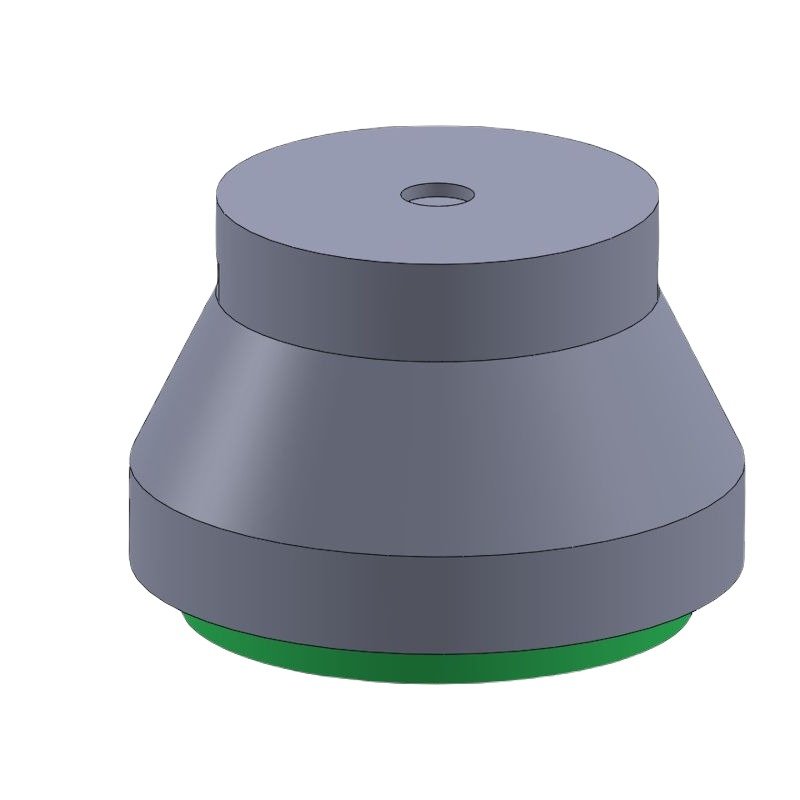

DR-S1
Product
DR-S1
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-s1-155-FG-GR | 200 | 87 | 109 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DR2-s1-155-FG-GR | 375 | 108 | 150 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DR3-s1-155-FG-GR | 575 | 136 | 170 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DR4-s1-155-FG-GR | 800 | 161 | 210 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DR5-s1-155-FG-GR | 1100 | 185 | 240 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DR6-s1-155-FG-GR | 1500 | 215 | 270 | 155 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
DR-S2
Product
DR-S2
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-s2-160-FG-GR | 300 | 87 | 109 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DR2-s2-160-FG-GR | 550 | 108 | 150 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DR3-s2-160-FG-GR | 850 | 136 | 170 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DR4-s2-160-FG-GR | 1250 | 161 | 210 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DR5-s2-160-FG-GR | 1700 | 185 | 240 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DR6-s2-160-FG-GR | 2200 | 215 | 270 | 160 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |

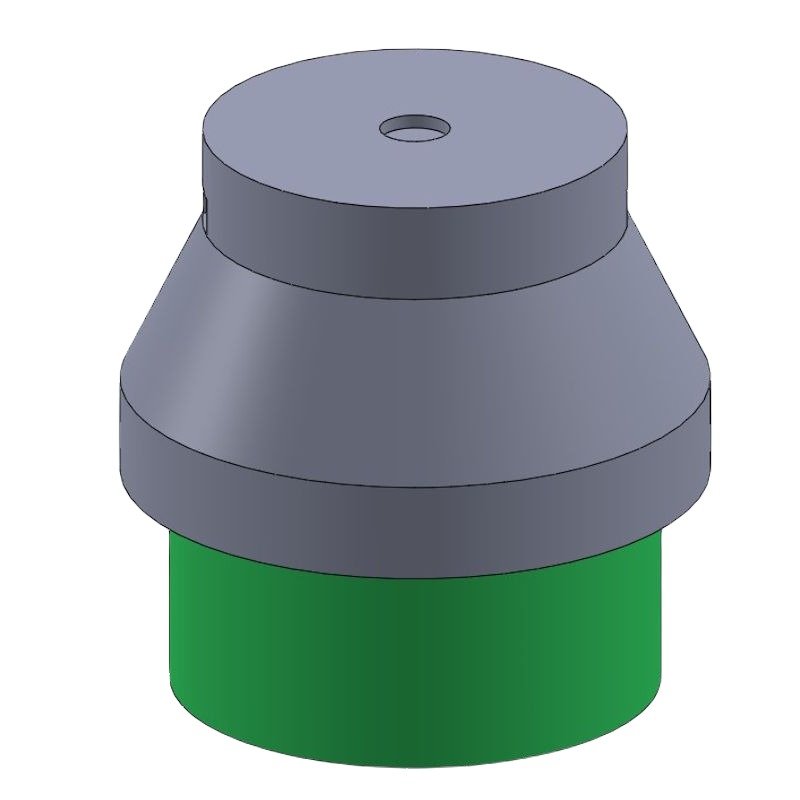

DR-HS1
Product
DR-HS1
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-hs1-200-FG-GR | 1270 | 87 | 109 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DR2-hs1-200-FG-GR | 2450 | 108 | 150 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DR3-hs1-200-FG-GR | 3530 | 136 | 170 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DR4-hs1-200-FG-GR | 4540 | 161 | 210 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DR5-hs1-200-FG-GR | 7600 | 185 | 240 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DR6-hs1-200-FG-GR | 9820 | 215 | 270 | 200 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
DR-HS2
Product
DR-HS2
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-hs2-200-FG-GR | 510 | 87 | 109 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DR2-hs2-200-FG-GR | 900 | 108 | 150 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DR3-hs2-200-FG-GR | 1410 | 136 | 170 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DR4-hs2-200-FG-GR | 1810 | 161 | 210 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DR5-hs2-200-FG-GR | 3040 | 185 | 240 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DR6-hs2-200-FG-GR | 3930 | 215 | 270 | 200 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |

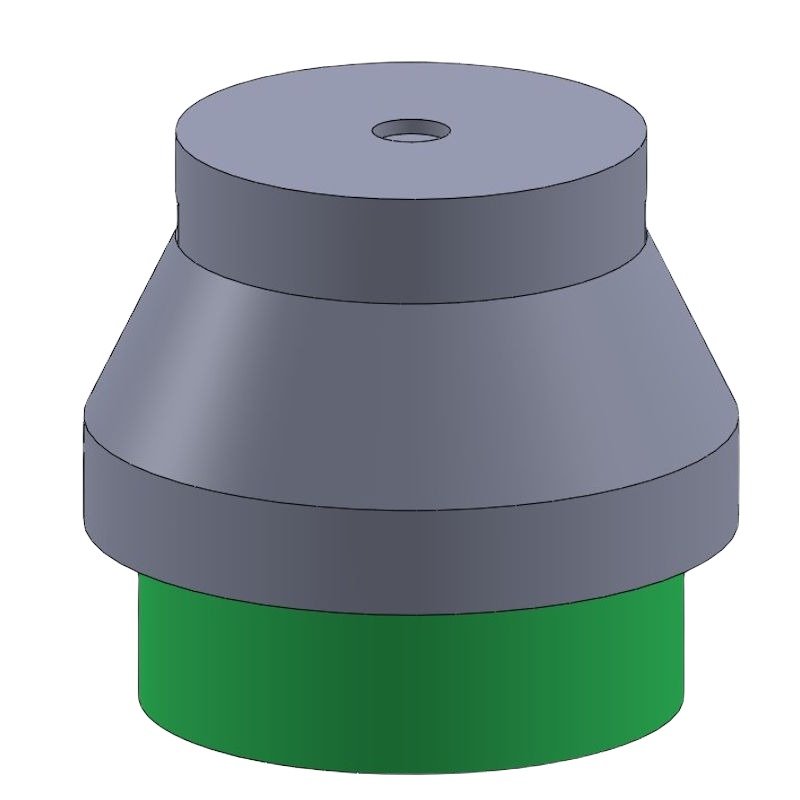

DR-HS3
Product
DR-HS3
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-hs3-185-FG-GR | 1780 | 87 | 109 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DR2-hs3-185-FG-GR | 3440 | 108 | 150 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DR3-hs3-185-FG-GR | 4950 | 136 | 170 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DR4-hs3-185-FG-GR | 6350 | 161 | 210 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DR5-hs3-185-FG-GR | 10640 | 185 | 240 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DR6-hs3-185-FG-GR | 13740 | 215 | 270 | 185 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
DR-HS4
Product
DR-HS4
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-hs4-185-FG-GR | 760 | 87 | 109 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DR2-hs4-185-FG-GR | 1470 | 108 | 150 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DR3-hs4-185-FG-GR | 2120 | 136 | 170 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DR4-hs4-185-FG-GR | 2720 | 161 | 210 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DR5-hs4-185-FG-GR | 4960 | 185 | 240 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DR6-hs4-185-FG-GR | 5890 | 215 | 270 | 185 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |

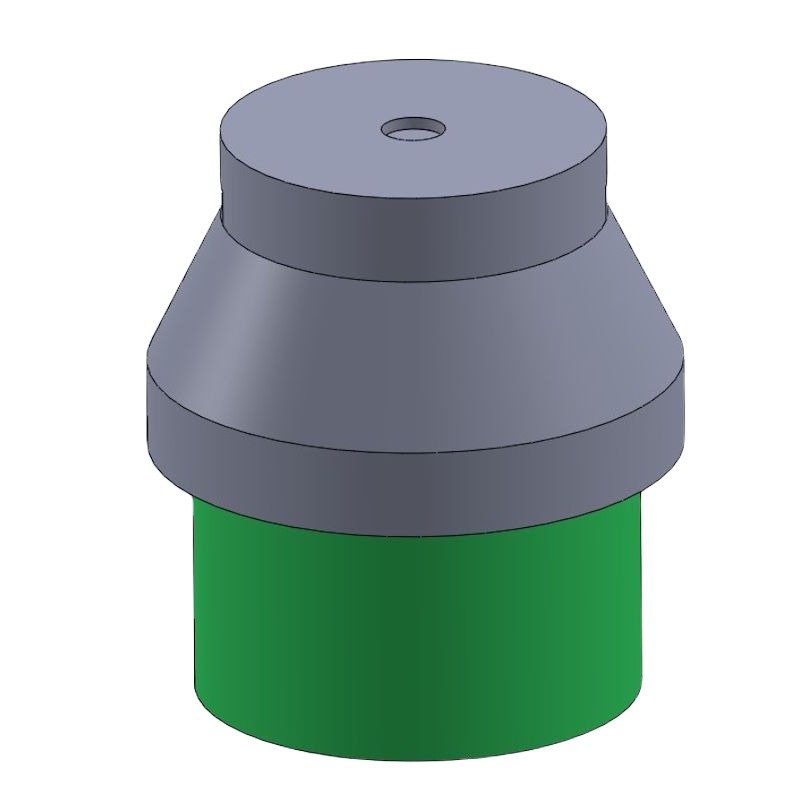

DR-HS5
Product
DR-HS5
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-hs5-215-FG-GR | 1780 | 87 | 109 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DR2-hs5-215-FG-GR | 3440 | 108 | 150 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DR3-hs5-215-FG-GR | 4950 | 136 | 170 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DR4-hs5-215-FG-GR | 6350 | 161 | 210 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DR5-hs5-215-FG-GR | 10640 | 185 | 240 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DR6-hs5-215-FG-GR | 13740 | 215 | 270 | 215 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |

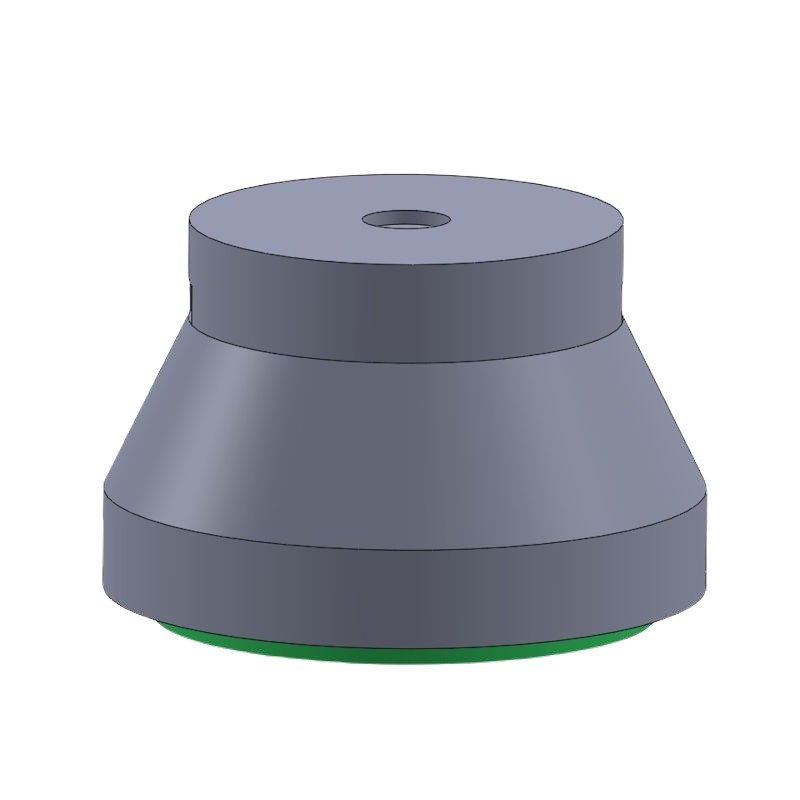

DR-H
Product
DR-H
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-h-150-FG-GR | 1200 | 87 | 109 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DR2-h-150-FG-GR | 2400 | 108 | 150 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DR3-h-150-FG-GR | 3500 | 136 | 170 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DR4-h-150-FG-GR | 5200 | 161 | 210 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DR5-h-150-FG-GR | 7200 | 185 | 240 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DR6-h-150-FG-GR | 9600 | 215 | 270 | 150 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
DR-A2
Product
DR-A2
Description
DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Documents
| Model | Load Capacity (Kg/Pc) | D (Mm) | Dia D (Mm) | H (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DR1-a2-143-FG-GR | 640 | 87 | 109 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
| DR2-a2-143-FG-GR | 1230 | 108 | 150 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
| DR3-a2-143-FG-GR | 1770 | 136 | 170 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
| DR4-a2-143-FG-GR | 2270 | 161 | 210 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
| DR5-a2-143-FG-GR | 3800 | 185 | 240 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
| DR6-a2-143-FG-GR | 4900 | 215 | 270 | 143 | Da2 | 8 | 0.9 | 45 | From -16 to 90 |
