DBHOP

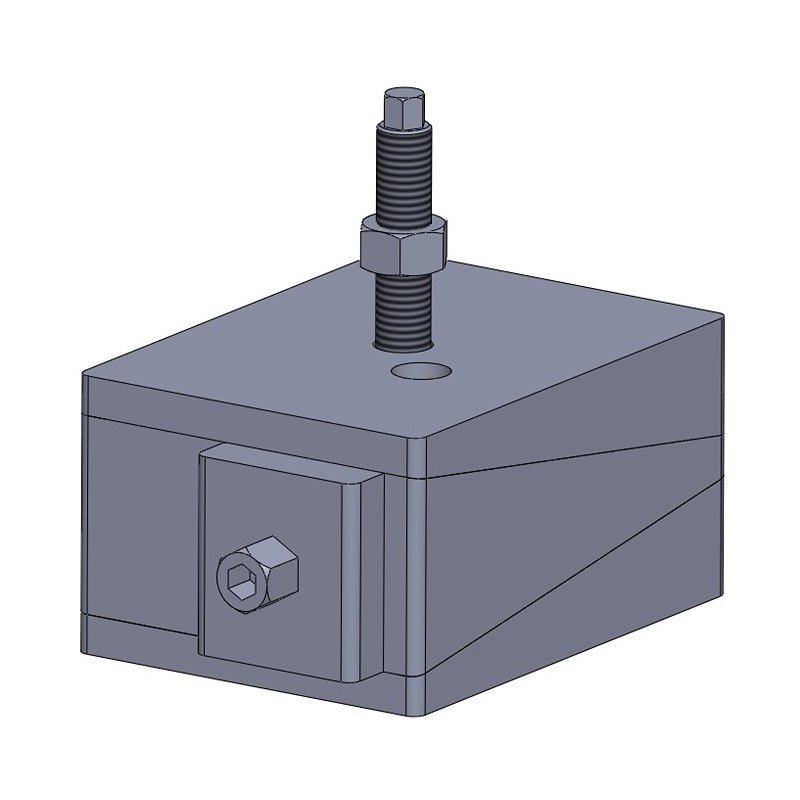

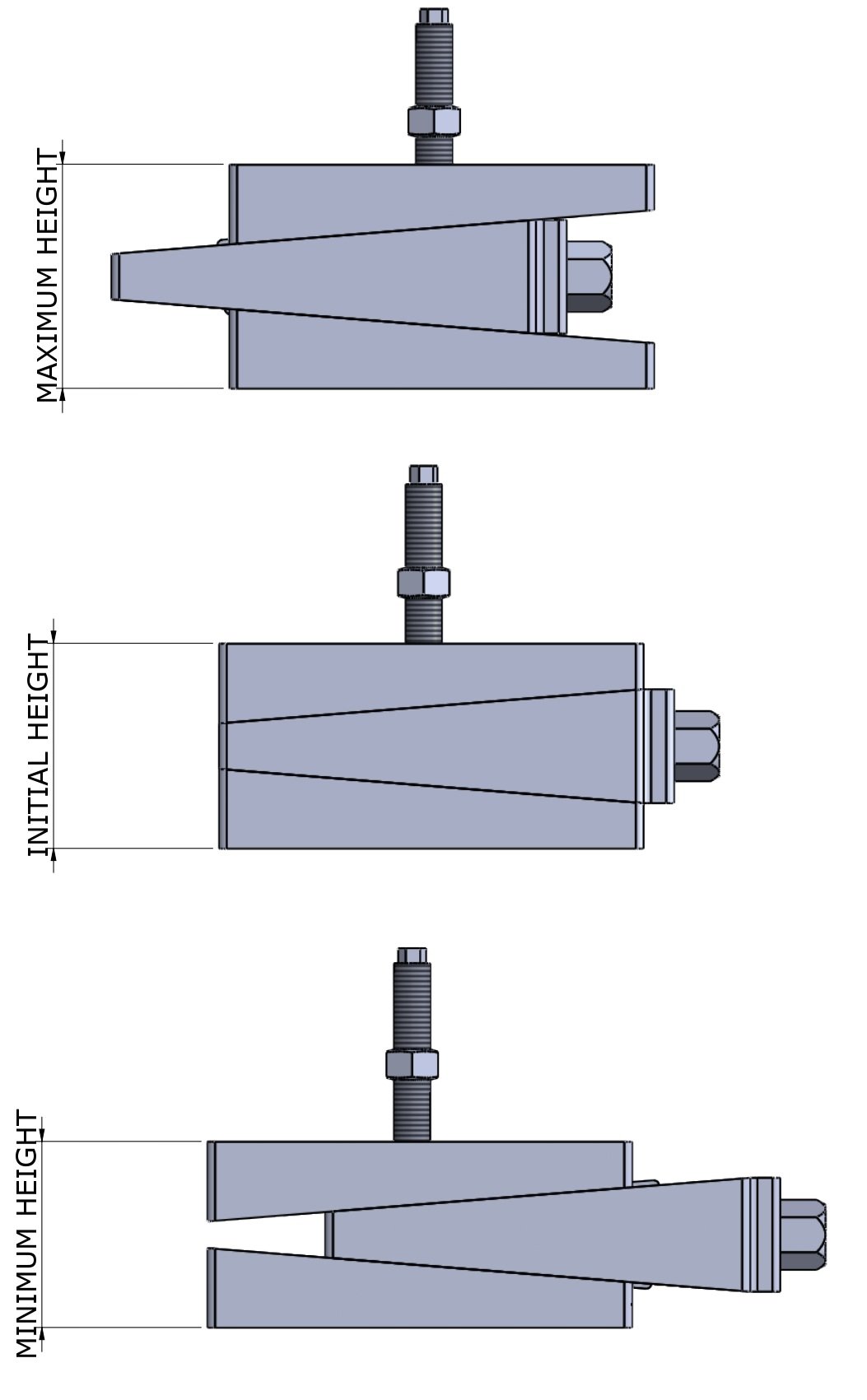

Dynemech Wedge mounts, Series DBHOP-150 mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBHOP-150 has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
For levelling of all Precicion Machines.
Documents
3 Models
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Sw1 (Mm) | Sw2 (Mm) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| DBHOP1-135-M20-FG-DG | 13000 | 200 | 125 | 135 | +8/-8 | 22 | 12 | From -16 to 90 | Dark Grey/Green | M20 |
| DBHOP2-135-M20-FG-DG | 16000 | 200 | 150 | 135 | +10/-10 | 22 | 12 | From -16 to 90 | Dark Grey/Green | M20 |
| DBHOP3-135-M20-FG-DG | 23000 | 280 | 170 | 135 | +12.5/-12.5 | 39 | 22 | From -16 to 90 | Dark Grey/Green | M20 |
