DBO
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.

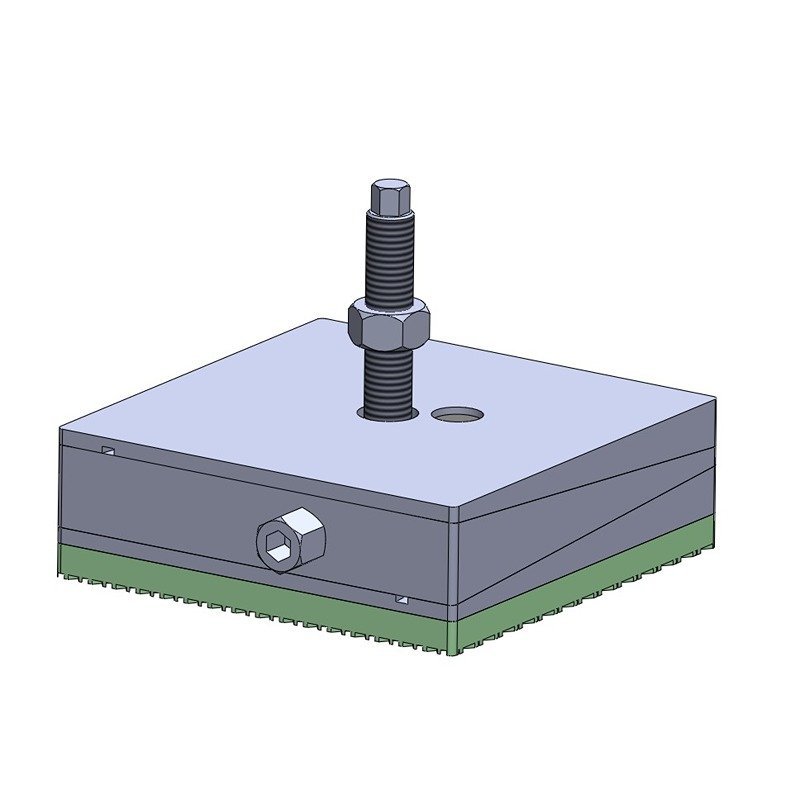

DBO-u
Product
DBO-u
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-u-FG-S-Z-GR | 1100 | 115 | 115 | 59 | +4/-4 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-u-FG-S-Z-GR | 1800 | 150 | 150 | 65 | +5/-5 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-u-FG-S-Z-GR | 3200 | 200 | 200 | 65 | +6/-6 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-u-FG-S-Z-GR | 4000 | 200 | 250 | 85 | +9/-9 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-u-FG-S-Z-GR | 6400 | 250 | 320 | 90 | +9/-9 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-u-FG-S-Z-GR | 9600 | 300 | 400 | 90 | +10/-10 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-u-FG-S-Z-GR | 16000 | 400 | 500 | 95 | +10/-10 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-u-10
Product
DBO-u-10
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-u-10-FG-S-Z-GR | 1100 | 115 | 115 | 54 | +4/-4 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-u-10-FG-S-Z-GR | 1800 | 150 | 150 | 60 | +5/-5 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-u-10-FG-S-Z-GR | 3200 | 200 | 200 | 60 | +6/-6 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-u-10-FG-S-Z-GR | 4000 | 200 | 250 | 80 | +9/-9 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-u-10-FG-S-Z-GR | 6400 | 250 | 320 | 85 | +9/-9 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-u-10-FG-S-Z-GR | 9600 | 300 | 400 | 85 | +10/-10 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-u-10-FG-S-Z-GR | 16000 | 400 | 500 | 90 | +10/-10 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-u-12
Product
DBO-u-12
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-u-12-FG-S-Z-GR | 1100 | 115 | 115 | 56 | +4/-4 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-u-12-FG-S-Z-GR | 1800 | 150 | 150 | 62 | +5/-5 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-u-12-FG-S-Z-GR | 3200 | 200 | 200 | 62 | +6/-6 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-u-12-FG-S-Z-GR | 4000 | 200 | 250 | 82 | +9/-9 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-u-12-FG-S-Z-GR | 6400 | 250 | 320 | 87 | +9/-9 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-u-12-FG-S-Z-GR | 9600 | 300 | 400 | 87 | +10/-10 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-u-12-FG-S-Z-GR | 16000 | 400 | 500 | 92 | +10/-10 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-m
Product
DBO-m
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-m-FG-S-Z-GR | 1400 | 115 | 115 | 59 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-m-FG-S-Z-GR | 2200 | 150 | 150 | 65 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-m-FG-S-Z-GR | 4000 | 200 | 200 | 65 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-m-FG-S-Z-GR | 5000 | 200 | 250 | 85 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-m-FG-S-Z-GR | 8000 | 250 | 320 | 90 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-m-FG-S-Z-GR | 12000 | 300 | 400 | 90 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-m-FG-S-Z-GR | 20000 | 400 | 500 | 95 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

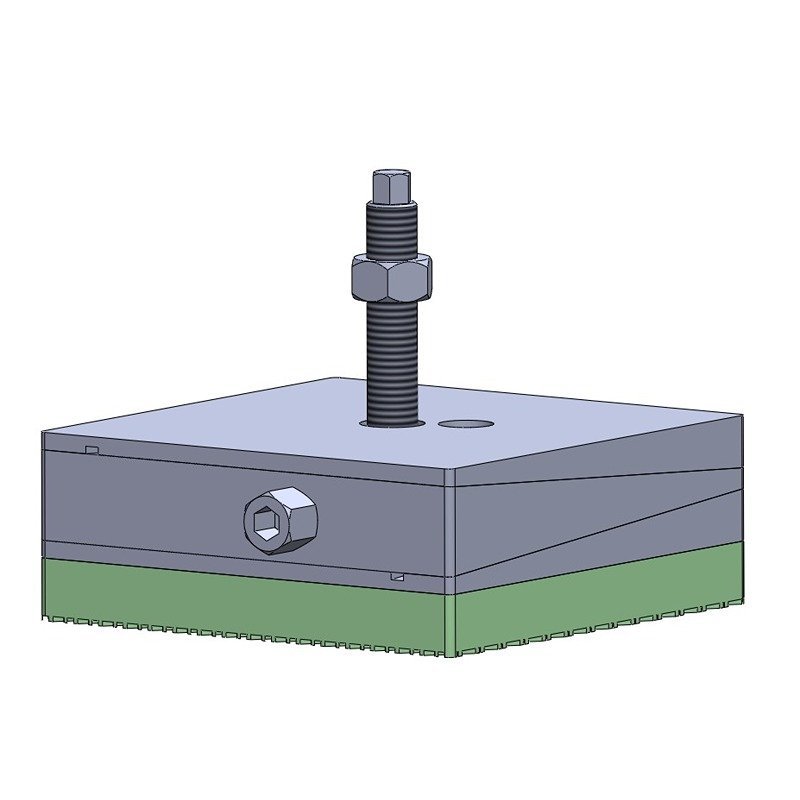

DBO-i
Product
DBO-i
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-i-FG-S-Z-GR | 1800 | 115 | 115 | 69 | +4/-4 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-i-FG-S-Z-GR | 2900 | 150 | 150 | 75 | +5/-5 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-i-FG-S-Z-GR | 5200 | 200 | 200 | 75 | +6/-6 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-i-FG-S-Z-GR | 6500 | 200 | 250 | 95 | +9/-9 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-i-FG-S-Z-GR | 10000 | 250 | 320 | 100 | +9/-9 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-i-FG-S-Z-GR | 15000 | 300 | 400 | 100 | +10/-10 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-i-FG-S-Z-GR | 26000 | 400 | 500 | 105 | +10/-10 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

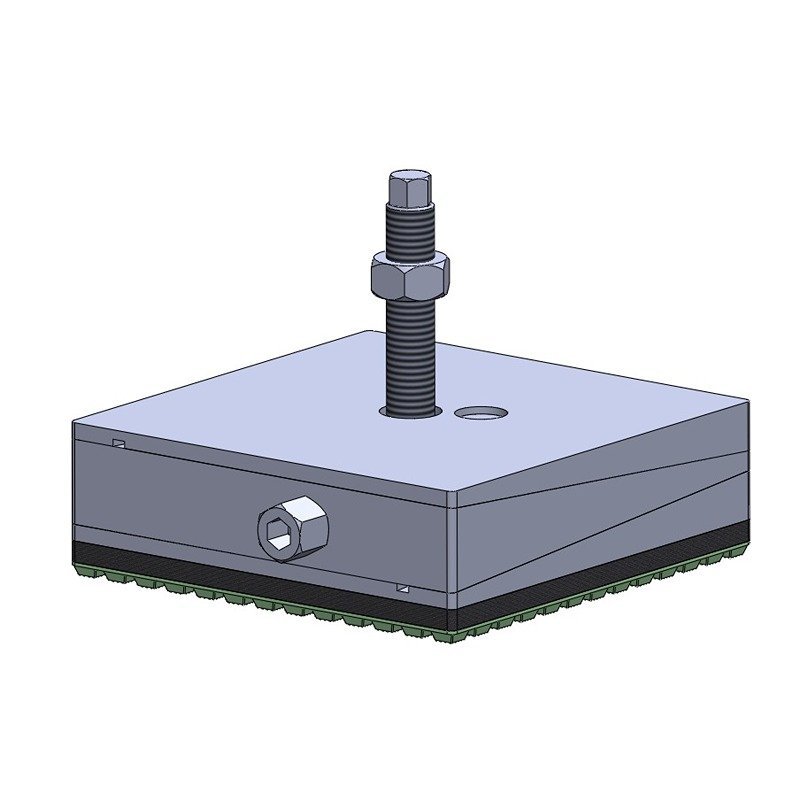

DBO-p1
Product
DBO-p1
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-p1-FG-S-Z-GR | 530 | 115 | 115 | 59 | +4/-4 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-p1-FG-S-Z-GR | 900 | 150 | 150 | 65 | +5/-5 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-p1-FG-S-Z-GR | 1600 | 200 | 200 | 65 | +6/-6 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-p1-FG-S-Z-GR | 2000 | 200 | 250 | 85 | +9/-9 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-p1-FG-S-Z-GR | 3200 | 250 | 320 | 90 | +9/-9 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-p1-FG-S-Z-GR | 4800 | 300 | 400 | 90 | +10/-10 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-p1-FG-S-Z-GR | 8000 | 400 | 500 | 95 | +10/-10 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

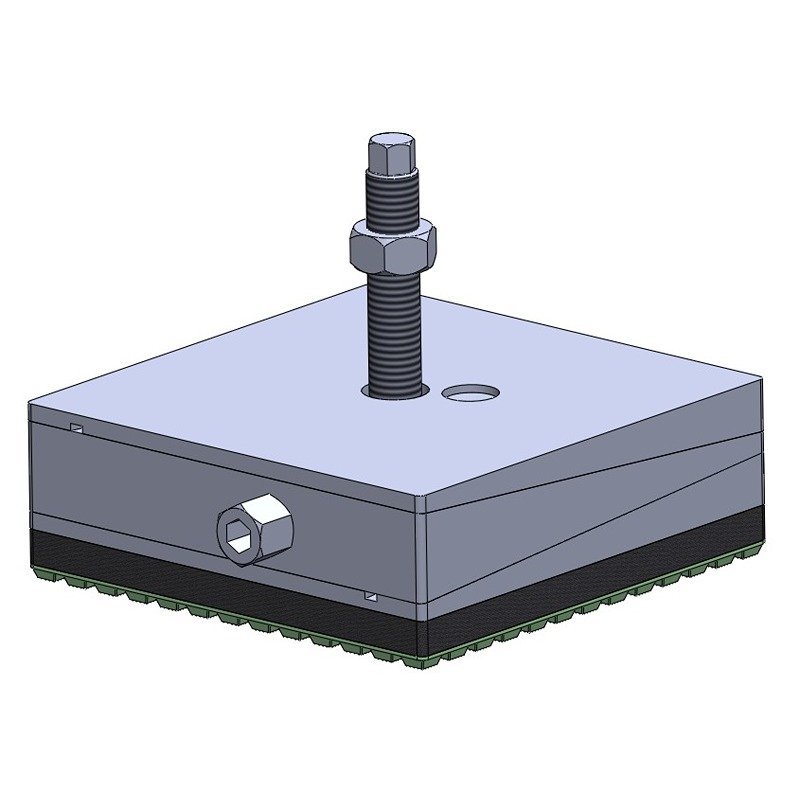

DBO-p2
Product
DBO-p2
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-p2-FG-S-Z-GR | 660 | 115 | 115 | 64 | +4/-4 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-p2-FG-S-Z-GR | 1130 | 150 | 150 | 70 | +5/-5 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-p2-FG-S-Z-GR | 2000 | 200 | 200 | 70 | +6/-6 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-p2-FG-S-Z-GR | 2500 | 200 | 250 | 90 | +9/-9 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-p2-FG-S-Z-GR | 4000 | 250 | 320 | 95 | +9/-9 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-p2-FG-S-Z-GR | 6000 | 300 | 400 | 95 | +10/-10 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-p2-FG-S-Z-GR | 10000 | 400 | 500 | 100 | +10/-10 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

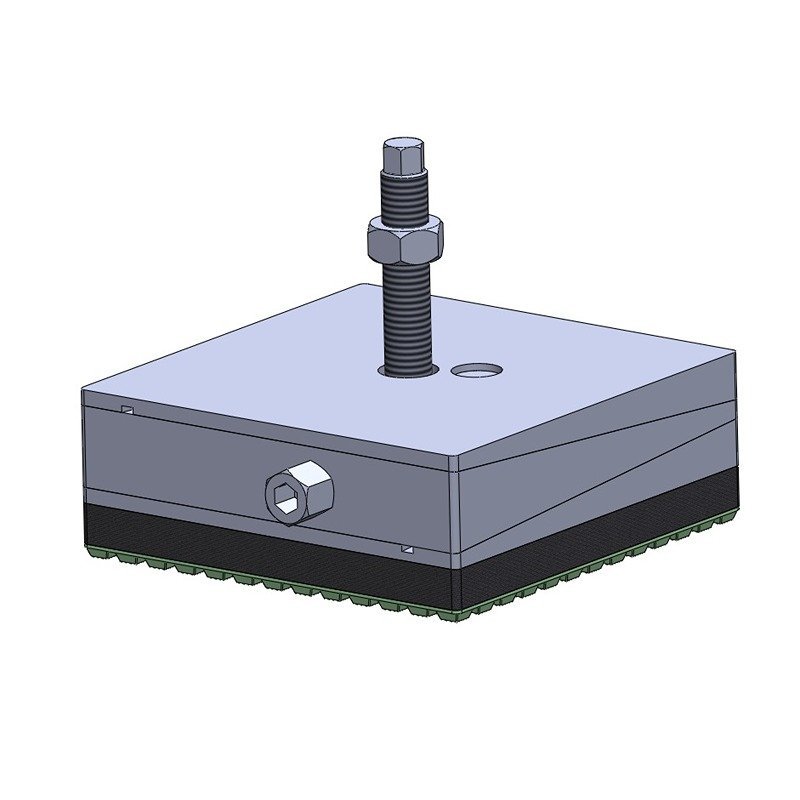

DBO-p3
Product
DBO-p3
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-p3-FG-S-Z-GR | 790 | 115 | 115 | 68 | +4/-4 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-p3-FG-S-Z-GR | 1350 | 150 | 150 | 74 | +5/-5 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-p3-FG-S-Z-GR | 2400 | 200 | 200 | 74 | +6/-6 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-p3-FG-S-Z-GR | 3000 | 200 | 250 | 94 | +9/-9 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-p3-FG-S-Z-GR | 4800 | 250 | 320 | 99 | +9/-9 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-p3-FG-S-Z-GR | 7200 | 300 | 400 | 99 | +10/-10 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-p3-FG-S-Z-GR | 12000 | 400 | 500 | 104 | +10/-10 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-s1
Product
DBO-s1
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-s1-FG-S-Z-GR | 660 | 115 | 115 | 64 | +4/-4 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-s1-FG-S-Z-GR | 1130 | 150 | 150 | 70 | +5/-5 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-s1-FG-S-Z-GR | 2000 | 200 | 200 | 70 | +6/-6 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-s1-FG-S-Z-GR | 2500 | 200 | 250 | 90 | +9/-9 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-s1-FG-S-Z-GR | 4000 | 250 | 320 | 95 | +9/-9 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-s1-FG-S-Z-GR | 6000 | 300 | 400 | 95 | +10/-10 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-s1-FG-S-Z-GR | 10000 | 400 | 500 | 100 | +10/-10 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-s2
Product
DBO-s2
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-s2-FG-S-Z-GR | 950 | 115 | 115 | 69 | +4/-4 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-s2-FG-S-Z-GR | 1600 | 150 | 150 | 75 | +5/-5 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-s2-FG-S-Z-GR | 2800 | 200 | 200 | 75 | +6/-6 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-s2-FG-S-Z-GR | 3500 | 200 | 250 | 95 | +9/-9 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-s2-FG-S-Z-GR | 5500 | 250 | 320 | 100 | +9/-9 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-s2-FG-S-Z-GR | 8500 | 300 | 400 | 100 | +10/-10 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-s2-FG-S-Z-GR | 14000 | 400 | 500 | 105 | +10/-10 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

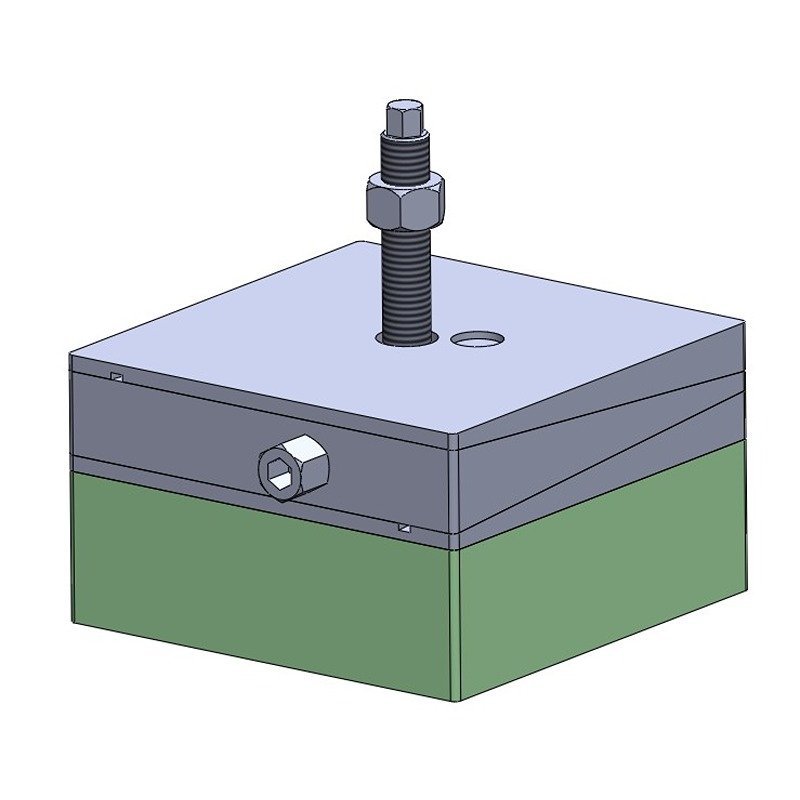

DBO-hs1
Product
DBO-hs1
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-hs1-FG-S-Z-GR | 2650 | 115 | 115 | 109 | +4/-4 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-hs1-FG-S-Z-GR | 4500 | 150 | 150 | 115 | +5/-5 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-hs1-FG-S-Z-GR | 8000 | 200 | 200 | 115 | +6/-6 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-hs1-FG-S-Z-GR | 14000 | 200 | 250 | 135 | +9/-9 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-hs1-FG-S-Z-GR | 16000 | 250 | 320 | 140 | +9/-9 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-hs1-FG-S-Z-GR | 24000 | 300 | 400 | 140 | +10/-10 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-hs1-FG-S-Z-GR | 40000 | 400 | 500 | 145 | +10/-10 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-hs2
Product
DBO-hs2
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-hs2-FG-S-Z-GR | 1060 | 115 | 115 | 109 | +4/-4 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-hs2-FG-S-Z-GR | 1800 | 150 | 150 | 115 | +5/-5 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-hs2-FG-S-Z-GR | 3200 | 200 | 200 | 115 | +6/-6 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-hs2-FG-S-Z-GR | 4000 | 200 | 250 | 135 | +9/-9 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-hs2-FG-S-Z-GR | 6400 | 250 | 320 | 140 | +9/-9 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-hs2-FG-S-Z-GR | 9600 | 300 | 400 | 140 | +10/-10 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-hs2-FG-S-Z-GR | 16000 | 400 | 500 | 145 | +10/-10 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

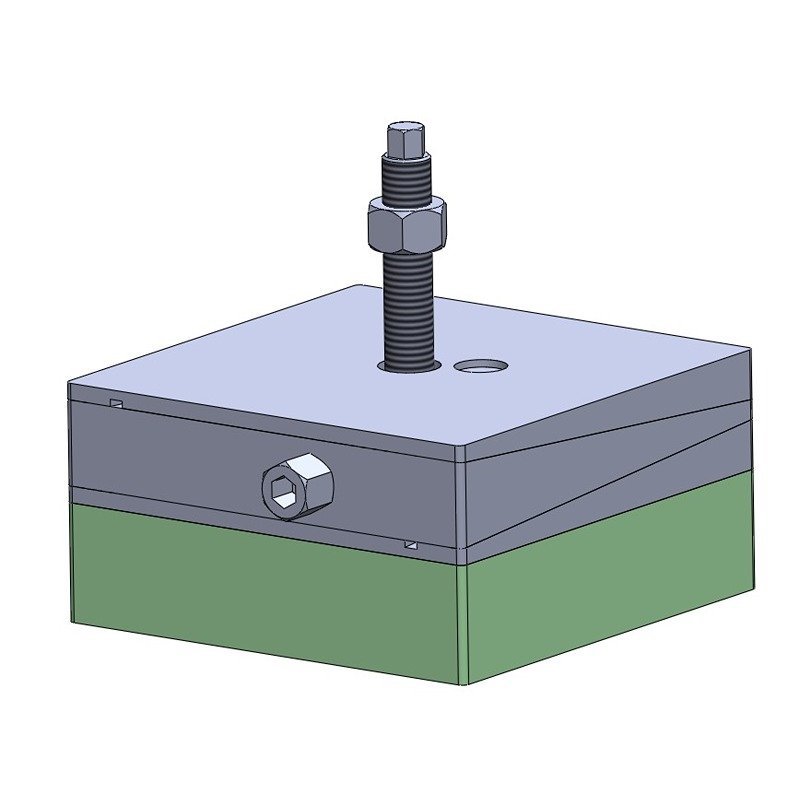

DBO-hs3
Product
DBO-hs3
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-hs3-FG-S-Z-GR | 3700 | 115 | 115 | 94 | +4/-4 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-hs3-FG-S-Z-GR | 6300 | 150 | 150 | 100 | +5/-5 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-hs3-FG-S-Z-GR | 11200 | 200 | 200 | 100 | +6/-6 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-hs3-FG-S-Z-GR | 14000 | 200 | 250 | 120 | +9/-9 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-hs3-FG-S-Z-GR | 22400 | 250 | 320 | 125 | +9/-9 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-hs3-FG-S-Z-GR | 33600 | 300 | 400 | 125 | +10/-10 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-hs3-FG-S-Z-GR | 56000 | 400 | 500 | 130 | +10/-10 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-hs4
Product
DBO-hs4
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-hs4-FG-S-Z-GR | 1590 | 115 | 115 | 94 | +4/-4 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-hs4-FG-S-Z-GR | 2700 | 150 | 150 | 100 | +5/-5 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-hs4-FG-S-Z-GR | 4800 | 200 | 200 | 100 | +6/-6 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-hs4-FG-S-Z-GR | 6000 | 200 | 250 | 120 | +9/-9 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-hs4-FG-S-Z-GR | 9600 | 250 | 320 | 125 | +9/-9 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-hs4-FG-S-Z-GR | 14000 | 300 | 400 | 125 | +10/-10 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-hs4-FG-S-Z-GR | 24000 | 400 | 500 | 130 | +10/-10 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

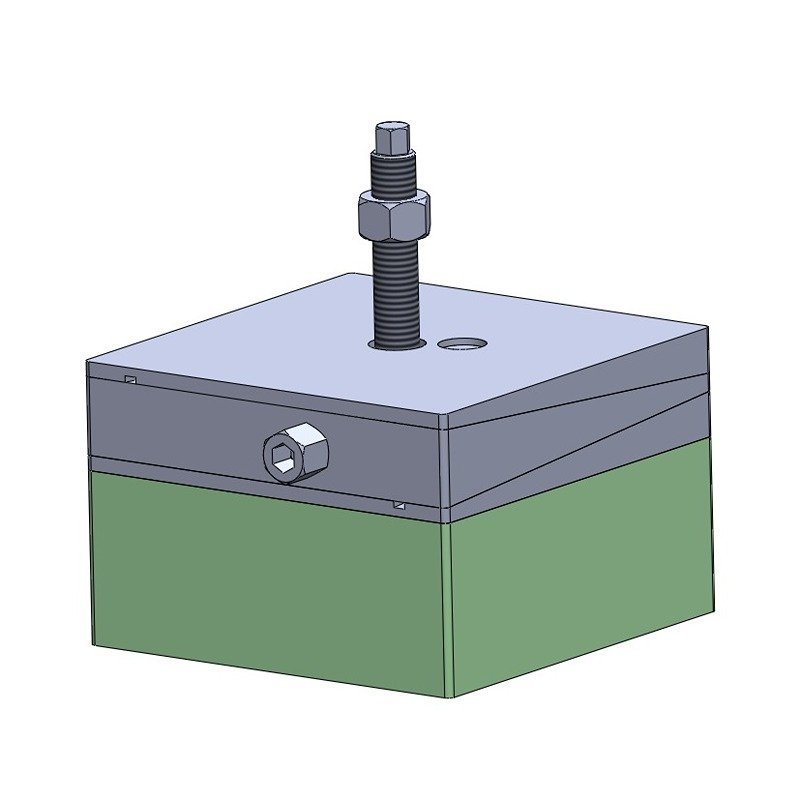

DBO-hs5
Product
DBO-hs5
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-hs5-FG-S-Z-GR | 3700 | 115 | 115 | 124 | +4/-4 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-hs5-FG-S-Z-GR | 6300 | 150 | 150 | 130 | +5/-5 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-hs5-FG-S-Z-GR | 11200 | 200 | 200 | 130 | +6/-6 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-hs5-FG-S-Z-GR | 14000 | 200 | 250 | 150 | +9/-9 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-hs5-FG-S-Z-GR | 22400 | 250 | 320 | 155 | +9/-9 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-hs5-FG-S-Z-GR | 33600 | 300 | 400 | 155 | +10/-10 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-hs5-FG-S-Z-GR | 56000 | 400 | 500 | 160 | +10/-10 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO-h
Product
DBO-h
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-h-FG-S-Z-GR | 3970 | 115 | 115 | 59 | +4/-4 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-h-FG-S-Z-GR | 6750 | 150 | 150 | 65 | +5/-5 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-h-FG-S-Z-GR | 12000 | 200 | 200 | 65 | +6/-6 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-h-FG-S-Z-GR | 15000 | 200 | 250 | 85 | +9/-9 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-h-FG-S-Z-GR | 24000 | 250 | 320 | 90 | +9/-9 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-h-FG-S-Z-GR | 36000 | 300 | 400 | 90 | +10/-10 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-h-FG-S-Z-GR | 60000 | 400 | 500 | 95 | +10/-10 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

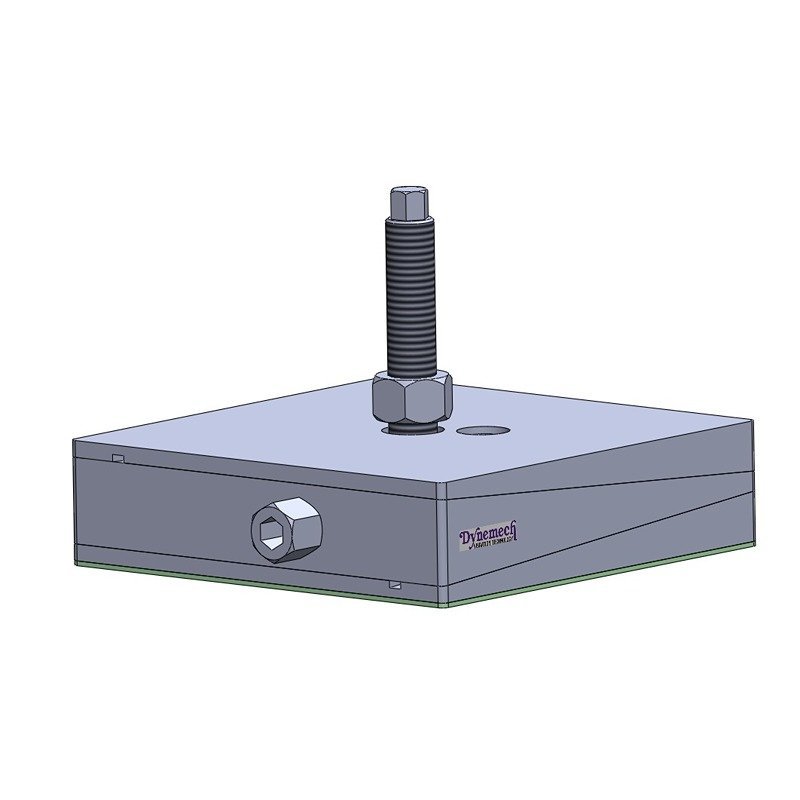

DBO-a1
Product
DBO-a1
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-a1-FG-S-Z-GR | 2380 | 115 | 115 | 46 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-a1-FG-S-Z-GR | 4050 | 150 | 150 | 52 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-a1-FG-S-Z-GR | 7200 | 200 | 200 | 52 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-a1-FG-S-Z-GR | 9000 | 200 | 250 | 72 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-a1-FG-S-Z-GR | 14400 | 250 | 320 | 77 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-a1-FG-S-Z-GR | 21600 | 300 | 400 | 77 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-a1-FG-S-Z-GR | 36000 | 400 | 500 | 82 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |

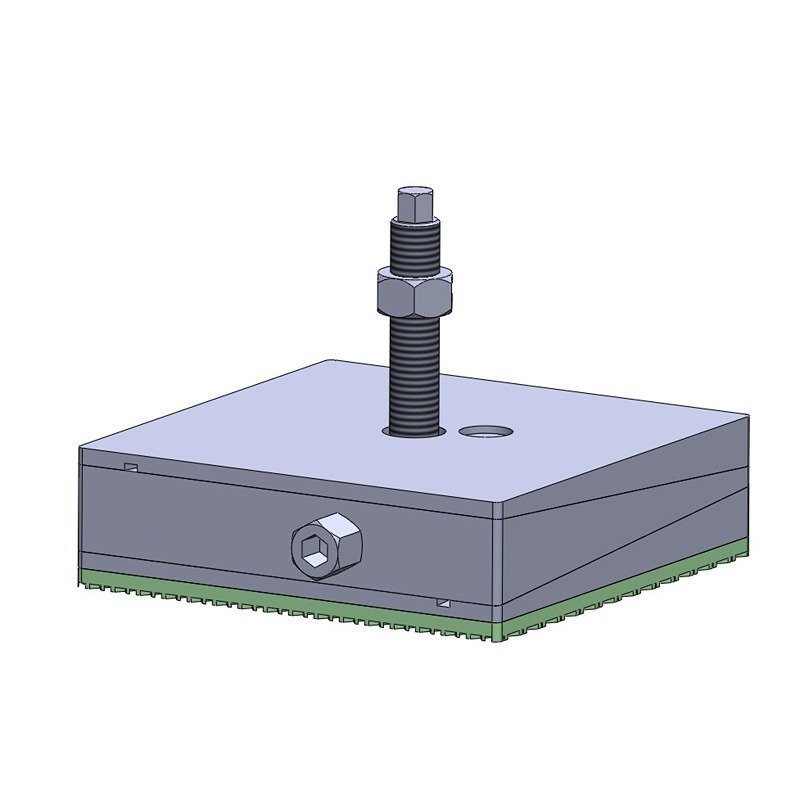

DBO-a2
Product
DBO-a2
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-a2-FG-S-Z-GR | 1320 | 115 | 115 | 52 | +4/-4 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-a2-FG-S-Z-GR | 2250 | 150 | 150 | 58 | +5/-5 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-a2-FG-S-Z-GR | 4000 | 200 | 200 | 58 | +6/-6 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-a2-FG-S-Z-GR | 6500 | 200 | 250 | 78 | +9/-9 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-a2-FG-S-Z-GR | 8000 | 250 | 320 | 83 | +9/-9 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-a2-FG-S-Z-GR | 12000 | 300 | 400 | 83 | +10/-10 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-a2-FG-S-Z-GR | 20000 | 400 | 500 | 88 | +10/-10 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
DBO
Product
DBO
Description
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-FG-S-Z-GR | 3600 | 115 | 115 | 44 | +4/-4 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-FG-S-Z-GR | 3800 | 150 | 150 | 50 | +5/-5 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-FG-S-Z-GR | 10400 | 200 | 200 | 50 | +6/-6 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-FG-S-Z-GR | 13000 | 200 | 250 | 70 | +9/-9 | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-FG-S-Z-GR | 20000 | 250 | 320 | 75 | +9/-9 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-FG-S-Z-GR | 30000 | 300 | 400 | 75 | +10/-10 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-FG-S-Z-GR | 40000 | 400 | 500 | 80 | +10/-10 | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
