DBOP-100
Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
For levelling of all Precicion Machines.
Documents
7 Models

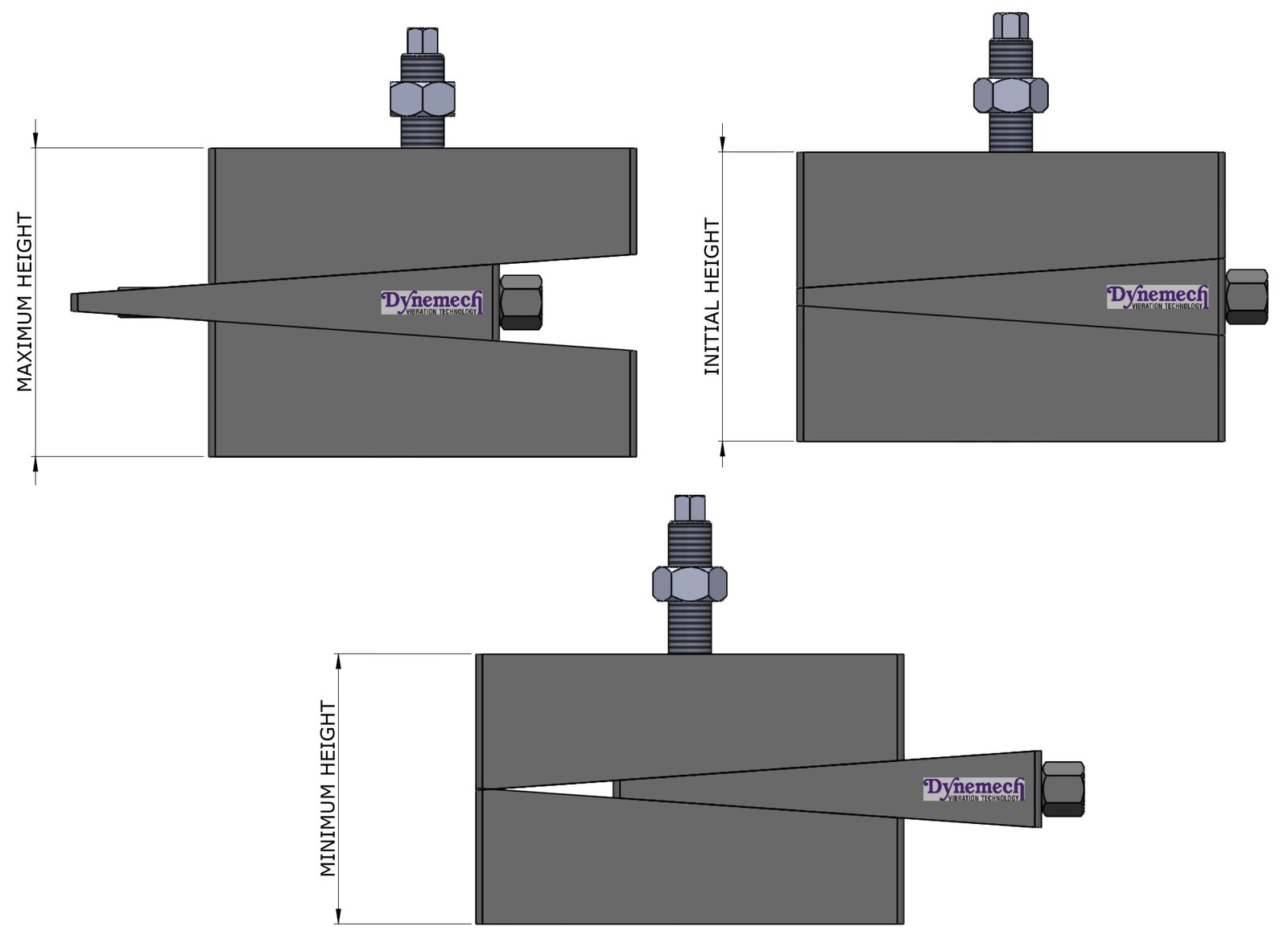

| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Sw1 (Mm) | Sw2 (Mm) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-85-FG-S-Z-GR | 3600 | 115 | 115 | 85 | +4/-4 | 19 | 10 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-85-FG-S-Z-GR | 3800 | 150 | 150 | 85 | +5/-5 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-85-FG-S-Z-GR | 10400 | 200 | 200 | 85 | +6/-6 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-85-FG-S-Z-GR | 13000 | 200 | 250 | 85 | +9/-9 | 27 | 14 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-85-FG-S-Z-GR | 20000 | 250 | 320 | 85 | +9/-9 | 32 | 18 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-85-FG-S-Z-GR | 30000 | 300 | 400 | 85 | +10/-10 | 32 | 18 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-85-FG-S-Z-GR | 40000 | 400 | 500 | 85 | +10/-10 | 39 | 22 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
