DBOP6-a1-87-FG-S-Z-GR
Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc. |
| Load Capacity (Kg/Pc) | 21600 |

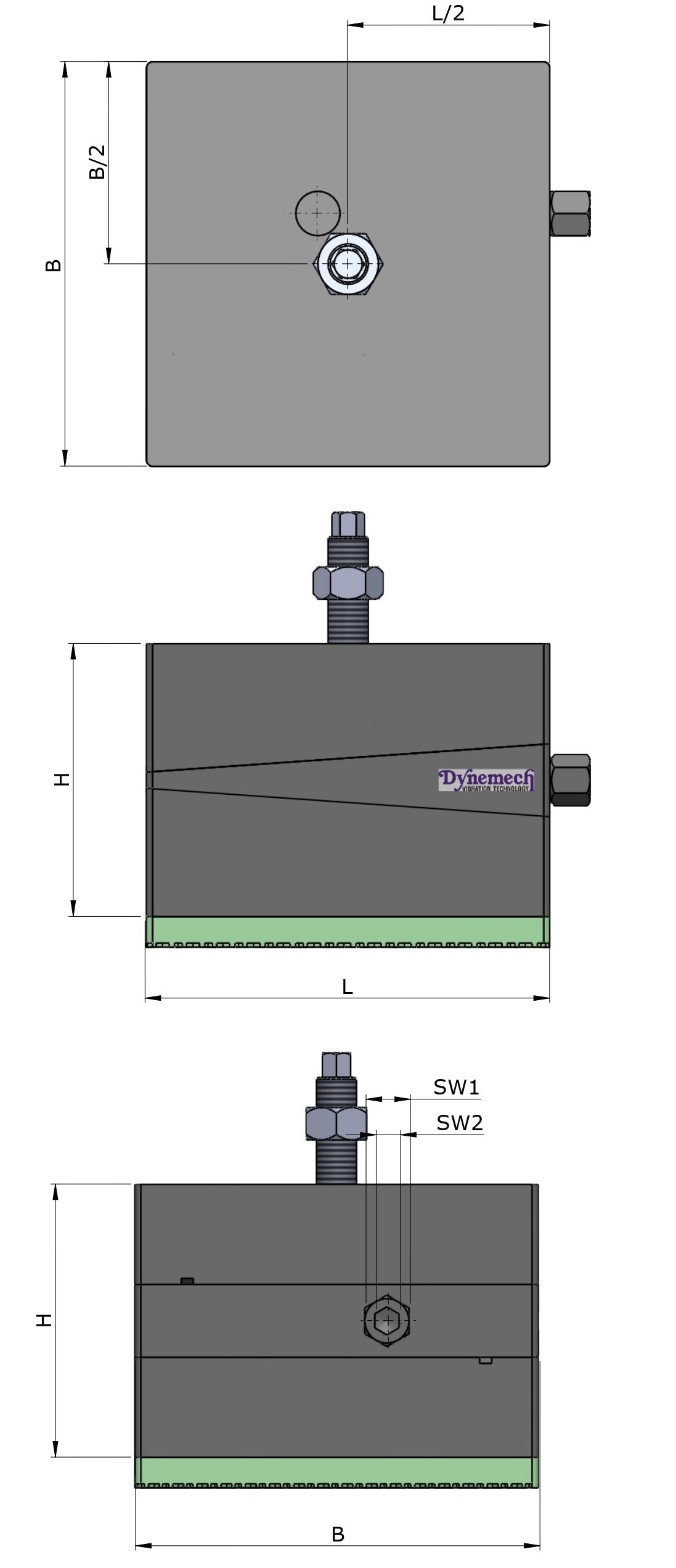

| Length L (Mm) | 300 |
| Width B (Mm) | 400 |
| Height H At Mean Position (Mm) | 87 |

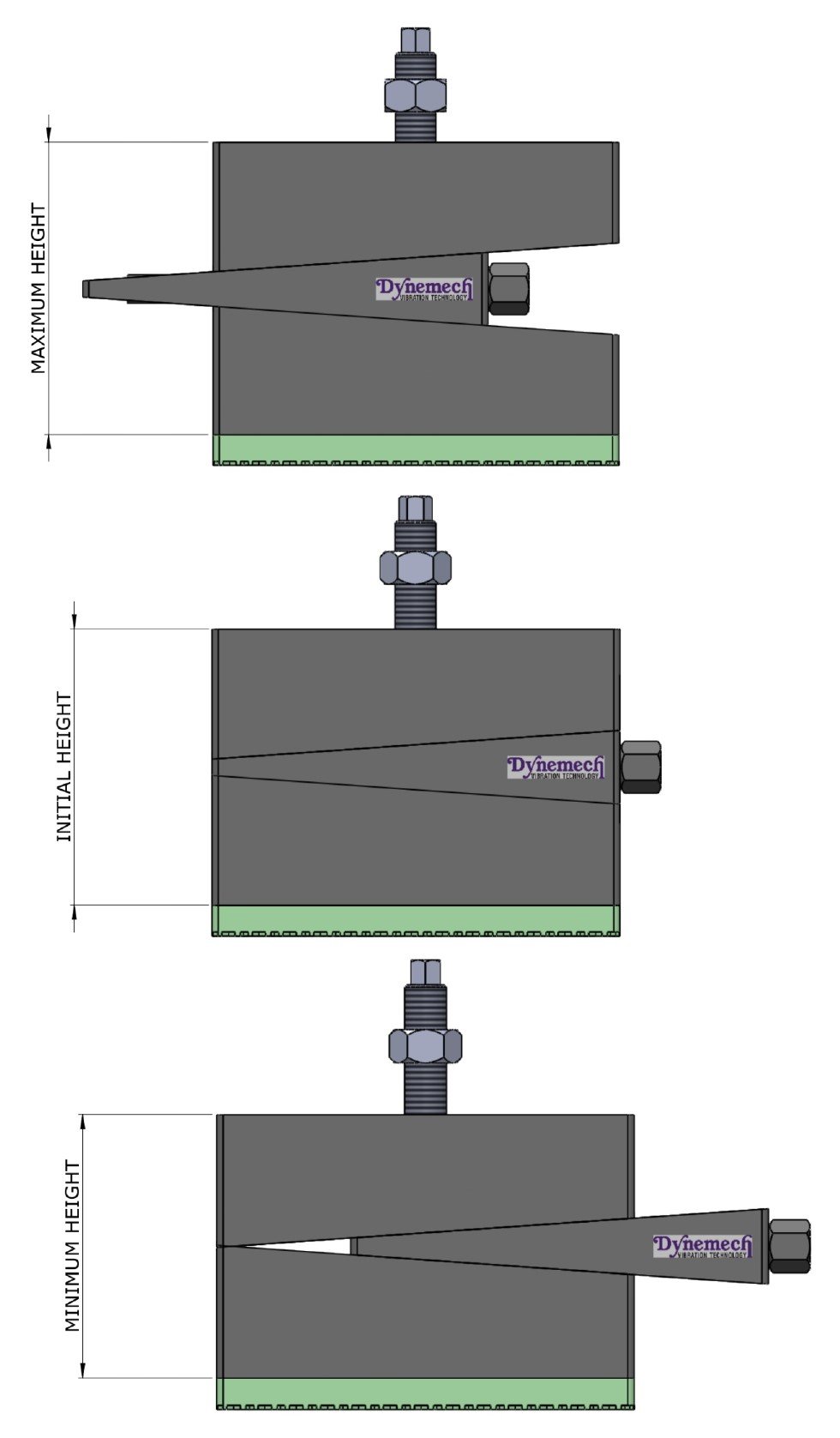

| Adjustment Range (Mm) | +10/-10 |
| Bottom Pad Type | Da1 |
| Bottom Pad Thickness (Mm) | 2 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 70 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 150 |
| Bolt Size (Mm) | M16/18/20/22/24 |
