DBOP5-p2-105-FG-S-Z-GR

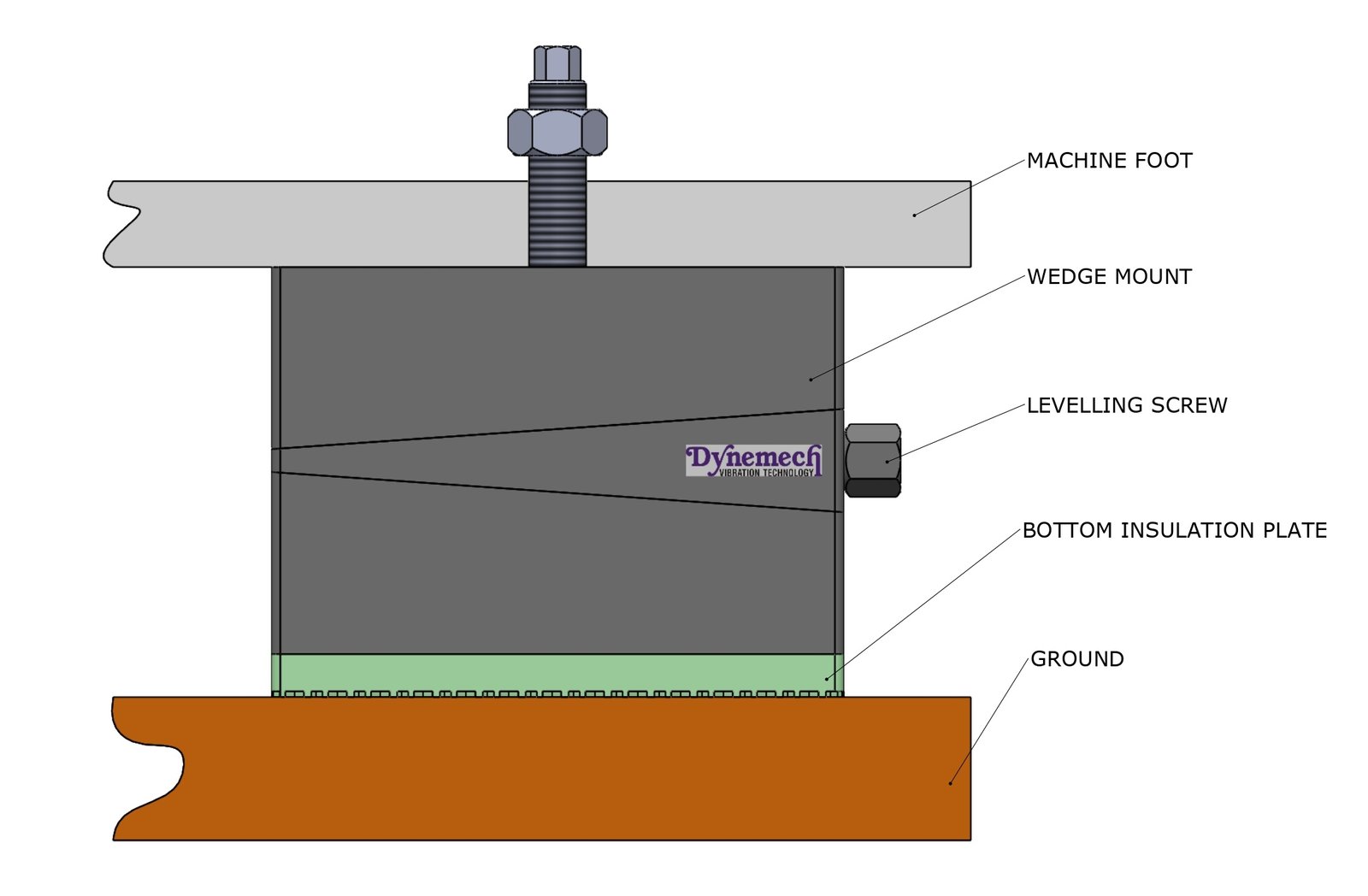

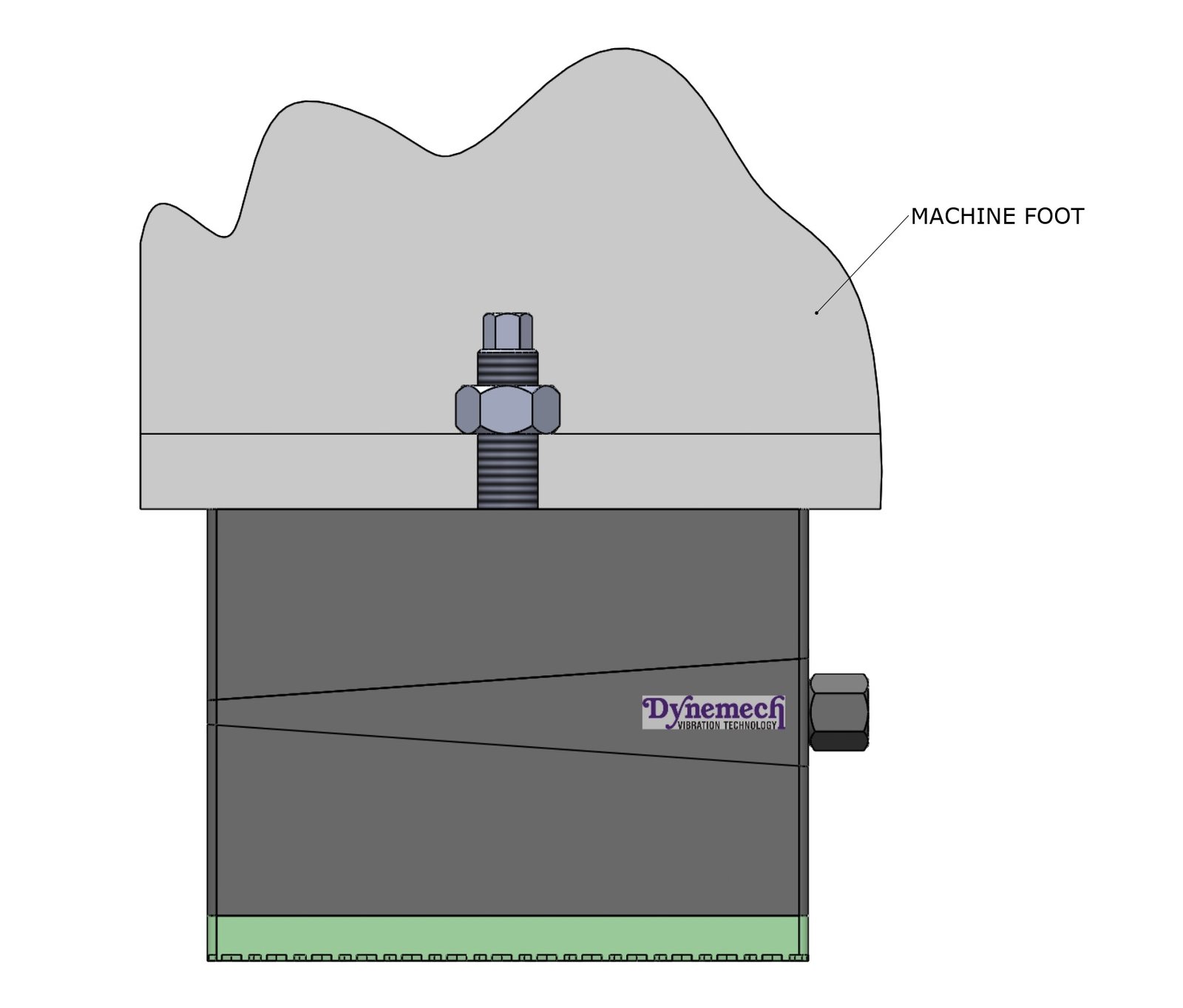

Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors. |
| Load Capacity (Kg/Pc) | 4000 |

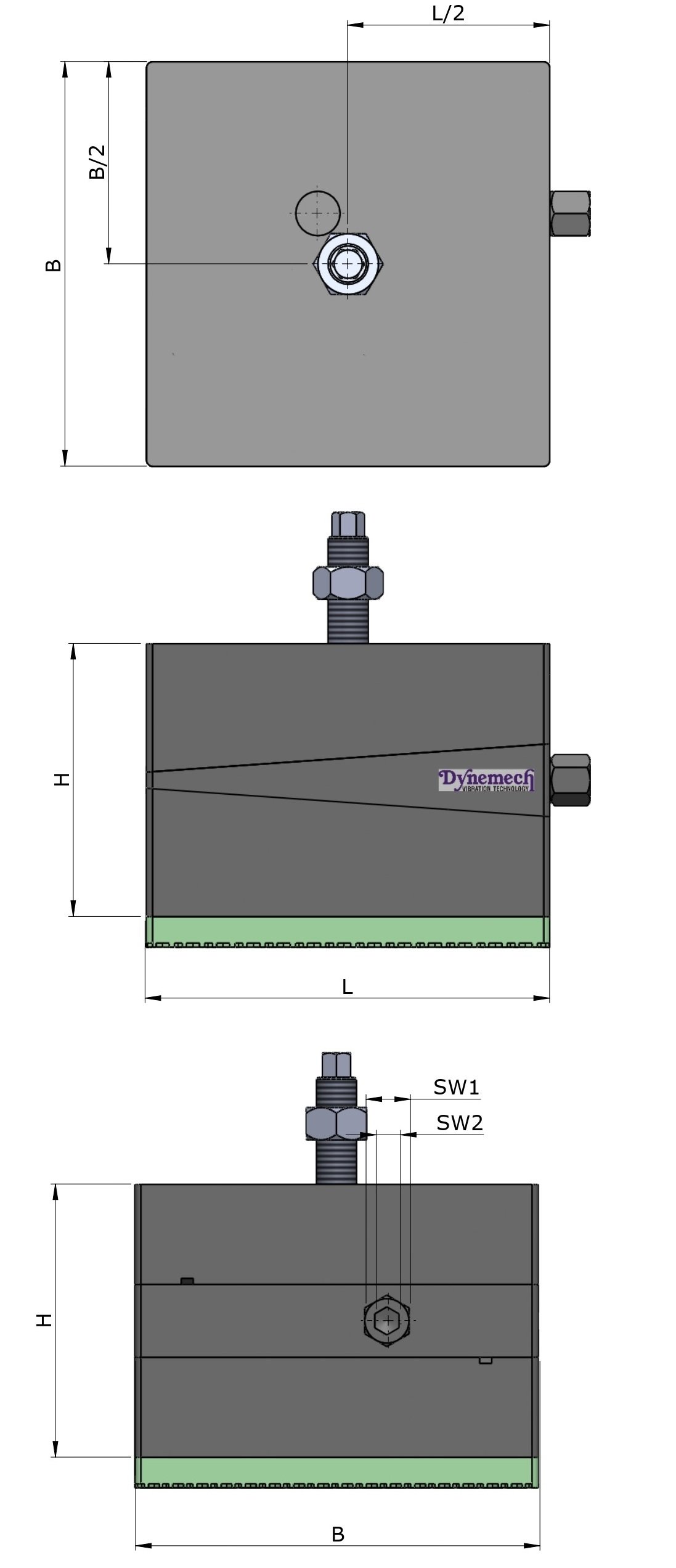

| Length L (Mm) | 250 |
| Width B (Mm) | 320 |
| Height H At Mean Position (Mm) | 105 |

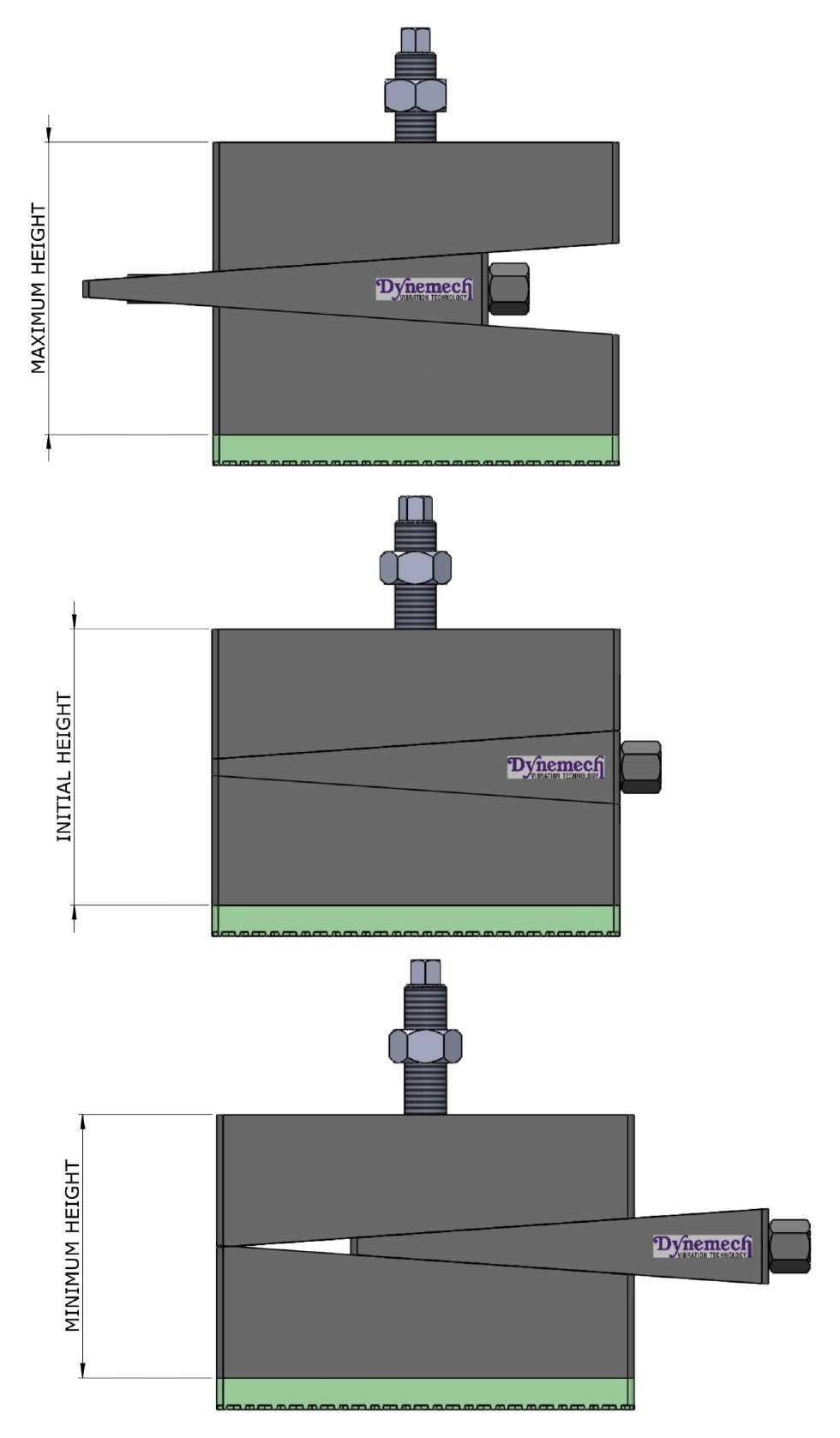

| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Dp2 |
| Bottom Pad Thickness (Mm) | 20 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 12 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 125 |
| Bolt Size (Mm) | M16/18/20/22/24 |
