DBP0-a1-137-FG-M12x1.75x200-S-Z-8-GR
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 1800 |

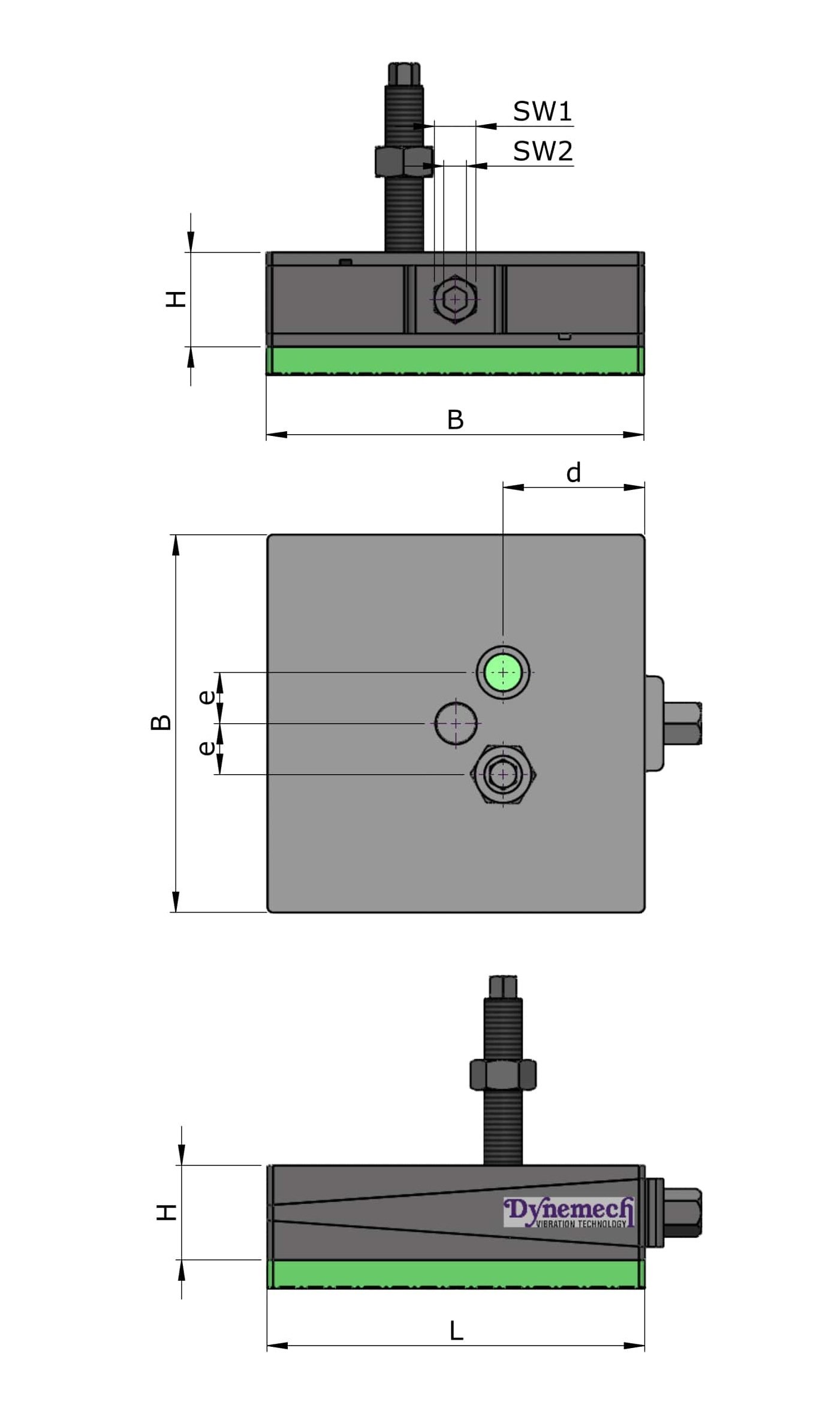

| Length L (Mm) | 100 |
| Width B (Mm) | 100 |
| Height H At Mean Position (Mm) | 137 |

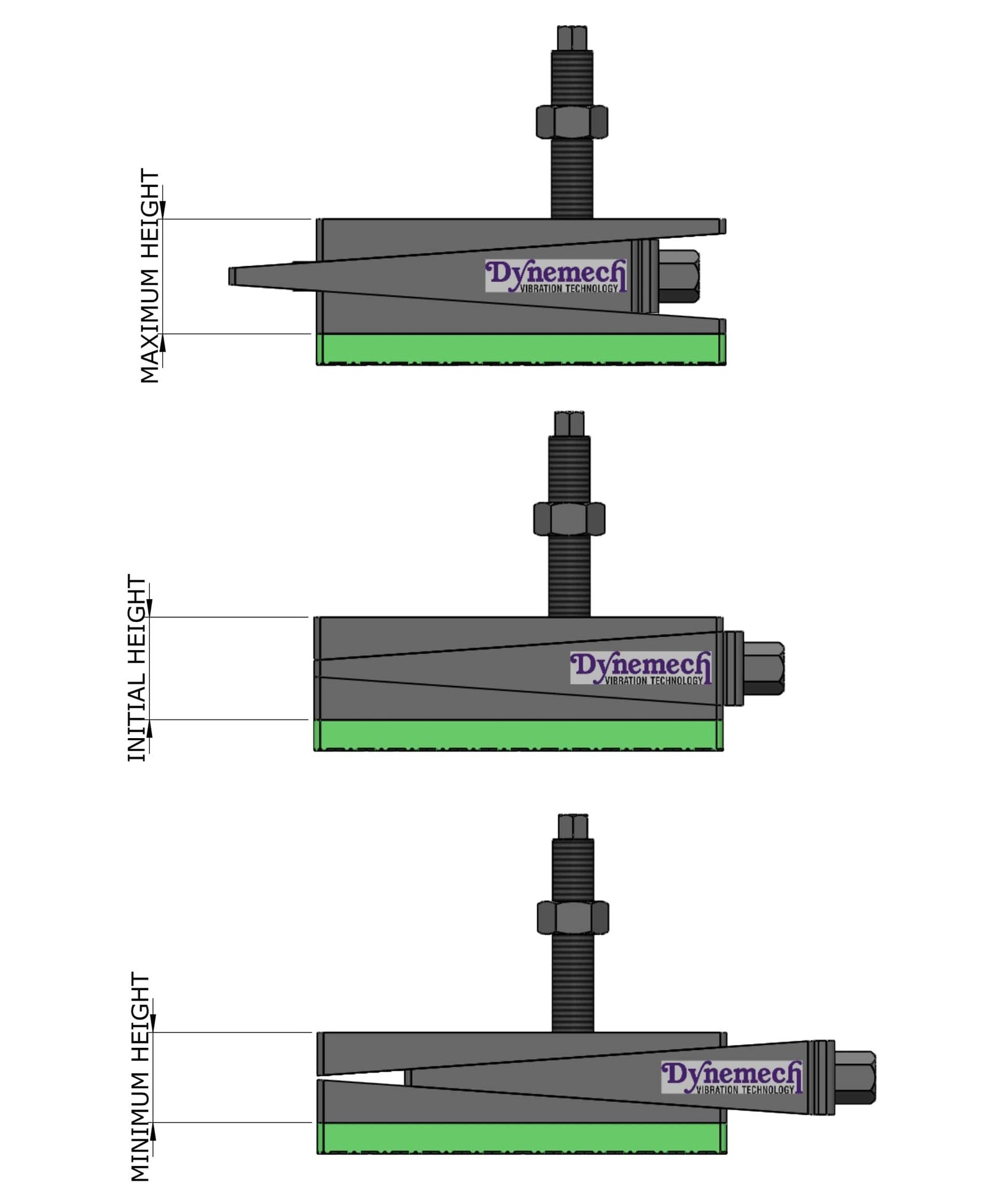

| Adjustment Range (Mm) | +3/-3 |
| Bottom Pad Type | Da1 |
| Bottom Pad Thickness (Mm) | 2 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 70 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 42 |
| Bolt Size (Mm) | M12 |
| E (Mm) | 23 |
