DBP2-hs5-215-FG-M18x2.5x200-S-Z-8-GR
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc. |
| Load Capacity (Kg/Pc) | 6300 |

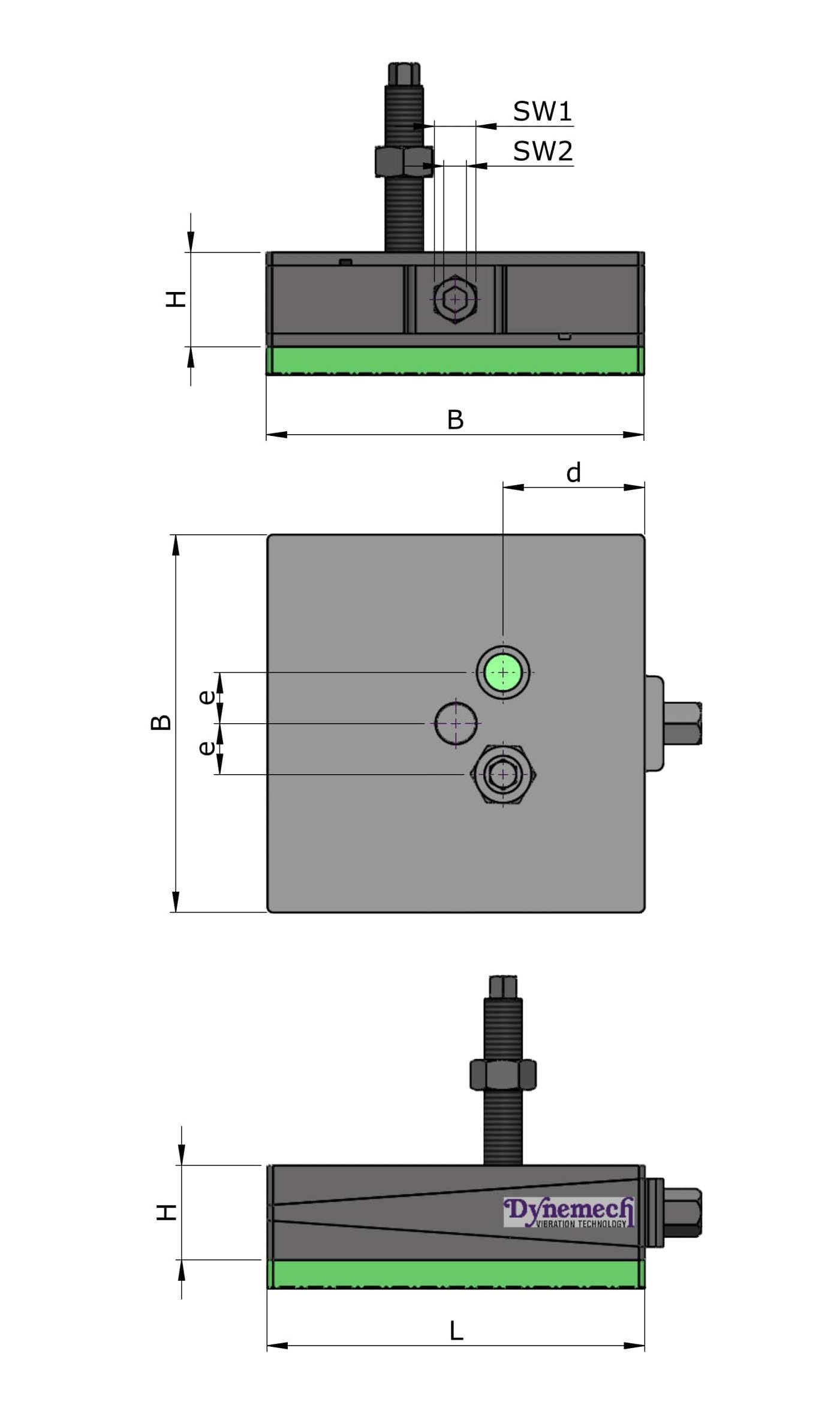

| Length L (Mm) | 150 |
| Width B (Mm) | 150 |
| Height H At Mean Position (Mm) | 215 |

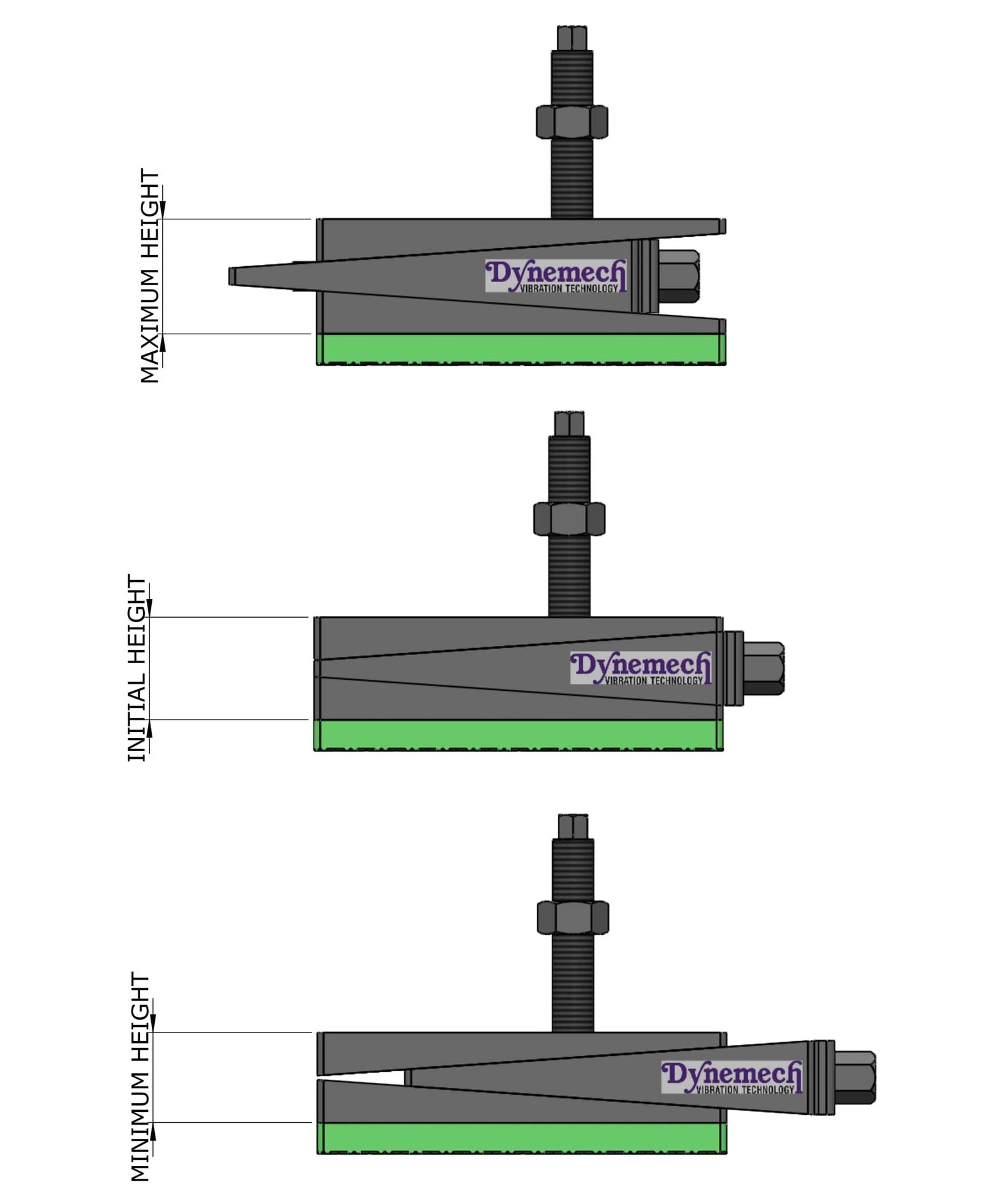

| Adjustment Range (Mm) | +5/-5 |
| Bottom Pad Type | Dhs5 |
| Bottom Pad Thickness (Mm) | 80 |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 5 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 60 |
| Bolt Size (Mm) | M18 |
| E (Mm) | 23 |
