DBF
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBF-u
Product
DBF-u
Description
DBF series wedge mounts have three tapered wedges. The top anti-skid plate provides grip with the machine base and bottom anti vibration sheet provides high vibration reduction. Levelling is done by rotating the side bolt which raises or lowers the top wedge.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF0-U-A2-FG-DG | 900 | 100 | 100 | 61 | +3/-3 | Du | 15 | Da2 | 8 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF1-U-A2-FG-DG | 1100 | 115 | 115 | 67 | +4/-4 | Du | 15 | Da2 | 8 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF2-U-A2-FG-DG | 1800 | 150 | 150 | 73 | +5/-5 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF3-U-A2-FG-DG | 3200 | 200 | 200 | 73 | +6/-6 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF4-U-A2-FG-DG | 4000 | 200 | 250 | 93 | +9/-9 | Du | 15 | Da2 | 8 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF5-U-A2-FG-DG | 6400 | 250 | 320 | 98 | +9/-9 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF6-U-A2-FG-DG | 9600 | 300 | 400 | 98 | +10/-10 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DBF7-U-A2-FG-DG | 16000 | 400 | 500 | 103 | +10/-10 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
DBF-u-10
Product
DBF-u-10
Description
DBF series wedge mounts have three tapered wedges. The top anti-skid plate provides grip with the machine base and bottom anti vibration sheet provides high vibration reduction. Levelling is done by rotating the side bolt which raises or lowers the top wedge.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF0-U-10-A2-FG-DG | 900 | 100 | 100 | 56 | +3/-3 | Du-10 | 10 | Da2 | 8 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF1-U-10-A2-FG-DG | 1100 | 115 | 115 | 62 | +4/-4 | Du-10 | 10 | Da2 | 8 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF2-U-10-A2-FG-DG | 1800 | 150 | 150 | 68 | +5/-5 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF3-U-10-A2-FG-DG | 3200 | 200 | 200 | 68 | +6/-6 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF4-U-10-A2-FG-DG | 4000 | 200 | 250 | 88 | +9/-9 | Du-10 | 10 | Da2 | 8 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF5-U-10-A2-FG-DG | 6400 | 250 | 320 | 93 | +9/-9 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF6-U-10-A2-FG-DG | 9600 | 300 | 400 | 93 | +10/-10 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DBF7-U-10-A2-FG-DG | 16000 | 400 | 500 | 98 | +10/-10 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |

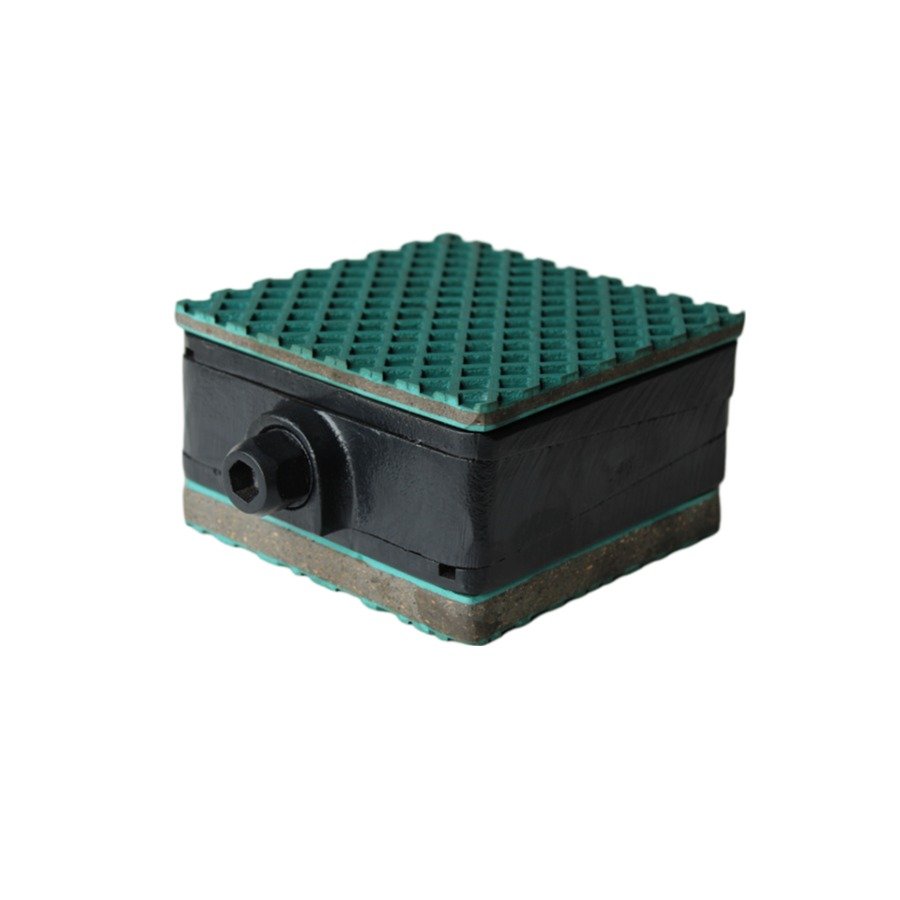

DBF-u-12
Product
DBF-u-12
Description
DBF series wedge mounts have three tapered wedges. The top anti-skid plate provides grip with the machine base and bottom anti vibration sheet provides high vibration reduction. Levelling is done by rotating the side bolt which raises or lowers the top wedge.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF0-U-12-A2-FG-DG | 900 | 100 | 100 | 58 | +3/-3 | Du-12 | 12 | Da2 | 8 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF1-U-12-A2-FG-DG | 1100 | 115 | 115 | 64 | +4/-4 | Du-12 | 12 | Da2 | 8 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF2-U-12-A2-FG-DG | 1800 | 150 | 150 | 70 | +5/-5 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF3-U-12-A2-FG-DG | 3200 | 200 | 200 | 70 | +6/-6 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF4-U-12-A2-FG-DG | 4000 | 200 | 250 | 90 | +9/-9 | Du-12 | 12 | Da2 | 8 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF5-U-12-A2-FG-DG | 6400 | 250 | 320 | 95 | +9/-9 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF6-U-12-A2-FG-DG | 9600 | 300 | 400 | 95 | +10/-10 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF7-U-12-A2-FG-DG | 16000 | 400 | 500 | 100 | +10/-10 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
DBF-m
Product
DBF-m
Description
DBF series wedge mounts have three tapered wedges. The top anti-skid plate provides grip with the machine base and bottom anti vibration sheet provides high vibration reduction. Levelling is done by rotating the side bolt which raises or lowers the top wedge.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-M-A1-FG-DG | 1000 | 100 | 100 | 55 | +3/-3 | Dm | 15 | Da1 | 2 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF2-M-A1-FG-DG | 1400 | 115 | 115 | 61 | +4/-4 | Dm | 15 | Da1 | 2 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF3-M-A1-FG-DG | 2200 | 150 | 150 | 67 | +5/-5 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF4-M-A1-FG-DG | 4000 | 200 | 200 | 67 | +6/-6 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF5-M-A1-FG-DG | 5000 | 200 | 250 | 87 | +9/-9 | Dm | 15 | Da1 | 2 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF6-M-A1-FG-DG | 8000 | 250 | 320 | 92 | +9/-9 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF7-M-A1-FG-DG | 12000 | 300 | 400 | 92 | +10/-10 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DBF8-M-A1-FG-DG | 20000 | 400 | 500 | 97 | +10/-10 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |

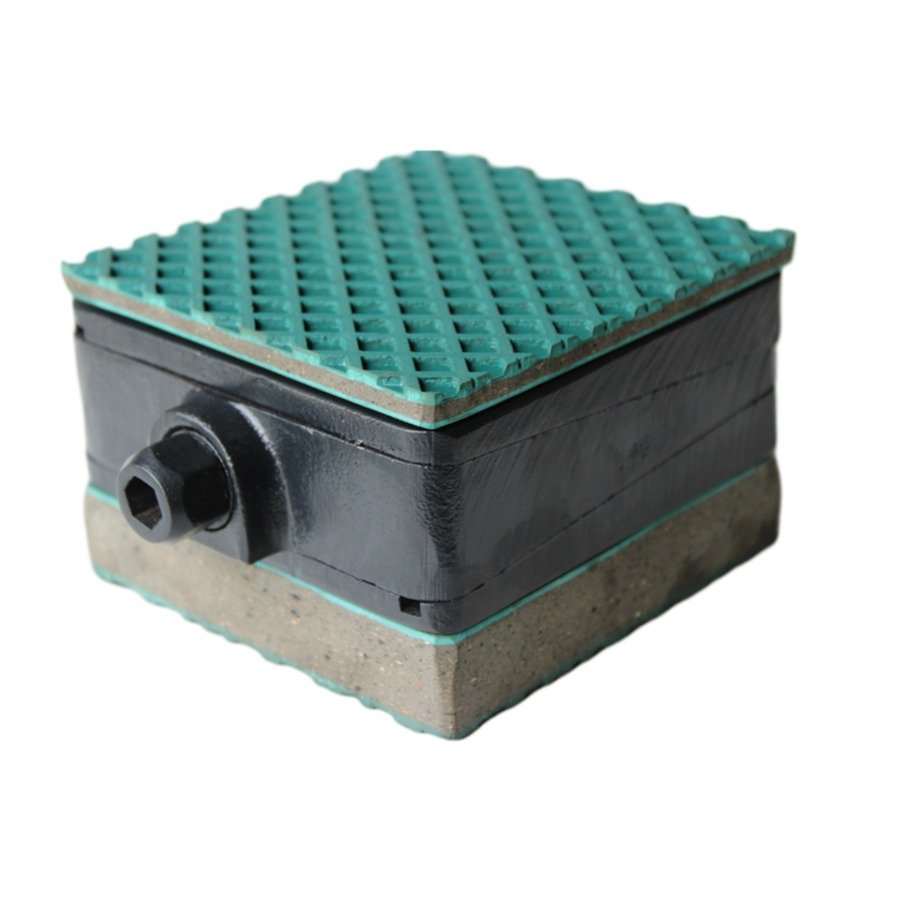

DBF-i
Product
DBF-i
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-i-A2-FG-DG | 1400 | 100 | 100 | 71 | +3/-3 | Di | 25 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF2-i-A2-FG-DG | 1800 | 115 | 115 | 77 | +4/-4 | Di | 25 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF3-i-A2-FG-DG | 2900 | 150 | 150 | 83 | +5/-5 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF4-i-A2-FG-DG | 5200 | 200 | 200 | 83 | +6/-6 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF5-i-A2-FG-DG | 6500 | 200 | 250 | 103 | +9/-9 | Di | 25 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF6-i-A2-FG-DG | 10000 | 250 | 320 | 108 | +9/-9 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF7-i-A2-FG-DG | 15000 | 300 | 400 | 108 | +10/-10 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF8-i-A2-FG-DG | 26000 | 400 | 500 | 113 | +10/-10 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

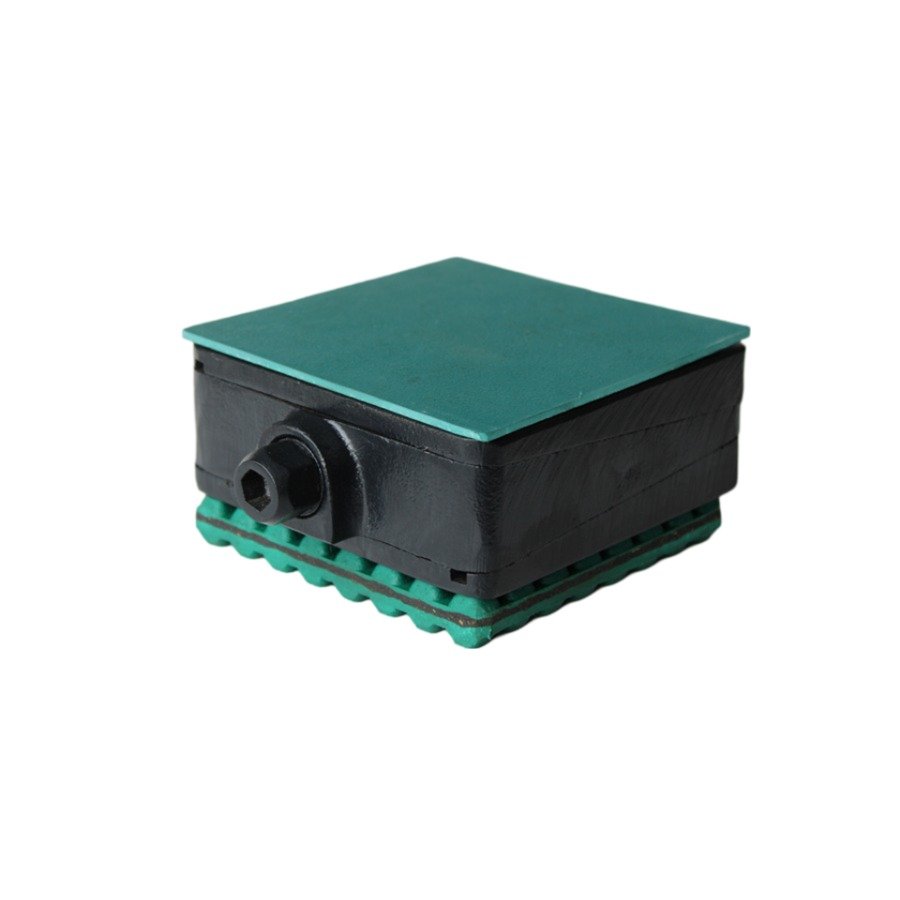

DBF-p1
Product
DBF-p1
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Suitable for passive vibration control of Measuring and Testing Machines, Grinders, etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-p1-A1-FG-DG | 400 | 100 | 100 | 55 | +3/-3 | Dp1 | 15 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF2-p1-A1-FG-DG | 530 | 115 | 115 | 61 | +4/-4 | Dp1 | 15 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF3-p1-A1-FG-DG | 900 | 150 | 150 | 67 | +5/-5 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF4-p1-A1-FG-DG | 1600 | 200 | 200 | 67 | +6/-6 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF5-p1-A1-FG-DG | 2000 | 200 | 250 | 87 | +9/-9 | Dp1 | 15 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF6-p1-A1-FG-DG | 3200 | 250 | 320 | 92 | +9/-9 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF7-p1-A1-FG-DG | 4800 | 300 | 400 | 92 | +10/-10 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF8-p1-A1-FG-DG | 8000 | 400 | 500 | 97 | +10/-10 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DBF-p2
Product
DBF-p2
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Suitable for passive vibration control of measuring & testing machines maintains machines stability along with the vibration reduction.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-p2-A1-FG-DG | 500 | 100 | 100 | 60 | +3/-3 | Dp2 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF2-p2-A1-FG-DG | 660 | 115 | 115 | 66 | +4/-4 | Dp2 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF3-p2-A1-FG-DG | 1120 | 150 | 150 | 72 | +5/-5 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF4-p2-A1-FG-DG | 2000 | 200 | 200 | 72 | +6/-6 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF5-p2-A1-FG-DG | 2500 | 200 | 250 | 92 | +9/-9 | Dp2 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF6-p2-A1-FG-DG | 4000 | 250 | 320 | 97 | +9/-9 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF7-p2-A1-FG-DG | 6000 | 300 | 400 | 97 | +10/-10 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DBF8-p2-A1-FG-DG | 10000 | 400 | 500 | 102 | +10/-10 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |

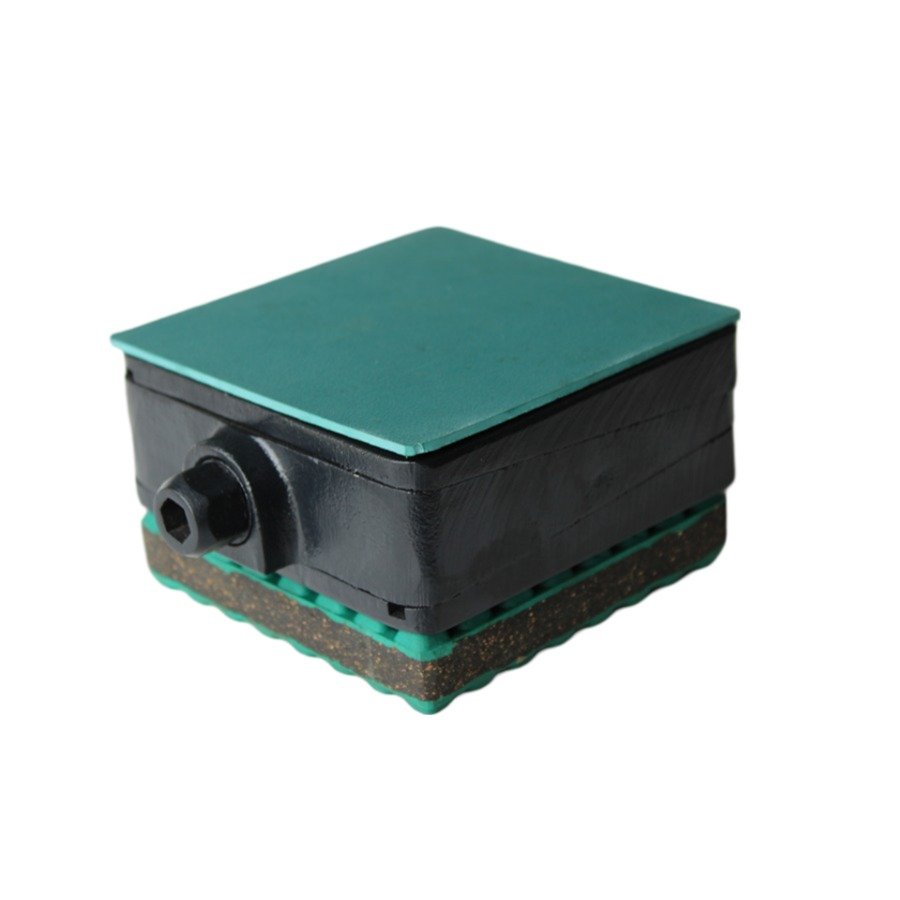

DBF-p3
Product
DBF-p3
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Suitable for both active and passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-p3-A1-FG-DG | 600 | 100 | 100 | 64 | +3/-3 | Dp3 | 24 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF2-p3-A1-FG-DG | 790 | 115 | 115 | 70 | +4/-4 | Dp3 | 24 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF3-p3-A1-FG-DG | 1350 | 150 | 150 | 76 | +5/-5 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF4-p3-A1-FG-DG | 2400 | 200 | 200 | 76 | +6/-6 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF5-p3-A1-FG-DG | 3000 | 200 | 250 | 96 | +9/-9 | Dp3 | 24 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF6-p3-A1-FG-DG | 4800 | 250 | 320 | 101 | +9/-9 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF7-p3-A1-FG-DG | 7200 | 300 | 400 | 101 | +10/-10 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF8-p3-A1-FG-DG | 12000 | 400 | 500 | 106 | +10/-10 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

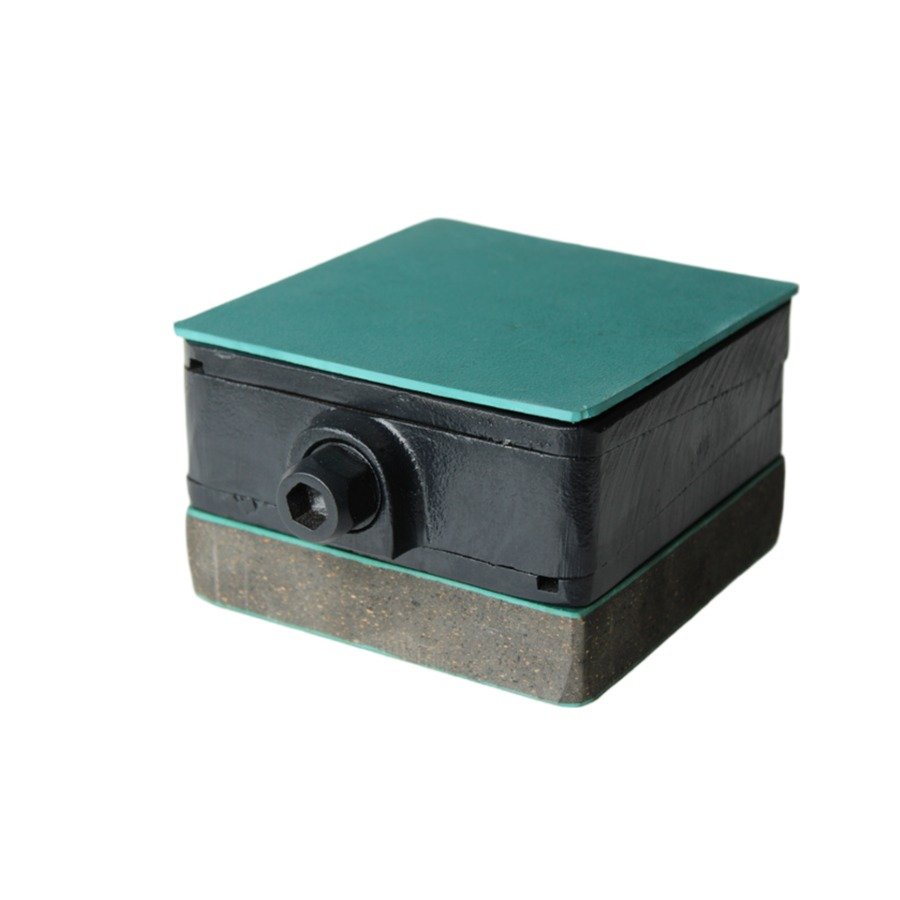

DBF-s1
Product
DBF-s1
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-s1-A1-FG-DG | 500 | 100 | 100 | 60 | +3/-3 | Ds1 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF2-s1-A1-FG-DG | 600 | 115 | 115 | 66 | +4/-4 | Ds1 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF3-s1-A1-FG-DG | 1000 | 150 | 150 | 72 | +5/-5 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF4-s1-A1-FG-DG | 1800 | 200 | 200 | 72 | +6/-6 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF5-s1-A1-FG-DG | 2200 | 200 | 250 | 92 | +9/-9 | Ds1 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF6-s1-A1-FG-DG | 3500 | 250 | 320 | 97 | +9/-9 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF7-s1-A1-FG-DG | 5200 | 300 | 400 | 97 | +10/-10 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DBF8-s1-A1-FG-DG | 9500 | 400 | 500 | 102 | +10/-10 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
DBF-s2
Product
DBF-s2
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Medium Presses, Punching Presses, Centerless Grinding Machine, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-s2-A1-FG-DG | 800 | 100 | 100 | 65 | +3/-3 | Ds2 | 25 | Da1 | 2 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF2-s2-A1-FG-DG | 950 | 115 | 115 | 71 | +4/-4 | Ds2 | 25 | Da1 | 2 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF3-s2-A1-FG-DG | 1600 | 150 | 150 | 77 | +5/-5 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF4-s2-A1-FG-DG | 2800 | 200 | 200 | 77 | +6/-6 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF5-s2-A1-FG-DG | 3500 | 200 | 250 | 97 | +9/-9 | Ds2 | 25 | Da1 | 2 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF6-s2-A1-FG-DG | 5500 | 250 | 320 | 102 | +9/-9 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF7-s2-A1-FG-DG | 8500 | 300 | 400 | 102 | +10/-10 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DBF8-s2-A1-FG-DG | 14000 | 400 | 500 | 107 | +10/-10 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
DBF-hs1
Product
DBF-hs1
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-hs1-A2-FG-DG | 2000 | 100 | 100 | 111 | +3/-3 | Dhs1 | 65 | Da2 | 8 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF2-hs1-A2-FG-DG | 2640 | 115 | 115 | 117 | +4/-4 | Dhs1 | 65 | Da2 | 8 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF3-hs1-A2-FG-DG | 4500 | 150 | 150 | 123 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF4-hs1-A2-FG-DG | 8000 | 200 | 200 | 123 | +6/-6 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF5-hs1-A2-FG-DG | 10000 | 200 | 250 | 143 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF6-hs1-A2-FG-DG | 16000 | 250 | 320 | 148 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF7-hs1-A2-FG-DG | 24000 | 300 | 400 | 148 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DBF8-hs1-A2-FG-DG | 40000 | 400 | 500 | 153 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
DBF-hs2
Product
DBF-hs2
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-hs2-A1-FG-DG | 800 | 100 | 100 | 105 | +3/-3 | Dhs2 | 65 | Da1 | 2 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF2-hs2-A1-FG-DG | 1060 | 115 | 115 | 111 | +4/-4 | Dhs2 | 65 | Da1 | 2 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF3-hs2-A1-FG-DG | 1800 | 150 | 150 | 117 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF4-hs2-A1-FG-DG | 3200 | 200 | 200 | 117 | +6/-6 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF5-hs2-A1-FG-DG | 4000 | 200 | 250 | 137 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF6-hs2-A1-FG-DG | 6400 | 250 | 320 | 142 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF7-hs2-A1-FG-DG | 9600 | 300 | 400 | 142 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DBF8-hs2-A1-FG-DG | 16000 | 400 | 500 | 147 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |

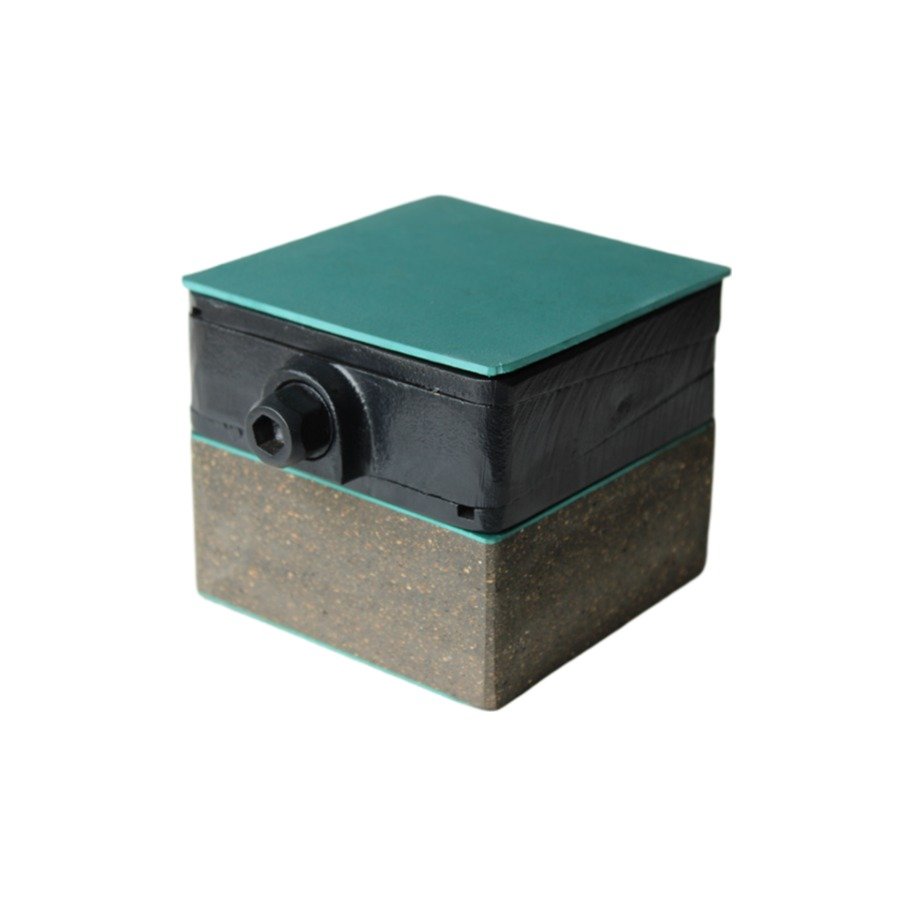

DBF-hs3
Product
DBF-hs3
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-hs3-A2-FG-DG | 2800 | 100 | 100 | 96 | +3/-3 | Dhs3 | 50 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF2-hs3-A2-FG-DG | 3700 | 115 | 115 | 102 | +4/-4 | Dhs3 | 50 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF3-hs3-A2-FG-DG | 6300 | 150 | 150 | 108 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF4-hs3-A2-FG-DG | 11200 | 200 | 200 | 108 | +6/-6 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF5-hs3-A2-FG-DG | 14000 | 200 | 250 | 128 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF6-hs3-A2-FG-DG | 22400 | 250 | 320 | 133 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF7-hs3-A2-FG-DG | 33600 | 300 | 400 | 133 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DBF8-hs3-A2-FG-DG | 56000 | 400 | 500 | 138 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DBF-hs4
Product
DBF-hs4
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-hs4-A1-FG-DG | 1200 | 100 | 100 | 90 | +3/-3 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF2-hs4-A1-FG-DG | 1580 | 115 | 115 | 96 | +4/-4 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF3-hs4-A1-FG-DG | 2700 | 150 | 150 | 102 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF4-hs4-A1-FG-DG | 4800 | 200 | 200 | 102 | +6/-6 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF5-hs4-A1-FG-DG | 6000 | 200 | 250 | 122 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF6-hs4-A1-FG-DG | 9600 | 250 | 320 | 127 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF7-hs4-A1-FG-DG | 14400 | 300 | 400 | 127 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF8-hs4-A1-FG-DG | 24000 | 400 | 500 | 132 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DBF-hs5
Product
DBF-hs5
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-hs5-A2-FG-DG | 2800 | 100 | 100 | 126 | +3/-3 | Dhs5 | 80 | Da2 | 8 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF2-hs5-A2-FG-DG | 3700 | 115 | 115 | 132 | +4/-4 | Dhs5 | 80 | Da2 | 8 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF3-hs5-A2-FG-DG | 6300 | 150 | 150 | 138 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF4-hs5-A2-FG-DG | 11200 | 200 | 200 | 138 | +6/-6 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF5-hs5-A2-FG-DG | 14000 | 200 | 250 | 158 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF6-hs5-A2-FG-DG | 22400 | 250 | 320 | 163 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF7-hs5-A2-FG-DG | 33600 | 300 | 400 | 163 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DBF8-hs5-A2-FG-DG | 56000 | 400 | 500 | 168 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |

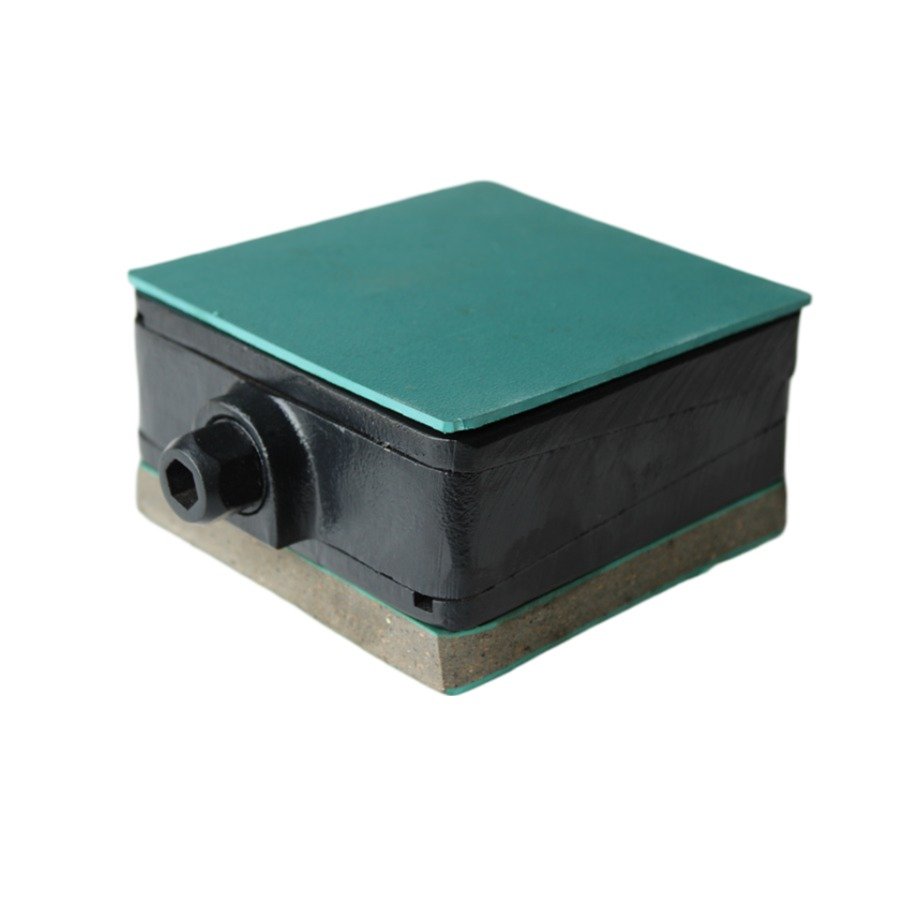

DBF-h
Product
DBF-h
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-h-A2-FG-DG | 3000 | 100 | 100 | 61 | +3/-3 | Dh | 15 | Da2 | 8 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF2-h-A2-FG-DG | 3970 | 115 | 115 | 67 | +4/-4 | Dh | 15 | Da2 | 8 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF3-h-A2-FG-DG | 6750 | 150 | 150 | 73 | +5/-5 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF4-h-A2-FG-DG | 12000 | 200 | 200 | 73 | +6/-6 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF5-h-A2-FG-DG | 15000 | 200 | 250 | 93 | +9/-9 | Dh | 15 | Da2 | 8 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF6-h-A2-FG-DG | 24000 | 250 | 320 | 98 | +9/-9 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF7-h-A2-FG-DG | 36000 | 300 | 400 | 98 | +10/-10 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DBF8-h-A2-FG-DG | 60000 | 400 | 500 | 103 | +10/-10 | Dh | 15 | Da2 | 8 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |

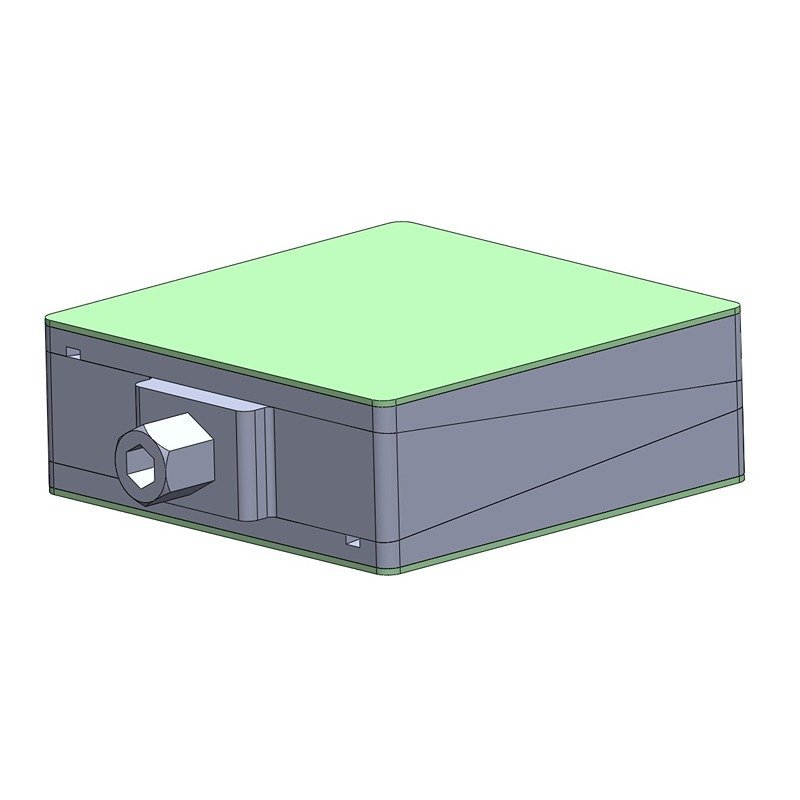

DBF-a1
Product
DBF-a1
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-A1-A1-FG-DG | 1800 | 100 | 100 | 42 | +3/-3 | Da1 | 2 | Da1 | 2 | 19 | 10 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF2-A1-A1-FG-DG | 2300 | 115 | 115 | 48 | +4/-4 | Da1 | 2 | Da1 | 2 | 19 | 10 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF3-A1-A1-FG-DG | 4000 | 150 | 150 | 54 | +5/-5 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF4-A1-A1-FG-DG | 7200 | 200 | 200 | 54 | +6/-6 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF5-A1-A1-FG-DG | 9000 | 200 | 250 | 74 | +9/-9 | Da1 | 2 | Da1 | 2 | 27 | 14 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF6-A1-A1-FG-DG | 14400 | 250 | 320 | 79 | +9/-9 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF7-A1-A1-FG-DG | 21600 | 300 | 400 | 79 | +10/-10 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DBF8-A1-A1-FG-DG | 36000 | 400 | 500 | 84 | +10/-10 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |

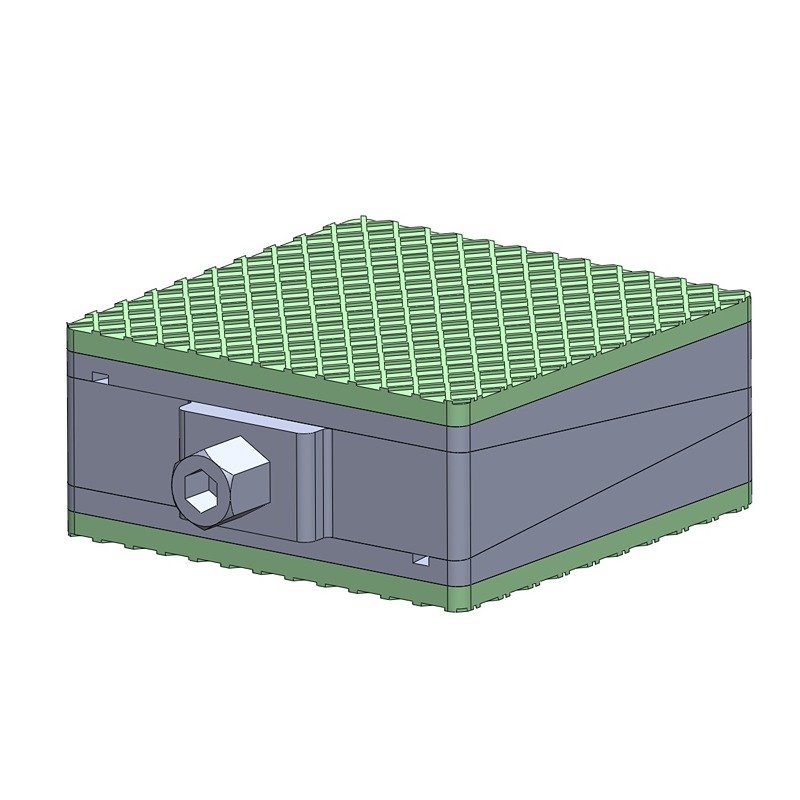

DBF-a2
Product
DBF-a2
Description
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBF1-A2-A2-FG-DG | 1000 | 100 | 100 | 54 | +3/-3 | Da2 | 8 | Da2 | 8 | 19 | 10 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF2-A2-A2-FG-DG | 1300 | 115 | 115 | 60 | +4/-4 | Da2 | 8 | Da2 | 8 | 19 | 10 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF3-A2-A2-FG-DG | 2250 | 150 | 150 | 66 | +5/-5 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF4-A2-A2-FG-DG | 4000 | 200 | 200 | 66 | +6/-6 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF5-A2-A2-FG-DG | 5000 | 200 | 250 | 86 | +9/-9 | Da2 | 8 | Da2 | 8 | 27 | 14 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF6-A2-A2-FG-DG | 8000 | 250 | 320 | 91 | +9/-9 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF7-A2-A2-FG-DG | 12000 | 300 | 400 | 91 | +10/-10 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DBF8-A2-A2-FG-DG | 20000 | 400 | 500 | 96 | +10/-10 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
