DFH1-h-a1-FG-DG

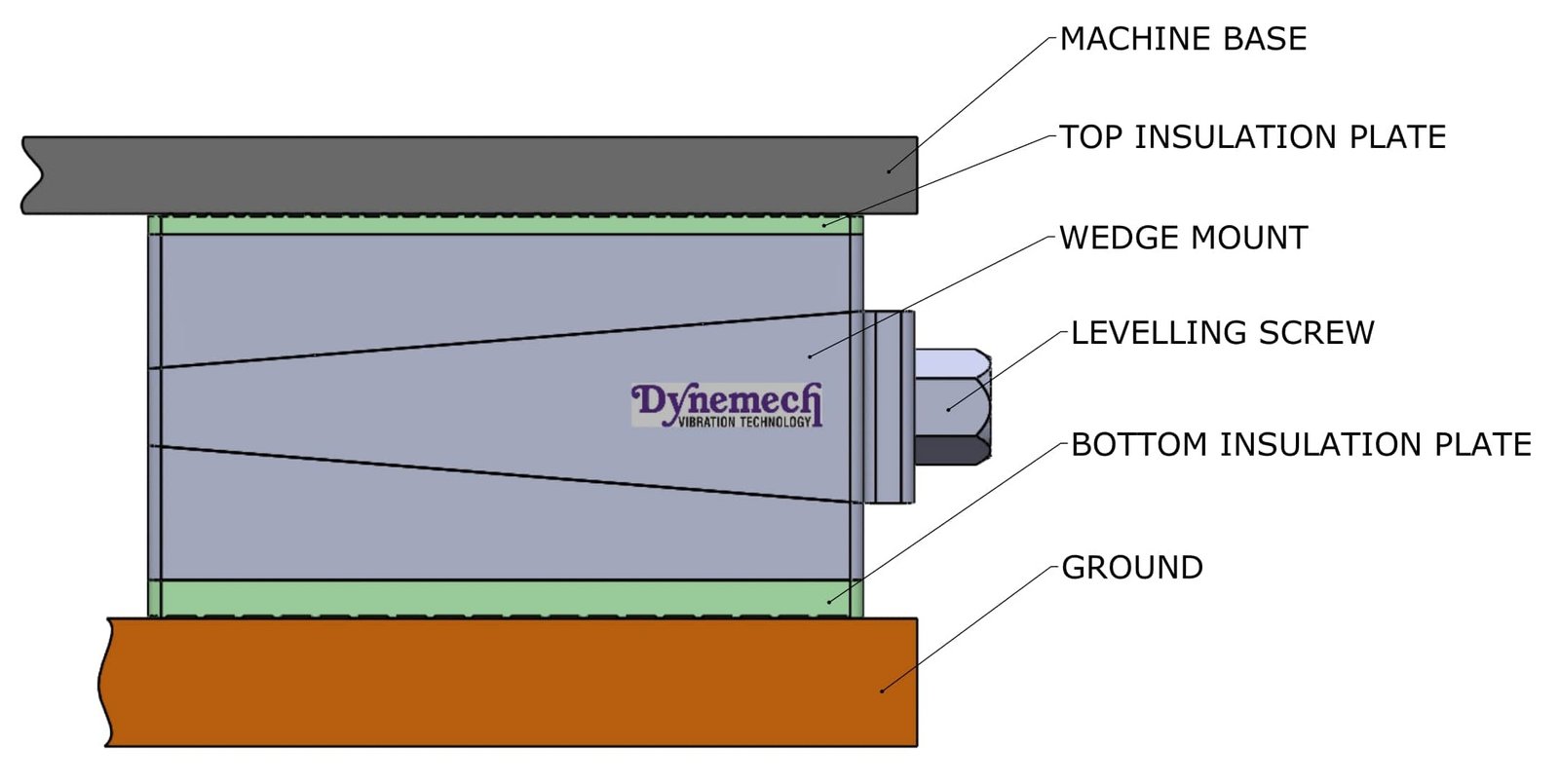

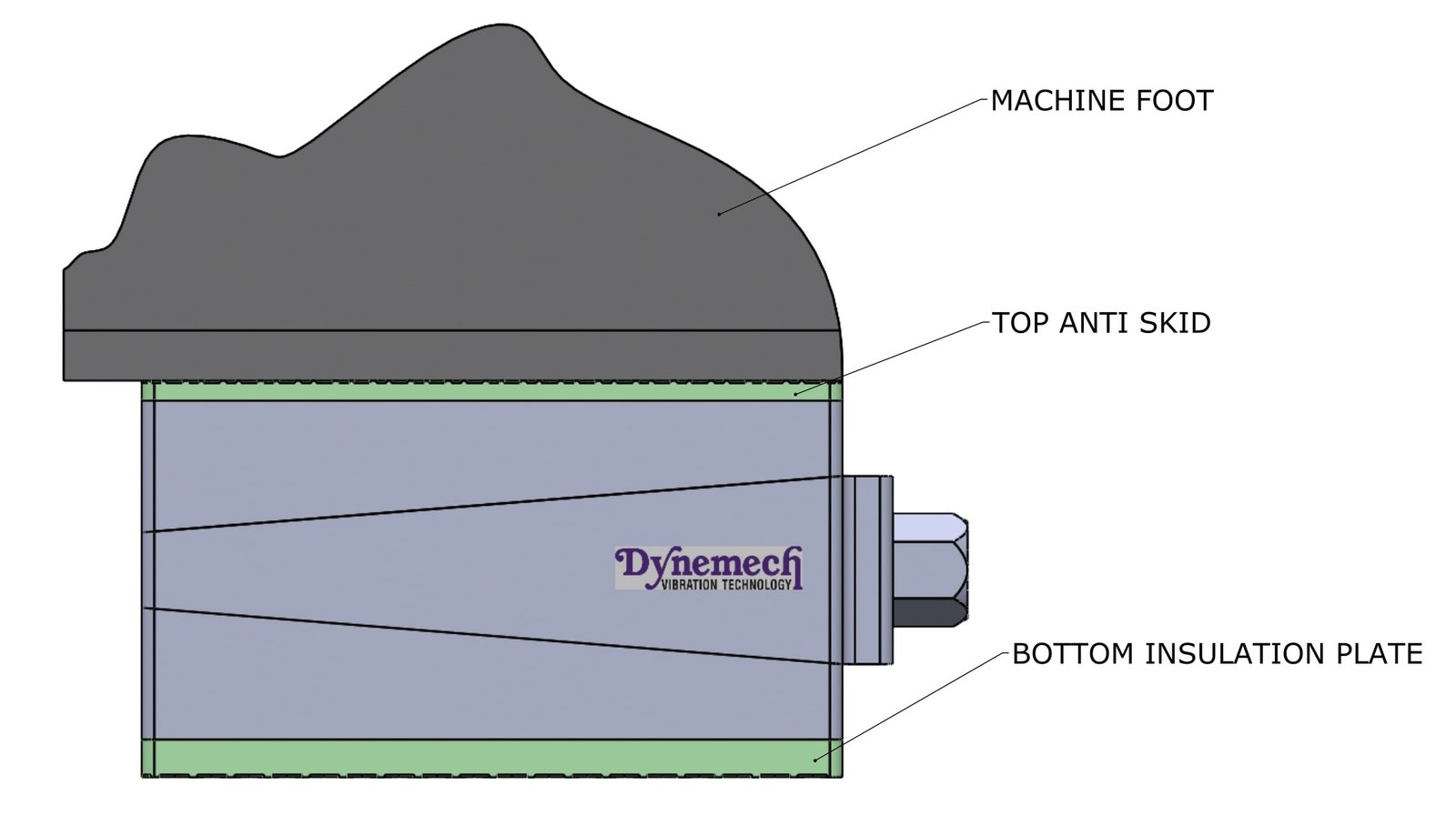

Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Very Heavy and long bed machines, long machining centres, planners etc. |
| Load Capacity (Kg/Pc) | 7500 |

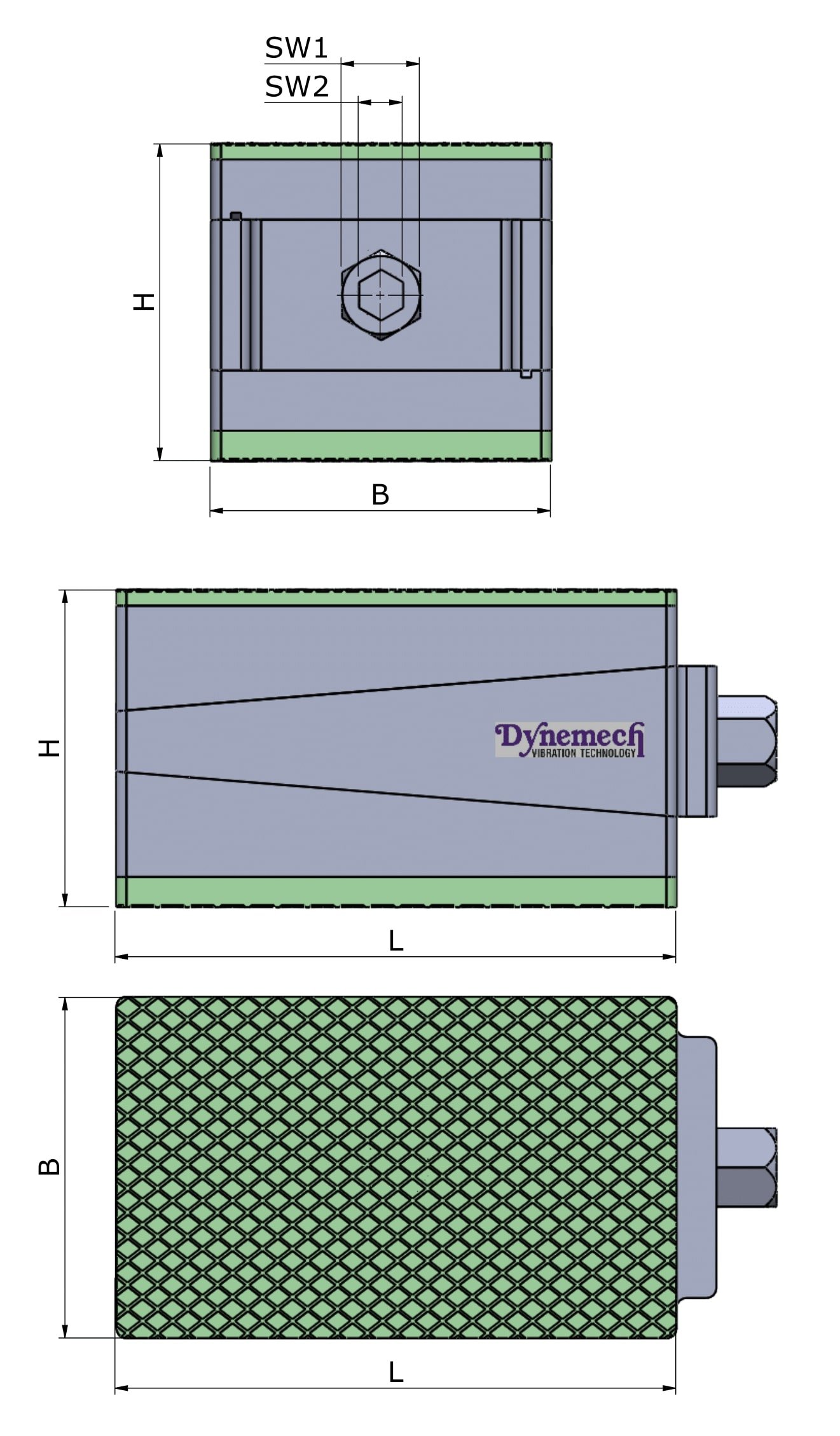

| Length L (Mm) | 200 |
| Width B (Mm) | 125 |
| Height H At Mean Position (Mm) | 90 |

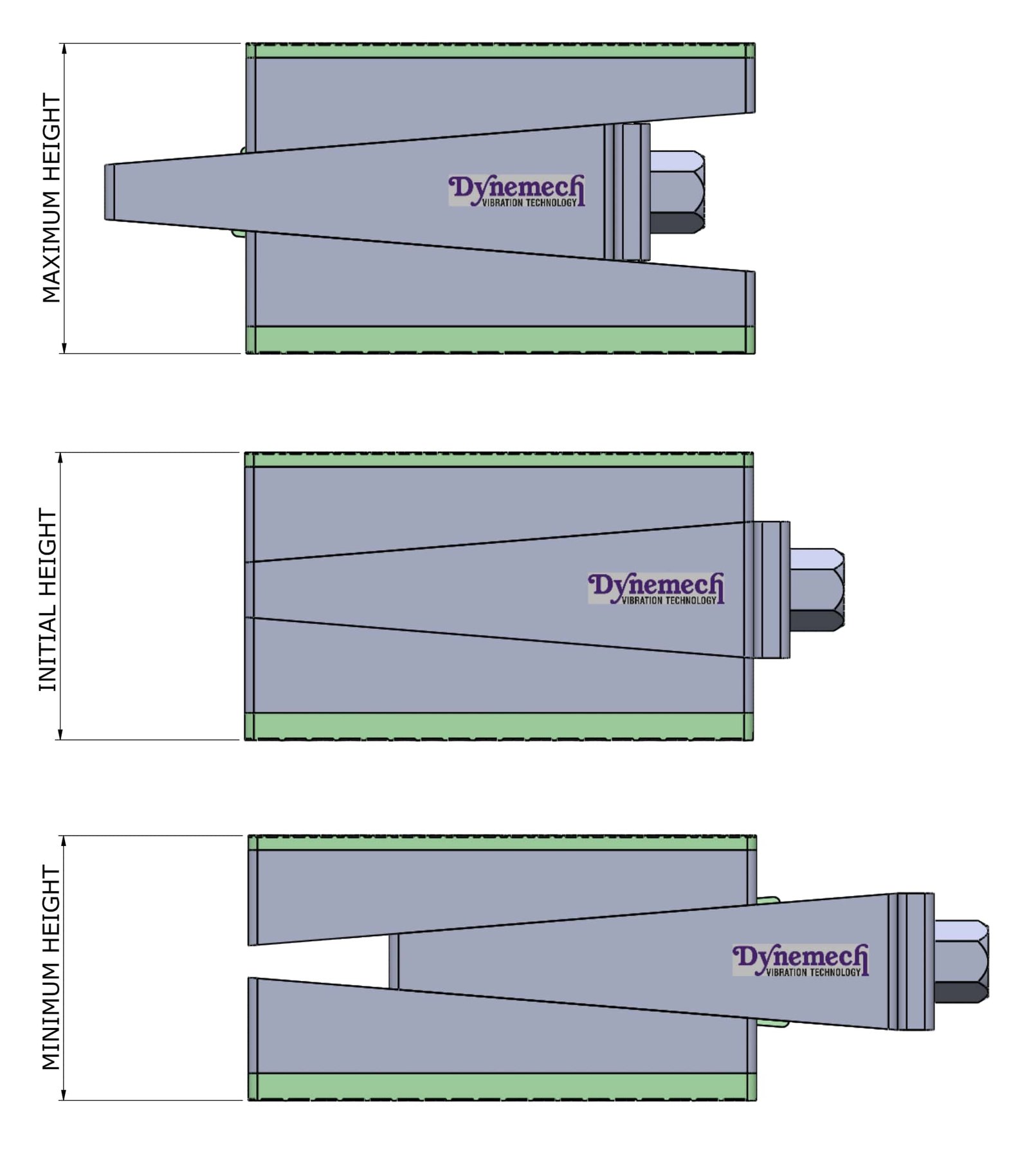

| Adjustment Range (Mm) | +8/-8 |
| Bottom Pad Type | Dh |
| Bottom Pad Thickness (Mm) | 15 |
| Top Pad Type | Da1 |
| Top Pad Thickness (Mm) | 2 |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | 0.6 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
