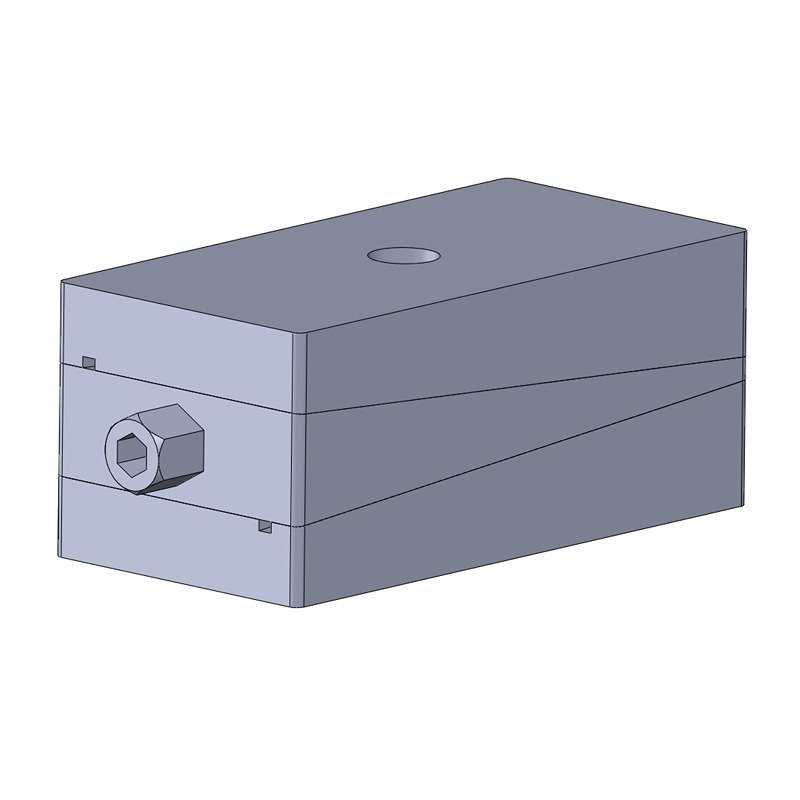

DFP-100
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
DFP-u-100
Product
DFP-u-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-108-A2-FG-DG | 400 | 105 | 55 | 108 | +4/-4 | Du | 15 | Da2 | 8 | 16 | 8 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-108-A2-FG-DG | 900 | 150 | 75 | 108 | +5/-5 | Du | 15 | Da2 | 8 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-108-A2-FG-DG | 1500 | 200 | 100 | 108 | +5/-5 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-108-A2-FG-DG | 3200 | 200 | 200 | 108 | +6/-6 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-108-A2-FG-DG | 4000 | 200 | 250 | 108 | +9/-9 | Du | 15 | Da2 | 8 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-108-A2-FG-DG | 6400 | 250 | 320 | 108 | +9/-9 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-108-A2-FG-DG | 9600 | 300 | 400 | 108 | +10/-10 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-108-A2-FG-DG | 16000 | 400 | 500 | 108 | +10/-10 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |

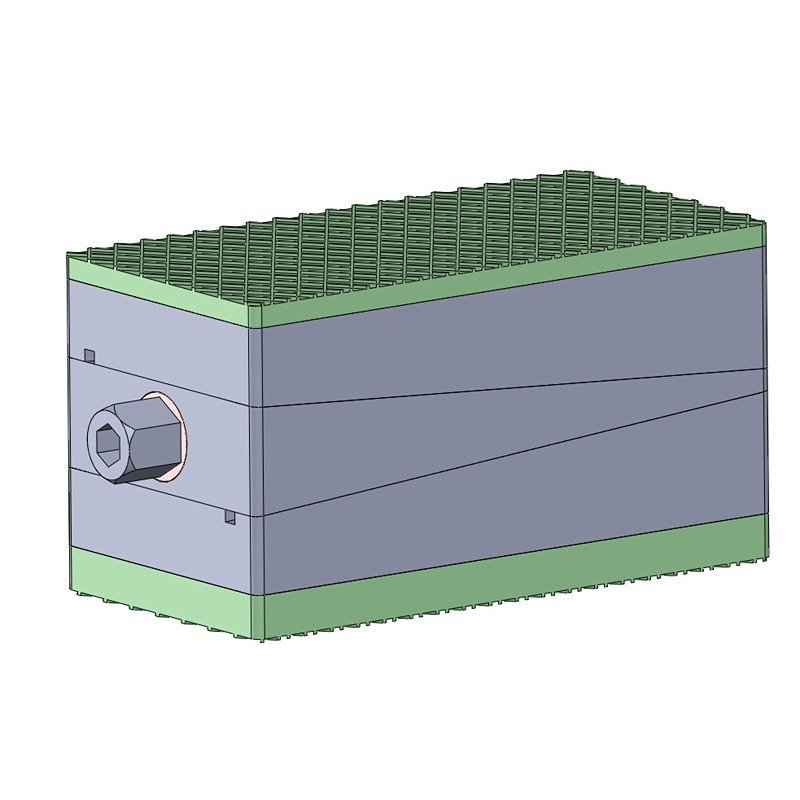

DFP-u-10-100
Product
DFP-u-10-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-10-103-A2-FG-DG | 400 | 105 | 55 | 103 | +4/-4 | Du-10 | 10 | Da2 | 8 | 16 | 8 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-10-103-A2-FG-DG | 900 | 150 | 75 | 103 | +5/-5 | Du-10 | 10 | Da2 | 8 | 19 | 10 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-10-103-A2-FG-DG | 1500 | 200 | 100 | 103 | +5/-5 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-10-103-A2-FG-DG | 3200 | 200 | 200 | 103 | +6/-6 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-10-103-A2-FG-DG | 4000 | 200 | 250 | 103 | +9/-9 | Du-10 | 10 | Da2 | 8 | 27 | 14 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-10-103-A2-FG-DG | 6400 | 250 | 320 | 103 | +9/-9 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-10-103-A2-FG-DG | 9600 | 300 | 400 | 103 | +10/-10 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-10-103-A2-FG-DG | 16000 | 400 | 500 | 103 | +10/-10 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
DFP-u-12-100
Product
DFP-u-12-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-12-105-A2-FG-DG | 400 | 105 | 55 | 105 | +4/-4 | Du-12 | 12 | Da2 | 8 | 16 | 8 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-12-105-A2-FG-DG | 900 | 150 | 75 | 105 | +5/-5 | Du-12 | 12 | Da2 | 8 | 19 | 10 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-12-105-A2-FG-DG | 1500 | 200 | 100 | 105 | +5/-5 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-12-105-A2-FG-DG | 3200 | 200 | 200 | 105 | +6/-6 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-12-105-A2-FG-DG | 4000 | 200 | 250 | 105 | +9/-9 | Du-12 | 12 | Da2 | 8 | 27 | 14 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-12-105-A2-FG-DG | 6400 | 250 | 320 | 105 | +9/-9 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-12-105-A2-FG-DG | 9600 | 300 | 400 | 105 | +10/-10 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-12-105-A2-FG-DG | 16000 | 400 | 500 | 105 | +10/-10 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |

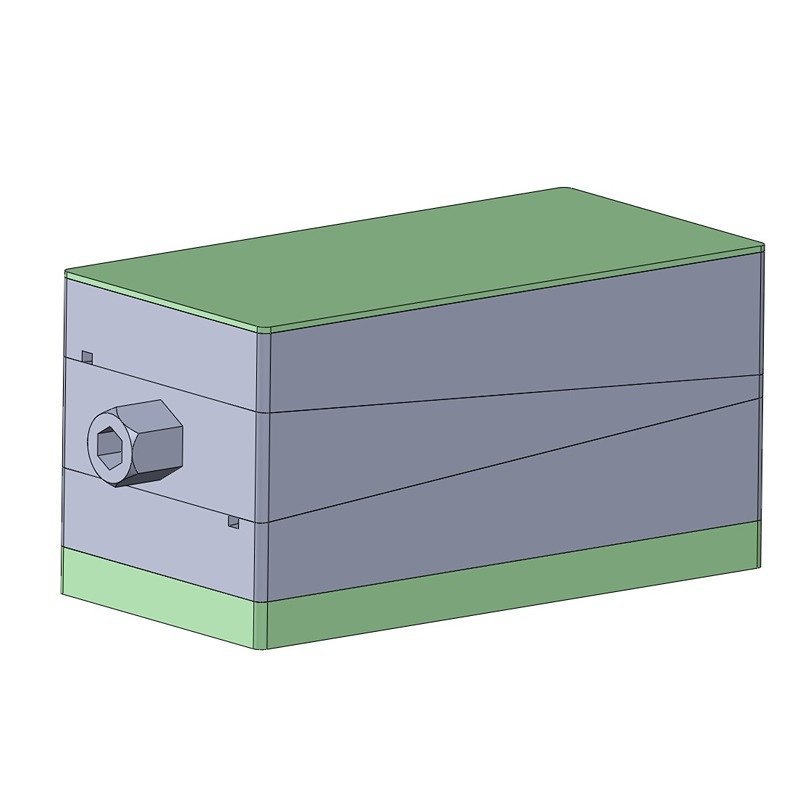

DFP-m-100
Product
DFP-m-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-m-102-A1-FG-DG | 500 | 105 | 55 | 102 | +4/-4 | Dm | 15 | Da1 | 2 | 16 | 8 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP2-m-102-A1-FG-DG | 1200 | 150 | 75 | 102 | +5/-5 | Dm | 15 | Da1 | 2 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP3-m-102-A1-FG-DG | 2000 | 200 | 100 | 102 | +5/-5 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP4-m-102-A1-FG-DG | 4000 | 200 | 200 | 102 | +6/-6 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP5-m-102-A1-FG-DG | 5000 | 200 | 250 | 102 | +9/-9 | Dm | 15 | Da1 | 2 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP6-m-102-A1-FG-DG | 8000 | 250 | 320 | 102 | +9/-9 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP7-m-102-A1-FG-DG | 12000 | 300 | 400 | 102 | +10/-10 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP8-m-102-A1-FG-DG | 20000 | 400 | 500 | 102 | +10/-10 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |

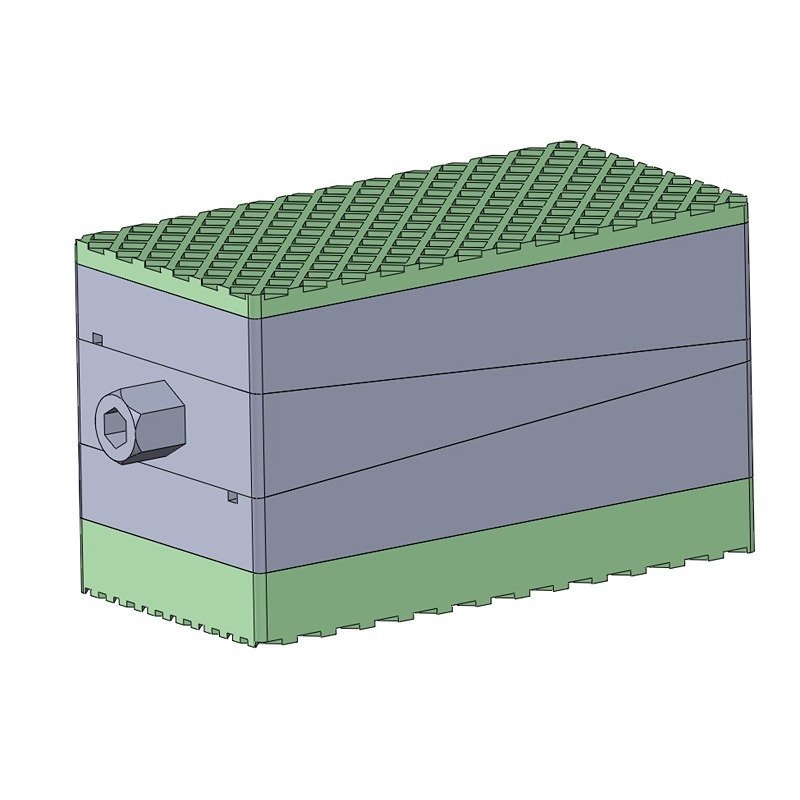

DFP-i-100
Product
DFP-i-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-i-118-A2-FG-DG | 600 | 105 | 55 | 118 | +4/-4 | Di | 25 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-i-118-A2-FG-DG | 1500 | 150 | 75 | 118 | +5/-5 | Di | 25 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-i-118-A2-FG-DG | 2500 | 200 | 100 | 118 | +5/-5 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-i-118-A2-FG-DG | 5200 | 200 | 200 | 118 | +6/-6 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-i-118-A2-FG-DG | 6500 | 200 | 250 | 118 | +9/-9 | Di | 25 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-i-118-A2-FG-DG | 10000 | 250 | 320 | 118 | +9/-9 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-i-118-A2-FG-DG | 15000 | 300 | 400 | 118 | +10/-10 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-i-118-A2-FG-DG | 26000 | 400 | 500 | 118 | +10/-10 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

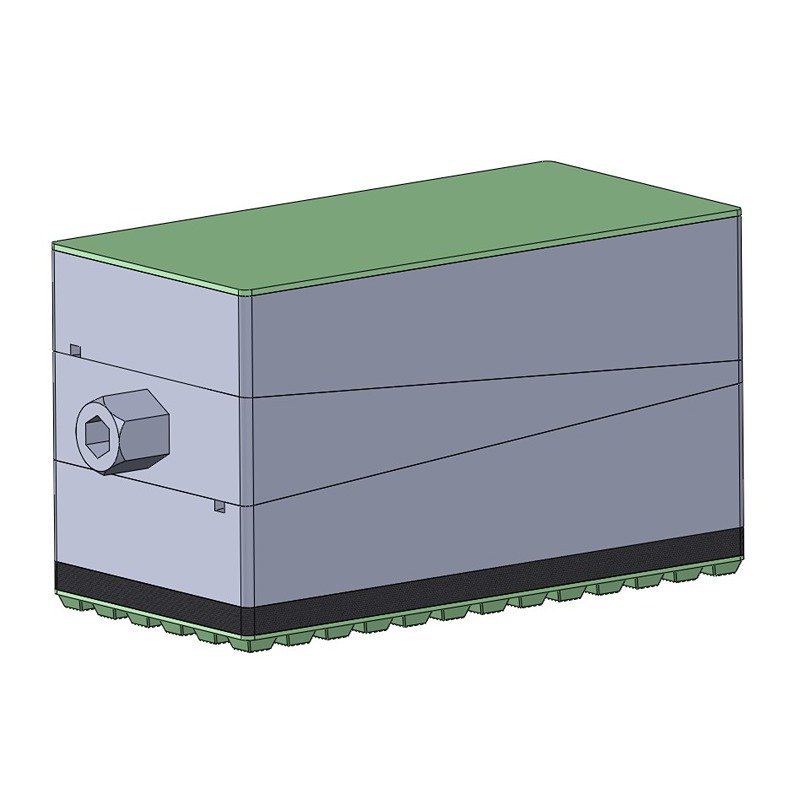

DFP-p1-100
Product
DFP-p1-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Suitable for passive vibration control of measuring & testing machine, grinders, etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p1-102-A1-FG-DG | 230 | 105 | 55 | 102 | +4/-4 | Dp1 | 15 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-p1-102-A1-FG-DG | 450 | 150 | 75 | 102 | +5/-5 | Dp1 | 15 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-p1-102-A1-FG-DG | 800 | 200 | 100 | 102 | +5/-5 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-p1-102-A1-FG-DG | 1600 | 200 | 200 | 102 | +6/-6 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-p1-102-A1-FG-DG | 2000 | 200 | 250 | 102 | +9/-9 | Dp1 | 15 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-p1-102-A1-FG-DG | 3200 | 250 | 320 | 102 | +9/-9 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-p1-102-A1-FG-DG | 4800 | 300 | 400 | 102 | +10/-10 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-p1-102-A1-FG-DG | 8000 | 400 | 500 | 102 | +10/-10 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-p2-100
Product
DFP-p2-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p2-107-A1-FG-DG | 180 | 105 | 55 | 107 | +4/-4 | Dp2 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP2-p2-107-A1-FG-DG | 400 | 150 | 75 | 107 | +5/-5 | Dp2 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP3-p2-107-A1-FG-DG | 725 | 200 | 100 | 107 | +5/-5 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP4-p2-107-A1-FG-DG | 1450 | 200 | 200 | 107 | +6/-6 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP5-p2-107-A1-FG-DG | 1800 | 200 | 250 | 107 | +9/-9 | Dp2 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP6-p2-107-A1-FG-DG | 2900 | 250 | 320 | 107 | +9/-9 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP7-p2-107-A1-FG-DG | 4400 | 300 | 400 | 107 | +10/-10 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP8-p2-107-A1-FG-DG | 7500 | 400 | 500 | 107 | +10/-10 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
DFP-p3-100
Product
DFP-p3-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Suitable for both active & passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p3-111-A1-FG-DG | 340 | 105 | 55 | 111 | +4/-4 | Dp3 | 24 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-p3-111-A1-FG-DG | 670 | 150 | 75 | 111 | +5/-5 | Dp3 | 24 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-p3-111-A1-FG-DG | 1200 | 200 | 100 | 111 | +5/-5 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-p3-111-A1-FG-DG | 2400 | 200 | 200 | 111 | +6/-6 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-p3-111-A1-FG-DG | 3000 | 200 | 250 | 111 | +9/-9 | Dp3 | 24 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-p3-111-A1-FG-DG | 4800 | 250 | 320 | 111 | +9/-9 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-p3-111-A1-FG-DG | 7200 | 300 | 400 | 111 | +10/-10 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-p3-111-A1-FG-DG | 12000 | 400 | 500 | 111 | +10/-10 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-s1-100
Product
DFP-s1-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Light weight presses, tool room machines, compressor
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-s1-107-A1-FG-DG | 280 | 105 | 55 | 107 | +4/-4 | Ds1 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP2-s1-107-A1-FG-DG | 560 | 150 | 75 | 107 | +5/-5 | Ds1 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP3-s1-107-A1-FG-DG | 1000 | 200 | 100 | 107 | +5/-5 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP4-s1-107-A1-FG-DG | 2000 | 200 | 200 | 107 | +6/-6 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP5-s1-107-A1-FG-DG | 2500 | 200 | 250 | 107 | +9/-9 | Ds1 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP6-s1-107-A1-FG-DG | 4000 | 250 | 320 | 107 | +9/-9 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP7-s1-107-A1-FG-DG | 6000 | 300 | 400 | 107 | +10/-10 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP8-s1-107-A1-FG-DG | 10000 | 400 | 500 | 107 | +10/-10 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |

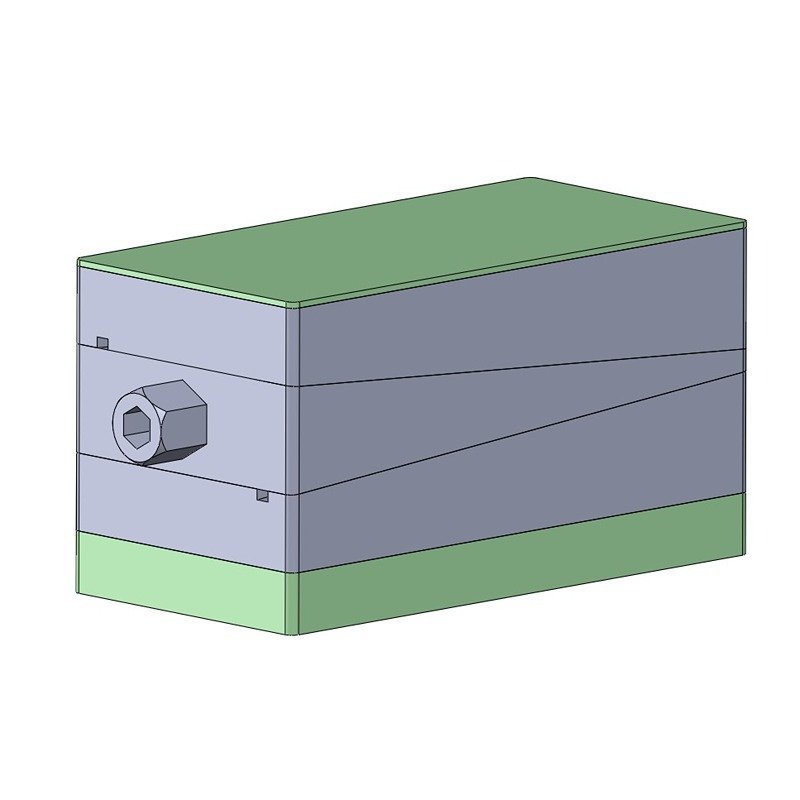

DFP-s2-100
Product
DFP-s2-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Medium Presses, Punching Presses, Centerless Grinding Machine, Gear Shaper, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-s2-112-A1-FG-DG | 350 | 105 | 55 | 112 | +4/-4 | Ds2 | 25 | Da1 | 2 | 16 | 8 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP2-s2-112-A1-FG-DG | 800 | 150 | 75 | 112 | +5/-5 | Ds2 | 25 | Da1 | 2 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP3-s2-112-A1-FG-DG | 1400 | 200 | 100 | 112 | +5/-5 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP4-s2-112-A1-FG-DG | 2800 | 200 | 200 | 112 | +6/-6 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP5-s2-112-A1-FG-DG | 3500 | 200 | 250 | 112 | +9/-9 | Ds2 | 25 | Da1 | 2 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP6-s2-112-A1-FG-DG | 5500 | 250 | 320 | 112 | +9/-9 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP7-s2-112-A1-FG-DG | 8500 | 300 | 400 | 112 | +10/-10 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP8-s2-112-A1-FG-DG | 14000 | 400 | 500 | 112 | +10/-10 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
DFP-hs1-100
Product
DFP-hs1-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs1-158-A2-FG-DG | 1155 | 105 | 55 | 158 | +4/-4 | Dhs1 | 65 | Da2 | 8 | 16 | 8 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs1-158-A2-FG-DG | 2250 | 150 | 75 | 158 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs1-158-A2-FG-DG | 4000 | 200 | 100 | 158 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs1-158-A2-FG-DG | 8000 | 200 | 200 | 158 | +6/-6 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs1-158-A2-FG-DG | 10000 | 200 | 250 | 158 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs1-158-A2-FG-DG | 16000 | 250 | 320 | 158 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs1-158-A2-FG-DG | 24000 | 300 | 400 | 158 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs1-158-A2-FG-DG | 40000 | 400 | 500 | 158 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |

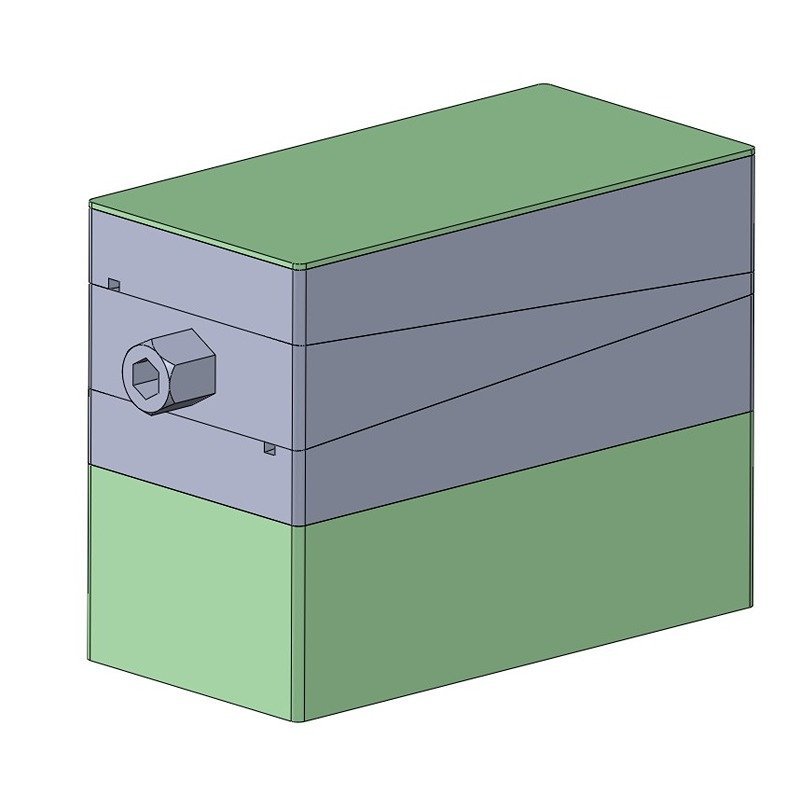

DFP-hs2-100
Product
DFP-hs2-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs2-152-A1-FG-DG | 460 | 105 | 55 | 152 | +4/-4 | Dhs2 | 65 | Da1 | 2 | 16 | 8 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs2-152-A1-FG-DG | 900 | 150 | 75 | 152 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs2-152-A1-FG-DG | 1600 | 200 | 100 | 152 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs2-152-A1-FG-DG | 3200 | 200 | 200 | 152 | +6/-6 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs2-152-A1-FG-DG | 4000 | 200 | 250 | 152 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs2-152-A1-FG-DG | 6400 | 250 | 320 | 152 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs2-152-A1-FG-DG | 9600 | 300 | 400 | 152 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs2-152-A1-FG-DG | 16000 | 400 | 500 | 152 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
DFP-hs3-100
Product
DFP-hs3-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs3-143-A2-FG-DG | 1600 | 105 | 55 | 143 | +4/-4 | Dhs3 | 50 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs3-143-A2-FG-DG | 3100 | 150 | 75 | 143 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs3-143-A2-FG-DG | 5600 | 200 | 100 | 143 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs3-143-A2-FG-DG | 11200 | 200 | 200 | 143 | +6/-6 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs3-143-A2-FG-DG | 14000 | 200 | 250 | 143 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs3-143-A2-FG-DG | 22400 | 250 | 320 | 143 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs3-143-A2-FG-DG | 33600 | 300 | 400 | 143 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs3-143-A2-FG-DG | 56000 | 400 | 500 | 143 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-hs4-100
Product
DFP-hs4-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs4-137-A1-FG-DG | 690 | 105 | 55 | 137 | +4/-4 | Dhs4 | 50 | Da1 | 2 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs4-137-A1-FG-DG | 1300 | 150 | 75 | 137 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs4-137-A1-FG-DG | 2400 | 200 | 100 | 137 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs4-137-A1-FG-DG | 4800 | 200 | 200 | 137 | +6/-6 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs4-137-A1-FG-DG | 6000 | 200 | 250 | 137 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs4-137-A1-FG-DG | 9600 | 250 | 320 | 137 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs4-137-A1-FG-DG | 14400 | 300 | 400 | 137 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs4-137-A1-FG-DG | 24000 | 400 | 500 | 137 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |

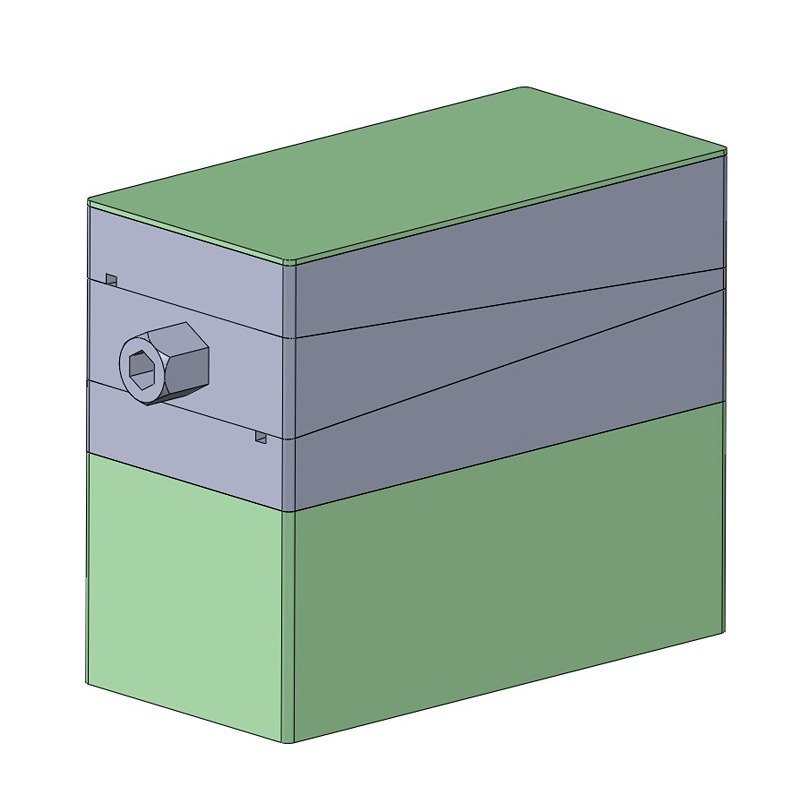

DFP-hs5-100
Product
DFP-hs5-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs5-173-A2-FG-DG | 1600 | 105 | 55 | 173 | +4/-4 | Dhs5 | 80 | Da2 | 8 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs5-173-A2-FG-DG | 3100 | 150 | 75 | 173 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs5-173-A2-FG-DG | 5600 | 200 | 100 | 173 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs5-173-A2-FG-DG | 11200 | 200 | 200 | 173 | +6/-6 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs5-173-A2-FG-DG | 14000 | 200 | 250 | 173 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs5-173-A2-FG-DG | 22400 | 250 | 320 | 173 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs5-173-A2-FG-DG | 33600 | 300 | 400 | 173 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs5-173-A2-FG-DG | 56000 | 400 | 500 | 173 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |

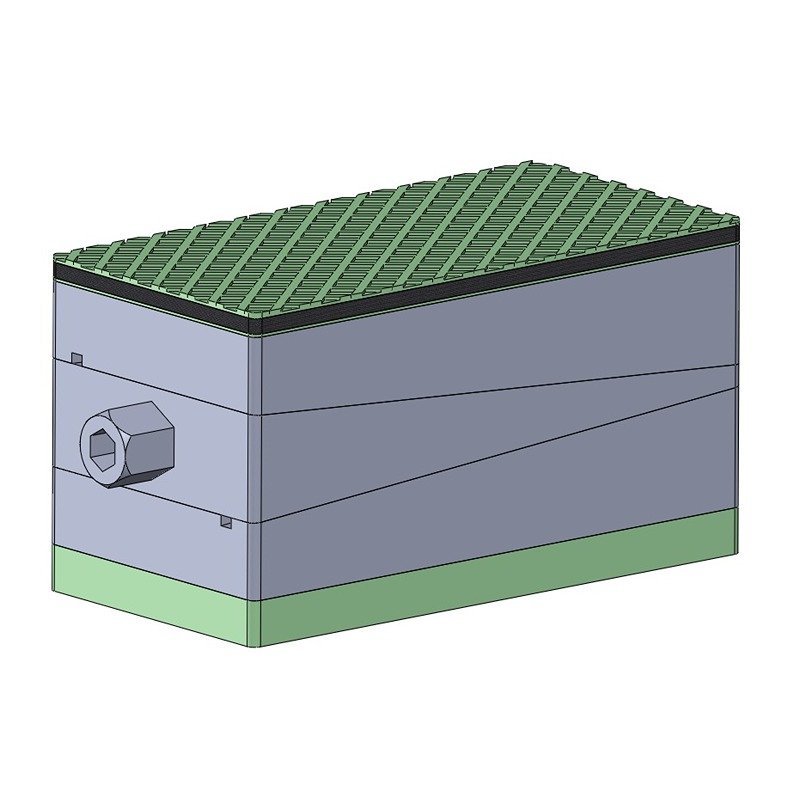

DFP-h-100
Product
DFP-h-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-h-108-A2-FG-DG | 1740 | 105 | 55 | 108 | +4/-4 | Dh | 15 | Da2 | 8 | 16 | 8 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP2-h-108-A2-FG-DG | 3380 | 150 | 75 | 108 | +5/-5 | Dh | 15 | Da2 | 8 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP3-h-108-A2-FG-DG | 6000 | 200 | 100 | 108 | +5/-5 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP4-h-108-A2-FG-DG | 12000 | 200 | 200 | 108 | +6/-6 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP5-h-108-A2-FG-DG | 15000 | 200 | 250 | 108 | +9/-9 | Dh | 15 | Da2 | 8 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP6-h-108-A2-FG-DG | 24000 | 250 | 320 | 108 | +9/-9 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP7-h-108-A2-FG-DG | 36000 | 300 | 400 | 108 | +10/-10 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP8-h-108-A2-FG-DG | 60000 | 400 | 500 | 108 | +10/-10 | Dh | 15 | Da2 | 8 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |

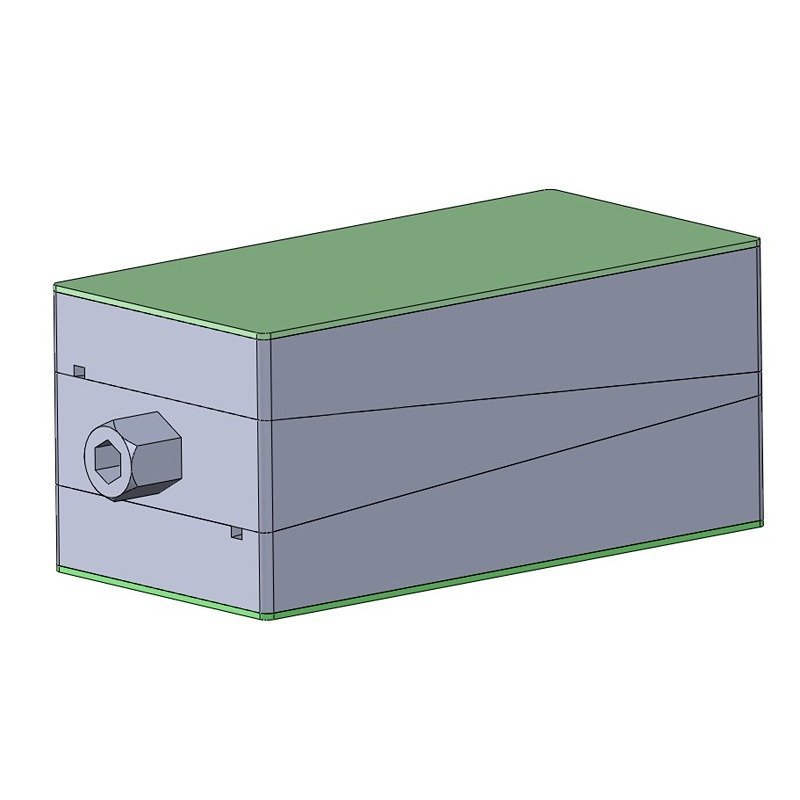

DFP-a1-100
Product
DFP-a1-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-a1-89-A1-FG-DG | 1030 | 105 | 55 | 89 | +4/-4 | Da1 | 2 | Da1 | 2 | 16 | 8 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP2-a1-89-A1-FG-DG | 2000 | 150 | 75 | 89 | +5/-5 | Da1 | 2 | Da1 | 2 | 19 | 10 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP3-a1-89-A1-FG-DG | 3600 | 200 | 100 | 89 | +5/-5 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP4-a1-89-A1-FG-DG | 7200 | 200 | 200 | 89 | +6/-6 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP5-a1-89-A1-FG-DG | 9000 | 200 | 250 | 89 | +9/-9 | Da1 | 2 | Da1 | 2 | 27 | 14 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP6-a1-89-A1-FG-DG | 14400 | 250 | 320 | 89 | +9/-9 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP7-a1-89-A1-FG-DG | 21600 | 300 | 400 | 89 | +10/-10 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP8-a1-89-A1-FG-DG | 36000 | 400 | 500 | 89 | +10/-10 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |

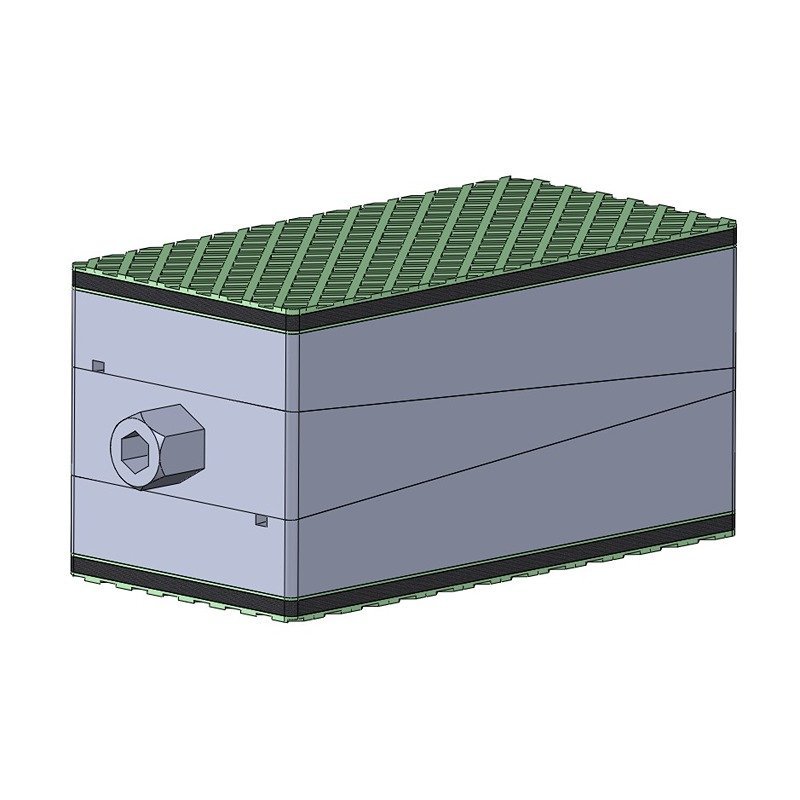

DFP-a2-100
Product
DFP-a2-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-a2-101-A2-FG-DG | 570 | 105 | 55 | 101 | +4/-4 | Da2 | 8 | Da2 | 8 | 16 | 8 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP2-a2-101-A2-FG-DG | 1120 | 150 | 75 | 101 | +5/-5 | Da2 | 8 | Da2 | 8 | 19 | 10 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP3-a2-101-A2-FG-DG | 2000 | 200 | 100 | 101 | +5/-5 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP4-a2-101-A2-FG-DG | 4000 | 200 | 200 | 101 | +6/-6 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP5-a2-101-A2-FG-DG | 5000 | 200 | 250 | 101 | +9/-9 | Da2 | 8 | Da2 | 8 | 27 | 14 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP6-a2-101-A2-FG-DG | 8000 | 250 | 320 | 101 | +9/-9 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP7-a2-101-A2-FG-DG | 12000 | 300 | 400 | 101 | +10/-10 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP8-a2-101-A2-FG-DG | 20000 | 400 | 500 | 101 | +10/-10 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
DFP-100
Product
DFP-100
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-85-FG-DG | 1200 | 105 | 55 | 85 | +4/-4 | X | X | X | X | 16 | 8 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP2-85-FG-DG | 3000 | 150 | 75 | 85 | +5/-5 | X | X | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP3-85-FG-DG | 5000 | 200 | 100 | 85 | +5/-5 | X | X | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP4-85-FG-DG | 10400 | 200 | 200 | 85 | +6/-6 | X | X | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP5-85-FG-DG | 13000 | 200 | 250 | 85 | +9/-9 | X | X | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP6-85-FG-DG | 20000 | 250 | 320 | 85 | +9/-9 | X | X | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP7-85-FG-DG | 30000 | 300 | 400 | 85 | +10/-10 | X | X | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green |
| DFP8-85-FG-DG | 40000 | 400 | 500 | 85 | +10/-10 | X | X | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green |
