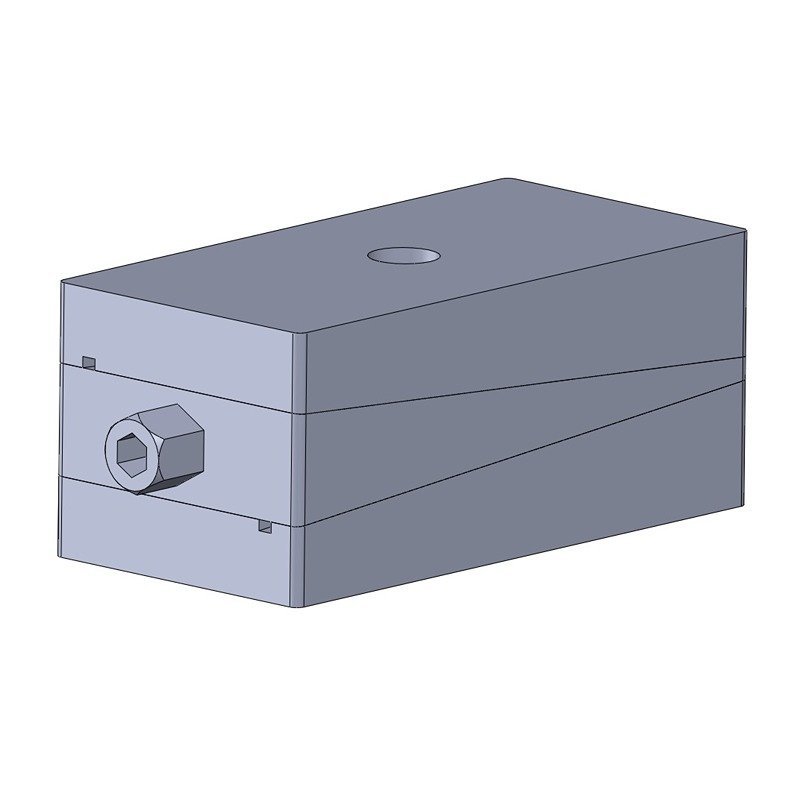

DFP-150
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.

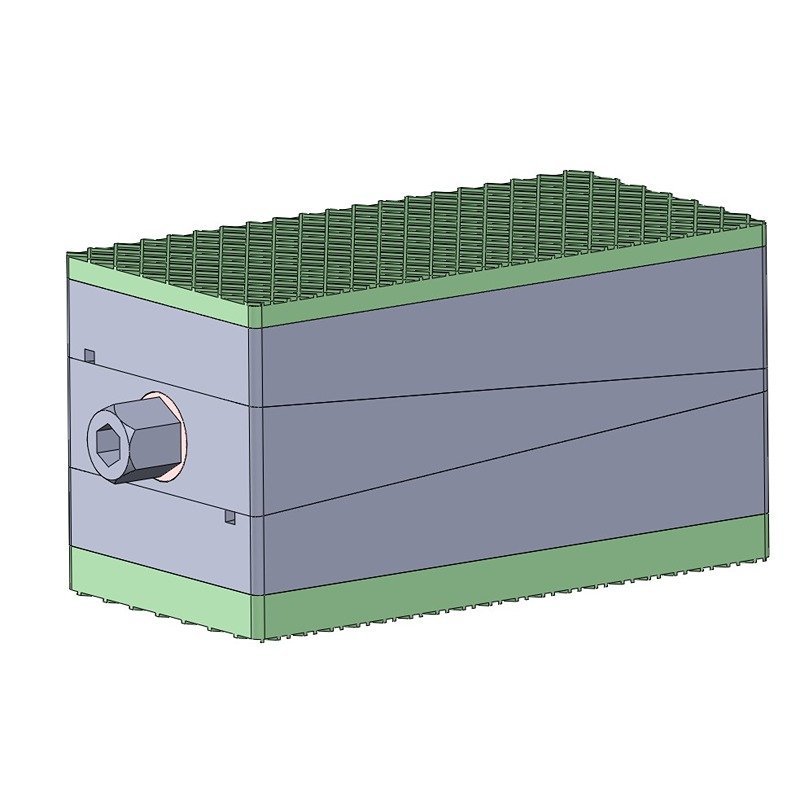

DFP-u-150
Product
DFP-u-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-158-A2-FG-DG | 400 | 105 | 55 | 158 | +4/-4 | Du | 15 | Da2 | 8 | 16 | 8 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-158-A2-FG-DG | 900 | 150 | 75 | 158 | +5/-5 | Du | 15 | Da2 | 8 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-158-A2-FG-DG | 1500 | 200 | 100 | 158 | +5/-5 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-158-A2-FG-DG | 3200 | 200 | 200 | 158 | +6/-6 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-158-A2-FG-DG | 4000 | 200 | 250 | 158 | +9/-9 | Du | 15 | Da2 | 8 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-158-A2-FG-DG | 6400 | 250 | 320 | 158 | +9/-9 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-158-A2-FG-DG | 9600 | 300 | 400 | 158 | +10/-10 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-158-A2-FG-DG | 16000 | 400 | 500 | 158 | +10/-10 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
DFP-u-10-150
Product
DFP-u-10-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-10-153-A2-FG-DG | 400 | 105 | 55 | 153 | +4/-4 | Du-10 | 10 | Da2 | 8 | 16 | 8 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-10-153-A2-FG-DG | 900 | 150 | 75 | 153 | +5/-5 | Du-10 | 10 | Da2 | 8 | 19 | 10 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-10-153-A2-FG-DG | 1500 | 200 | 100 | 153 | +5/-5 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-10-153-A2-FG-DG | 3200 | 200 | 200 | 153 | +6/-6 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-10-153-A2-FG-DG | 4000 | 200 | 250 | 153 | +9/-9 | Du-10 | 10 | Da2 | 8 | 27 | 14 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-10-153-A2-FG-DG | 6400 | 250 | 320 | 153 | +9/-9 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-10-153-A2-FG-DG | 9600 | 300 | 400 | 153 | +10/-10 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-10-153-A2-FG-DG | 16000 | 400 | 500 | 153 | +10/-10 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
DFP-u-12-150
Product
DFP-u-12-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-u-12-155-A2-FG-DG | 400 | 105 | 55 | 155 | +4/-4 | Du-12 | 12 | Da2 | 8 | 16 | 8 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP2-u-12-155-A2-FG-DG | 900 | 150 | 75 | 155 | +5/-5 | Du-12 | 12 | Da2 | 8 | 19 | 10 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP3-u-12-155-A2-FG-DG | 1500 | 200 | 100 | 155 | +5/-5 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP4-u-12-155-A2-FG-DG | 3200 | 200 | 200 | 155 | +6/-6 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP5-u-12-155-A2-FG-DG | 4000 | 200 | 250 | 155 | +9/-9 | Du-12 | 12 | Da2 | 8 | 27 | 14 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP6-u-12-155-A2-FG-DG | 6400 | 250 | 320 | 155 | +9/-9 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP7-u-12-155-A2-FG-DG | 9600 | 300 | 400 | 155 | +10/-10 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFP8-u-12-155-A2-FG-DG | 16000 | 400 | 500 | 155 | +10/-10 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |

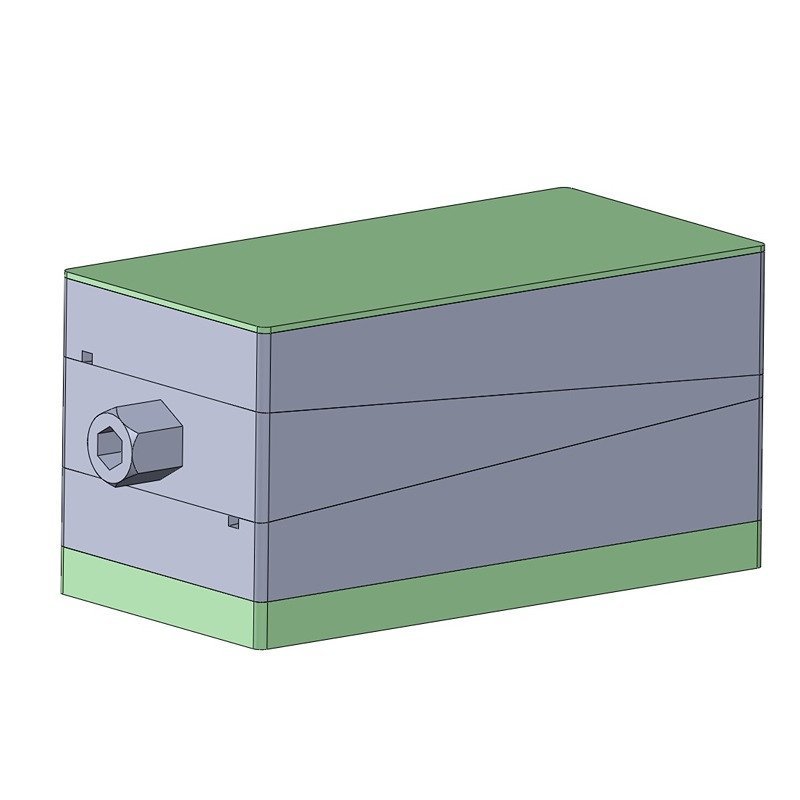

DFP-m-150
Product
DFP-m-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-m-152-A1-FG-DG | 500 | 105 | 55 | 152 | +4/-4 | Dm | 15 | Da1 | 2 | 16 | 8 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP2-m-152-A1-FG-DG | 1200 | 150 | 75 | 152 | +5/-5 | Dm | 15 | Da1 | 2 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP3-m-152-A1-FG-DG | 2000 | 200 | 100 | 152 | +5/-5 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP4-m-152-A1-FG-DG | 4000 | 200 | 200 | 152 | +6/-6 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP5-m-152-A1-FG-DG | 5000 | 200 | 250 | 152 | +9/-9 | Dm | 15 | Da1 | 2 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP6-m-152-A1-FG-DG | 8000 | 250 | 320 | 152 | +9/-9 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP7-m-152-A1-FG-DG | 12000 | 300 | 400 | 152 | +10/-10 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFP8-m-152-A1-FG-DG | 20000 | 400 | 500 | 152 | +10/-10 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
DFP-i-150
Product
DFP-i-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-i-168-A2-FG-DG | 600 | 105 | 55 | 168 | +4/-4 | Di | 25 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-i-168-A2-FG-DG | 1500 | 150 | 75 | 168 | +5/-5 | Di | 25 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-i-168-A2-FG-DG | 2500 | 200 | 100 | 168 | +5/-5 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-i-168-A2-FG-DG | 5200 | 200 | 200 | 168 | +6/-6 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-i-168-A2-FG-DG | 6500 | 200 | 250 | 168 | +9/-9 | Di | 25 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-i-168-A2-FG-DG | 10000 | 250 | 320 | 168 | +9/-9 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-i-168-A2-FG-DG | 15000 | 300 | 400 | 168 | +10/-10 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-i-168-A2-FG-DG | 26000 | 400 | 500 | 168 | +10/-10 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

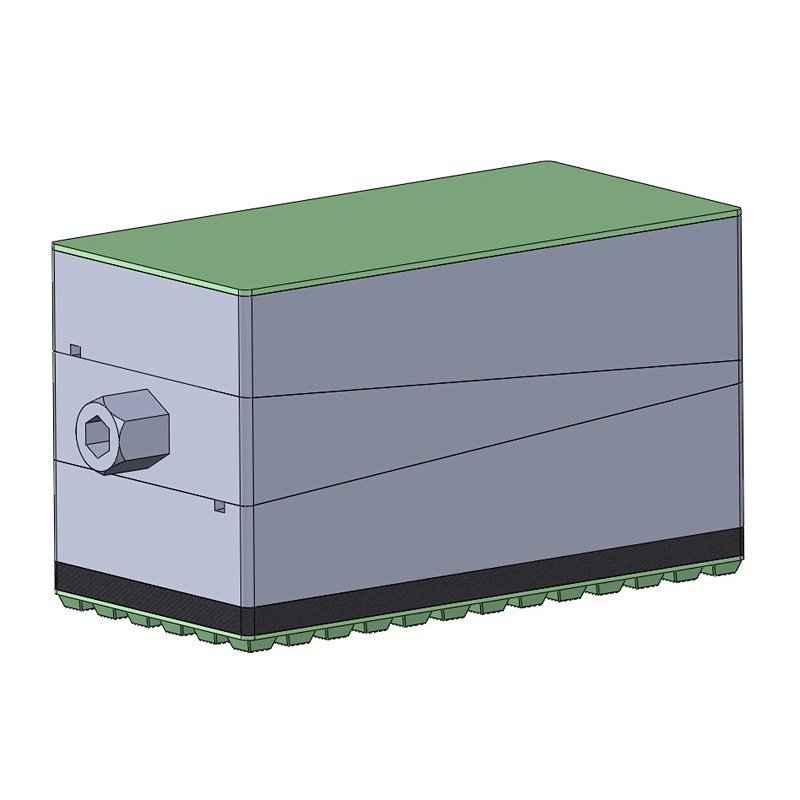

DFP-p1-150
Product
DFP-p1-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Passive vibration control of measuring & Testing Machines, Grinders etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p1-152-A1-FG-DG | 230 | 105 | 55 | 152 | +4/-4 | Dp1 | 15 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-p1-152-A1-FG-DG | 450 | 150 | 75 | 152 | +5/-5 | Dp1 | 15 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-p1-152-A1-FG-DG | 800 | 200 | 100 | 152 | +5/-5 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-p1-152-A1-FG-DG | 1600 | 200 | 200 | 152 | +6/-6 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-p1-152-A1-FG-DG | 2000 | 200 | 250 | 152 | +9/-9 | Dp1 | 15 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-p1-152-A1-FG-DG | 3200 | 250 | 320 | 152 | +9/-9 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-p1-152-A1-FG-DG | 4800 | 300 | 400 | 152 | +10/-10 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-p1-152-A1-FG-DG | 8000 | 400 | 500 | 152 | +10/-10 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-p2-150
Product
DFP-p2-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p2-157-A1-FG-DG | 180 | 105 | 55 | 157 | +4/-4 | Dp2 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP2-p2-157-A1-FG-DG | 400 | 150 | 75 | 157 | +5/-5 | Dp2 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP3-p2-157-A1-FG-DG | 725 | 200 | 100 | 157 | +5/-5 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP4-p2-157-A1-FG-DG | 1450 | 200 | 200 | 157 | +6/-6 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP5-p2-157-A1-FG-DG | 1800 | 200 | 250 | 157 | +9/-9 | Dp2 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP6-p2-157-A1-FG-DG | 2900 | 250 | 320 | 157 | +9/-9 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP7-p2-157-A1-FG-DG | 4400 | 300 | 400 | 157 | +10/-10 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFP8-p2-157-A1-FG-DG | 7500 | 400 | 500 | 157 | +10/-10 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
DFP-p3-150
Product
DFP-p3-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-p3-161-A1-FG-DG | 340 | 105 | 55 | 161 | +4/-4 | Dp3 | 24 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-p3-161-A1-FG-DG | 670 | 150 | 75 | 161 | +5/-5 | Dp3 | 24 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-p3-161-A1-FG-DG | 1200 | 200 | 100 | 161 | +5/-5 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-p3-161-A1-FG-DG | 2400 | 200 | 200 | 161 | +6/-6 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-p3-161-A1-FG-DG | 3000 | 200 | 250 | 161 | +9/-9 | Dp3 | 24 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-p3-161-A1-FG-DG | 4800 | 250 | 320 | 161 | +9/-9 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-p3-161-A1-FG-DG | 7200 | 300 | 400 | 161 | +10/-10 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-p3-161-A1-FG-DG | 12000 | 400 | 500 | 161 | +10/-10 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-s1-150
Product
DFP-s1-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-s1-157-A1-FG-DG | 280 | 105 | 55 | 157 | +4/-4 | Ds1 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP2-s1-157-A1-FG-DG | 560 | 150 | 75 | 157 | +5/-5 | Ds1 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP3-s1-157-A1-FG-DG | 1000 | 200 | 100 | 157 | +5/-5 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP4-s1-157-A1-FG-DG | 2000 | 200 | 200 | 157 | +6/-6 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP5-s1-157-A1-FG-DG | 2500 | 200 | 250 | 157 | +9/-9 | Ds1 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP6-s1-157-A1-FG-DG | 4000 | 250 | 320 | 157 | +9/-9 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP7-s1-157-A1-FG-DG | 6000 | 300 | 400 | 157 | +10/-10 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFP8-s1-157-A1-FG-DG | 10000 | 400 | 500 | 157 | +10/-10 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |

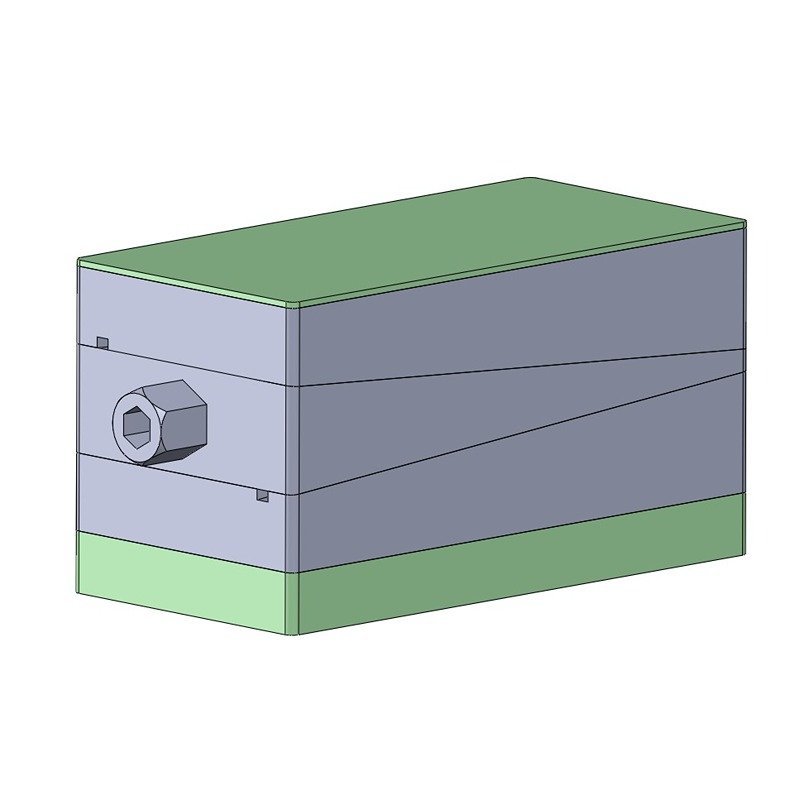

DFP-s2-150
Product
DFP-s2-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-s2-162-A1-FG-DG | 350 | 105 | 55 | 162 | +4/-4 | Ds2 | 25 | Da1 | 2 | 16 | 8 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP2-s2-162-A1-FG-DG | 800 | 150 | 75 | 162 | +5/-5 | Ds2 | 25 | Da1 | 2 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP3-s2-162-A1-FG-DG | 1400 | 200 | 100 | 162 | +5/-5 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP4-s2-162-A1-FG-DG | 2800 | 200 | 200 | 162 | +6/-6 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP5-s2-162-A1-FG-DG | 3500 | 200 | 250 | 162 | +9/-9 | Ds2 | 25 | Da1 | 2 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP6-s2-162-A1-FG-DG | 5500 | 250 | 320 | 162 | +9/-9 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP7-s2-162-A1-FG-DG | 8500 | 300 | 400 | 162 | +10/-10 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFP8-s2-162-A1-FG-DG | 14000 | 400 | 500 | 162 | +10/-10 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
DFP-hs1-150
Product
DFP-hs1-150
Description
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs1-208-A2-FG-DG | 1155 | 105 | 55 | 208 | +4/-4 | Dhs1 | 65 | Da2 | 8 | 16 | 8 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs1-208-A2-FG-DG | 2250 | 150 | 75 | 208 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs1-208-A2-FG-DG | 4000 | 200 | 100 | 208 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs1-208-A2-FG-DG | 8000 | 200 | 200 | 208 | +6/-6 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs1-208-A2-FG-DG | 10000 | 200 | 250 | 208 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs1-208-A2-FG-DG | 16000 | 250 | 320 | 208 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs1-208-A2-FG-DG | 24000 | 300 | 400 | 208 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs1-208-A2-FG-DG | 40000 | 400 | 500 | 208 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
DFP-hs2-150
Product
DFP-hs2-150
Description
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs2-202-A1-FG-DG | 460 | 105 | 55 | 202 | +4/-4 | Dhs2 | 65 | Da1 | 2 | 16 | 8 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs2-202-A1-FG-DG | 900 | 150 | 75 | 202 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs2-202-A1-FG-DG | 1600 | 200 | 100 | 202 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs2-202-A1-FG-DG | 3200 | 200 | 200 | 202 | +6/-6 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs2-202-A1-FG-DG | 4000 | 200 | 250 | 202 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs2-202-A1-FG-DG | 6400 | 250 | 320 | 202 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs2-202-A1-FG-DG | 9600 | 300 | 400 | 202 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs2-202-A1-FG-DG | 16000 | 400 | 500 | 202 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |

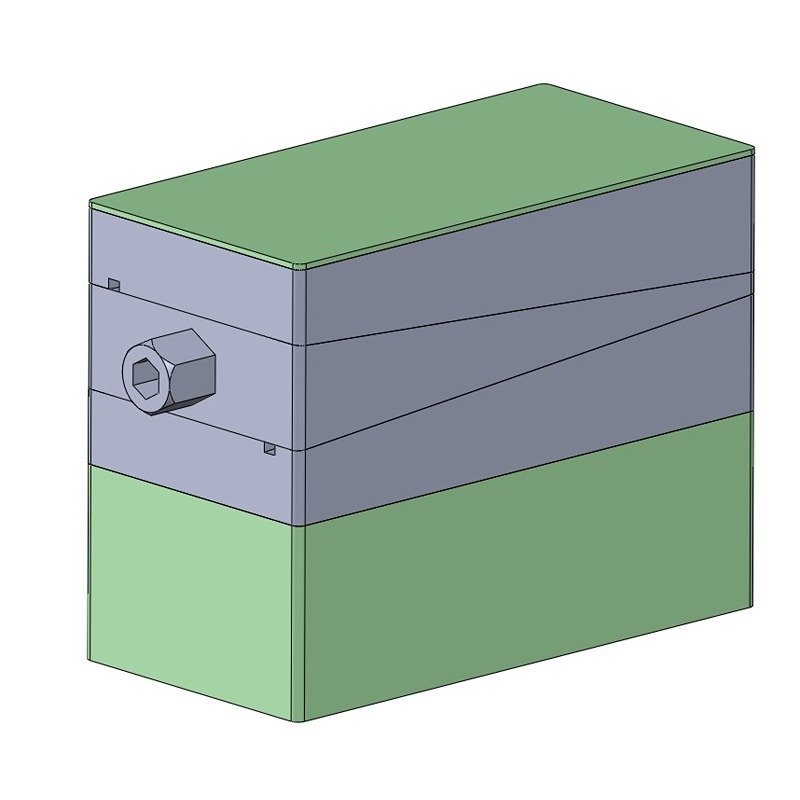

DFP-hs3-150
Product
DFP-hs3-150
Description
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs3-193-A2-FG-DG | 1600 | 105 | 55 | 193 | +4/-4 | Dhs3 | 50 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs3-193-A2-FG-DG | 3100 | 150 | 75 | 193 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs3-193-A2-FG-DG | 5600 | 200 | 100 | 193 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs3-193-A2-FG-DG | 11200 | 200 | 200 | 193 | +6/-6 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs3-193-A2-FG-DG | 14000 | 200 | 250 | 193 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs3-193-A2-FG-DG | 22400 | 250 | 320 | 193 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs3-193-A2-FG-DG | 33600 | 300 | 400 | 193 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs3-193-A2-FG-DG | 56000 | 400 | 500 | 193 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFP-hs4-150
Product
DFP-hs4-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs4-187-A1-FG-DG | 690 | 105 | 55 | 187 | +4/-4 | Dhs4 | 50 | Da1 | 2 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs4-187-A1-FG-DG | 1300 | 150 | 75 | 187 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs4-187-A1-FG-DG | 2400 | 200 | 100 | 187 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs4-187-A1-FG-DG | 4800 | 200 | 200 | 187 | +6/-6 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs4-187-A1-FG-DG | 6000 | 200 | 250 | 187 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs4-187-A1-FG-DG | 9600 | 250 | 320 | 187 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs4-187-A1-FG-DG | 14400 | 300 | 400 | 187 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs4-187-A1-FG-DG | 24000 | 400 | 500 | 187 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DFP-hs5-150
Product

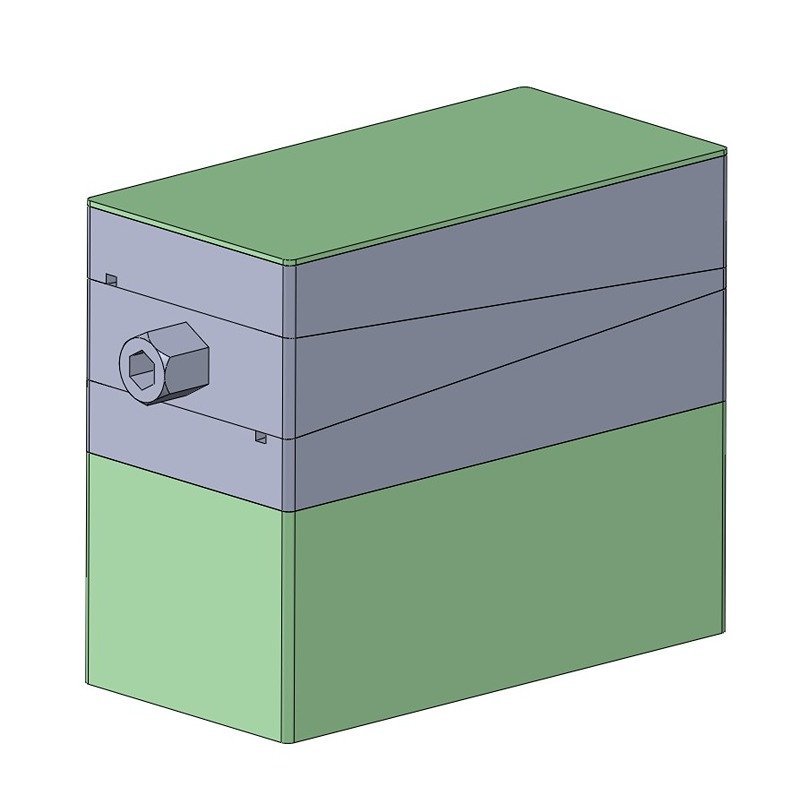

DFP-hs5-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs5-223-A2-FG-DG | 1600 | 105 | 55 | 223 | +4/-4 | Dhs5 | 80 | Da2 | 8 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs5-223-A2-FG-DG | 3100 | 150 | 75 | 223 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs5-223-A2-FG-DG | 5600 | 200 | 100 | 223 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs5-223-A2-FG-DG | 11200 | 200 | 200 | 223 | +6/-6 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs5-223-A2-FG-DG | 14000 | 200 | 250 | 223 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs5-223-A2-FG-DG | 22400 | 250 | 320 | 223 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs5-223-A2-FG-DG | 33600 | 300 | 400 | 223 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs5-223-A2-FG-DG | 56000 | 400 | 500 | 223 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DFP-h-150
Product

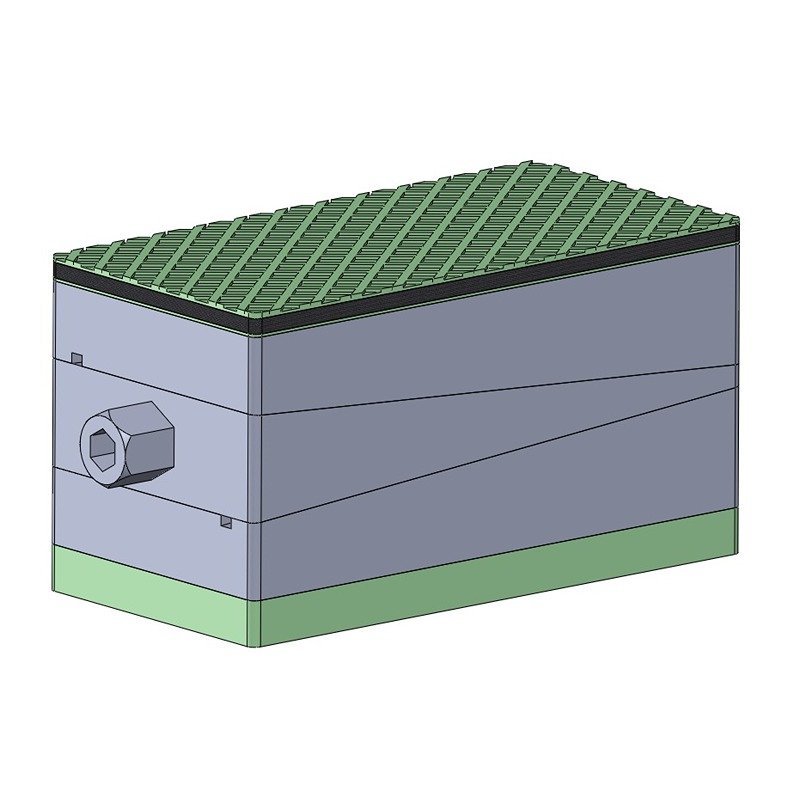

DFP-h-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-h-158-A2-FG-DG | 1740 | 105 | 55 | 158 | +4/-4 | Dh | 15 | Da2 | 8 | 16 | 8 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP2-h-158-A2-FG-DG | 3380 | 150 | 75 | 158 | +5/-5 | Dh | 15 | Da2 | 8 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP3-h-158-A2-FG-DG | 6000 | 200 | 100 | 158 | +5/-5 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP4-h-158-A2-FG-DG | 12000 | 200 | 200 | 158 | +6/-6 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP5-h-158-A2-FG-DG | 15000 | 200 | 250 | 158 | +9/-9 | Dh | 15 | Da2 | 8 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP6-h-158-A2-FG-DG | 24000 | 250 | 320 | 158 | +9/-9 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP7-h-158-A2-FG-DG | 36000 | 300 | 400 | 158 | +10/-10 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFP8-h-158-A2-FG-DG | 60000 | 400 | 500 | 158 | +10/-10 | Dh | 15 | Da2 | 8 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
DFP-a1-150
Product

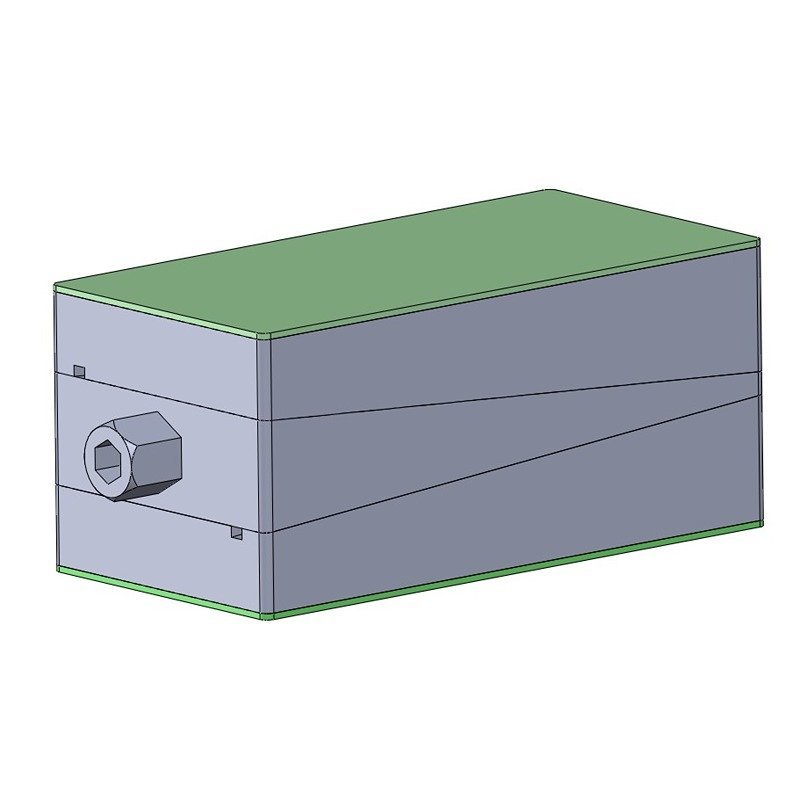

DFP-a1-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-a1-139-A1-FG-DG | 1030 | 105 | 55 | 139 | +4/-4 | Da1 | 2 | Da1 | 2 | 16 | 8 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP2-a1-139-A1-FG-DG | 2000 | 150 | 75 | 139 | +5/-5 | Da1 | 2 | Da1 | 2 | 19 | 10 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP3-a1-139-A1-FG-DG | 3600 | 200 | 100 | 139 | +5/-5 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP4-a1-139-A1-FG-DG | 7200 | 200 | 200 | 139 | +6/-6 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP5-a1-139-A1-FG-DG | 9000 | 200 | 250 | 139 | +9/-9 | Da1 | 2 | Da1 | 2 | 27 | 14 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP6-a1-139-A1-FG-DG | 14400 | 250 | 320 | 139 | +9/-9 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP7-a1-139-A1-FG-DG | 21600 | 300 | 400 | 139 | +10/-10 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFP8-a1-139-A1-FG-DG | 36000 | 400 | 500 | 139 | +10/-10 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
DFP-a2-150
Product

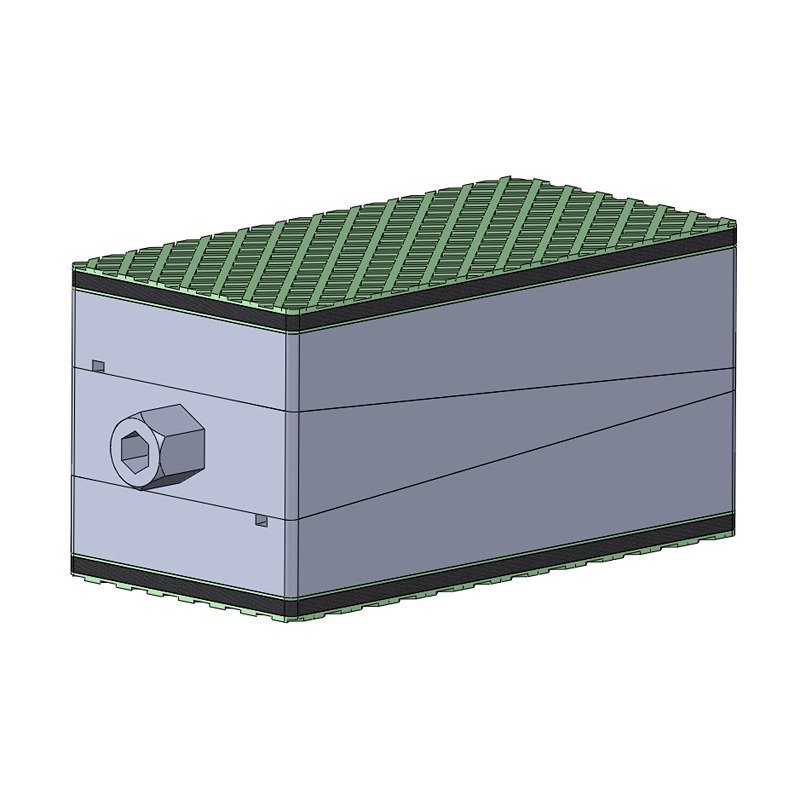

DFP-a2-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-a2-151-A2-FG-DG | 570 | 105 | 55 | 151 | +4/-4 | Da2 | 8 | Da2 | 8 | 16 | 8 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP2-a2-151-A2-FG-DG | 1120 | 150 | 75 | 151 | +5/-5 | Da2 | 8 | Da2 | 8 | 19 | 10 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP3-a2-151-A2-FG-DG | 2000 | 200 | 100 | 151 | +5/-5 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP4-a2-151-A2-FG-DG | 4000 | 200 | 200 | 151 | +6/-6 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP5-a2-151-A2-FG-DG | 5000 | 200 | 250 | 151 | +9/-9 | Da2 | 8 | Da2 | 8 | 27 | 14 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP6-a2-151-A2-FG-DG | 8000 | 250 | 320 | 151 | +9/-9 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP7-a2-151-A2-FG-DG | 12000 | 300 | 400 | 151 | +10/-10 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFP8-a2-151-A2-FG-DG | 20000 | 400 | 500 | 151 | +10/-10 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
DFP-150
Product
DFP-150
Description
Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Top Pad Type | Sw1 (Mm) | Sw2 (Mm) | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-135-FG-DG | 1200 | 105 | 55 | 135 | +4/-4 | X | X | 16 | 8 | X | From -16 to 90 | Dark Grey/Green |
| DFP2-135-FG-DG | 3000 | 150 | 75 | 135 | +5/-5 | X | X | 19 | 10 | X | From -16 to 90 | Dark Grey/Green |
| DFP3-135-FG-DG | 5000 | 200 | 100 | 135 | +5/-5 | X | X | 22 | 12 | X | From -16 to 90 | Dark Grey/Green |
| DFP4-135-FG-DG | 10400 | 200 | 200 | 135 | +6/-6 | X | X | 22 | 12 | X | From -16 to 90 | Dark Grey/Green |
| DFP5-135-FG-DG | 13000 | 200 | 250 | 135 | +9/-9 | X | X | 27 | 14 | X | From -16 to 90 | Dark Grey/Green |
| DFP6-135-FG-DG | 20000 | 250 | 320 | 135 | +9/-9 | X | X | 32 | 18 | X | From -16 to 90 | Dark Grey/Green |
| DFP7-135-FG-DG | 30000 | 300 | 400 | 135 | +10/-10 | X | X | 32 | 18 | X | From -16 to 90 | Dark Grey/Green |
| DFP8-135-FG-DG | 40000 | 400 | 500 | 135 | +10/-10 | X | X | 39 | 22 | X | From -16 to 90 | Dark Grey/Green |
