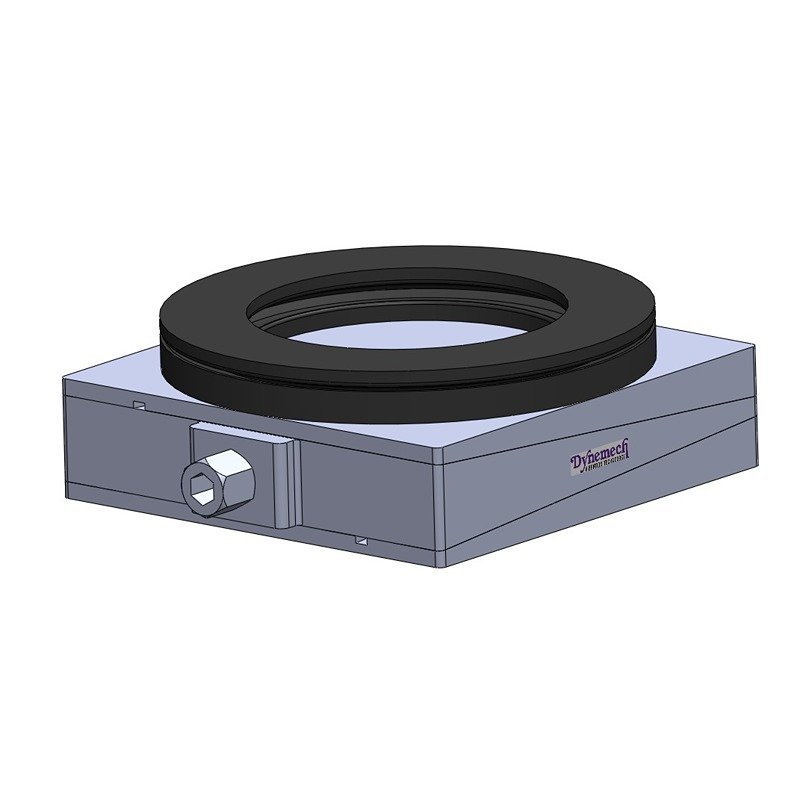

DFSP
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
DFSP-u
Product
DFSP-u
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-u-FG-DG | 1200 | 115 | 115 | 59 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-u-FG-DG | 2000 | 150 | 150 | 65 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-u-FG-DG | 3600 | 200 | 200 | 65 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-u-FG-DG | 4500 | 200 | 250 | 85 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-u-FG-DG | 7200 | 250 | 320 | 90 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-u-FG-DG | 10000 | 300 | 400 | 90 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

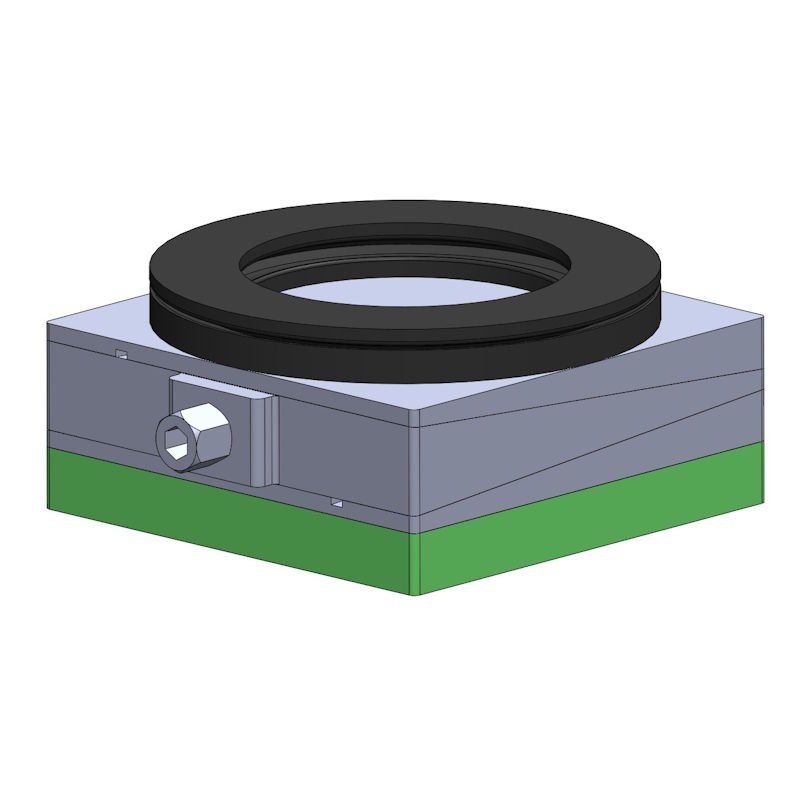

DFSP-u-10
Product
DFSP-u-10
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-u-10-FG-DG | 1200 | 115 | 115 | 54 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-u-10-FG-DG | 2000 | 150 | 150 | 60 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-u-10-FG-DG | 3600 | 200 | 200 | 60 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-u-10-FG-DG | 4500 | 200 | 250 | 80 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-u-10-FG-DG | 7200 | 250 | 320 | 85 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-u-10-FG-DG | 10000 | 300 | 400 | 85 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |
DFSP-u-12
Product
DFSP-u-12
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-u-12-FG-DG | 1200 | 115 | 115 | 56 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-u-12-FG-DG | 2000 | 150 | 150 | 62 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-u-12-FG-DG | 3600 | 200 | 200 | 62 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-u-12-FG-DG | 4500 | 200 | 250 | 82 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-u-12-FG-DG | 7200 | 250 | 320 | 87 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-u-12-FG-DG | 10000 | 300 | 400 | 87 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

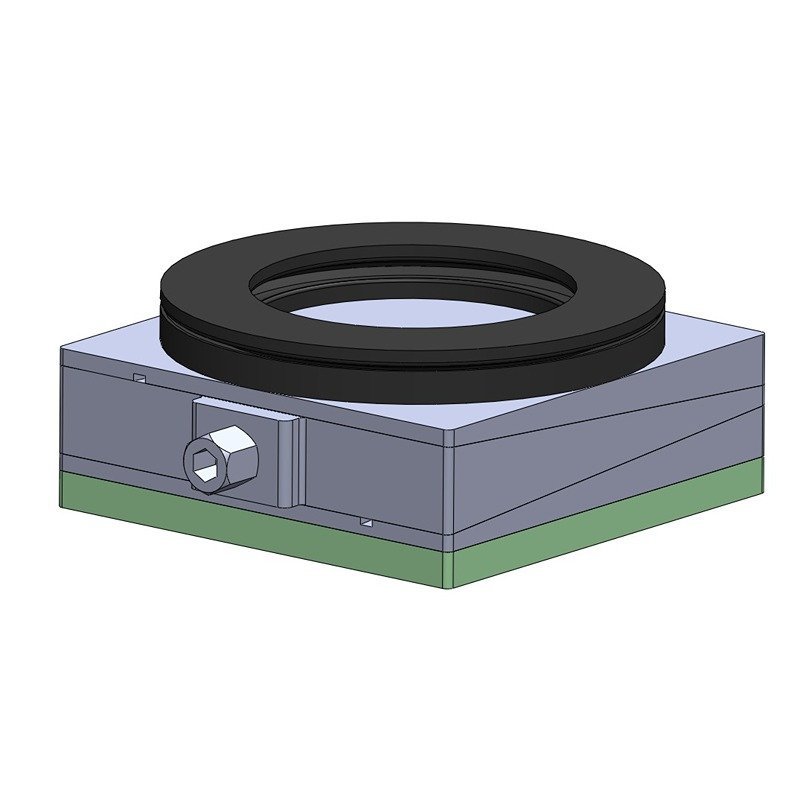

DFSP-m
Product
DFSP-m
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Lathe machines, Machining centres, Miling machines, precision grinding machines, drilling machines, turning centres, transfer lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-m-FG-DG | 1300 | 115 | 115 | 59 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-m-FG-DG | 2250 | 150 | 150 | 65 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-m-FG-DG | 4000 | 200 | 200 | 65 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-m-FG-DG | 5000 | 200 | 250 | 85 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-m-FG-DG | 8000 | 250 | 320 | 90 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-m-FG-DG | 8500 | 300 | 400 | 90 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

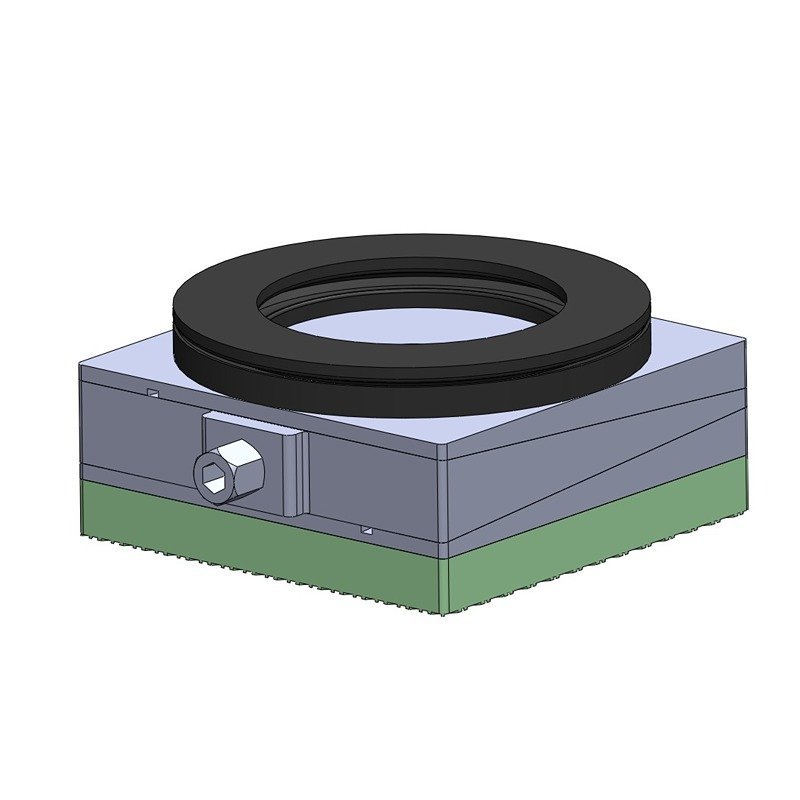

DFSP-i
Product
DFSP-i
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-i-FG-DG | 1800 | 115 | 115 | 69 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-i-FG-DG | 2900 | 150 | 150 | 75 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-i-FG-DG | 5200 | 200 | 200 | 75 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-i-FG-DG | 6500 | 200 | 250 | 95 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-i-FG-DG | 10000 | 250 | 320 | 100 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-i-FG-DG | 15000 | 300 | 400 | 100 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

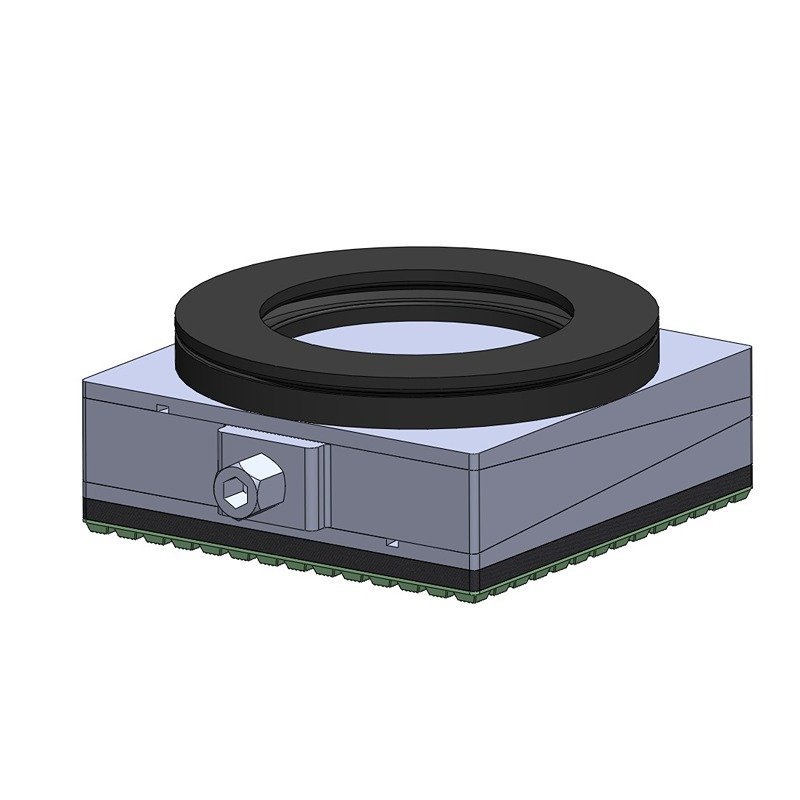

DFSP-p1
Product
DFSP-p1
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Passive vibration control of measuring & Testing Machines, Grinders etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-p1-FG-DG | 530 | 115 | 115 | 59 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-p1-FG-DG | 900 | 150 | 150 | 65 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-p1-FG-DG | 1600 | 200 | 200 | 65 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-p1-FG-DG | 2000 | 200 | 250 | 85 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-p1-FG-DG | 3200 | 250 | 320 | 90 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-p1-FG-DG | 4800 | 300 | 400 | 90 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

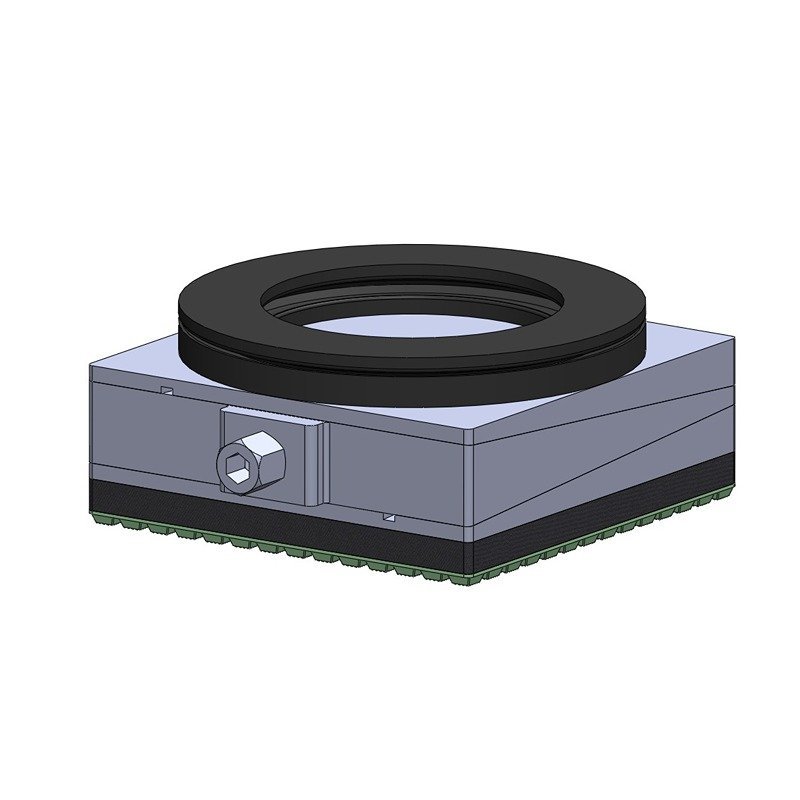

DFSP-p2
Product
DFSP-p2
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-p2-FG-DG | 660 | 115 | 115 | 64 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-p2-FG-DG | 1125 | 150 | 150 | 70 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-p2-FG-DG | 2000 | 200 | 200 | 70 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-p2-FG-DG | 2500 | 200 | 250 | 90 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-p2-FG-DG | 4000 | 250 | 320 | 95 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-p2-FG-DG | 6000 | 300 | 400 | 95 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

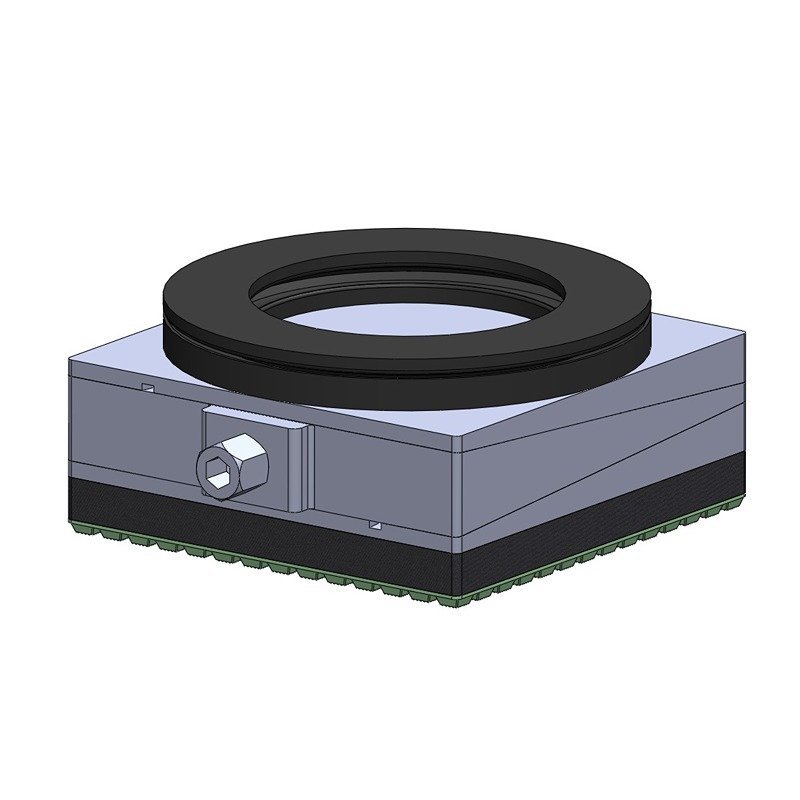

DFSP-p3
Product
DFSP-p3
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-p3-FG-DG | 800 | 115 | 115 | 68 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-p3-FG-DG | 1350 | 150 | 150 | 74 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-p3-FG-DG | 2400 | 200 | 200 | 74 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-p3-FG-DG | 3000 | 200 | 250 | 94 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-p3-FG-DG | 4800 | 250 | 320 | 99 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-p3-FG-DG | 7200 | 300 | 400 | 99 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

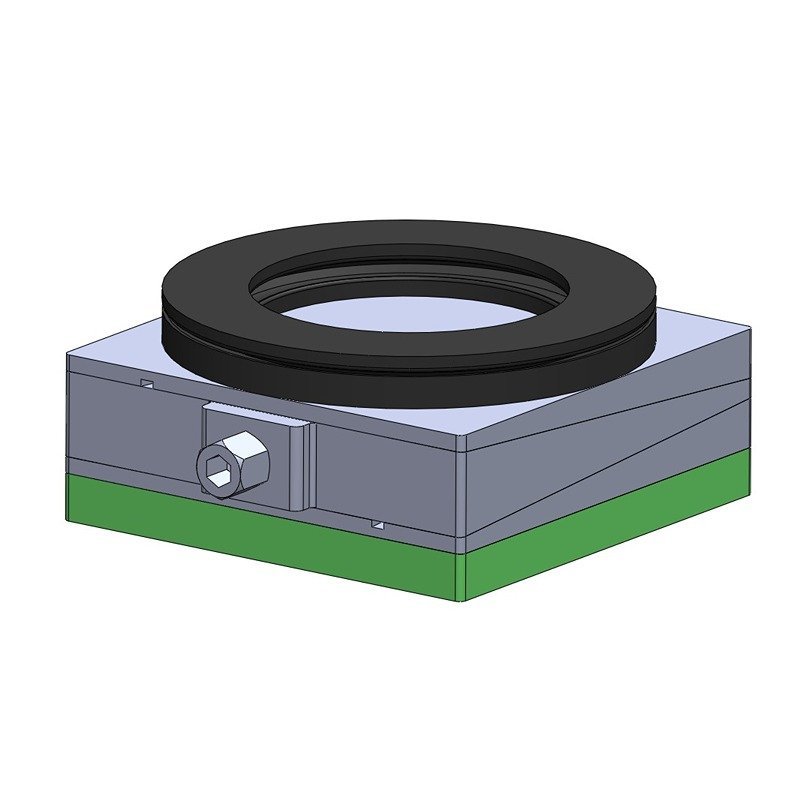

DFSP-s1
Product
DFSP-s1
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Active & Passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-s1-FG-DG | 660 | 115 | 115 | 64 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-s1-FG-DG | 1120 | 150 | 150 | 70 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-s1-FG-DG | 2000 | 200 | 200 | 70 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-s1-FG-DG | 2500 | 200 | 250 | 90 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-s1-FG-DG | 4000 | 250 | 320 | 95 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-s1-FG-DG | 6000 | 300 | 400 | 95 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

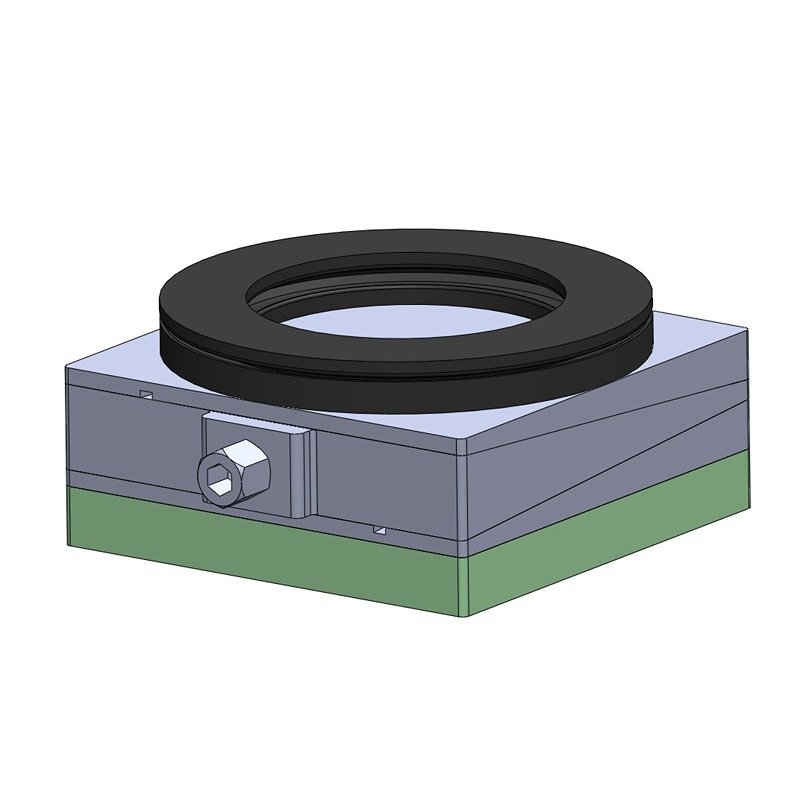

DFSP-s2
Product
DFSP-s2
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Medium Presses, Stamping machines, also well suited for high speed rotating machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-s2-FG-DG | 950 | 115 | 115 | 69 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-s2-FG-DG | 1600 | 150 | 150 | 75 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-s2-FG-DG | 2800 | 200 | 200 | 75 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-s2-FG-DG | 3500 | 200 | 250 | 95 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-s2-FG-DG | 5500 | 250 | 320 | 100 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-s2-FG-DG | 8500 | 300 | 400 | 100 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |
DFSP-hs1
Product
DFSP-hs1
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-hs1-FG-DG | 2600 | 115 | 115 | 109 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-hs1-FG-DG | 4500 | 150 | 150 | 115 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-hs1-FG-DG | 8000 | 200 | 200 | 115 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-hs1-FG-DG | 10000 | 200 | 250 | 135 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-hs1-FG-DG | 16000 | 250 | 320 | 140 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-hs1-FG-DG | 24000 | 300 | 400 | 140 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

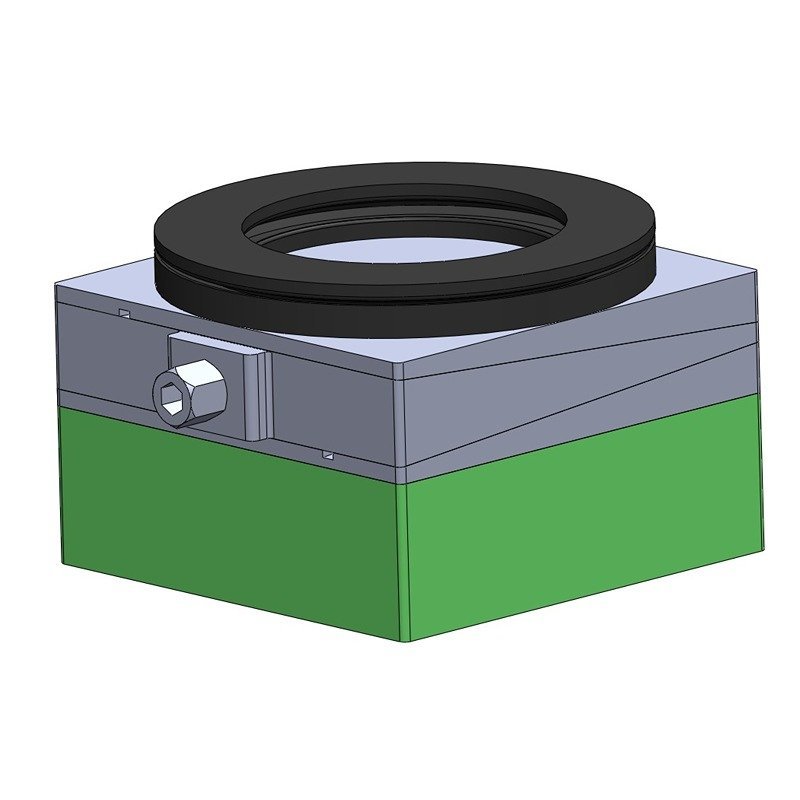

DFSP-hs2
Product
DFSP-hs2
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-hs2-FG-DG | 1060 | 115 | 115 | 109 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-hs2-FG-DG | 1800 | 150 | 150 | 115 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-hs2-FG-DG | 3200 | 200 | 200 | 115 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-hs2-FG-DG | 4000 | 200 | 250 | 135 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-hs2-FG-DG | 6400 | 250 | 320 | 140 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-hs2-FG-DG | 9600 | 300 | 400 | 140 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

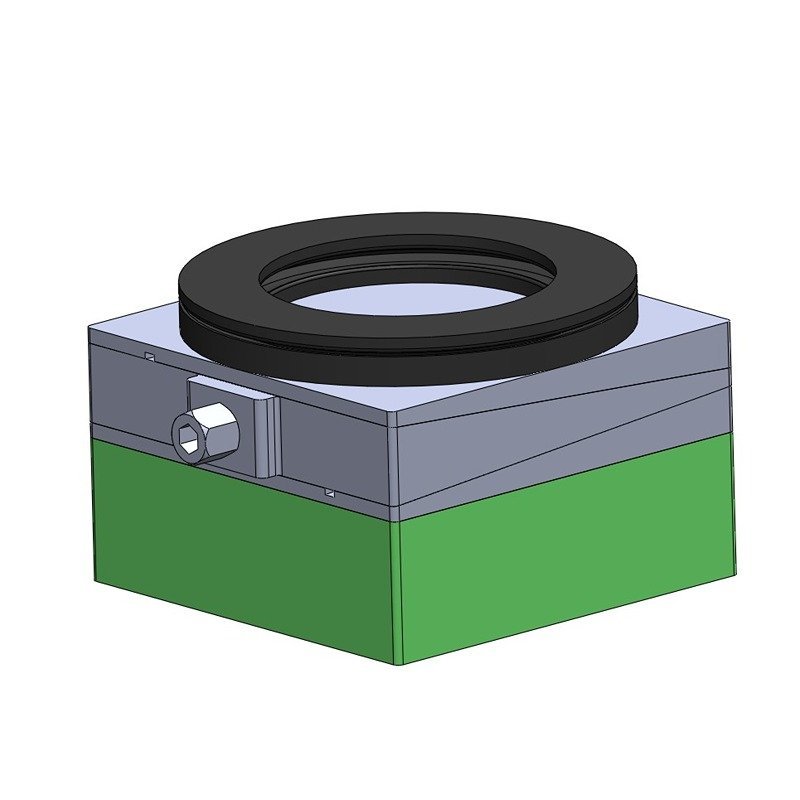

DFSP-hs3
Product
DFSP-hs3
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-hs3-FG-DG | 3700 | 115 | 115 | 94 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-hs3-FG-DG | 6300 | 150 | 150 | 100 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-hs3-FG-DG | 11200 | 200 | 200 | 100 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-hs3-FG-DG | 14000 | 200 | 250 | 120 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-hs3-FG-DG | 22400 | 250 | 320 | 125 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-hs3-FG-DG | 33600 | 300 | 400 | 125 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |
DFSP-hs4
Product
DFSP-hs4
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-hs4-FG-DG | 1600 | 115 | 115 | 94 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-hs4-FG-DG | 2700 | 150 | 150 | 100 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-hs4-FG-DG | 4800 | 200 | 200 | 100 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-hs4-FG-DG | 6000 | 200 | 250 | 120 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-hs4-FG-DG | 9600 | 250 | 320 | 125 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-hs4-FG-DG | 14400 | 300 | 400 | 125 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

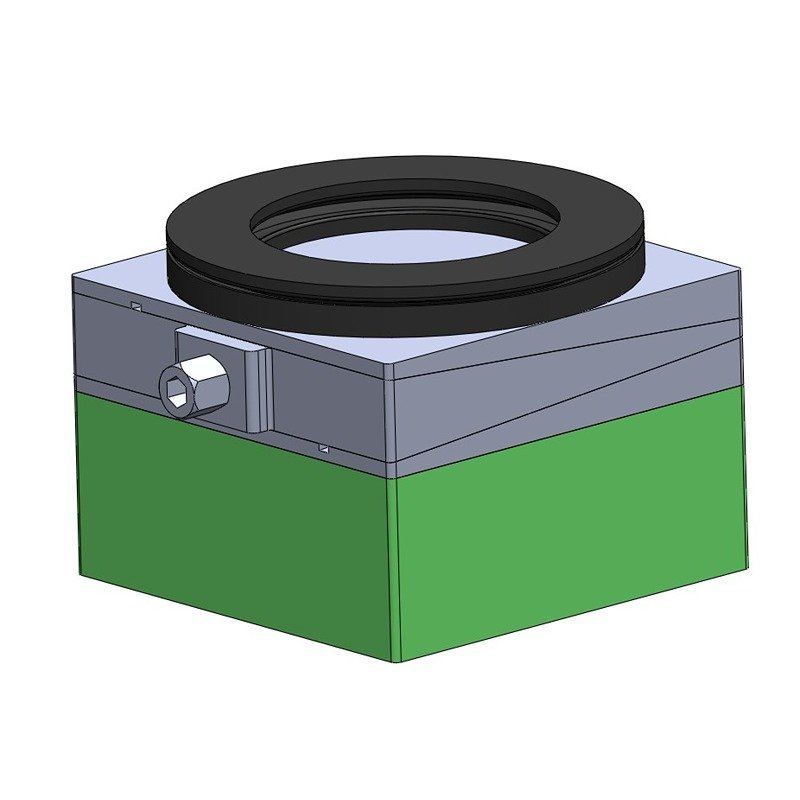

DFSP-hs5
Product
DFSP-hs5
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-hs5-FG-DG | 3700 | 115 | 115 | 124 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-hs5-FG-DG | 6300 | 150 | 150 | 130 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-hs5-FG-DG | 11200 | 200 | 200 | 130 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-hs5-FG-DG | 14000 | 200 | 250 | 150 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-hs5-FG-DG | 22400 | 250 | 320 | 155 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-hs5-FG-DG | 33600 | 300 | 400 | 155 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

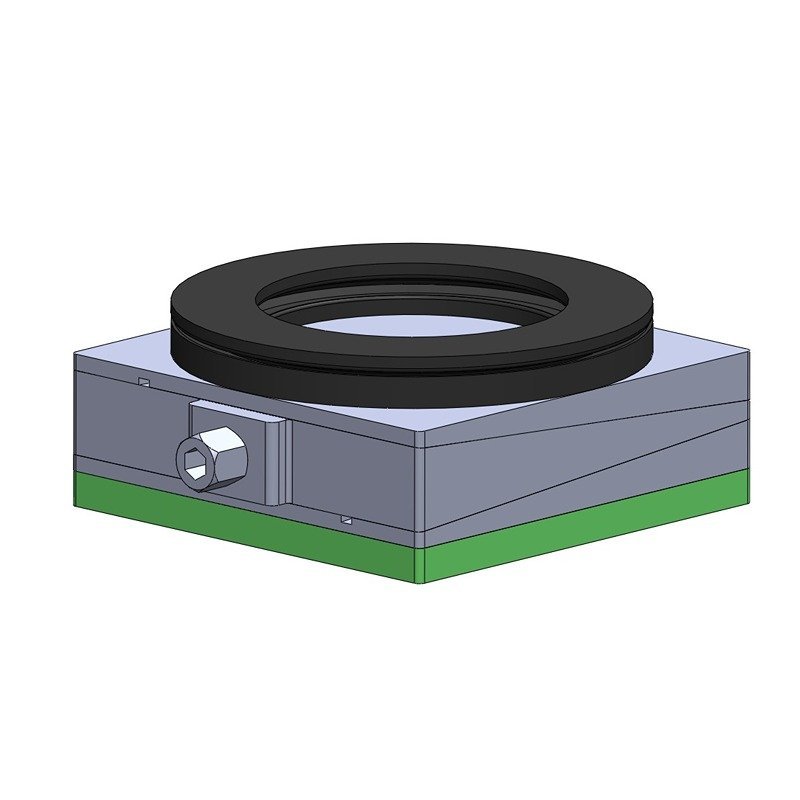

DFSP-h
Product
DFSP-h
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-h-FG-DG | 3970 | 115 | 115 | 59 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-h-FG-DG | 6750 | 150 | 150 | 65 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-h-FG-DG | 12000 | 200 | 200 | 65 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-h-FG-DG | 15000 | 200 | 250 | 85 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-h-FG-DG | 24000 | 250 | 320 | 90 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-h-FG-DG | 36000 | 300 | 400 | 90 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

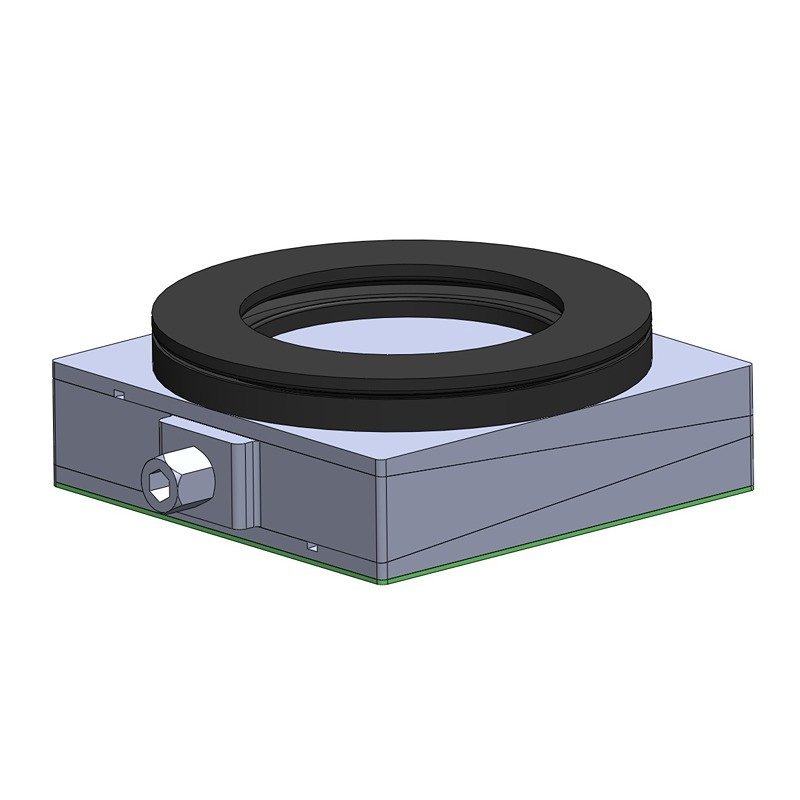

DFSP-a1
Product
DFSP-a1
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-a1-FG-DG | 2380 | 115 | 115 | 46 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-a1-FG-DG | 4050 | 150 | 150 | 52 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-a1-FG-DG | 7200 | 200 | 200 | 52 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-a1-FG-DG | 9000 | 200 | 250 | 72 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-a1-FG-DG | 14400 | 250 | 320 | 77 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-a1-FG-DG | 21600 | 300 | 400 | 77 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |

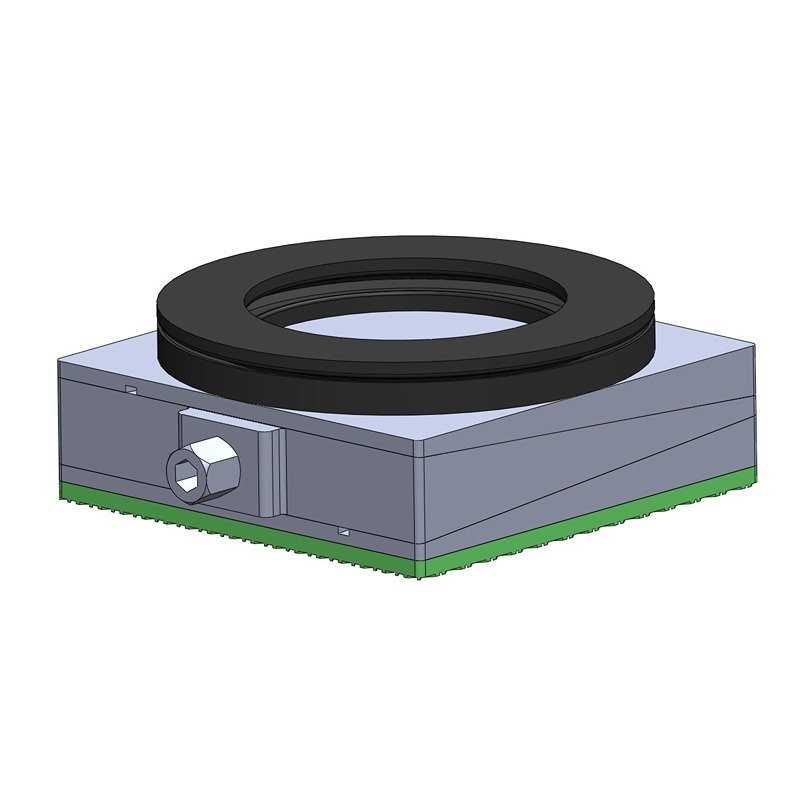

DFSP-a2
Product
DFSP-a2
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-a2-FG-DG | 1320 | 115 | 115 | 52 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-a2-FG-DG | 2250 | 150 | 150 | 58 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-a2-FG-DG | 4000 | 200 | 200 | 58 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-a2-FG-DG | 5000 | 200 | 250 | 78 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-a2-FG-DG | 8000 | 250 | 320 | 83 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-a2-FG-DG | 12000 | 300 | 400 | 83 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |
DFSP
Product
DFSP
Description
Dynemech Wedge Mounts, Series DFSP Spherical positioners on free standing wedge, series DF SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90° despite the angle difference between machine base and foundation. the pressure on the insulation plates remains even. thus, better alignment of the machine is possible. variations are available either with or without insulation damping.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | Dia (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFSP1-FG-DG | 3600 | 115 | 115 | 44 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | +4/-4 | 110 | 19 |
| DFSP2-FG-DG | 5800 | 150 | 150 | 50 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | +5/-5 | 150 | 20 |
| DFSP3-FG-DG | 10400 | 200 | 200 | 50 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | +6/-6 | 200 | 22 |
| DFSP4-FG-DG | 13000 | 200 | 250 | 70 | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green | +9/-9 | 200 | 22 |
| DFSP5-FG-DG | 20000 | 250 | 320 | 75 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | +9/-9 | 250 | 28 |
| DFSP6-FG-DG | 30000 | 300 | 400 | 75 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | +10/-10 | 300 | 32 |
