DTHP-150
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
DTHP-u-150
Product
DTHP-u-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-u-150-25T-FG-DG | 2250 | 200 | 125 | 150 | +8/-8 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-u-150-25T-FG-DG | 2700 | 200 | 150 | 150 | +10/-10 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-u-150-28T-FG-DG | 4200 | 280 | 170 | 150 | +12.5/-12.5 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-u-10-150
Product
DTHP-u-10-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-u-10-145-25T-FG-DG | 2250 | 200 | 125 | 145 | +8/-8 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-u-10-145-25T-FG-DG | 2700 | 200 | 150 | 145 | +10/-10 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-u-10-145-28T-FG-DG | 4200 | 280 | 170 | 145 | +12.5/-12.5 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

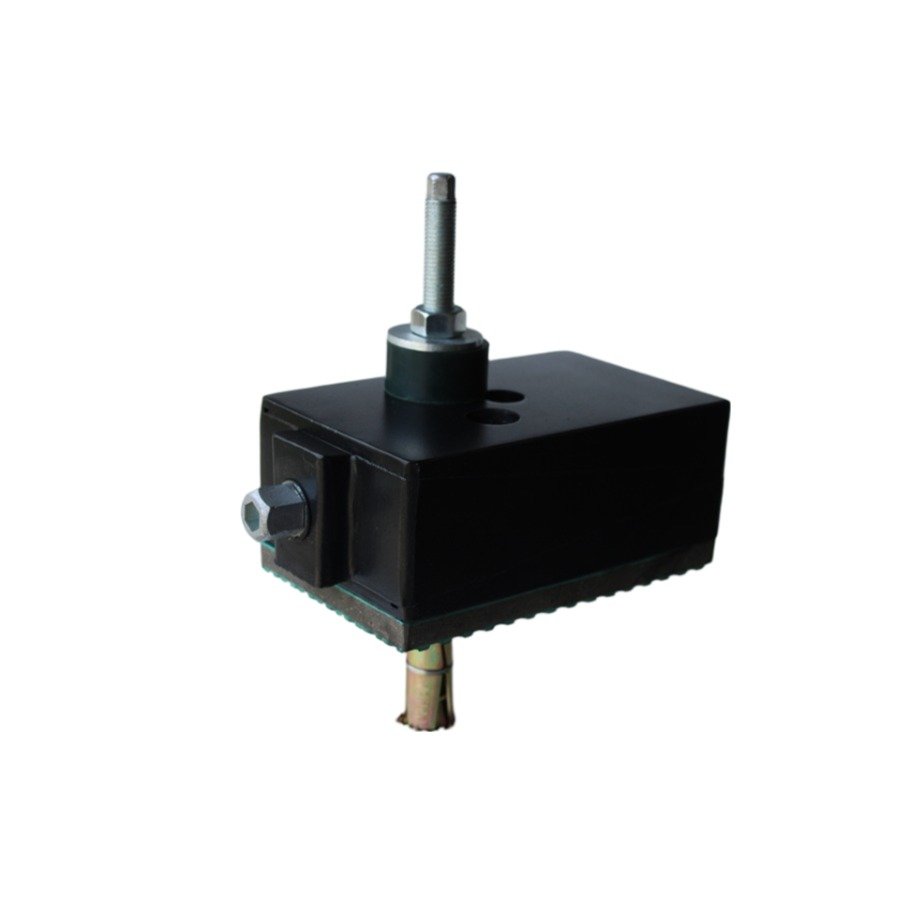

DTHP-u-12-150
Product
DTHP-u-12-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-u-12-147-25T-FG-DG | 2250 | 200 | 125 | 147 | +8/-8 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-u-12-147-25T-FG-DG | 2700 | 200 | 150 | 147 | +10/-10 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-u-12-147-28T-FG-DG | 4200 | 280 | 170 | 147 | +12.5/-12.5 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

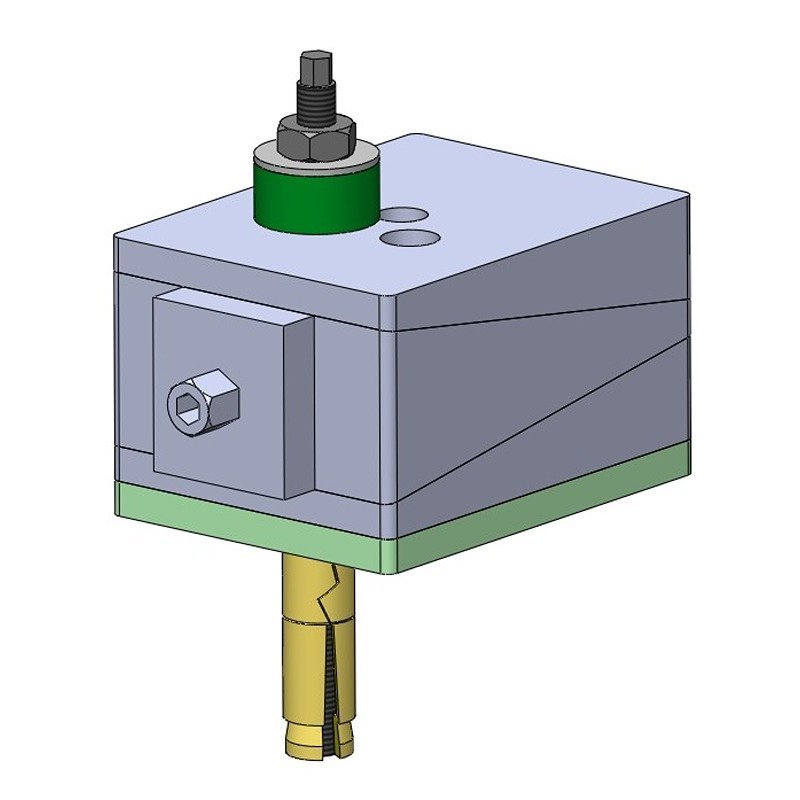

DTHP-m-150
Product
DTHP-m-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-m-150-25T-FG-DG | 2500 | 200 | 125 | 150 | +8/-8 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-m-150-25T-FG-DG | 3000 | 200 | 150 | 150 | +10/-10 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-m-150-28T-FG-DG | 4600 | 280 | 170 | 150 | +12.5/-12.5 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

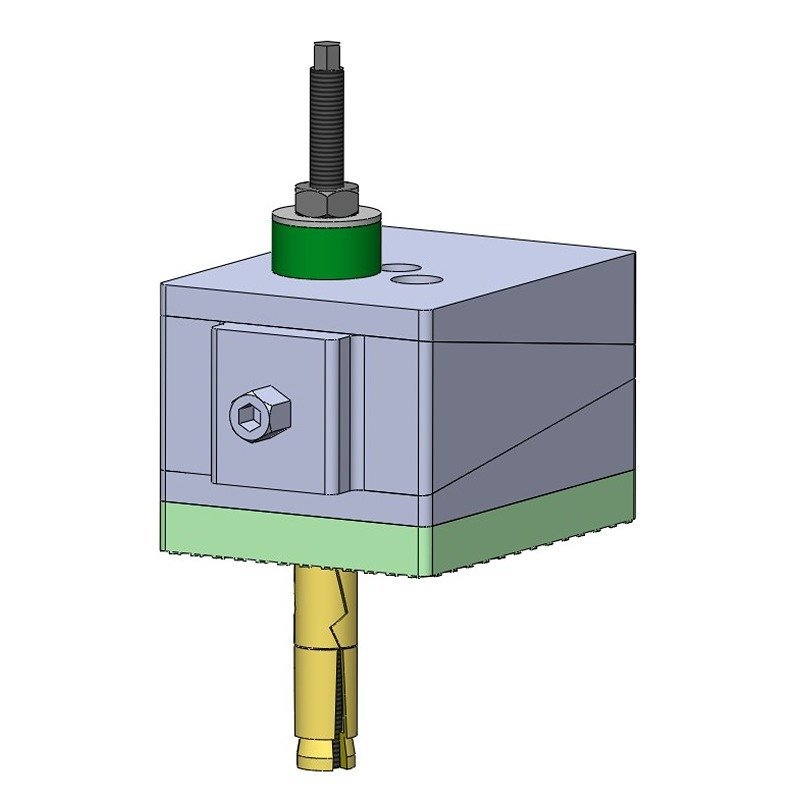

DTHP-i-150
Product
DTHP-i-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-i-160-25T-FG-DG | 3500 | 200 | 125 | 160 | +8/-8 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-i-160-25T-FG-DG | 4200 | 200 | 150 | 160 | +10/-10 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-i-160-28T-FG-DG | 6400 | 280 | 170 | 160 | +12.5/-12.5 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

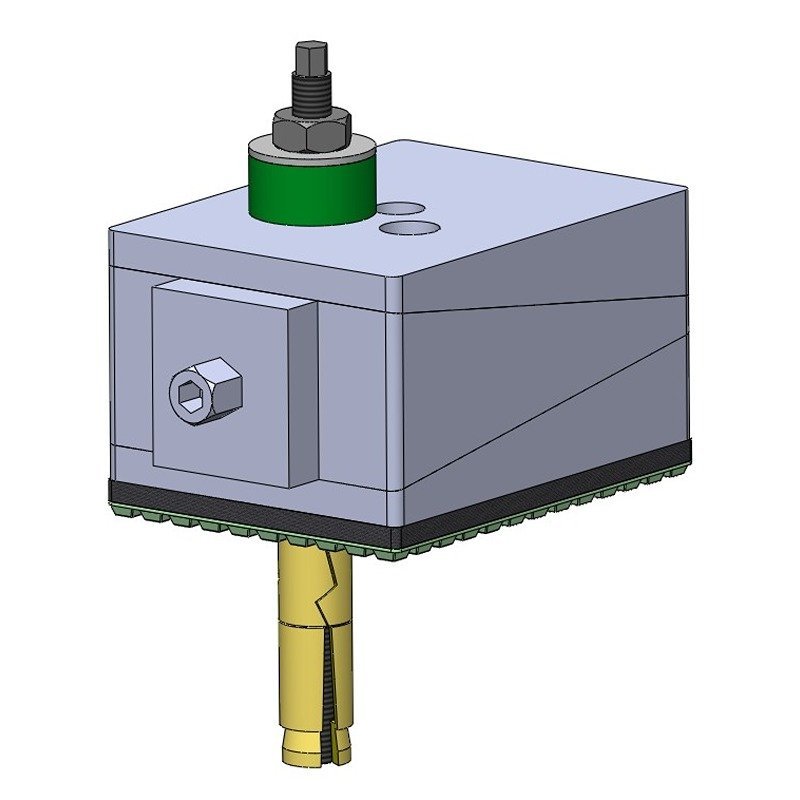

DTHP-p1-150
Product
DTHP-p1-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-p1-150-25T-FG-DG | 1000 | 200 | 125 | 150 | +8/-8 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-p1-150-25T-FG-DG | 1200 | 200 | 150 | 150 | +10/-10 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-p1-150-28T-FG-DG | 1900 | 280 | 170 | 150 | +12.5/-12.5 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-p2-150
Product
DTHP-p2-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-p2-155-25T-FG-DG | 1250 | 200 | 125 | 155 | +8/-8 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-p2-155-25T-FG-DG | 1500 | 200 | 150 | 155 | +10/-10 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-p2-155-28T-FG-DG | 2380 | 280 | 170 | 155 | +12.5/-12.5 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

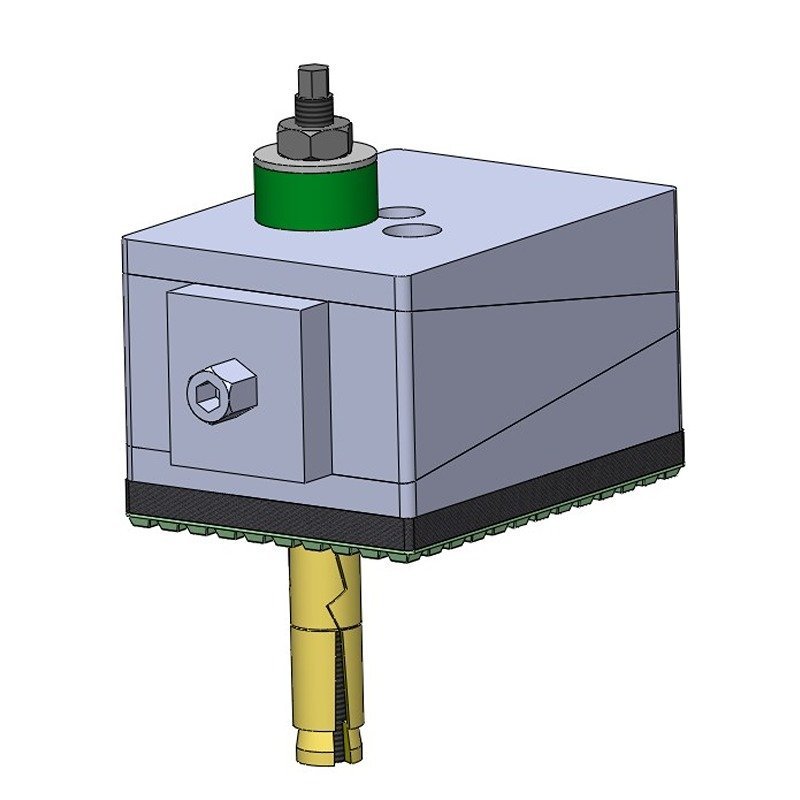

DTHP-p3-150
Product
DTHP-p3-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-p3-159-25T-FG-DG | 1500 | 200 | 125 | 159 | +8/-8 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-p3-159-25T-FG-DG | 1800 | 200 | 150 | 159 | +10/-10 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-p3-159-28T-FG-DG | 2860 | 280 | 170 | 159 | +12.5/-12.5 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

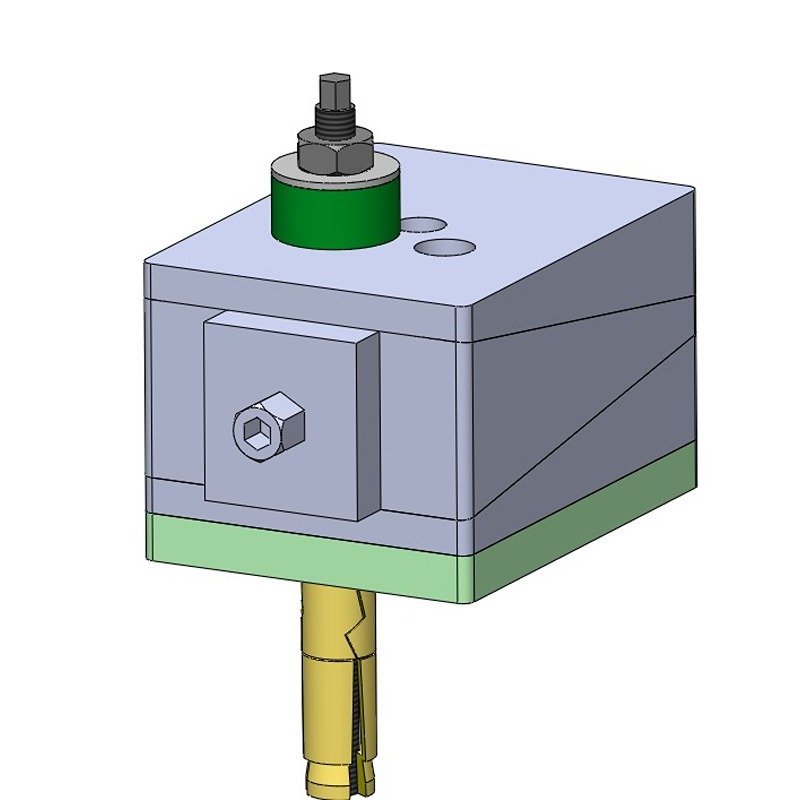

DTHP-s1-150
Product
DTHP-s1-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-s1-155-25T-FG-DG | 1250 | 200 | 125 | 155 | +8/-8 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-s1-155-25T-FG-DG | 1500 | 200 | 150 | 155 | +10/-10 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-s1-155-28T-FG-DG | 2380 | 280 | 170 | 155 | +12.5/-12.5 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-s2-150
Product
DTHP-s2-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-s2-160-25T-FG-DG | 2000 | 200 | 125 | 160 | +8/-8 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-s2-160-25T-FG-DG | 2400 | 200 | 150 | 160 | +10/-10 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-s2-160-28T-FG-DG | 3800 | 280 | 170 | 160 | +12.5/-12.5 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

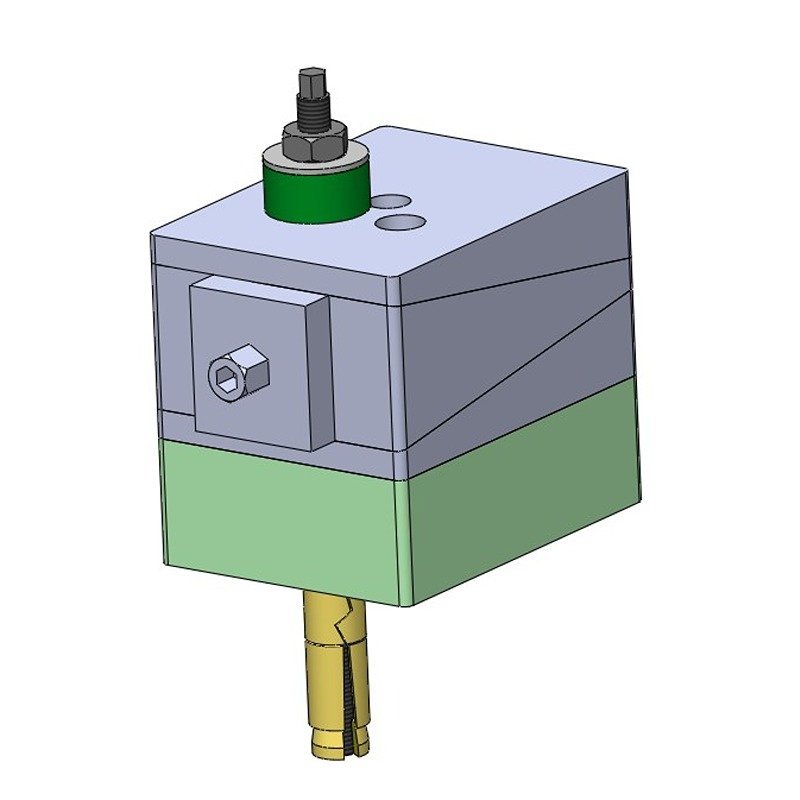

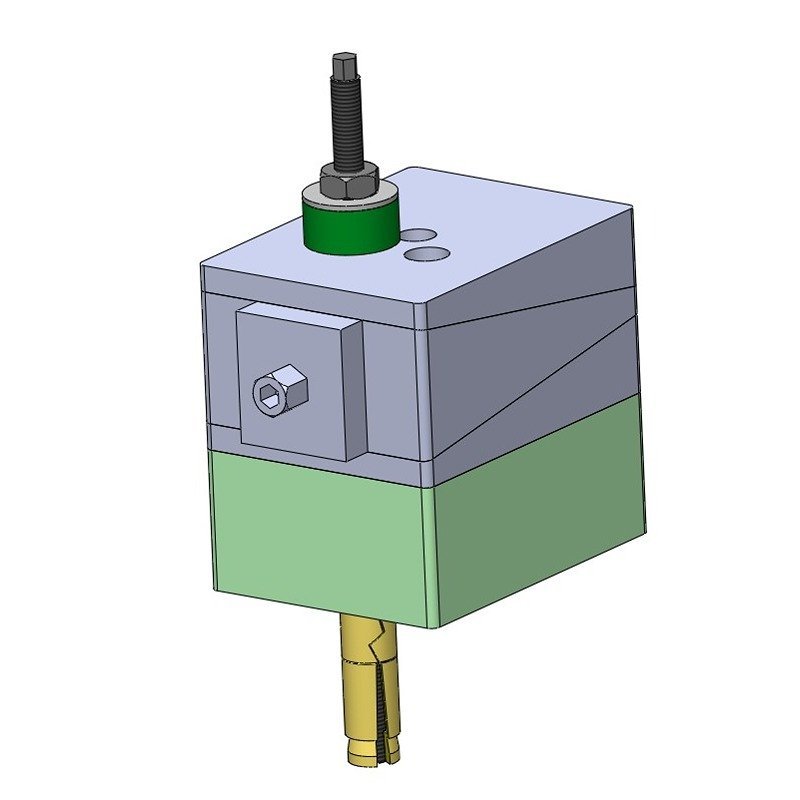

DTHP-hs1-150
Product
DTHP-hs1-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-hs1-200-25T-FG-DG | 5000 | 200 | 125 | 200 | +8/-8 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-hs1-200-25T-FG-DG | 6000 | 200 | 150 | 200 | +10/-10 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-hs1-200-28T-FG-DG | 9520 | 280 | 170 | 200 | +12.5/-12.5 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-hs2-150
Product
DTHP-hs2-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-hs2-200-25T-FG-DG | 2000 | 200 | 125 | 200 | +8/-8 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-hs2-200-25T-FG-DG | 2400 | 200 | 150 | 200 | +10/-10 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-hs2-200-28T-FG-DG | 3800 | 280 | 170 | 200 | +12.5/-12.5 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-hs3-150
Product
DTHP-hs3-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-hs3-185-25T-FG-DG | 7000 | 200 | 125 | 185 | +8/-8 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-hs3-185-25T-FG-DG | 8400 | 200 | 150 | 185 | +10/-10 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-hs3-185-28T-FG-DG | 13330 | 280 | 170 | 185 | +12.5/-12.5 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

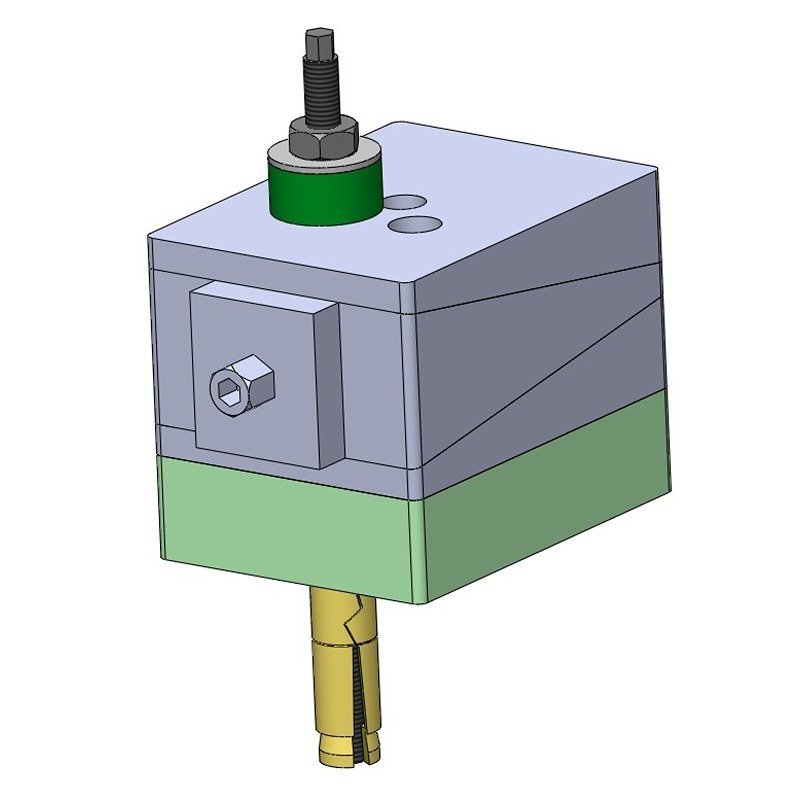

DTHP-hs4-150
Product
DTHP-hs4-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-hs4-185-25T-FG-DG | 3000 | 200 | 125 | 185 | +8/-8 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-hs4-185-25T-FG-DG | 3600 | 200 | 150 | 185 | +10/-10 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-hs4-185-28T-FG-DG | 5700 | 280 | 170 | 185 | +12.5/-12.5 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-hs5-150
Product
DTHP-hs5-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTPH1-hs5-215-25T-FG-DG | 7000 | 200 | 125 | 215 | +8/-8 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTPH2-hs5-215-25T-FG-DG | 8400 | 200 | 150 | 215 | +10/-10 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTPH3-hs5-215-28T-FG-DG | 13330 | 280 | 170 | 215 | +12.5/-12.5 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-h-150
Product
DTHP-h-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-h-150-25T-FG-DG | 7500 | 200 | 125 | 150 | +8/-8 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-h-150-25T-FG-DG | 9000 | 200 | 150 | 150 | +10/-10 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-h-150-28T-FG-DG | 14000 | 280 | 170 | 150 | +12.5/-12.5 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
DTHP-a1-150
Product
DTHP-a1-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-a1-137-25T-FG-DG | 4500 | 200 | 125 | 137 | +8/-8 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-a1-137-25T-FG-DG | 5400 | 200 | 150 | 137 | +10/-10 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-a1-137-28T-FG-DG | 8570 | 280 | 170 | 137 | +12.5/-12.5 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

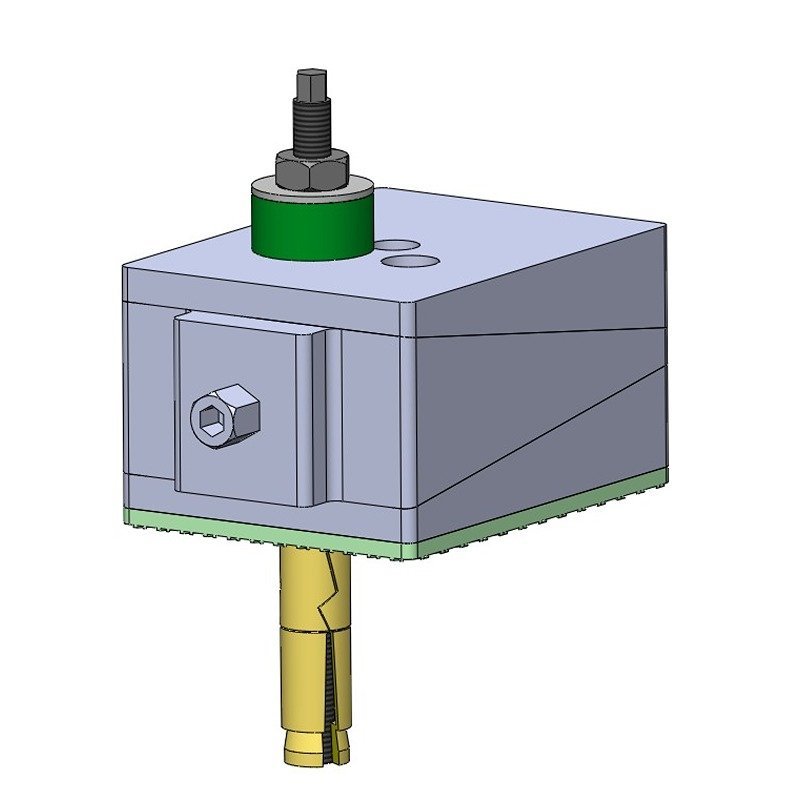

DTHP-a2-150
Product
DTHP-a2-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-a2-143-25T-FG-DG | 2500 | 200 | 125 | 143 | +8/-8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-a2-143-25T-FG-DG | 3000 | 200 | 150 | 143 | +10/-10 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-a2-143-28T-FG-DG | 4760 | 280 | 170 | 143 | +12.5/-12.5 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |

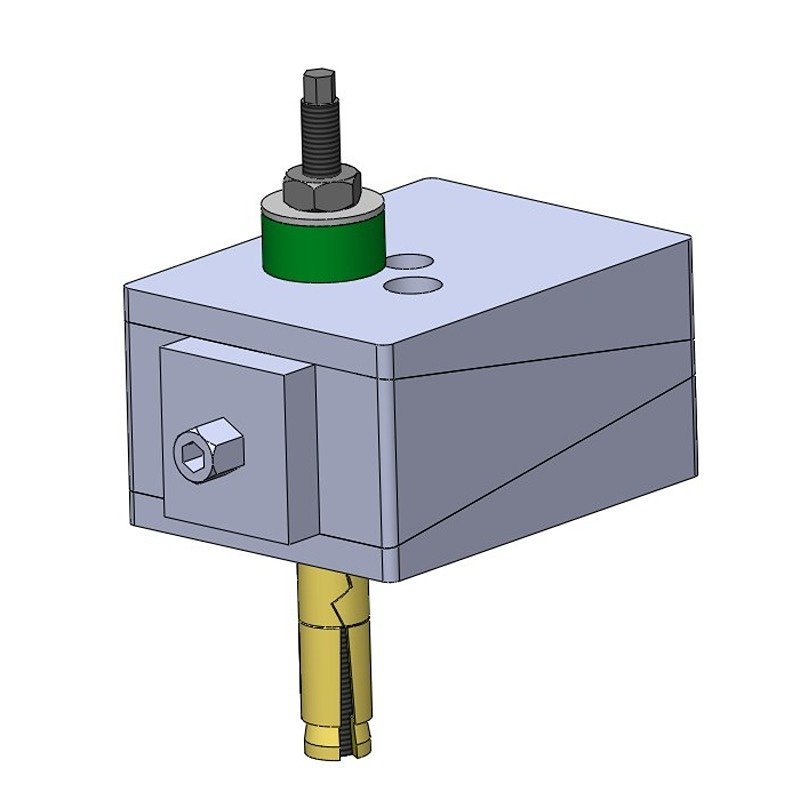

DTHP-150
Product
DTHP-150
Description
Dynemech Wedge mounts, Series DTHP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Sw1 (Mm) | Sw2 (Mm) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTHP1-135-25T-FG-DG | 13000 | 200 | 125 | 135 | +8/-8 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP2-135-25T-FG-DG | 16000 | 200 | 150 | 135 | +10/-10 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTHP3-135-28T-FG-DG | 23000 | 280 | 170 | 135 | +12.5/-12.5 | 39 | 22 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
