DTO4-a2-32T-FG-GR

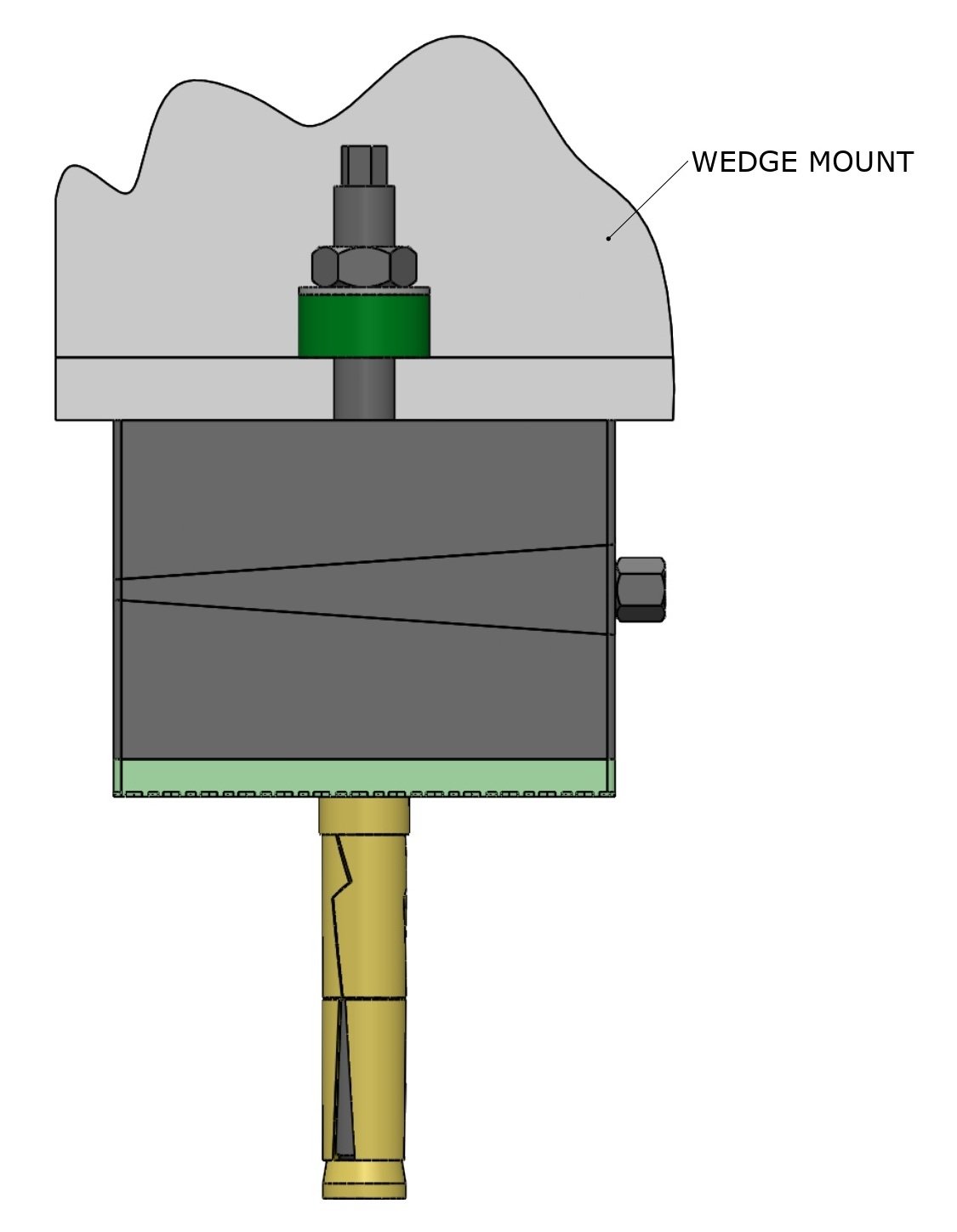

Dynemech Wedge mounts, Series DTO mounts is designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, Drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Extrusion Machine, Pressure Die Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc. |
| Load Capacity (Kg/Pc) | 6500 |
| Length L (Mm) | 200 |
| Width B (Mm) | 250 |
| Height H At Mean Position (Mm) | 78 |
| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Da2 |
| Bottom Pad Thickness (Mm) | 8 |
| Sw1 (Mm) | 27 |
| Sw2 (Mm) | 14 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| Bore O (Mm) G | 32 |
