DTO7-42T-FG-GR

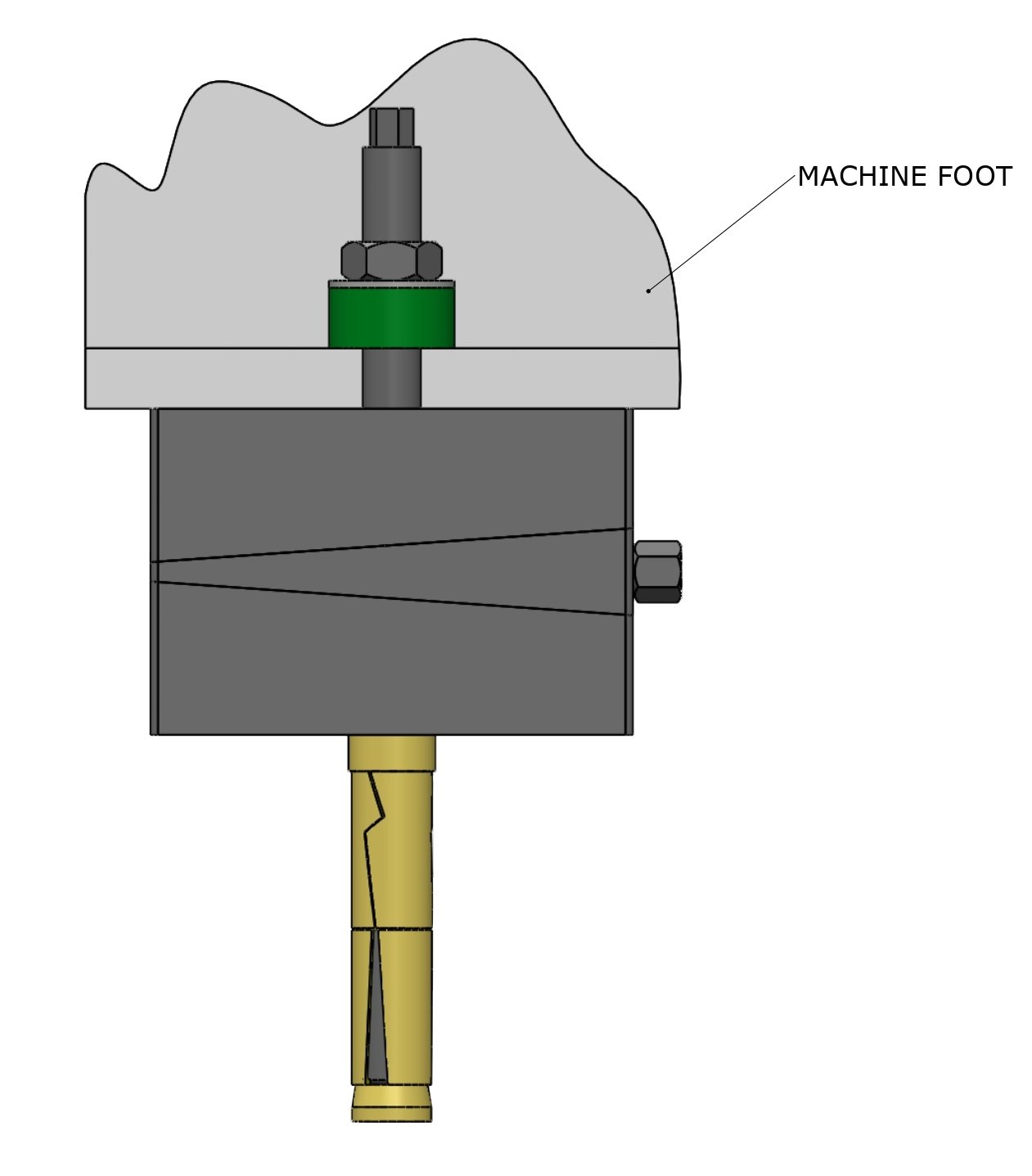

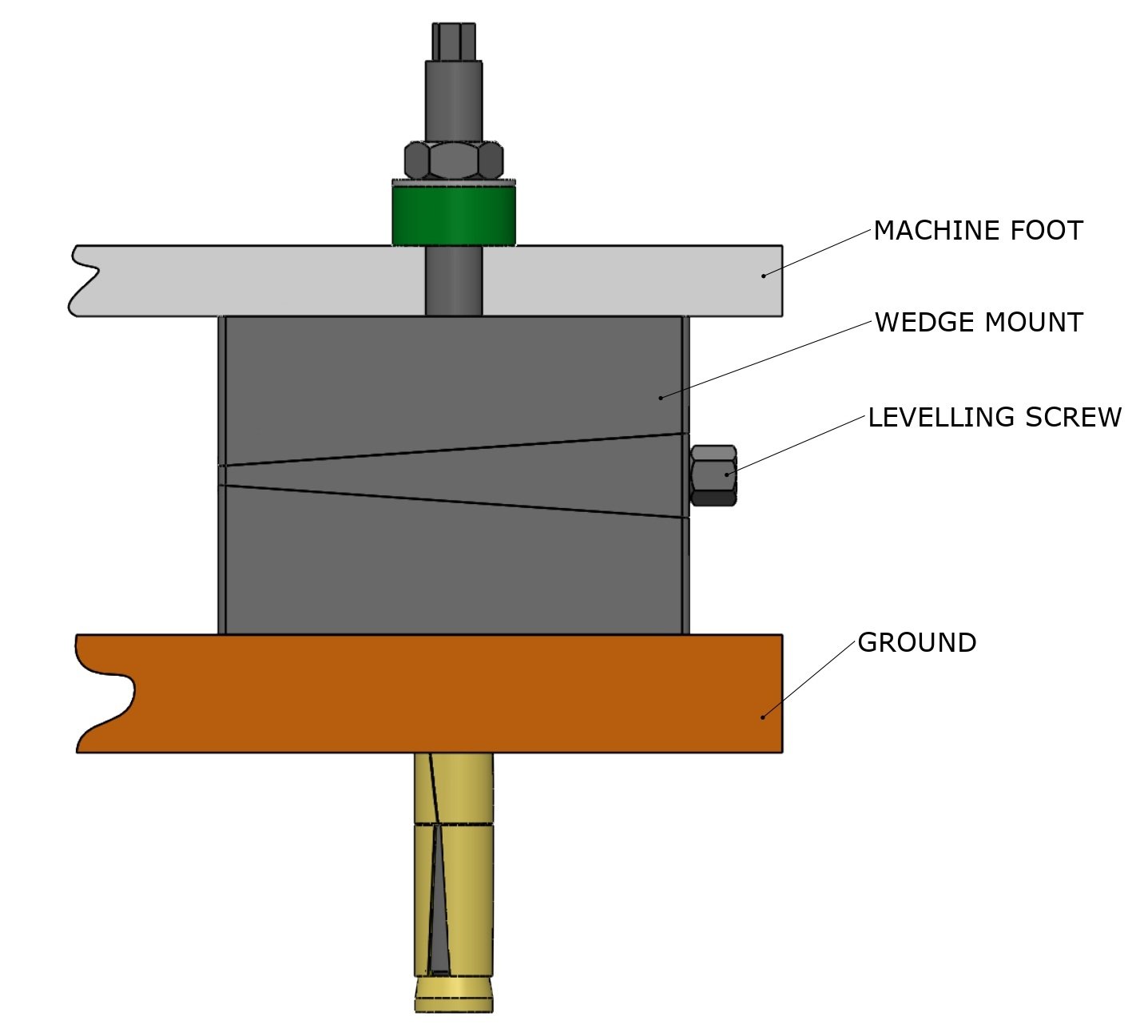

Dynemech Wedge mounts, Series DTO mounts is designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, Drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precision Machines. |
| Load Capacity (Kg/Pc) | 40000 |

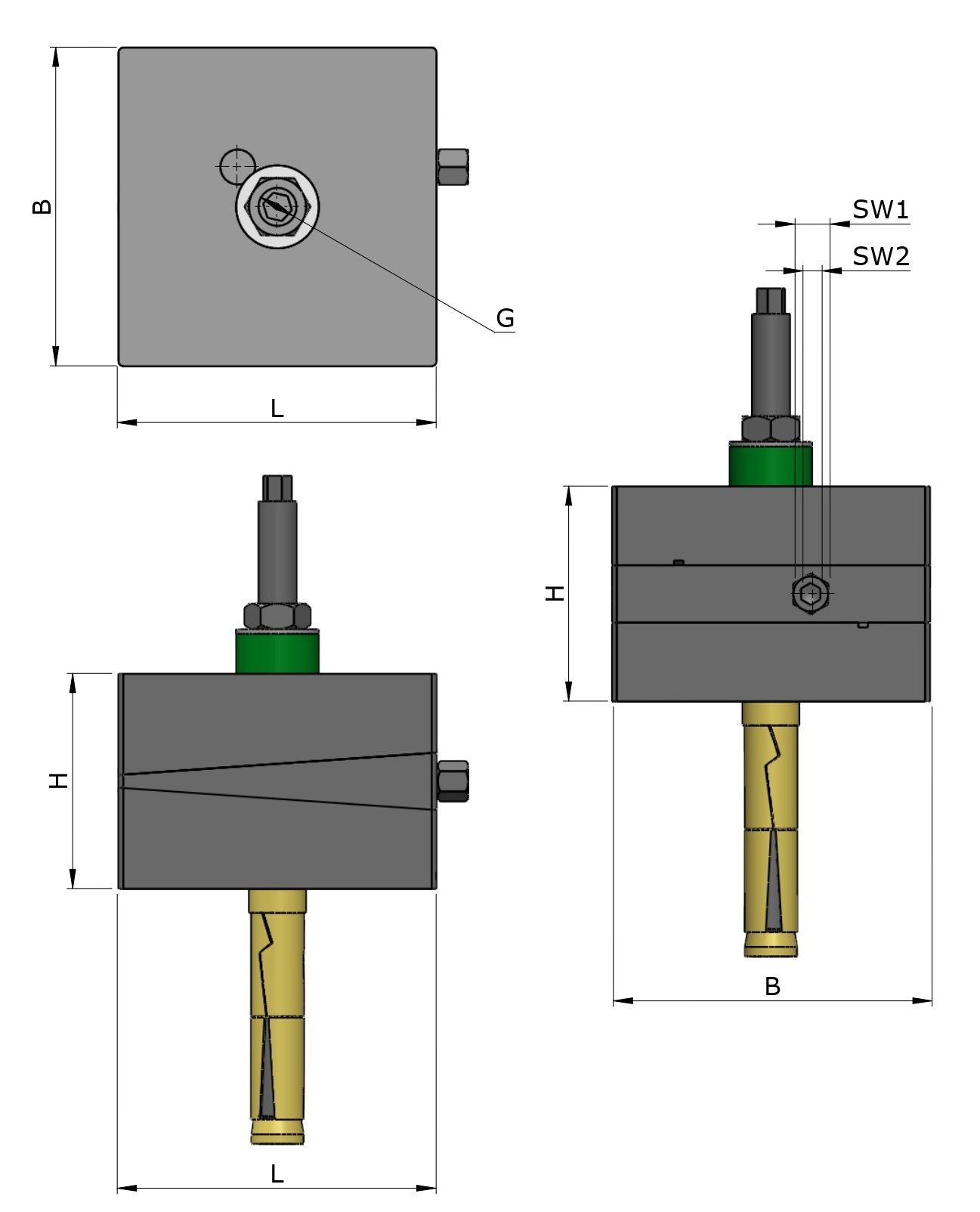

| Length L (Mm) | 400 |
| Width B (Mm) | 500 |
| Height H At Mean Position (Mm) | 80 |

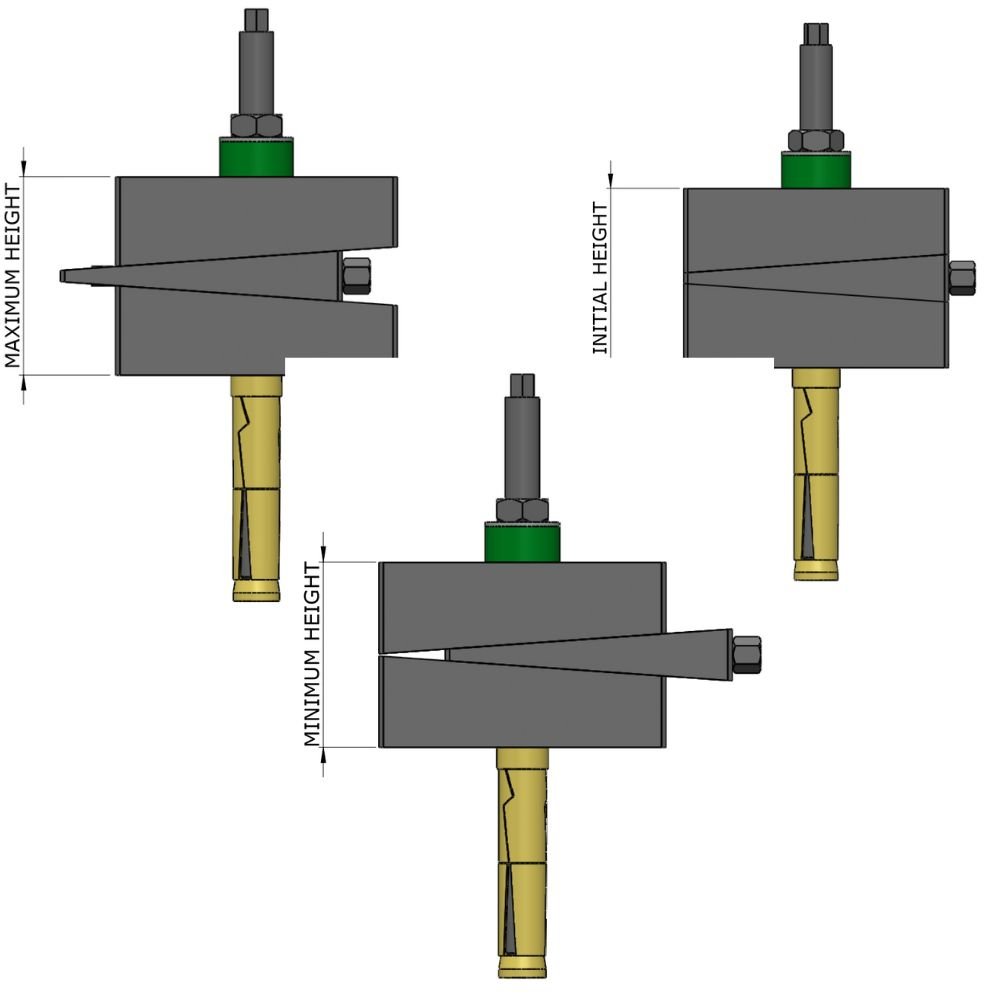

| Adjustment Range (Mm) | +10/-10 |
| Bottom Pad Type | X |
| Sw1 (Mm) | 39 |
| Sw2 (Mm) | 22 |
| Natural Frequency At Max Load (Hz) | X |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| Bore O (Mm) G | 42 |
