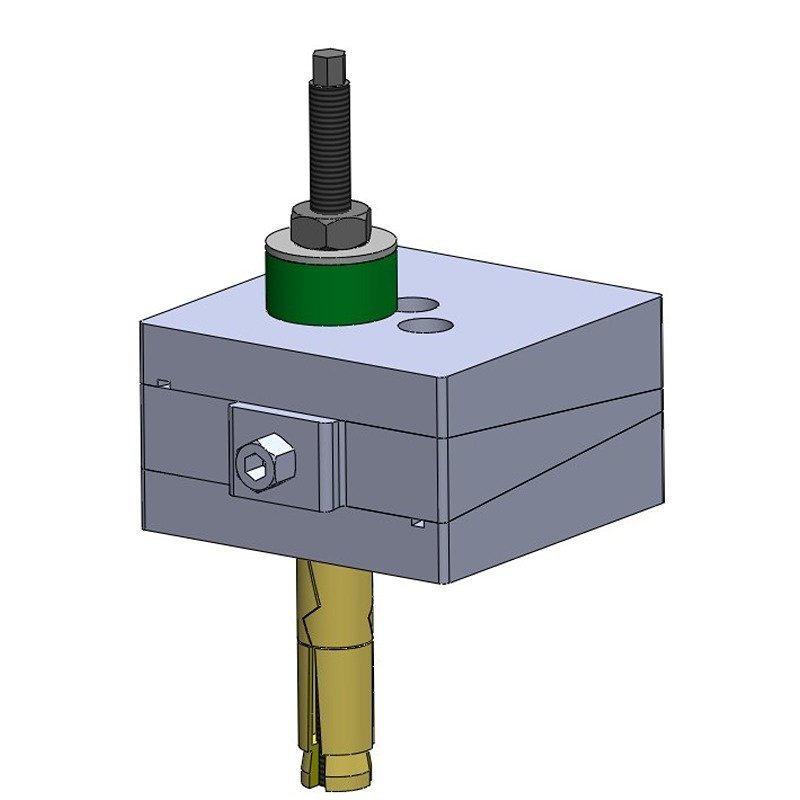

DTP-100
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DTP-u-100
Product
DTP-u-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-u-100-18T-FG-DG | 900 | 100 | 100 | 100 | +3/-3 | Du | 15 | 19 | 10 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-u-100-22T-FG-DG | 1100 | 115 | 115 | 100 | +4/-4 | Du | 15 | 19 | 10 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-u-100-22T-FG-DG | 1800 | 150 | 150 | 100 | +5/-5 | Du | 15 | 22 | 12 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-u-100-28T-FG-DG | 3200 | 200 | 200 | 100 | +6/-6 | Du | 15 | 22 | 12 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-u-100-28T-FG-DG | 4000 | 200 | 250 | 100 | +9/-9 | Du | 15 | 27 | 14 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-u-100-28T-FG-DG | 6400 | 250 | 320 | 100 | +9/-9 | Du | 15 | 32 | 18 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-u-100-30T-FG-DG | 9600 | 300 | 400 | 100 | +10/-10 | Du | 15 | 32 | 18 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-u-100-32T-FG-DG | 16000 | 400 | 500 | 100 | +10/-10 | Du | 15 | 39 | 22 | 0.9 | 18 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

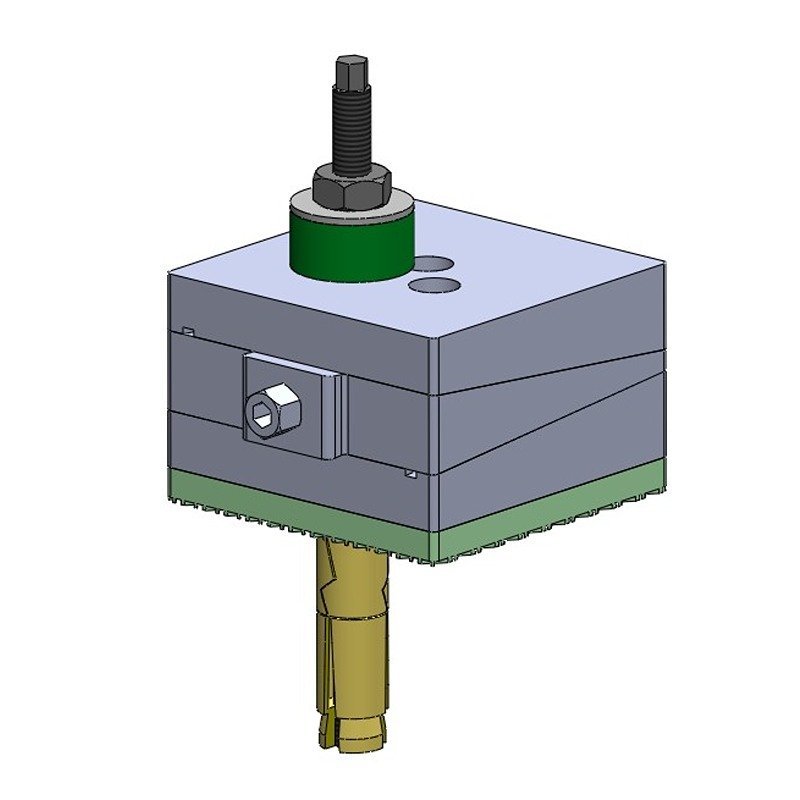

DTP-u-10-100
Product
DTP-u-10-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-u-10-95-18T-FG-DG | 900 | 100 | 100 | 95 | +3/-3 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-u-10-95-22T-FG-DG | 1100 | 115 | 115 | 95 | +4/-4 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-u-10-95-22T-FG-DG | 1800 | 150 | 150 | 95 | +5/-5 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-u-10-95-28T-FG-DG | 3200 | 200 | 200 | 95 | +6/-6 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-u-10-95-28T-FG-DG | 4000 | 200 | 250 | 95 | +9/-9 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-u-10-95-28T-FG-DG | 6400 | 250 | 320 | 95 | +9/-9 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-u-10-95-30T-FG-DG | 9600 | 300 | 400 | 95 | +10/-10 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-u-10-95-32T-FG-DG | 16000 | 400 | 500 | 95 | +10/-10 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-u-12-100
Product
DTP-u-12-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-u-12-97-18T-FG-DG | 900 | 100 | 100 | 97 | +3/-3 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-u-12-97-22T-FG-DG | 1100 | 115 | 115 | 97 | +4/-4 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-u-12-97-22T-FG-DG | 1800 | 150 | 150 | 97 | +5/-5 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-u-12-97-28T-FG-DG | 3200 | 200 | 200 | 97 | +6/-6 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-u-12-97-28T-FG-DG | 4000 | 200 | 250 | 97 | +9/-9 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-u-12-97-28T-FG-DG | 6400 | 250 | 320 | 97 | +9/-9 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-u-12-97-30T-FG-DG | 9600 | 300 | 400 | 97 | +10/-10 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-u-12-97-32T-FG-DG | 16000 | 400 | 500 | 97 | +10/-10 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-m-100
Product
DTP-m-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-m-100-18T-FG-DG | 1000 | 100 | 100 | 100 | +3/-3 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-m-100-22T-FG-DG | 1400 | 115 | 115 | 100 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-m-100-22T-FG-DG | 2200 | 150 | 150 | 100 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-m-100-28T-FG-DG | 4000 | 200 | 200 | 100 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-m-100-28T-FG-DG | 5000 | 200 | 250 | 100 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-m-100-28T-FG-DG | 8000 | 250 | 320 | 100 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-m-100-30T-FG-DG | 12000 | 300 | 400 | 100 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-m-100-32T-FG-DG | 20000 | 400 | 500 | 100 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

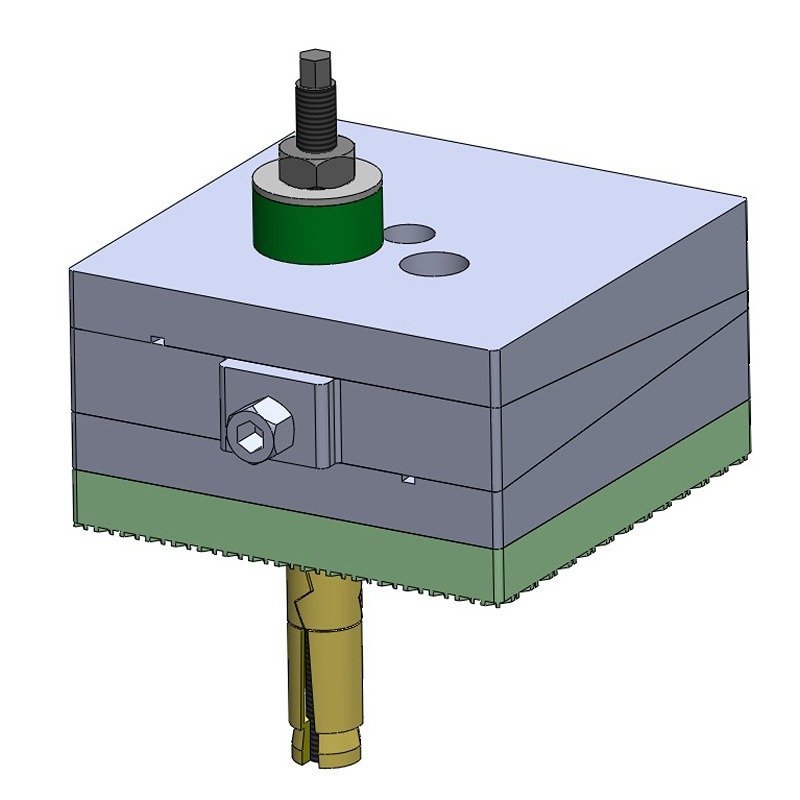

DTP-i-100
Product
DTP-i-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-i-110-18T-FG-DG | 1400 | 100 | 100 | 110 | +3/-3 | Di | 25 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-i-110-22T-FG-DG | 1800 | 115 | 115 | 110 | +4/-4 | Di | 25 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-i-110-22T-FG-DG | 2900 | 150 | 150 | 110 | +5/-5 | Di | 25 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-i-110-28T-FG-DG | 5200 | 200 | 200 | 110 | +6/-6 | Di | 25 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-i-110-28T-FG-DG | 6500 | 200 | 250 | 110 | +9/-9 | Di | 25 | 27 | 14 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-i-110-28T-FG-DG | 10000 | 250 | 320 | 110 | +9/-9 | Di | 25 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-i-110-30T-FG-DG | 15000 | 300 | 400 | 110 | +10/-10 | Di | 25 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-i-110-32T-FG-DG | 26000 | 400 | 500 | 110 | +10/-10 | Di | 25 | 39 | 22 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-p1-100
Product
DTP-p1-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-p1-100-18T-FG-DG | 400 | 100 | 100 | 100 | +3/-3 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-p1-100-22T-FG-DG | 530 | 115 | 115 | 100 | +4/-4 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-p1-100-22T-FG-DG | 900 | 150 | 150 | 100 | +5/-5 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-p1-100-28T-FG-DG | 1600 | 200 | 200 | 100 | +6/-6 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-p1-100-28T-FG-DG | 2000 | 200 | 250 | 100 | +9/-9 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-p1-100-28T-FG-DG | 3200 | 250 | 320 | 100 | +9/-9 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-p1-100-30T-FG-DG | 4800 | 300 | 400 | 100 | +10/-10 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-p1-100-32T-FG-DG | 8000 | 400 | 500 | 100 | +10/-10 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-p2-100
Product
DTP-p2-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-p2-105-18T-FG-DG | 500 | 100 | 100 | 105 | +3/-3 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-p2-105-22T-FG-DG | 660 | 115 | 115 | 105 | +4/-4 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-p2-105-22T-FG-DG | 1120 | 150 | 150 | 105 | +5/-5 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-p2-105-28T-FG-DG | 2000 | 200 | 200 | 105 | +6/-6 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-p2-105-28T-FG-DG | 2500 | 200 | 250 | 105 | +9/-9 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-p2-105-28T-FG-DG | 4000 | 250 | 320 | 105 | +9/-9 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-p2-105-30T-FG-DG | 6000 | 300 | 400 | 105 | +10/-10 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-p2-105-32T-FG-DG | 10000 | 400 | 500 | 105 | +10/-10 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

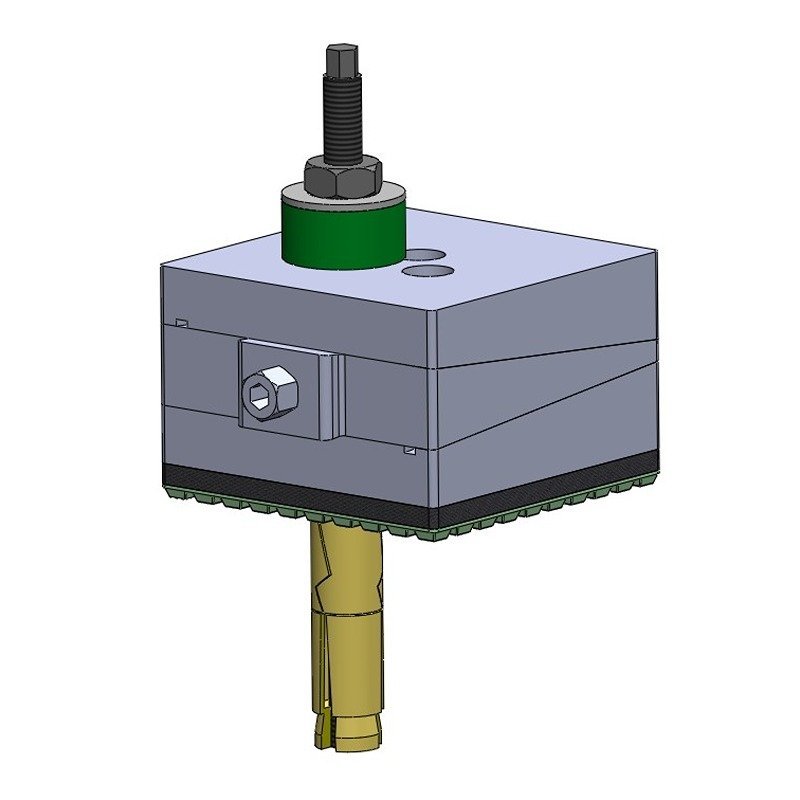

DTP-p3-100
Product
DTP-p3-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-p3-109-18T-FG-DG | 600 | 100 | 100 | 109 | +3/-3 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-p3-109-22T-FG-DG | 790 | 115 | 115 | 109 | +4/-4 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-p3-109-22T-FG-DG | 1350 | 150 | 150 | 109 | +5/-5 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-p3-109-28T-FG-DG | 2400 | 200 | 200 | 109 | +6/-6 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-p3-109-28T-FG-DG | 3000 | 200 | 250 | 109 | +9/-9 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-p3-109-28T-FG-DG | 4800 | 250 | 320 | 109 | +9/-9 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-p3-109-30T-FG-DG | 7200 | 300 | 400 | 109 | +10/-10 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-p3-109-32T-FG-DG | 12000 | 400 | 500 | 109 | +10/-10 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-s1-100
Product
DTP-s1-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-s1-105-18T-FG-DG | 500 | 100 | 100 | 105 | +3/-3 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-s1-105-22T-FG-DG | 600 | 115 | 115 | 105 | +4/-4 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-s1-105-22T-FG-DG | 1000 | 150 | 150 | 105 | +5/-5 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-s1-105-28T-FG-DG | 1800 | 200 | 200 | 105 | +6/-6 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-s1-105-28T-FG-DG | 2200 | 200 | 250 | 105 | +9/-9 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-s1-105-28T-FG-DG | 3500 | 250 | 320 | 105 | +9/-9 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-s1-105-30T-FG-DG | 5200 | 300 | 400 | 105 | +10/-10 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-s1-105-32T-FG-DG | 9500 | 400 | 500 | 105 | +10/-10 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

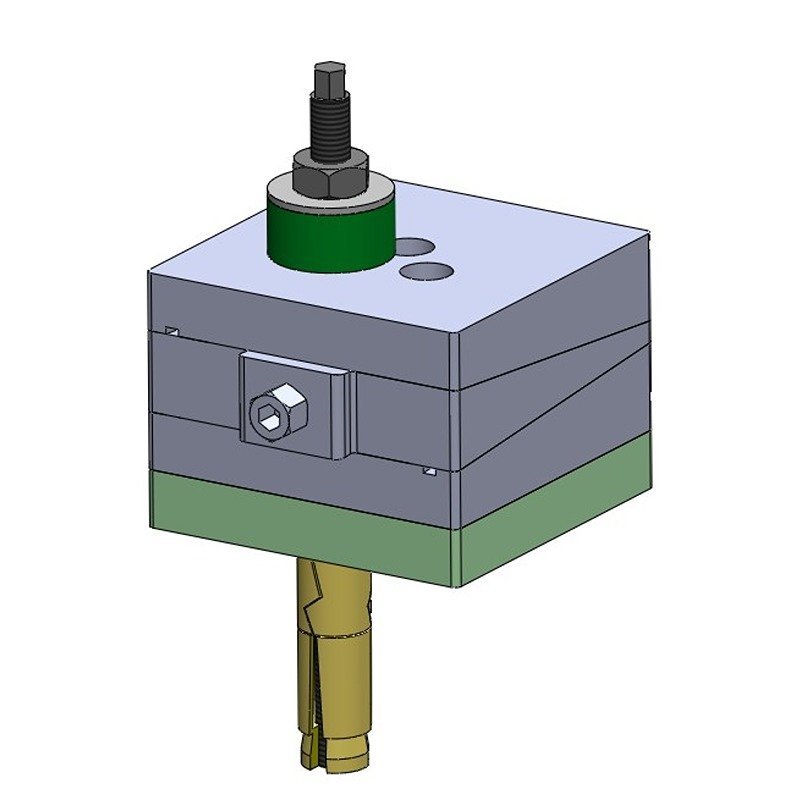

DTP-s2-100
Product
DTP-s2-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-s2-110-18T-FG-DG | 800 | 100 | 100 | 110 | +3/-3 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-s2-110-22T-FG-DG | 950 | 115 | 115 | 110 | +4/-4 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-s2-110-22T-FG-DG | 1600 | 150 | 150 | 110 | +5/-5 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-s2-110-28T-FG-DG | 2800 | 200 | 200 | 110 | +6/-6 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-s2-110-28T-FG-DG | 3500 | 200 | 250 | 110 | +9/-9 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-s2-110-28T-FG-DG | 5500 | 250 | 320 | 110 | +9/-9 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-s2-110-30T-FG-DG | 8500 | 300 | 400 | 110 | +10/-10 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-s2-110-32T-FG-DG | 14000 | 400 | 500 | 110 | +10/-10 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

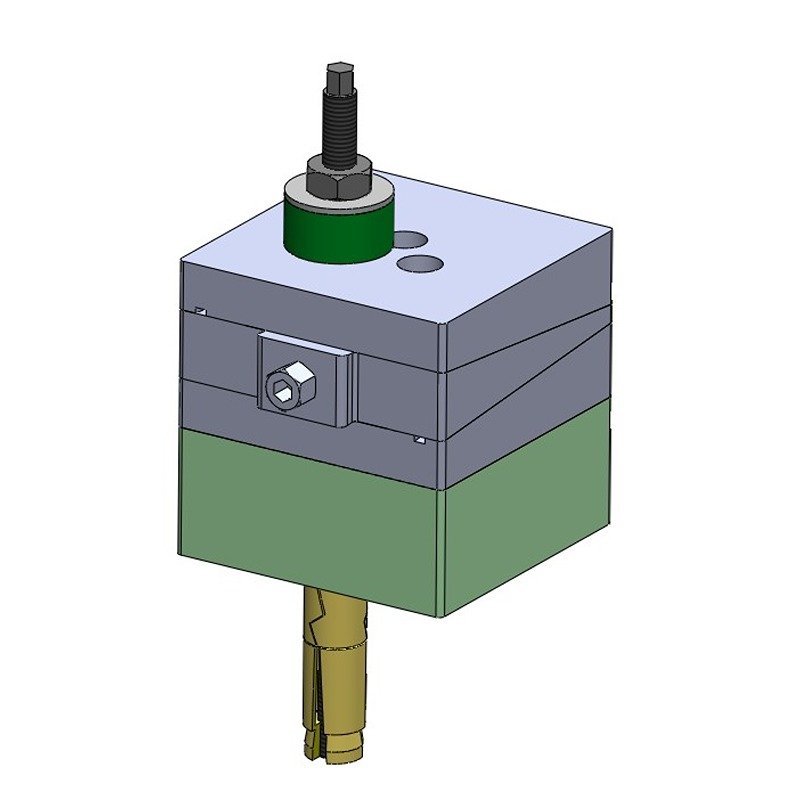

DTP-hs1-100
Product
DTP-hs1-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-hs1-150-18T-FG-DG | 2000 | 100 | 100 | 150 | +3/-3 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-hs1-150-22T-FG-DG | 2640 | 115 | 115 | 150 | +4/-4 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-hs1-150-22T-FG-DG | 4500 | 150 | 150 | 150 | +5/-5 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-hs1-150-28T-FG-DG | 8000 | 200 | 200 | 150 | +6/-6 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-hs1-150-28T-FG-DG | 10000 | 200 | 250 | 150 | +9/-9 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-hs1-150-28T-FG-DG | 16000 | 250 | 320 | 150 | +9/-9 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-hs1-150-30T-FG-DG | 24000 | 300 | 400 | 150 | +10/-10 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-hs1-150-32T-FG-DG | 40000 | 400 | 500 | 150 | +10/-10 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-hs2-100
Product
DTP-hs2-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-hs2-150-18T-FG-DG | 800 | 100 | 100 | 150 | +3/-3 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-hs2-150-22T-FG-DG | 1060 | 115 | 115 | 150 | +4/-4 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-hs2-150-22T-FG-DG | 1800 | 150 | 150 | 150 | +5/-5 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-hs2-150-28T-FG-DG | 3200 | 200 | 200 | 150 | +6/-6 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-hs2-150-28T-FG-DG | 4000 | 200 | 250 | 150 | +9/-9 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-hs2-150-28T-FG-DG | 6400 | 250 | 320 | 150 | +9/-9 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-hs2-150-30T-FG-DG | 9600 | 300 | 400 | 150 | +10/-10 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-hs2-150-32T-FG-DG | 16000 | 400 | 500 | 150 | +10/-10 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

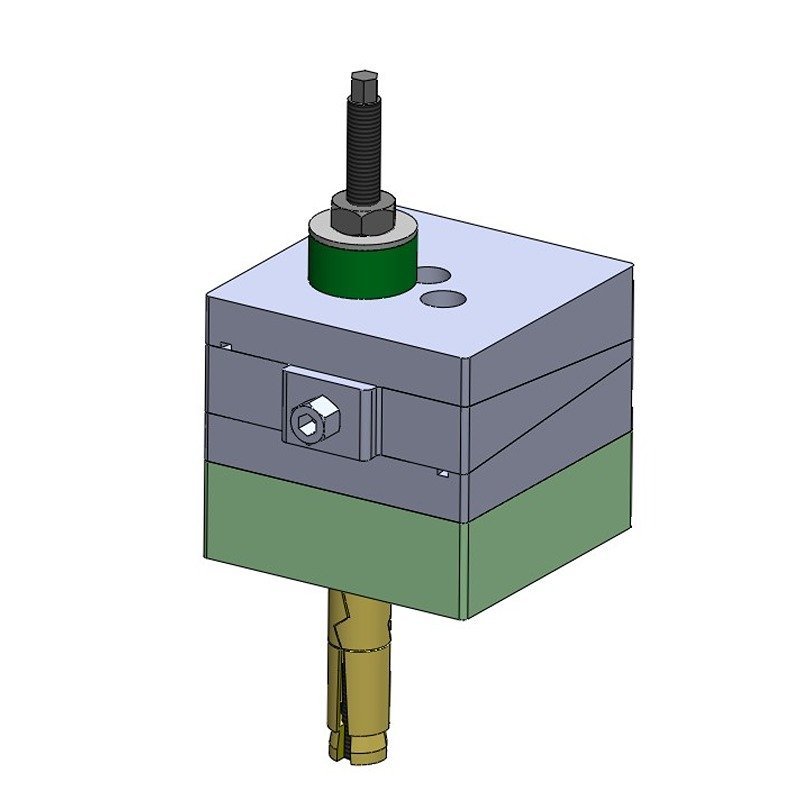

DTP-hs3-100
Product
DTP-hs3-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-hs3-135-18T-FG-DG | 2800 | 100 | 100 | 135 | +3/-3 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-hs3-135-22T-FG-DG | 3700 | 115 | 115 | 135 | +4/-4 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-hs3-135-22T-FG-DG | 6300 | 150 | 150 | 135 | +5/-5 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-hs3-135-28T-FG-DG | 11200 | 200 | 200 | 135 | +6/-6 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-hs3-135-28T-FG-DG | 14000 | 200 | 250 | 135 | +9/-9 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-hs3-135-28T-FG-DG | 22400 | 250 | 320 | 135 | +9/-9 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-hs3-135-30T-FG-DG | 33600 | 300 | 400 | 135 | +10/-10 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-hs3-135-32T-FG-DG | 56000 | 400 | 500 | 135 | +10/-10 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP-hs4-100
Product
DTP-hs4-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-hs4-135-18T-FG-DG | 1200 | 100 | 100 | 135 | +3/-3 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-hs4-135-22T-FG-DG | 1580 | 115 | 115 | 135 | +4/-4 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-hs4-135-22T-FG-DG | 2700 | 150 | 150 | 135 | +5/-5 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-hs4-135-28T-FG-DG | 4800 | 200 | 200 | 135 | +6/-6 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-hs4-135-28T-FG-DG | 6000 | 200 | 250 | 135 | +9/-9 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-hs4-135-28T-FG-DG | 9600 | 250 | 320 | 135 | +9/-9 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-hs4-135-30T-FG-DG | 14400 | 300 | 400 | 135 | +10/-10 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-hs4-135-32T-FG-DG | 24000 | 400 | 500 | 135 | +10/-10 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

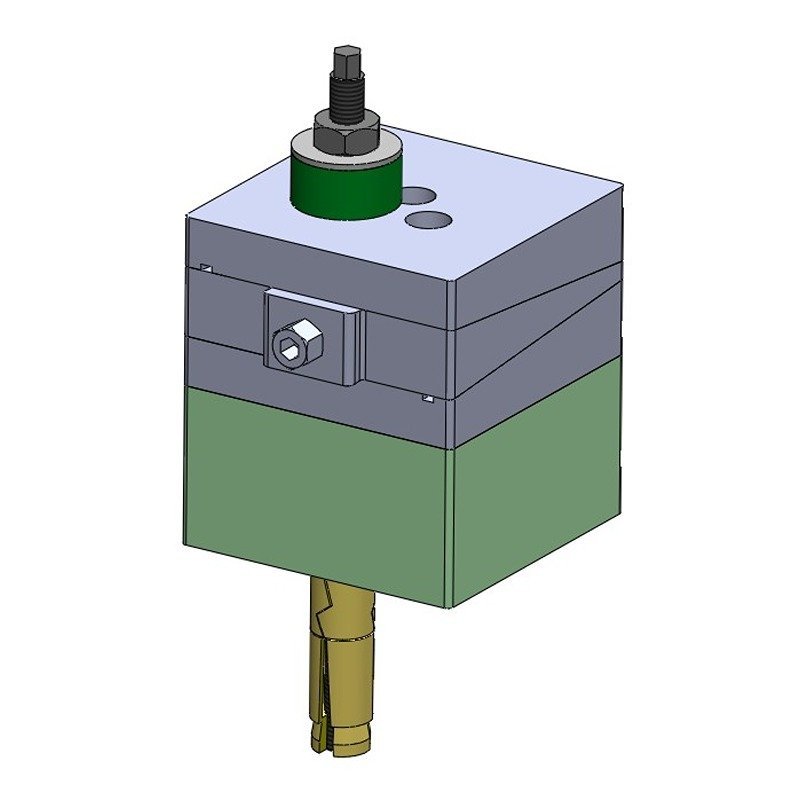

DTP-hs5-100
Product
DTP-hs5-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-hs5-165-18T-FG-DG | 2800 | 100 | 100 | 165 | +3/-3 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-hs5-165-22T-FG-DG | 3700 | 115 | 115 | 165 | +4/-4 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-hs5-165-22T-FG-DG | 6300 | 150 | 150 | 165 | +5/-5 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-hs5-165-28T-FG-DG | 11200 | 200 | 200 | 165 | +6/-6 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-hs5-165-28T-FG-DG | 14000 | 200 | 250 | 165 | +9/-9 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-hs5-165-28T-FG-DG | 22400 | 250 | 320 | 165 | +9/-9 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-hs5-165-30T-FG-DG | 33600 | 300 | 400 | 165 | +10/-10 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-hs5-165-32T-FG-DG | 56000 | 400 | 500 | 165 | +10/-10 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

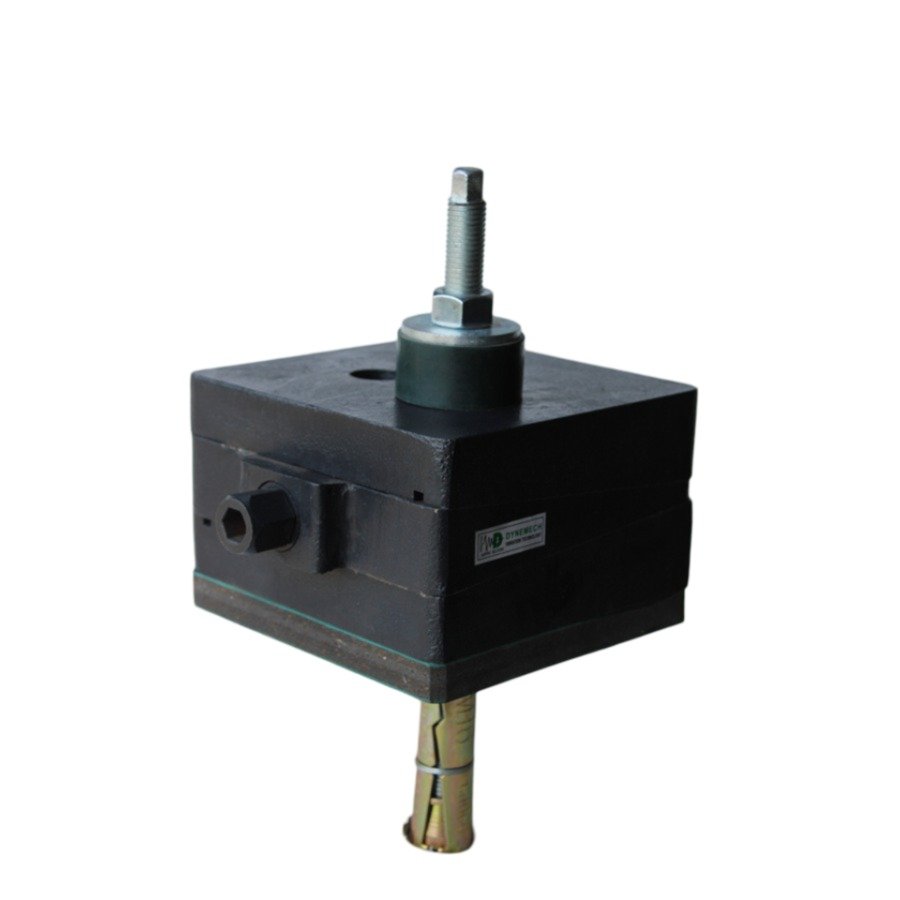

DTP-h-100
Product
DTP-h-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-h-100-18T-FG-DG | 3000 | 100 | 100 | 100 | +3/-3 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-h-100-22T-FG-DG | 3970 | 115 | 115 | 100 | +4/-4 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-h-100-22T-FG-DG | 6750 | 150 | 150 | 100 | +5/-5 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-h-100-28T-FG-DG | 12000 | 200 | 200 | 100 | +6/-6 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-h-100-28T-FG-DG | 15000 | 200 | 250 | 100 | +9/-9 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-h-100-28T-FG-DG | 24000 | 250 | 320 | 100 | +9/-9 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-h-100-30T-FG-DG | 36000 | 300 | 400 | 100 | +10/-10 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-h-100-32T-FG-DG | 60000 | 400 | 500 | 100 | +10/-10 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

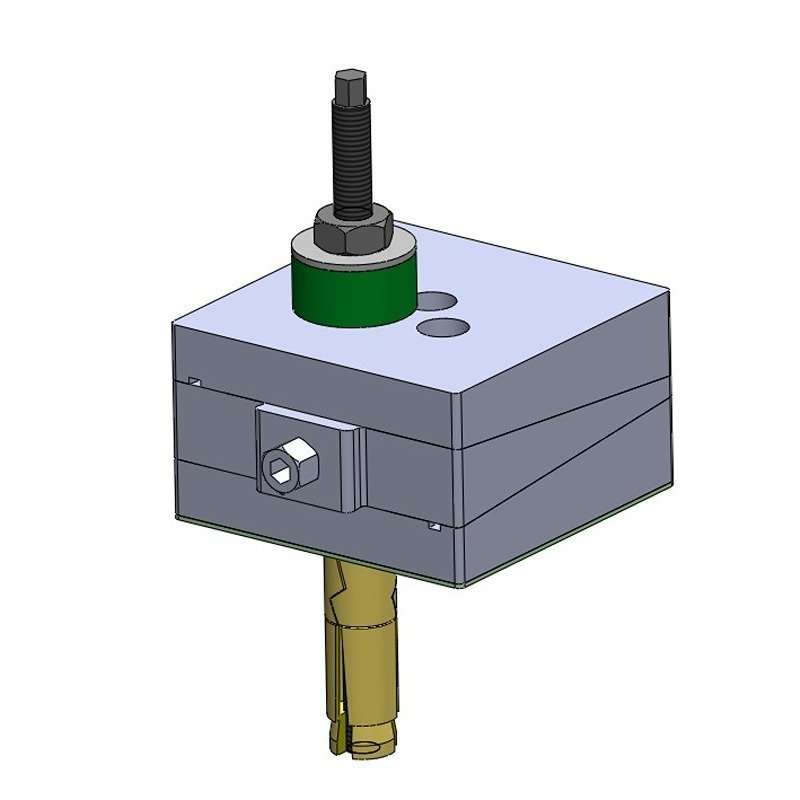

DTP-a1-100
Product
DTP-a1-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-a1-87-18T-FG-DG | 1800 | 100 | 100 | 87 | +3/-3 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-a1-87-22T-FG-DG | 2300 | 115 | 115 | 87 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-a1-87-22T-FG-DG | 4000 | 150 | 150 | 87 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-a1-87-28T-FG-DG | 7200 | 200 | 200 | 87 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-a1-87-28T-FG-DG | 9000 | 200 | 250 | 87 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-a1-87-28T-FG-DG | 14400 | 250 | 320 | 87 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-a1-87-30T-FG-DG | 21600 | 300 | 400 | 87 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-a1-87-32T-FG-DG | 36000 | 400 | 500 | 87 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |

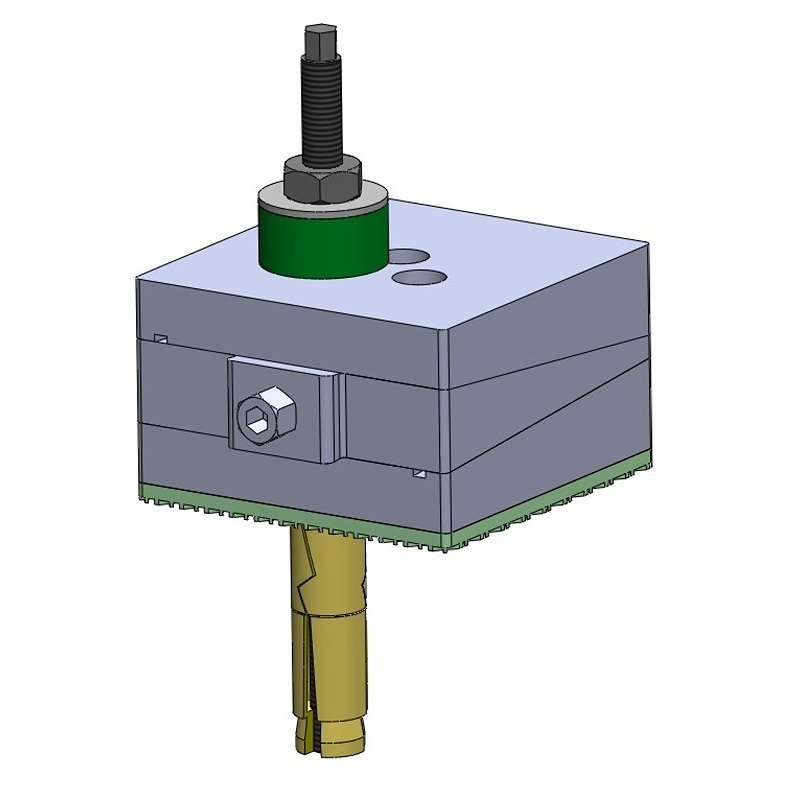

DTP-a2-100
Product
DTP-a2-100
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-a2-93-18T-FG-DG | 1000 | 100 | 100 | 93 | +3/-3 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-a2-93-22T-FG-DG | 1300 | 115 | 115 | 93 | +4/-4 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-a2-93-22T-FG-DG | 2250 | 150 | 150 | 93 | +5/-5 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-a2-93-28T-FG-DG | 4000 | 200 | 200 | 93 | +6/-6 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-a2-93-28T-FG-DG | 5000 | 200 | 250 | 93 | +9/-9 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-a2-93-28T-FG-DG | 8000 | 250 | 320 | 93 | +9/-9 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-a2-93-30T-FG-DG | 12000 | 300 | 400 | 93 | +10/-10 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-a2-93-32T-FG-DG | 20000 | 400 | 500 | 93 | +10/-10 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -15 to 80 | Dark Grey/Green | 200 | 70 | 32 |
DTP
Product
DTP
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore G (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTP0-85-18T-FG-DG | 2600 | 100 | 100 | 85 | +3/-3 | X | X | 19 | 10 | X | X | From -15 to 80 | Dark Grey/Green | 42 | 23 | 18 |
| DTP1-85-22T-FG-DG | 3600 | 115 | 115 | 85 | +4/-4 | X | X | 19 | 10 | X | X | From -15 to 80 | Dark Grey/Green | 50 | 24 | 22 |
| DTP2-85-22T-FG-DG | 5800 | 150 | 150 | 85 | +5/-5 | X | X | 22 | 12 | X | X | From -15 to 80 | Dark Grey/Green | 60 | 23 | 22 |
| DTP3-85-28T-FG-DG | 10400 | 200 | 200 | 85 | +6/-6 | X | X | 22 | 12 | X | X | From -15 to 80 | Dark Grey/Green | 75 | 27 | 28 |
| DTP4-85-28T-FG-DG | 13000 | 200 | 250 | 85 | +9/-9 | X | X | 27 | 14 | X | X | From -15 to 80 | Dark Grey/Green | 95 | 27 | 28 |
| DTP5-85-28T-FG-DG | 20000 | 250 | 320 | 85 | +9/-9 | X | X | 32 | 18 | X | X | From -15 to 80 | Dark Grey/Green | 125 | 55 | 28 |
| DTP6-85-30T-FG-DG | 30000 | 300 | 400 | 85 | +10/-10 | X | X | 32 | 18 | X | X | From -15 to 80 | Dark Grey/Green | 148 | 50 | 30 |
| DTP7-85-32T-FG-DG | 52000 | 400 | 500 | 85 | +10/-10 | X | X | 39 | 22 | X | X | From -15 to 80 | Dark Grey/Green | 160 | 70 | 32 |
